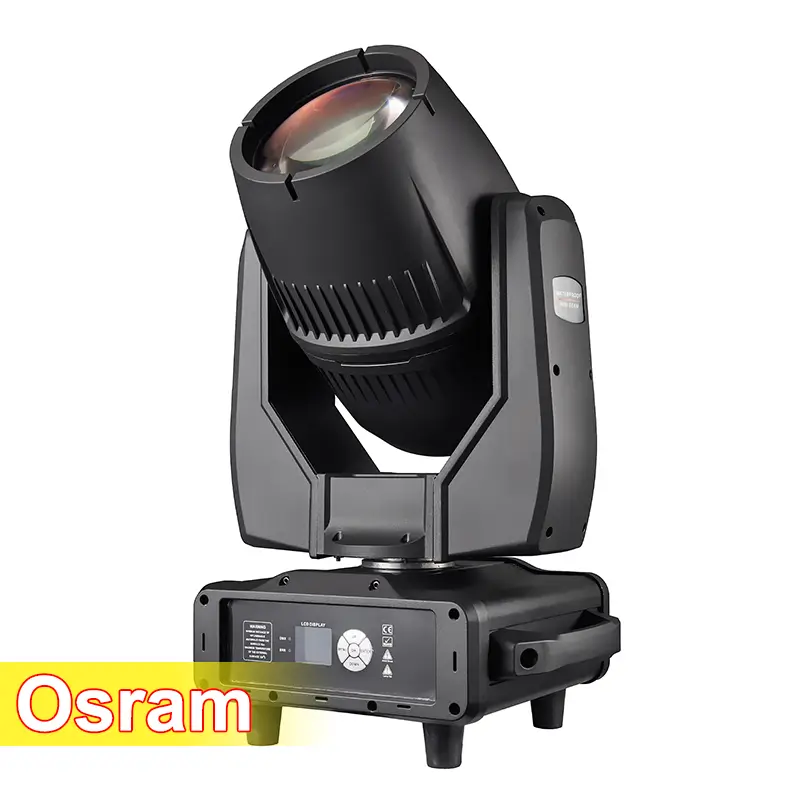

Moving head light
Focus on quality and service to have a better Igracelite moving head light

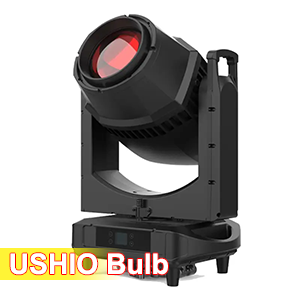

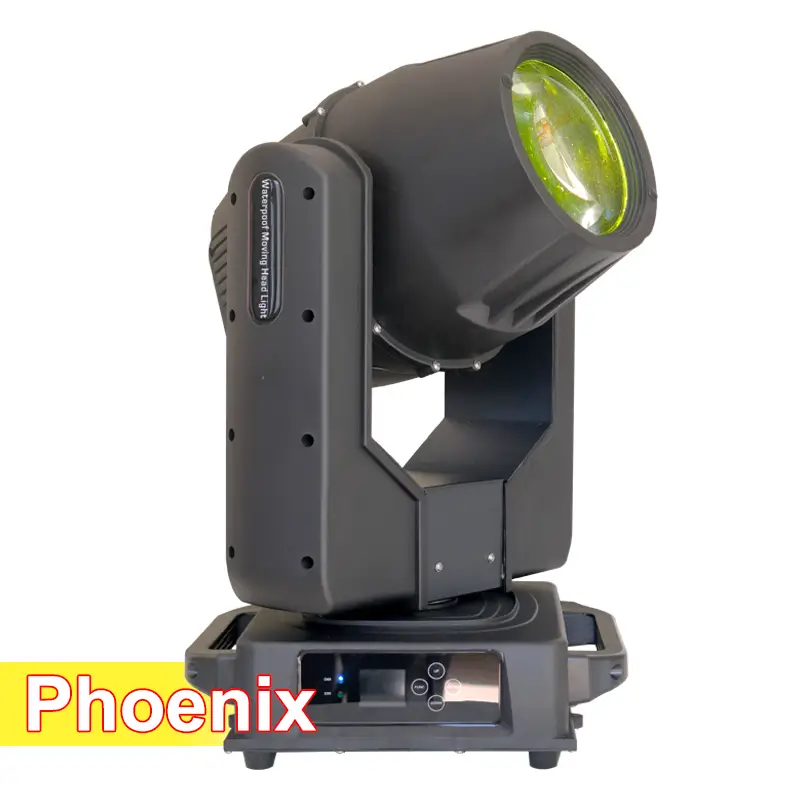

Igracelite waterproof moving head light used in 2022 Qatar World Cup
Grace Stage Lighting can meet your various stage effects, including beam moving head light, gobo moving head light, moving head wash light, and 3in1 BSW moving head light. We can join RDM and CMY systems as you'd like.
Book your moving head light
What makes you firmly choose Grace Stage Lighting
Professional
Our experience in the stage lighting industry from 2009 has made us more professional stage lights, and we have continuously launched more excellent products to meet the needs of different industries.
Factory price
All Igracelite stage lights are produced by ourselves, and there is no intermediary's price difference. Our quality will be better for the same price products in the market. Most products are cheaper but of better quality.
High-quality materials
Our goal is to use high-quality raw materials to prolong product service life, reduce customer maintenance costs, and let all customers have a comfortable shopping experience.
Multi-brand OEM
Grace Stage Lighting has a professional stage design team; it can design the most suitable solution for customers according to their requirements.
High-quality service
Whether pre-sales or after-sales, material procurement or assembly workers, we have been a tacit cooperation and professional team for over ten years.
Private customization
Grace Stage Lighting can be customized according to customer requirements: appearance, internal structure, motherboard program, etc.
Customized Service
Grace stage lighting responds promptly to customers who propose lighting innovation ideas and provides customers with professional advice, solutions, and integrated services, including design and research.
● Consultation: welcome OEM ODM product consultation.
● 3D printing: 3D printer will print satisfactory designs and samples.
● Drawings and Designs: Preliminary design drawings will be provided after further technical discussions.
● Assembled and tested: other materials and supporting spare parts will be specially assembled and tested.
● Production and Shipping: If the printed sample is satisfactory, an actual example will be produced and shipped.
● Discussion: Discuss specifications and requirements, such as power, color, pattern, function, LED light source, brightness, size, target price, and other special needs.
Simple analysis of possible reasons for the failure of the moving head light:
No response when turned on
- Is the power supply normal and the power cord of the lamp detached?
- Is the fuse of the lamp burnt out?
- Is the power supply inside the lamp lit and is there an output voltage?
No light bulb when turned on
- First determine the quality of the bulb and check whether the bulb is loose;
- Determine whether the moving head light is set to: manual light bulb.
After the lamp is turned on for a period of time, the lamp automatically resets
- The output voltage of the switching power supply is unstable;
- There is loose wiring in the circuit or the wire is not pressed tightly, resulting in poor contact, resulting in automatic reset.
The moving head light bulb automatically goes out
- The bulb goes out and automatically lights up again after a while. Check whether the cooling system is working properly. If the cooling system fails, the temperature inside the lamp body will be too high, and the temperature control switch will automatically jump off, thereby ensuring the safe use of the lamp. When the electronic lighting is turned off, the lamp will automatically light up when the temperature of the lamp body drops;
- After the bulb goes out, it cannot automatically light up: the problem of the bulb itself, the surface of the bulb is white, the inside is black, and the bulb will go out after a period of time (the life of the bulb ends);
- The moving head light will also have automatic protection when there is no control signal for a long time, and it will automatically light up after the signal is connected.
The pattern plate, color plate, prism, focus, and magnification are stuck, jitter, and out of step
- The jamming is generally caused by mechanical reasons (except CMY color film). When a CMY color film is broken and falls off, it affects the normal operation of other color films. At this time, the color film will be stuck. For example, the pattern plate and color plate are deformed, the screws of the fixing parts are loose and fall off, and the compression spring of the fixed pattern pops out, which will cause the jamming;
- Jitter and out of step: the screws are loose or fall off, the chip of its channel on the mainboard is burned out, the motor line is poorly contacted, the skin is broken and short-circuited to the ground; or it is a problem with the motor itself.
Horizontal and vertical (X/Y axis) out of step, not positioned
- Too much dust on the optical coupler, resulting in the inability to control the infrared light in place;
- The optical coupler board is damaged, and the distance between the optical coupler disk and the optical coupler is improperly adjusted (when troubleshooting, the optical coupler disk should be in the middle of the optical coupler disk, and there should be no scratching, bumping, or rubbing).
The above are some common fault cause analysis. In fact, to reduce the occurrence of faults, routine maintenance is essential. Here are a few points to note for daily maintenance:
- For optical components, use a vacuum cleaner, blow air bags or directly use an air compressor air spray gun to blow away the dust; for some that cannot be blown away, use odorless tissue paper or cotton cloth soaked in clean water to wipe off the granular matter, use cotton cloth soaked in ethylene propylene alcohol or odorless paper to remove smoke and residues, use distilled water for the final cleaning, and then wipe dry with a soft cotton cloth;
- For parts with coated color sheets, pattern sheets and optical lenses, do not use destructive solvents to clean them because the coating surface is very brittle and easily scratched;
- Replace the air filter cotton regularly to keep it in the best ventilation state and enhance the heat dissipation of the lamp;
- Computer lights should be handled with care to avoid collisions and falls;
- Be careful not to use them in places with a lot of wind, sand and dust;
- The power supply voltage should be stable to extend the service life of the moving head lamp;
- After the performance, use the console to extinguish the bubbles, and the lamp will not be cut off from the power supply, and let it continue to work for a while (let the fan in the moving head lamp continue to work to reduce the temperature inside the lamp);
- After the performance, the moving head lamp should be placed in a special aviation box to prevent moisture and shock. Fixed moving head lamps should be protected from dust and impact.
