waterproof moving head(GP-H380)

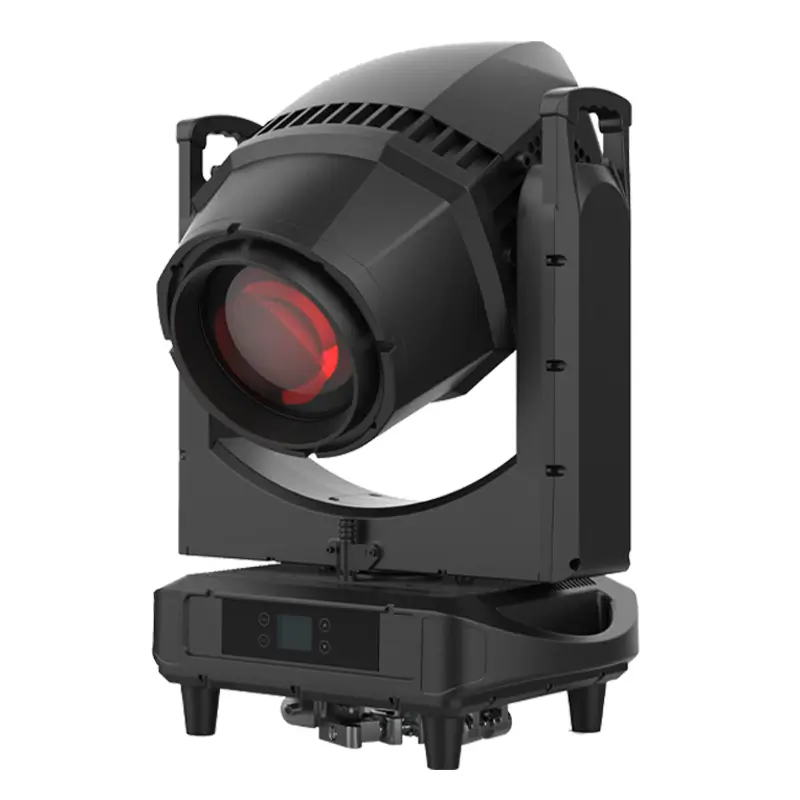

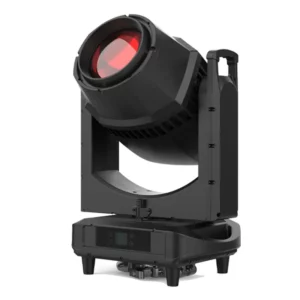

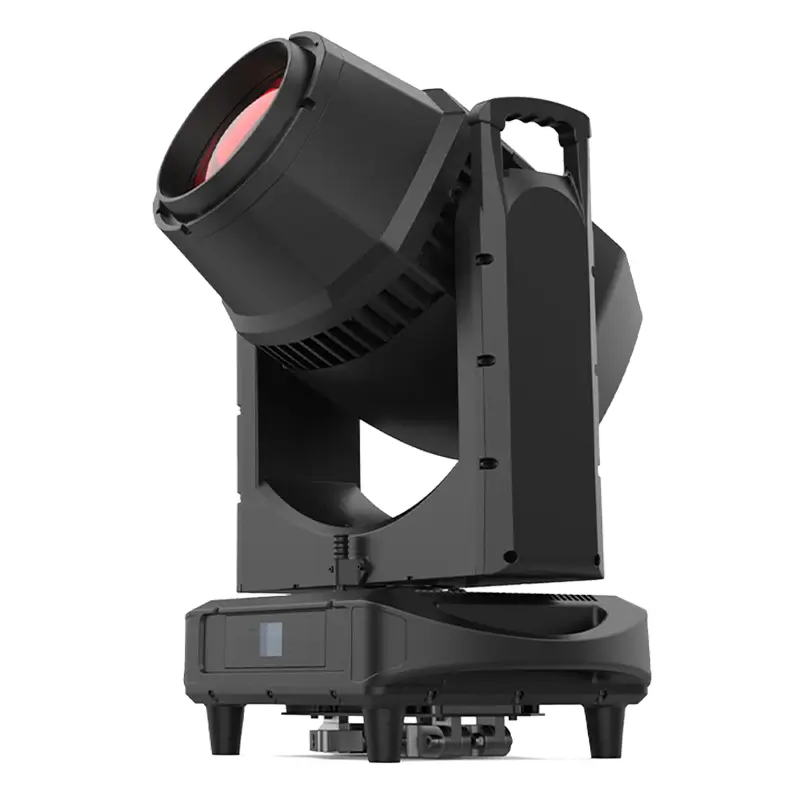

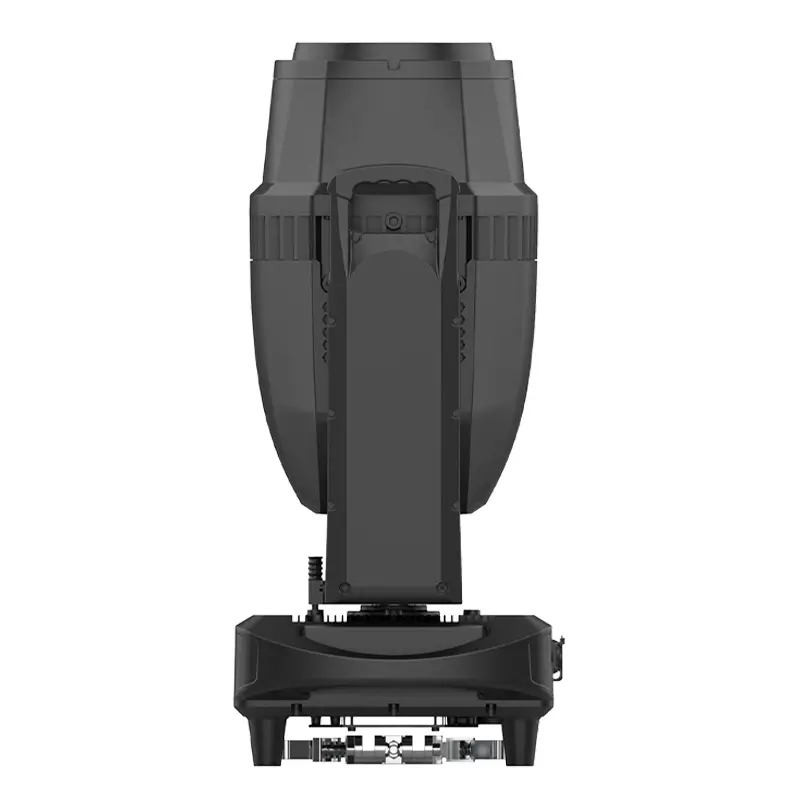

The 380W Waterproof Moving Head seamlessly integrates into any stage setup, providing vibrant and dynamic lighting. Its waterproof feature ensures durability and reliability, even in outdoor or challenging environments. With Grace Stage Lighting's commitment to quality and a one-year warranty, this moving head light stands as a testament to our dedication to excellence in stage lighting solutions.

A leader in stage illumination with 14 years of experience. This robust and reliable fixture is not just waterproof but also offers a high-powered version with 480W for those seeking extra intensity in their lighting designs.

AT A GLANCE

  • All-Weather, Die-Cast Waterproof Design: The Waterproof Moving Head features a fully die-cast shell (including the head, arm, and base) made from national standard die-cast aluminum, showcasing high-end, premium international quality.
  • Easy Maintenance: Maintenance is convenient, requiring the removal of only four screws for easy replacement.
  • Ergonomic Arm Handle: The die-cast arm handle facilitates easy lifting of the light fixture, ensuring protection and safety during installation. This reflects intelligent and human-centric design.
  • Intelligent Humidity and Temperature Display: Equipped with smart humidity and temperature indicators, it provides over-standard humidity alerts. Dual ventilation valves are designed for air pressure compensation, effectively extending the bulb's lifespan.
  • Large Diameter Optical Lens: The front group lens features a large diameter of 190mm, enhancing the fullness and sharpness of the light beam.
  • Efficient Heat Dissipation: The Waterproof Moving Head is designed for efficient heat dissipation through the head, arm, and base, ensuring a long lifespan of the bulb and the radiator. It effectively filters oil adhesion in enclosed spaces, preventing bulb explosions.
  • Modular Design: The light's design, from production to assembly, facilitates rational part replacement.
  • Unique Quick-release Rotating Folding Lamp Hook: The base includes a unique, quick-release rotating folding lamp hook, significantly improving installation and adjustment efficiency.
  • Intelligent Gyroscope Sensing: The light fixture intelligently senses its position and adjusts the fan speed accordingly, significantly extending the bulb's lifespan.
  • High Optical and Structural Standards: The Waterproof Moving Head meets high industry standards in optics, structure, and appearance. It features high-brightness light sources, advanced optical technology, and meticulous industrial design, ensuring perfect lighting design execution.
  • Unique Patents:
  • Waterproof moving head with a filtration structure to prevent impurities from adhering to and exploding the bulb.
  • A split wind heat dissipation structure to prevent light source explosions, ensuring efficient cooling and extending the light source's lifespan.
  • A locking mechanism to prevent fixture collisions, enhancing the safety of the XY axis.
  • A patented quick-release rotating folding lamp hook, improving installation and adjustment efficiency.

Specification

  • Voltage: AC100~240v, 50/60Hz
  • Source: USHIO/OSRAM SIRIUS HRI 380W (480W option available)
  • Power Consumption: 600W
  • Color Temperature: 7600K
  • Lifespan: 2000H
  • Prism: 8 facet+16 facet
  • Display: 2.8 inch LCD (English/Chinese menu)
  • Other Specifications: IP66, RDM compatible, intelligent fan noise control
  • Pan Movement: 540° (16 bit, optional)
  • Tilt Movement: 270° (16 bit)
  • Color Wheels: 13 colors + white
  • Gobos: 17 fixed gobo+open
  • DMX Channels: 16CH/21CH
  • Beam Angle: 1.5°-2°
  • Software Features: Remote reset DMX, sound control
  • Dimensions: 18.3x12.8x29.3 inches
  • Weight: 81.6 lbs

DOWNLOADS

VIDEO

Frequently Asked Questions

What makes the 380W Waterproof Moving Head ideal for outdoor events?

The 380W Waterproof Moving Head is designed with an IP66 rating, making it highly resistant to various weather conditions, including rain and humidity. This makes it exceptionally suitable for outdoor events where weather can be unpredictable. Its robust build ensures consistent performance, regardless of the external environment.

How does the 480W version of the waterproof moving head differ from the 380W model?

The 480W version of our waterproof moving head offers higher light intensity compared to the 380W model, providing a brighter and more powerful lighting experience. This makes it suitable for larger venues or outdoor spaces that require more extensive illumination. Both models maintain the same quality features, including color and gobo options, as well as movement capabilities.

Can the 380W Waterproof Moving Head be used for indoor events?

Absolutely. While it's designed to be waterproof and ideal for outdoor use, its versatility and range of features, such as extensive color options, dynamic movement, and gobo effects, make it a perfect choice for indoor events like concerts, conferences, and theatrical productions.

What are the unique lighting effects available with the 380W Waterproof Moving Head?

This lighting fixture offers a variety of effects including a color wheel with 13 colors plus white, 17 fixed gobos with a shaking effect, a rainbow wheel, and dual prism facets for intricate light patterns. These features allow for creative and dynamic lighting designs, enhancing any event or performance.

How user-friendly is the 380W Waterproof Moving Head for those new to stage lighting?

Grace Stage Lighting has designed this fixture with a focus on user-friendliness. It features an intuitive 2.8-inch LCD display with an English/Chinese menu, easy-to-navigate software for DMX control, and remote reset options. Even for those new to stage lighting, setting up and operating the light is straightforward.

What support does Grace Stage Lighting offer for the 380W Waterproof Moving Head?

Grace Stage Lighting provides a one-year warranty and access to a professional consulting team with over 14 years of experience in stage lighting. We offer expert advice and support to ensure you make the most of your lighting setup, whether you’re a seasoned professional or new to the field.
