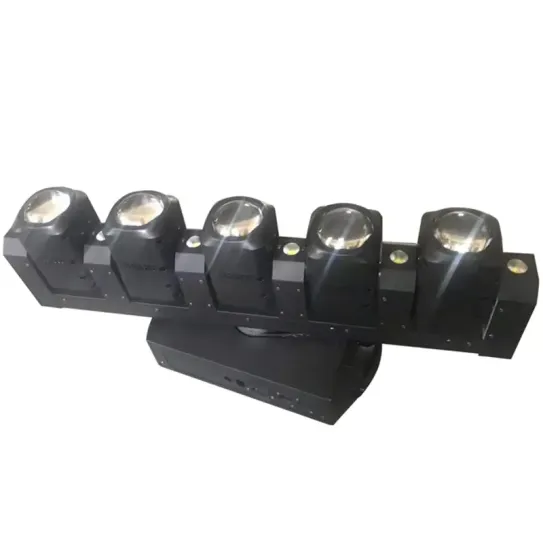

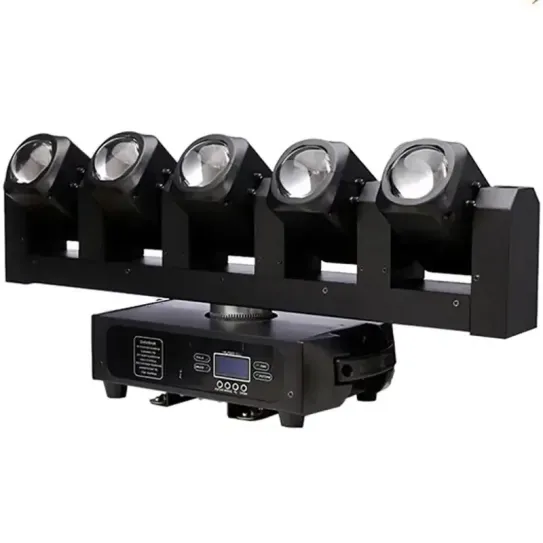

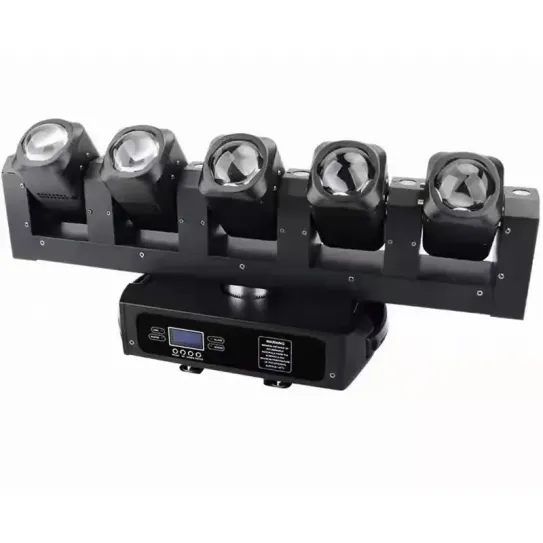

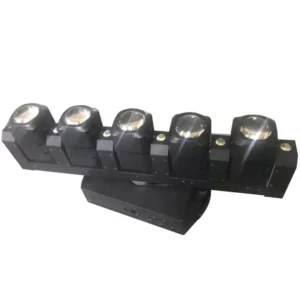

pixel 5x40w movinghead beam (GL-B540X)

Are you ready to take your stage lighting to the next level? Look no further than the Pixel 5x40W movinghead beam

. This innovative lighting fixture is designed to create stunning visual effects, mesmerizing your audience and transforming any event into an unforgettable experience


  • Illuminate with Versatility: The Pixel 5x40W movinghead beam boasts a wide operating voltage range of 90-245VAC, suitable for various power systems worldwide. With a power consumption of 300 Watts, this movinghead beam delivers an impressive punch of light, ensuring your stage is bathed in vibrant hues and captivating beams.
  • Dazzling Brightness: Experience the brilliance of the Pixel 5x40W movinghead beam as it illuminates your stage with a luminous intensity of 9000 Lux at 1 meter (full white). Its powerful output ensures your performers or objects are brilliantly highlighted, capturing the attention of every onlooker.
  • Flexible Control Options: Whether you're a lighting professional or a beginner, the Pixel 5x40W movinghead beam provides versatile control options to suit your needs. With 4 or 8 DMX channels available, you can easily integrate this fixture into your existing lighting setup. The 3-pin XLR connectors (male and female) ensure reliable DMX signal transmission.
  • User-Friendly Interface: Navigating through the various settings and functions of the Pixel 5x40W movinghead beam is a breeze, thanks to its LED 4-button control panel. This intuitive interface allows you to effortlessly adjust parameters, select operating modes, and create stunning lighting effects with ease.
  • Dynamic Lighting Modes: The Pixel 5x40W movinghead beam offers multiple operating modes, including Standalone, Master/Slave, Sound Active, and Color Preset. This versatility allows you to adapt the lighting to different performance styles and event requirements, whether it's a high-energy dance routine or a serene theatrical performance.
  • Captivating Strobe Effects: Get ready to mesmerize your audience with high-speed and adjustable strobe effects. The Pixel 5x40W movinghead beam features a built-in strobe function with a macro feature, enabling you to create dazzling flashes of light at varying speeds, adding an extra layer of excitement to your show.
  • Wide Range of Applications: With its exceptional performance and versatility, the Pixel 5x40W movinghead beam is suitable for a range of applications. From stages and churches to nightclubs, entertainment halls, discos, hotels, and shops, this movinghead beam elevates the atmosphere and creates captivating visual displays in any setting.
  • Reliable and Backed by Warranty: We understand the importance of investing in reliable lighting equipment. That's why the Pixel 5x40W movinghead beam comes with a 1-year limited warranty. Rest assured that you are covered, knowing that this product is built to last. Please note that the warranty does not cover malfunctions caused by damage to the LEDs.
  • Compact and Easy to Install: Measuring at 670mm x 180mm x 300mm (LxWxH) and weighing just 9.7 KG (N.W.), the Pixel 5x40W movinghead beam is compact and lightweight, making it ideal for touring productions and installations with limited space. Its portable design allows for hassle-free transportation and quick setup.
  • Unleash your creativity and elevate your stage lighting with the Pixel 5x40W movinghead beam. With its remarkable features, versatility, and stunning visual effects, this lighting fixture is a must-have for any lighting professional or enthusiast. Transform your events into captivating experiences that leave a lasting impression on your audience.


  • Operating Voltage: 90-245VAC, 50-60Hz
  • Light Source: 5pcs * 40W RGBW 4IN1 LED
  • Luminous Intensity: 9000 Lux @ 1m (full white)
  • DMX Connectors: 3-pin XLR Male, 3-pin XLR Female
  • Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
  • Weight: N.W: 21.38 lbs, G.W: 24.25 lbs
  • Power: 300 Watts
  • Color: RGBW (Red, Green, Blue, White) standard color system
  • DMX Channels: 4 or 8 Channels
  • Control Panel: LED 4-button control panel
  • Strobe: High-speed and adjustable speed, strobe with macro function
  • Application: Stages, churches, nightclubs, entertainment halls, discos, hotels, shopsWarranty: 1-year limited warranty, does not cover malfunction caused by damage to LEDsSize (LxWxH): 26.38 inches x 7.09 inches x 11.81 inches

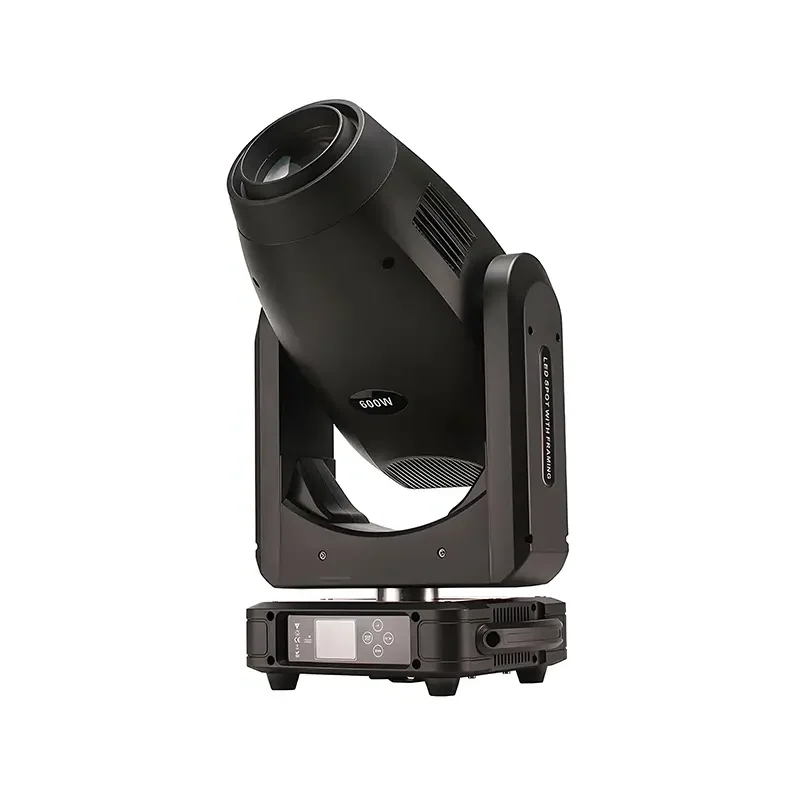

600W LED moving head profile

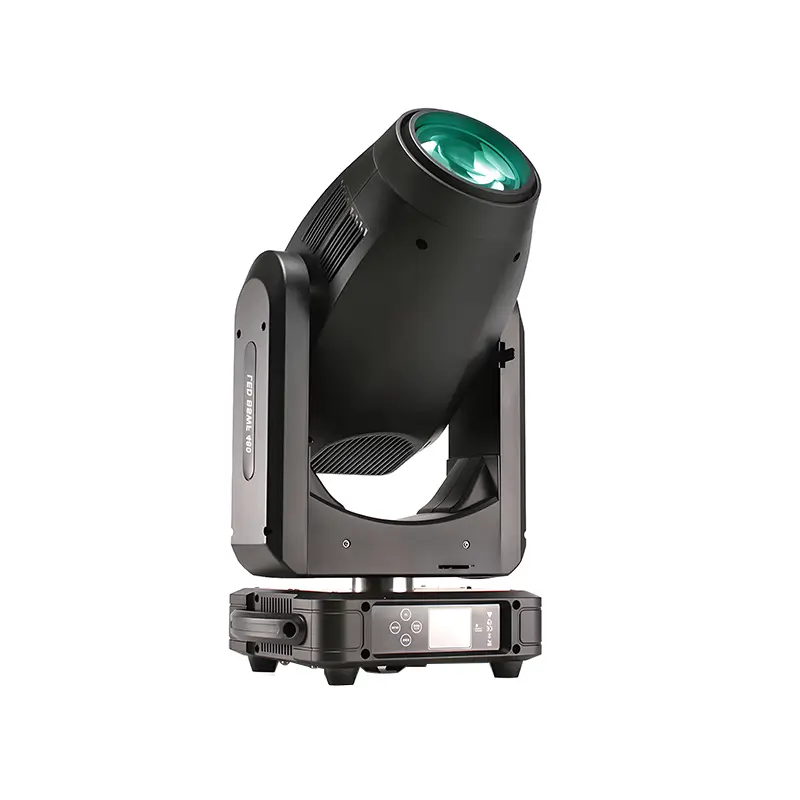

460W LED moving head

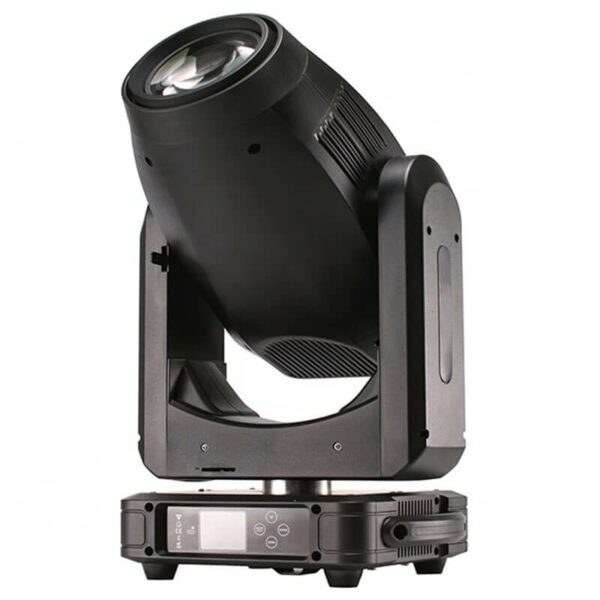

480W CMY CTO Led Moving Head Light GL-P480 (1)
480W LED moving head

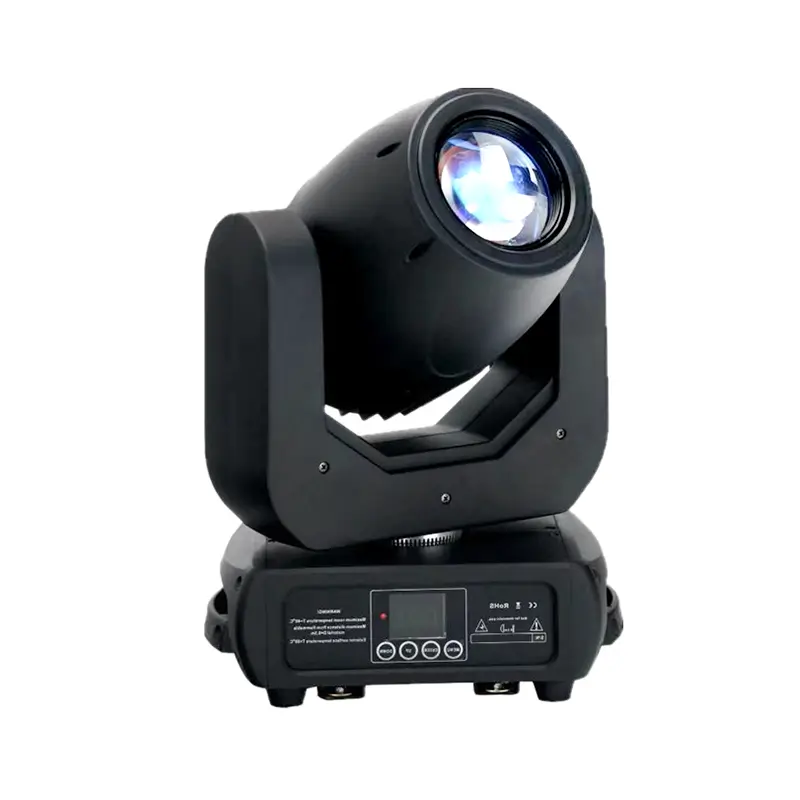

150W LED moving head
