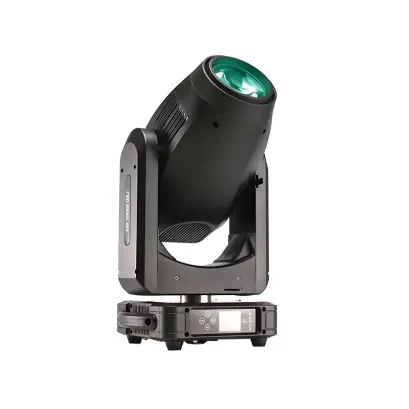

460w LED moving head(GL-L460W)

460W White LED | Beam/Spot/Wash | CMY + CTO | Motorized Zoom 7°–42° | RDM | IP33 | 12,500 lm | CRI≥90

Luminous flux: 12,500 – 22,500 lm (depending on configuration)
Color temperature: 7000K native, CTO adjustable 2700K–6500K
Color wheel: 7 dichroic colors + white (rainbow effect, half-color)
Rotating gobos: 7 interchangeable glass gobos + white (bi-directional rotation, shake, indexing)
Static gobos: 9–12 static gobos + white
Frost: Linear frost for wash transitions
Pan/Tilt: 540° / 270° (16-bit, auto position correction)
Housing: High-temp resistant metal + engineering plastic

AT A GLANCE

SPECIFICATIONS

Control channel modes: 26/35 channels Other Specification Input signal isolation Optional installed wireless receiver Optional ArtNET control RDM compatible.
Zoom: 6°- 42° linear zoom.
Display: LCD display with battery operated for fast addressing 15 second standby auto lock.
Advanced motion system: auto repositioning,fast, quiet and smooth.
protocol: DMX 512, RDM, Artnet.
pan movement: 540°/630 ° optional (16bit).
life time: ≥50,000 Hours.

Color wheel: 7 dichroic filters +open Gobos.
Rotating prism: 5-facet prism 3 color wheel, and with CMY infinite color mixing 5-100% electronic Iris.
Animation wheel: special dynamic flame or water effect.
Upgrades: fast and convenient using uploaded over DMX Remote reset DMX address, fixture reset, sound control by DMX Run time of LED engine and fixture.
Power consumption: 550W.
CTO: 2700K/6500K.
Tilt movement: 270° (16bit).

What Makes It Work

True 3-in-1 design – beam mode for aerial effects, spot mode for gobo projection, wash mode for color fills, all with frost and zoom
CMY + CTO color control – unlimited color mixing plus precise color temperature matching from warm tungsten to cool daylight
Wide zoom range 7°–42° – tight beam for long throws, wide wash for stage coverage, smooth transition between
Rotating glass gobos + prism – sharp pattern projection with prism multiplication effects
RDM support – remote addressing and configuration without climbing to the fixture
IP33 rating – splash-resistant enough for outdoor stages and humid environments
Broadcast-ready – CRI ≥90, flicker-free dimming for video capture
