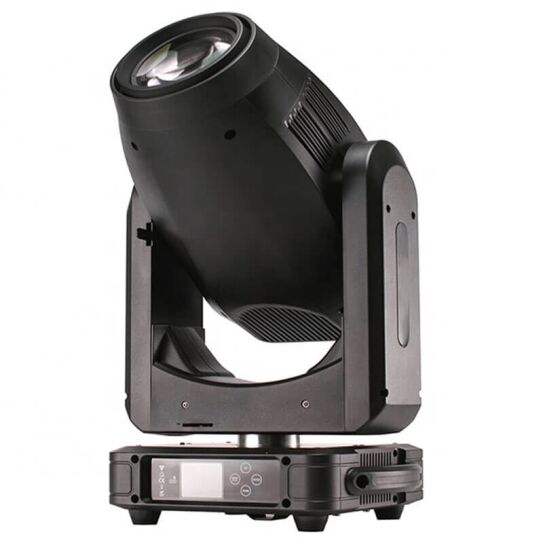

480W CMY CTO Led Moving Head Light GL-P480 (1)

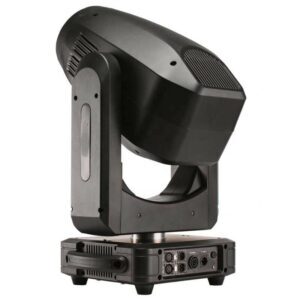

480W CMY CTO Led Moving Head Light GL-P480 (2)

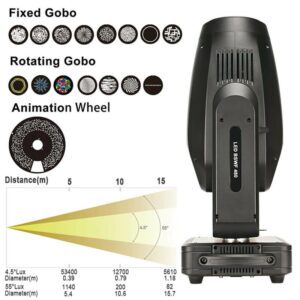

480W CMY CTO Led Moving Head Light GL-P480 (3)

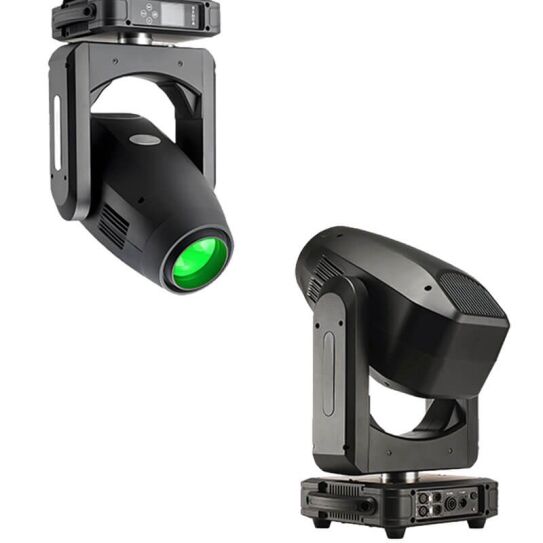

480W CMY CTO Led Moving Head Light GL-P480 (5)

480W CMY CTO Led Moving Head Light GL-P480 (4)

480W CMY CTO Led Moving Head Light(GL-L480)

480W White LED | CMY + CTO Linear Color Mixing | 4.5°–55° Motorized Zoom | 7+8+7 Gobo System | 5-Facet Prism | RDM | CRI≥74

Luminous flux: 14,500 lm
Color temperature: 8000K native / 6500K (adjustable via CTO 2700K–6500K)
Zoom range: 4.5° – 55° motorized linear zoom
CTO linear adjustment – 2700K–6500K (warm tungsten to cool daylight)
Color wheel: 7 dichroic filters + open (rainbow effect, half-color)

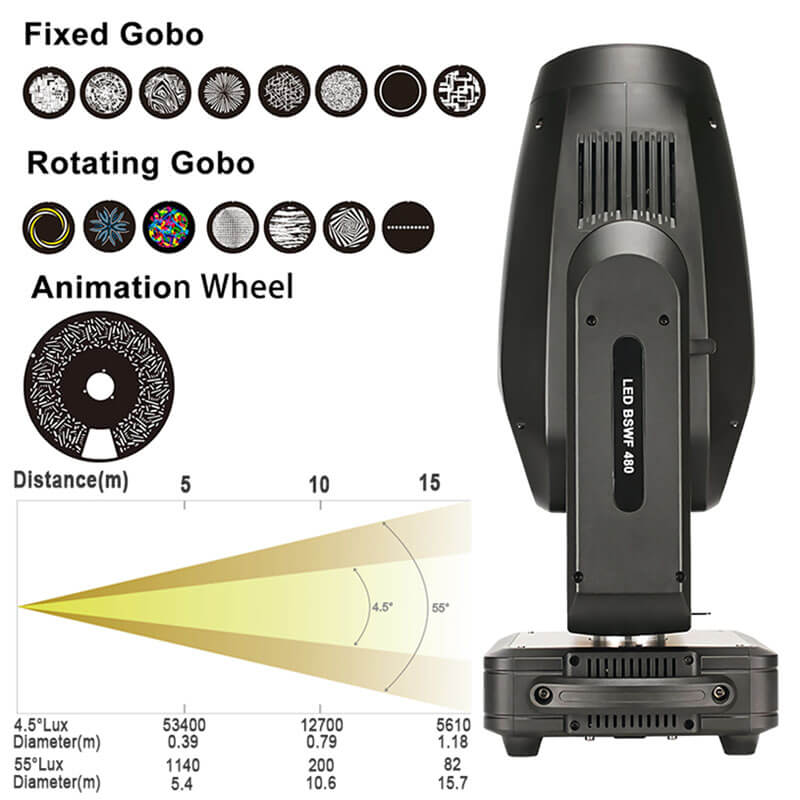

Rotating gobo wheel: 7 interchangeable glass gobos + open (indexable, bi-directional rotation, shake)
Static gobo wheel: 8 gobos + open (shake effect)
Rotating prism: 5-facet prism (bi-directional rotation)
Animation wheel: Special dynamic effects (e.g., flame, water)
Framing system: Full-field travel with ±45° rotation
Frost: 0–100% linear adjustment
Iris: 5–100% electronic iris
Focus: Motorized

RELATED PRODUCTS

AT A GLANCE

High-Performance Optics: Equipped with a 480W White LED lamp, this moving head light offers a bright and intense light output. The Color Temperature (CT) can be adjusted between 8000K and 6500K, ensuring versatile lighting options for various applications. With a long lifespan of 20,000 hours and a CRI of ≥74, it provides reliable and high-quality lighting.
Flexible Color Mixing: The CMY color mixing system allows seamless color transitions and precise control over a wide range of hues. The CTO linear feature enables fine-tuning of color temperature from 2700K to 6500K, providing warm and cool lighting effects.
Dynamic Gobos and Effects: The rotating gobo wheel with interchangeable patterns and the static gobo wheel with a variety of designs offer endless creative possibilities. The rotating prism with a 5-facet design adds mesmerizing effects to the light projection. The motorized focus, electronic shutter, and adjustable dimming and frost features further enhance the versatility of the lighting effects.
Advanced Motion System: The moving head light features smooth and precise pan and tilt movements. With a pan movement range of 540°/630° (optional) and tilt movement range of 270°, it allows for dynamic and accurate positioning of the light beam. The advanced motion system ensures fast, quiet, and smooth operation.
User-Friendly Control and Display: The LCD display with battery operation enables quick and convenient addressing and parameter adjustments. The fixture also includes useful functions like standby auto lock, pan/tilt disengage, and input signal isolation, making it easy to operate and customize.

Specification

Lamp: 480W White LED
Life: 20,000 hours
Max Power Consumption: 550W (Power Factor ≥0.98)
Pan Movement: 540°/630° (optional) (16-bit resolution)
Colors: CMY color mixing, CTO linear,
Color Temperature: 2700K~6500K
Rotating Gobo Wheel: 7 interchangeable gobos + open
Zoom: 4.5°-55° linear zoom
Focus: motorized focus
Dimming: 0-100% linear dimming
Animation Wheel: special dynamic effects (e.g., flame or water)
Display: LCD display with battery operation

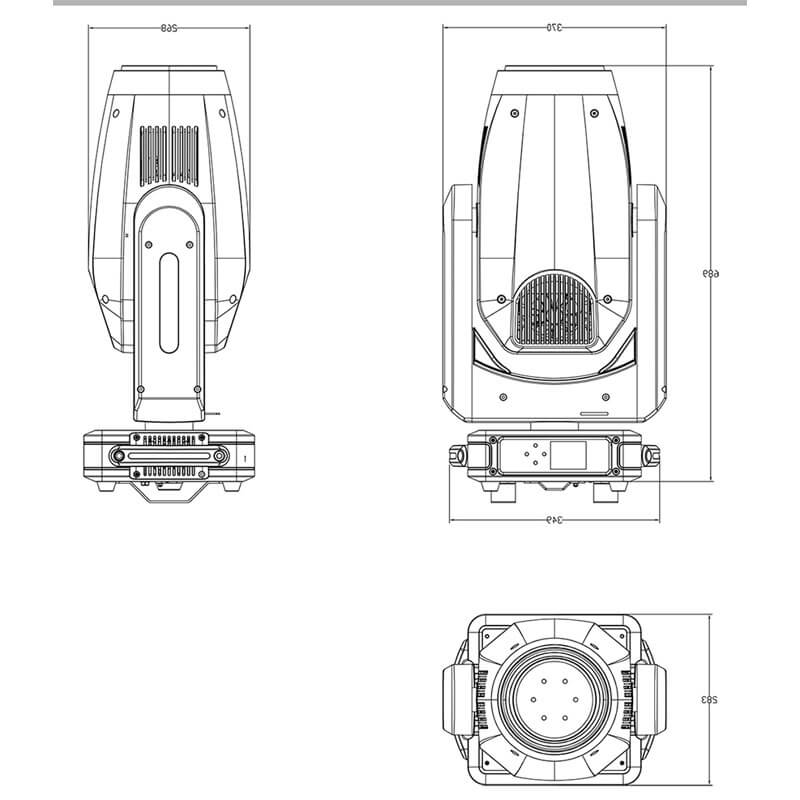

Dimensions: 11.42" x 15.16" x 28.35" (inches)
Packing Size: 32.68" x 17.72" x 14.57" (inches)

CT: 8000K/6500K
CRI: ≥74
Power Supply: Electronic auto-ranging (Input voltage range: 100–240V, 50-60Hz)
Tilt Movement: 270° (16-bit resolution)
Color Wheel: 7 dichroic filters + open
Static Gobo Wheel: 8 gobos + open
Rotating Prism: 5-facet prism
Shutter: electronic, variable from 1-25Hz or random
Frost: 0-100% linear adjustment
Framing System: full-field travel with rotation of ±45°
Control Channel Modes: 34/54 channels
Weight: 66.14 lbs (pounds)
Net Weight: 66.14 lbs (pounds）

DOWNLOADS

480W CMY CTO Led Moving Head Light(GL-L480) reference guide downloads
