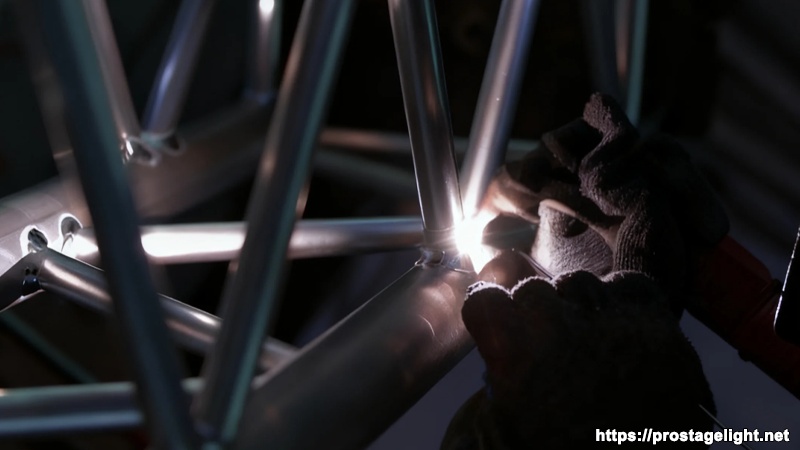

What is a Lighting Truss?

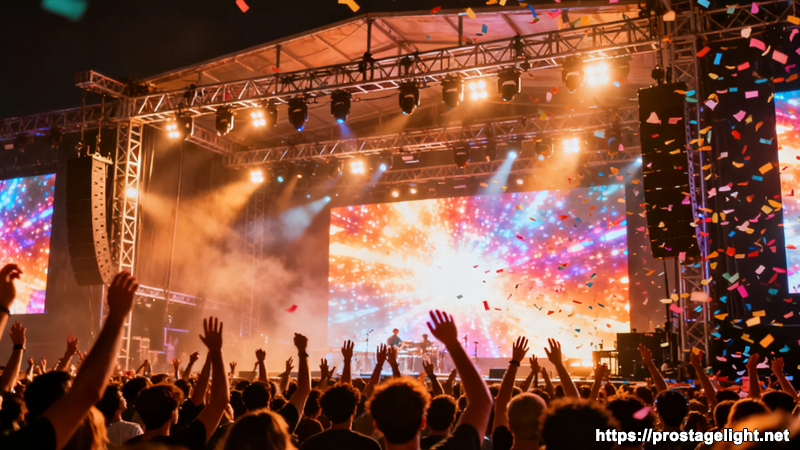

Lighting truss or stage truss is a structural framework used to support and position lighting equipment, such as stage lights, or other fixtures, in various settings like concerts, theaters, events, and film productions. It is typically made of aluminum or steel, making it lightweight yet strong enough to hold heavy equipment.
Common Types of Lighting Trusses:
Lighting trusses/stage trusses are essential in creating professional lighting designs and ensuring equipment is securely mounted and positioned; Grace Stage Lighting can provide aluminum lighting truss or stage truss.
How much weight can stage truss hold?
The weight a lighting truss can bear depends on several factors: the type of truss, the material of the truss, and the design and installation method of the truss; the most common types are steel truss and aluminum truss.
Here are the data on the weight of aluminum truss:

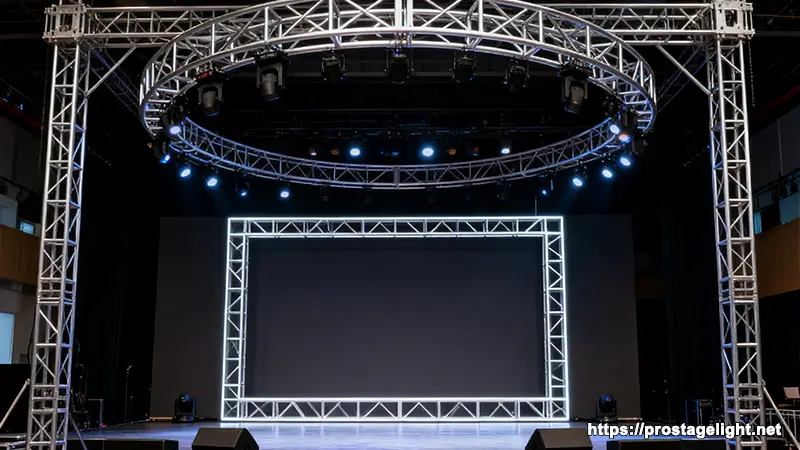

Screw-type Square Truss:
Dimensions(W*H): | Main Tube: | Vice Tube: | Brace: | Length: | Distributed Load(kg/lb): |
---|---|---|---|---|---|
200×200mm | Φ32×2mm | Φ16×2mm | Φ12×2mm | 19.685ft(6m) | 337/742.95 |
200×200mm | Φ32×2mm | Φ16×2mm | Φ12×2mm | 26.246ft(8m) | 245/540.13 |
200×200mm | Φ32×2mm | Φ16×2mm | Φ12×2mm | 29.527ft(9m) | 190/418.87 |
200×200mm | Φ32×2mm | Φ16×2mm | Φ12×2mm | 32.80ft(10m) | 150/330.69 |
200×200mm | Φ32×2mm | Φ16×2mm | Φ12×2mm | 39.37ft(12m) | 100/220.46 |
Dimensions(W*H) | Main Tube | Vice Tube | Brace | Length | Distributed Load(kg/lb): |
---|---|---|---|---|---|
300×300mm | Φ50×3mm | Φ30×2mm | Φ25×2mm | 19.68504ft(6m) | 337/742.95 |
300×300mm | Φ50×3mm | Φ30×2mm | Φ25×2mm | 26.24672ft(8m) | 245/540.13 |
300×300mm | Φ50×3mm | Φ30×2mm | Φ25×2mm | 29.527ft(9m) | 190/418.87 |
300×300mm | Φ50×3mm | Φ30×2mm | Φ25×2mm | 32.8084ft(10m) | 150/330.69 |
300×300mm | Φ50×3mm | Φ30×2mm | Φ25×2mm | 39.37008ft(12m) | 100/220.46 |
Dimensions(W*H) | Main Tube | Vice Tube | Brace | Length | Distributed Load(kg/lb) |
---|---|---|---|---|---|
400×400mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 29.527ft(9m) | 900/1984.16 |
400×400mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 32.8084ft(10m) | 850/1873.92 |
400×400mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 39.37008ft(12m) | 800/1763.69 |
400×400mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 45.93175ft(14m) | 750/1653.46 |
400×400mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 52.4934383ft(16m) | 700/1543.23 |
Dimensions(W*H) | Main Tube | Vice Tube | Brace | Length | Distributed Load(kg/lb) |
---|---|---|---|---|---|
500×500mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 39.37008ft(12m) | 1100/2425.08 |
500×500mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 45.9317585ft(14m) | 1050/2314.85 |
500×500mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 52.4934383ft(16m) | 1000/2204.62 |
500×500mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 59.0551181ft(18m) | 800/1763.69 |
500×500mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 65.6167979ft(20m) | 900/1984.16 |

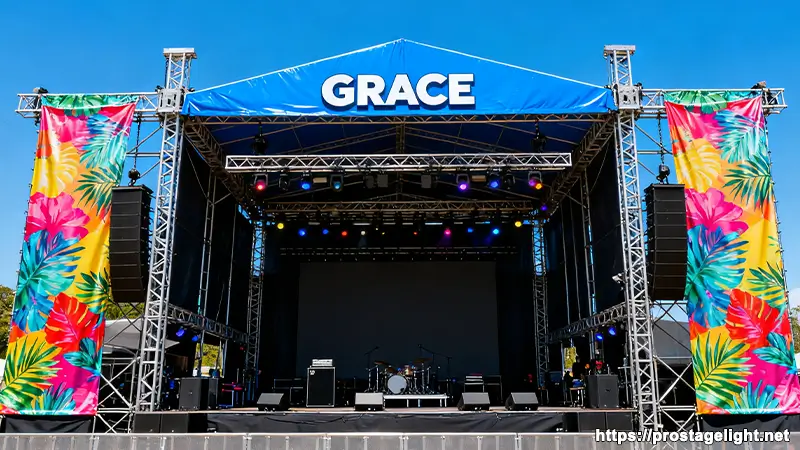

Spigot-type Square Truss:
Dimensions(W*H) | Main Tube | Vice Tube | Brace | Length | Distributed Load(kg/lb) |
---|---|---|---|---|---|
290×290mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ20×2mm | 19.68504ft(6m) | 1200/2645.54 |
290×290mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ20×2mm | 26.24672ft(8m) | 900/1984.16 |
290×290mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ20×2mm | 32.8084ft(10m) | 700/1543.23 |
290×290mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ20×2mm | 39.37008ft(12m) | 600/1322.77 |
290×290mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ20×2mm | 45.9317585ft(14m) | 500/1102.31 |
Dimensions(W*H) | Main Tube | Vice Tube | Brace | Length | Distributed Load(kg/lb) |
---|---|---|---|---|---|
390×390mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ25×2mm | 26.246ft(8m) | 1430/3152.61 |
390×390mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ25×2mm | 32.8ft(10m) | 1230/2711.68 |
390×390mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ25×2mm | 39.37ft(12m) | 1030/2270.76 |
390×390mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ25×2mm | 45.93175ft(14m) | 860/1895.97 |
390×390mm | Φ50×3mm | None (the four sides are sloped tubes) | Φ25×2mm | 52.4934(16m) | 660/1455.05 |
Dimensions(W*H) | Main Tube | Vice Tube | Brace | Length | Distributed Load(kg/lb) |
---|---|---|---|---|---|
520×520mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 39.37ft(12m) | 1400/3086.47 |
520×520mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 45.931ft(14m) | 1250/2755.77 |
520×520mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 52.49ft(16m) | 1000/2204.62 |
520×520mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 59.055ft(18m) | 900/1984.16 |
520×520mm | Φ50×3mm | Φ50×2mm | Φ25×2mm | 65.61ft(20m) | 800/1763.69 |
