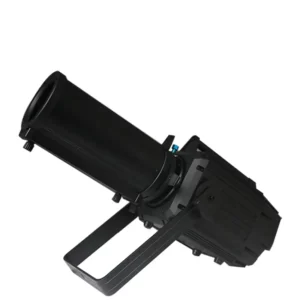

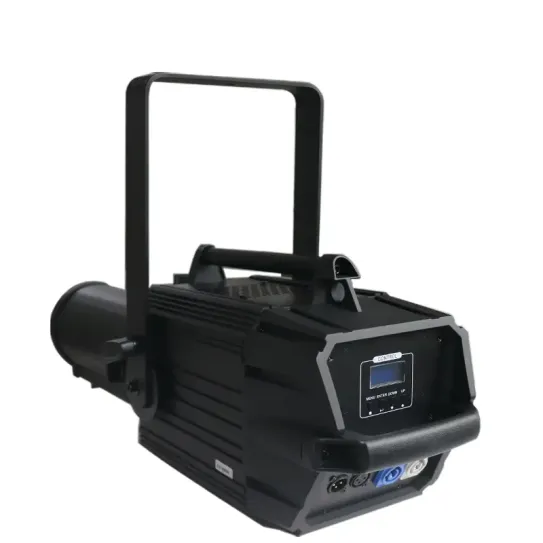

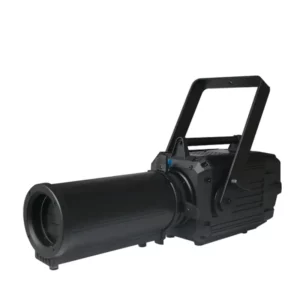

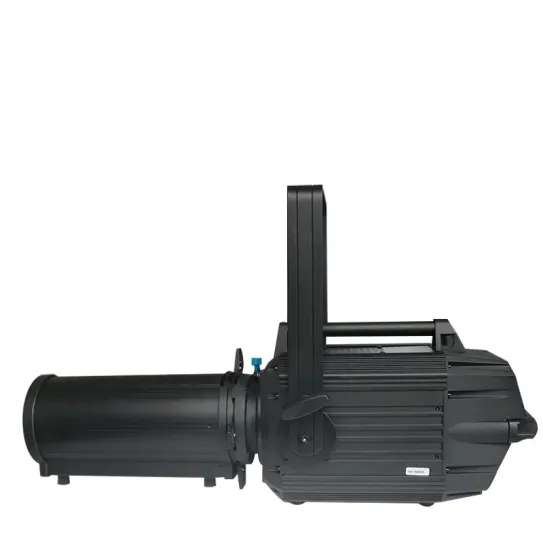

400W Electric Zoom Ellipsoidal Spot(GL-400B)

Designed for the demanding needs of theater and stage lighting, the GL-400B delivers unmatched color accuracy and smooth, flicker-free dimming. Its advanced HSIC color mixing gives you full creative control, making it the go-to choice for professionals who value both quality and reliability.

Why It Stands Out:

True Color Rendering: >95 CRI ensures vibrant, accurate colors under any lighting conditions.
Advanced Color Control: HSIC system allows intuitive adjustment of hue, saturation, and intensity.
Flicker-Free Dimming: PWM technology eliminates flicker for seamless video recording.
Built to Last: Robust construction ensures consistent performance in any professional environment.

AT A GLANCE

High PWM Frequency: The light offers adjustable PWM (Pulse Width Modulation) frequencies at 1200 Hz, 2400 Hz, 4800 Hz, and 9600 Hz, ensuring flicker-free performance for video and broadcast applications.
Superior CRI: With a Color Rendering Index (CRI) above 96, the light delivers exceptional color accuracy, making it ideal for applications requiring precise color representation.
Advanced HSI Control: The 400W Electric Zoom Ellipsoidal Spot supports HSI (Hue, Saturation, Intensity) control, allowing for versatile color mixing and precise color adjustments.
Smooth Linear Dimming: The fixture features smooth linear dimming capabilities from 0 to 100%, enabling seamless transitions and fine control over light intensity
Efficient Cooling System: The product is equipped with an intelligent temperature control system, ensuring efficient cooling and stable performance during prolonged use

Specification

Power:AC100V~240V, 50/60Hz--400W
Beam Angle:19°-42°
Dimming:0-100% linear dimmer; 4 selectable dimming curves
Color Calibration System (CCS):Yes
Power Output:P-Con (gray) mounting version
LED:1 x COB (chip-on-board) 400 W
DMX Output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Color Rendering Index (CRI):More than 96 Ra
Color rendering index (CRI) more than:95 Ra
Dimensions:Length: 72.5cm (28.54") * Width: 28.6cm (11.25") * Height: 25.5 cm (10.04")

LEDs:COB 400W LED 6in1-RGBALC, CRI: > 96

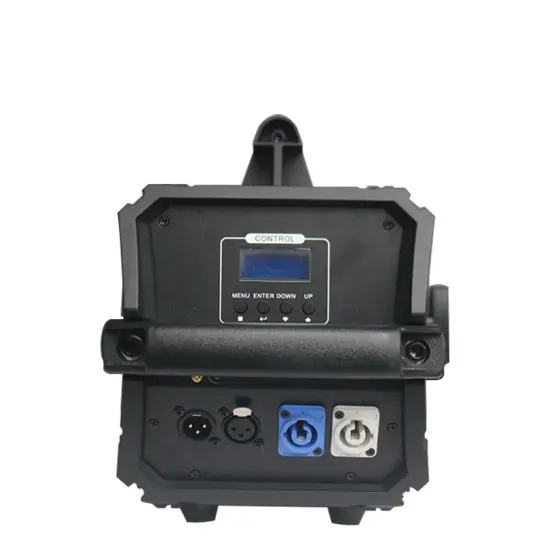

Control Mode:RDM; DMX512; HSIC; Master/Slave; Stand-alone
PWM Dimming Frequency Adjust:1200Hz ~ 20000Hz
Power Connection:Mains input P-Con (blue) mounting version
Lamp Type:LED lamp
DMX Input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Beam Angle (1/2 Peak):19°-42°
Housing Color:Black
Display type:LCD
Weight:11kg (24.25 lbs)

DOWNLOADS

400W Electric Zoom Ellipsoidal Spot(GL-400B) reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the PWM frequency range of the 400W Electric Zoom Ellipsoidal Spot?

A: The PWM (Pulse Width Modulation) frequency range of the 400W Electric Zoom Ellipsoidal Spot can be adjusted to 1200 Hz, 2400 Hz, 4800 Hz, and 20000 Hz

Q: What is the Color Rendering Index (CRI) of the light?

A: The CRI of the 400W Electric Zoom Ellipsoidal Spot is above 96, ensuring excellent color accuracy for various applications

Q: Does the light support HSI control?

A: Yes, the 400W Electric Zoom Ellipsoidal Spot supports HSI (Hue, Saturation, Intensity) control, allowing for precise color adjustments and versatile color mixing
