200W Fixed Focus Led Profile Spot

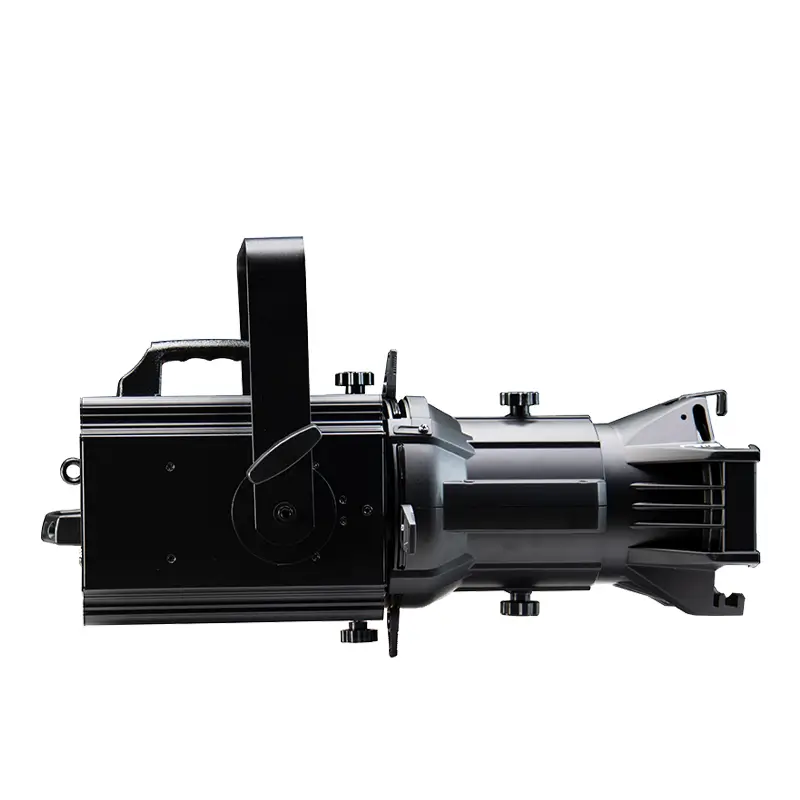

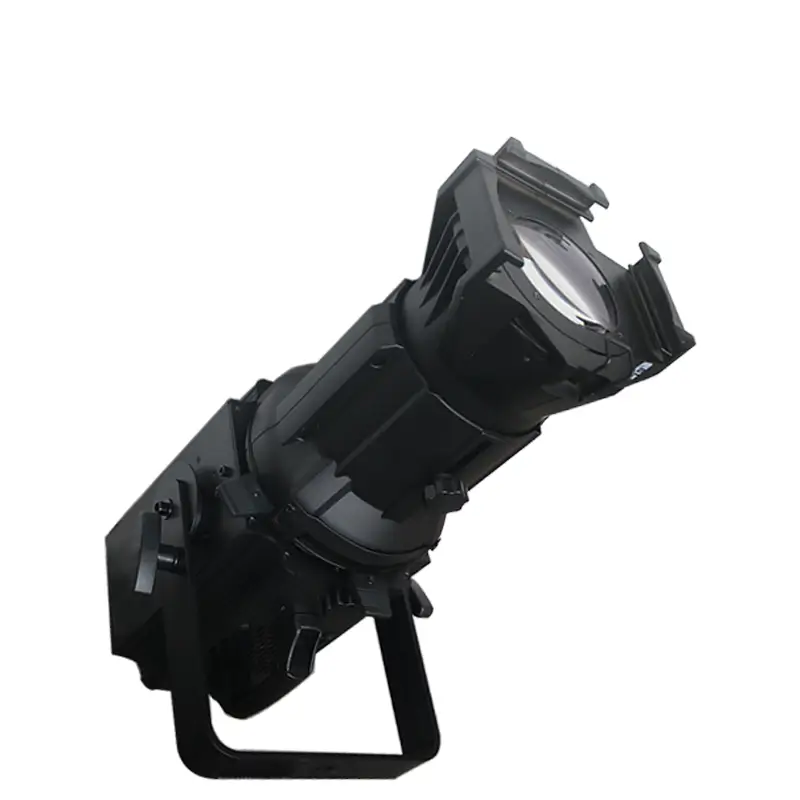

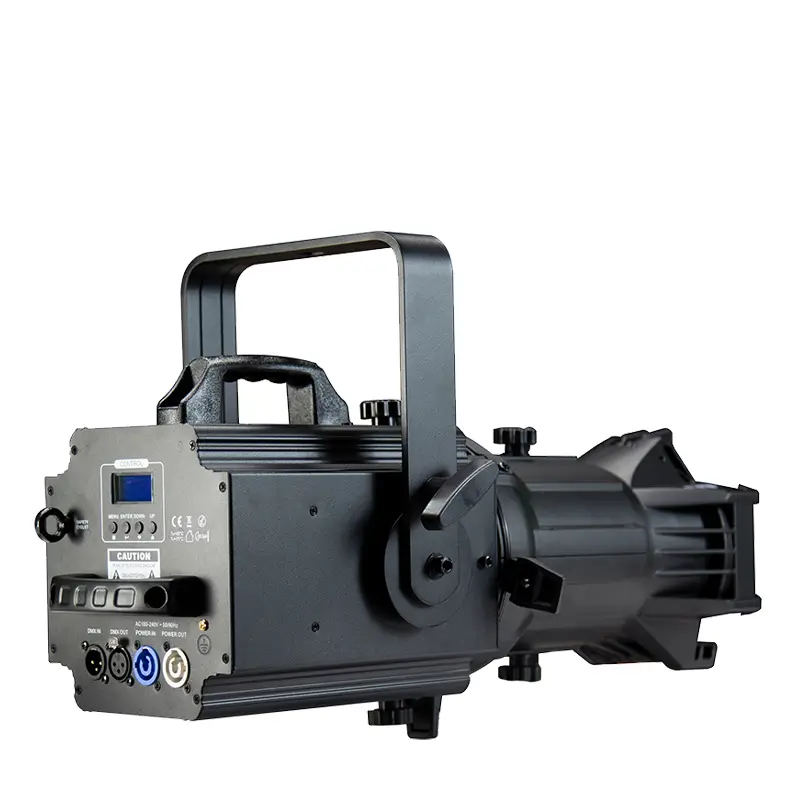

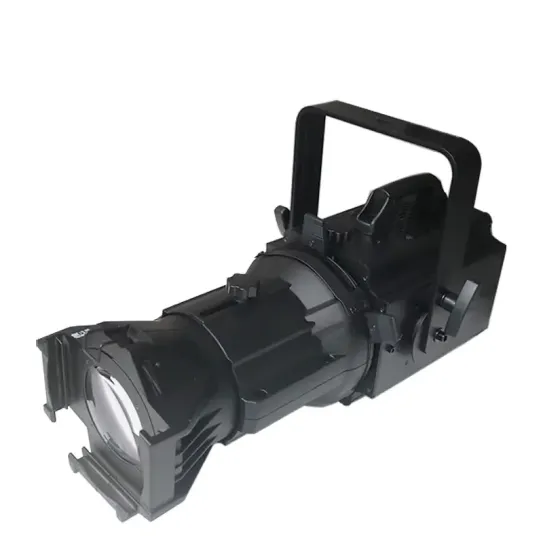

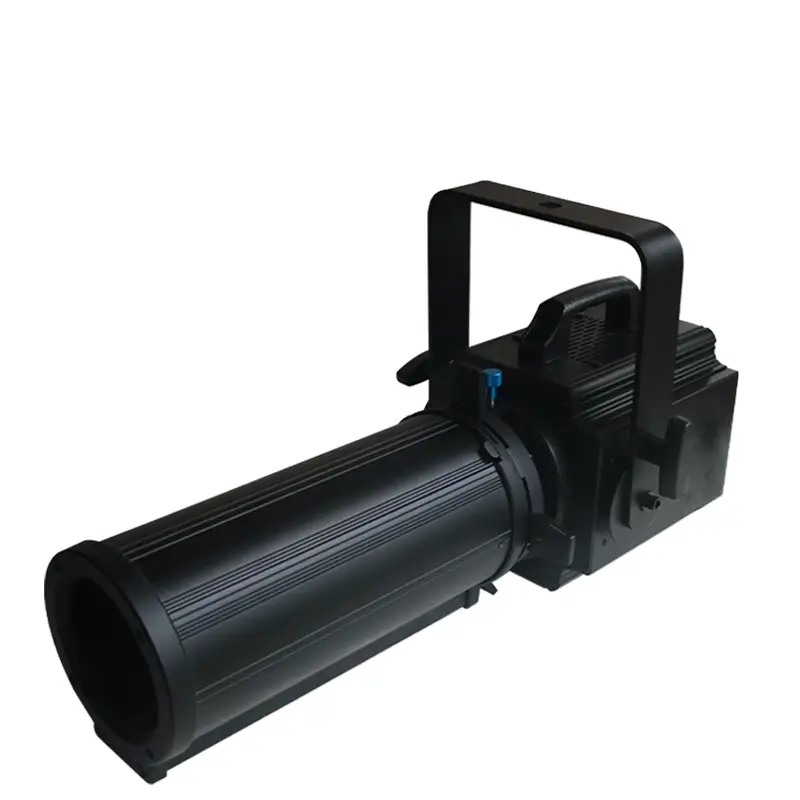

200W Fixed Focus Led Profile Spot（GL-200E）

This high-performance LED lighting fixture offers versatility with a COB 200W 5in1-RGBWA LED, boasting a CRI of over 95 for superior color rendering. It features adjustable beam angles from 19° to 50°, and supports various control modes including RDM, DMX512, and stand-alone operation. With a 0-100% linear dimmer and 4 dimming curves, it ensures precise light control. The unit is equipped with a cooling fan and LCD display, and is designed for Class I protection with a sleek black housing.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • High-Frequency PWM Dimming: The fixture features an adjustable PWM dimming frequency ranging from 1200Hz to 20000Hz, which ensures flicker-free operation across various lighting environments and camera settings.
  • Smooth Dimming Experience: With a 0-100% linear dimmer and four selectable dimming curves, users can achieve a smooth and precise dimming effect, perfect for creating subtle lighting transitions.
  • Advanced Color Calibration System (CCS): The fixture is equipped with a sophisticated Color Calibration System, ensuring consistent and accurate color reproduction across multiple units, which is essential for professional lighting setups.
  • Customizable Control Experience: The combination of these control modes allows for a highly customizable lighting experience, catering to the needs of both novice users and experienced lighting designers.
  • High CRI for Accurate Color Representation: With a Color Rendering Index (CRI) of over 95, the fixture ensures true-to-life color rendering, making it ideal for applications requiring high color fidelity.

Specification

  • Power:AC100V~240V, 50/60Hz--200W
  • CRI: >95
  • Control Mode:RDM; DMX512; HSIC; Master/Slave; Stand-alone
  • Adjust: (1200Hz ~ 20000Hz)
  • Color Calibration:System (CCS)
  • Power connection:Mains input P-Con (blue) mounting version
  • Lamp type:LED lamp
  • Cooling:Cooling fan
  • Control:RDM; DMX; stand-alone; Light Captain

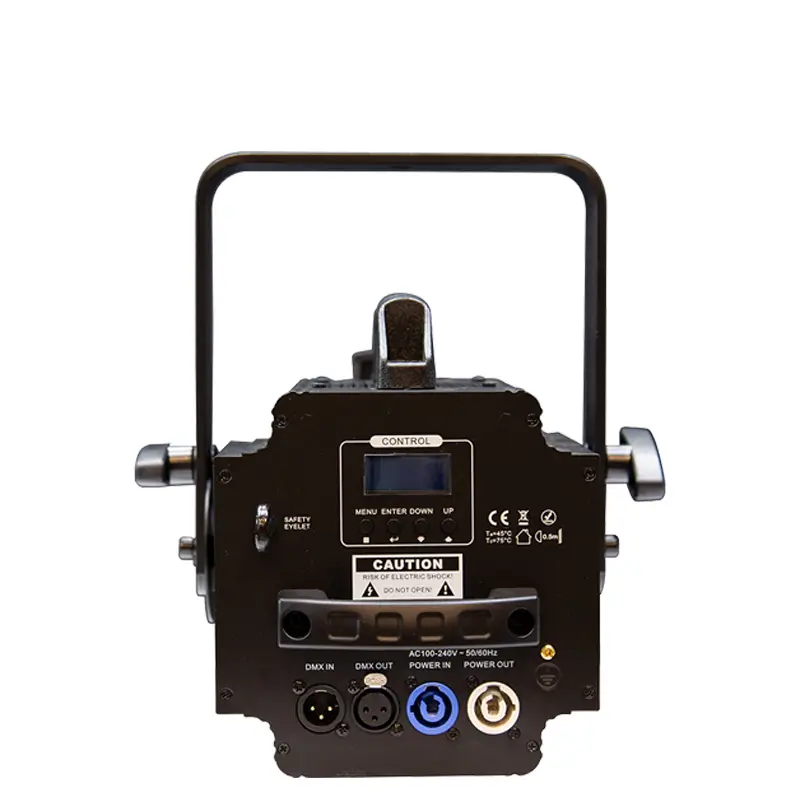

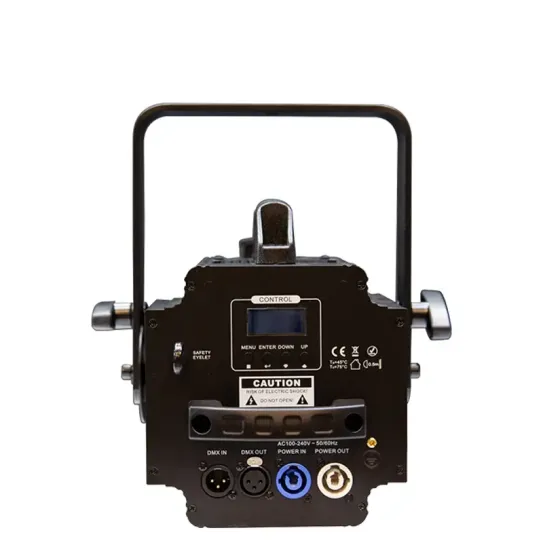

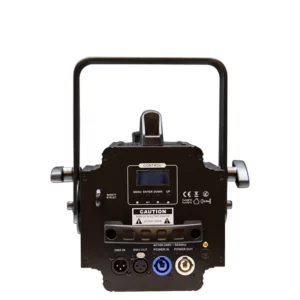

  • DMX input:3-pin XLR (M) mounting version
  • Color rendering index (CRI) more than:95 Ra
  • Weight:8.4kg (18.52 lbs)
  • LEDs:COB 200W LED 5in1-RGBWA
  • Beam Angle:19°, 26°, 36°, 50°
  • Dimmer:0-100% linear dimmer; 4 selectable dimming curves，PWM Dimming Frequency:
  • Protection class:Class I
  • Power output:P-Con (gray) mounting version
  • LED:1 x COB (chip-on-board) 200 W
  • DMX output:3-pin XLR (F) mounting version
  • Beam angle (1/2 peak):19°, 26°, 36°, 50°
  • Housing color:Black
  • Display type:LCD
  • Length: 54.5cm (21.45 inches) * Width: 27.2cm ( 10.71 inches) * Height: 22.2 cm ( 8.74 inches)

DOWNLOADS

200W Fixed Focus Led Profile Spot reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the significance of the high Color Rendering Index (CRI) over 96?

A: A CRI over 96 ensures that the light fixture delivers exceptionally accurate color rendering, which is crucial for applications that require true color representation, such as photography, film, and stage lighting.

Q: How does the fixture's cooling system contribute to its performance and longevity?

A: The built-in cooling fan helps to dissipate heat effectively, which is essential for maintaining the LED's performance and extending its lifespan, ensuring the fixture remains efficient and reliable over time.

Q: How does the fixture's dimming capability enhance the lighting experience?

A: With a 0-100% linear dimmer and four selectable dimming curves, the fixture allows for precise control over light intensity, enabling users to create various lighting moods and effects for different applications.

Q: What is the role of the LCD display in the fixture's operation?

A: The LCD display provides a user-friendly interface for monitoring and controlling the fixture's settings, making it easier to adjust parameters such as dimming, color calibration, and other functions without the need for external control equipment.

RELATED PRODUCTS

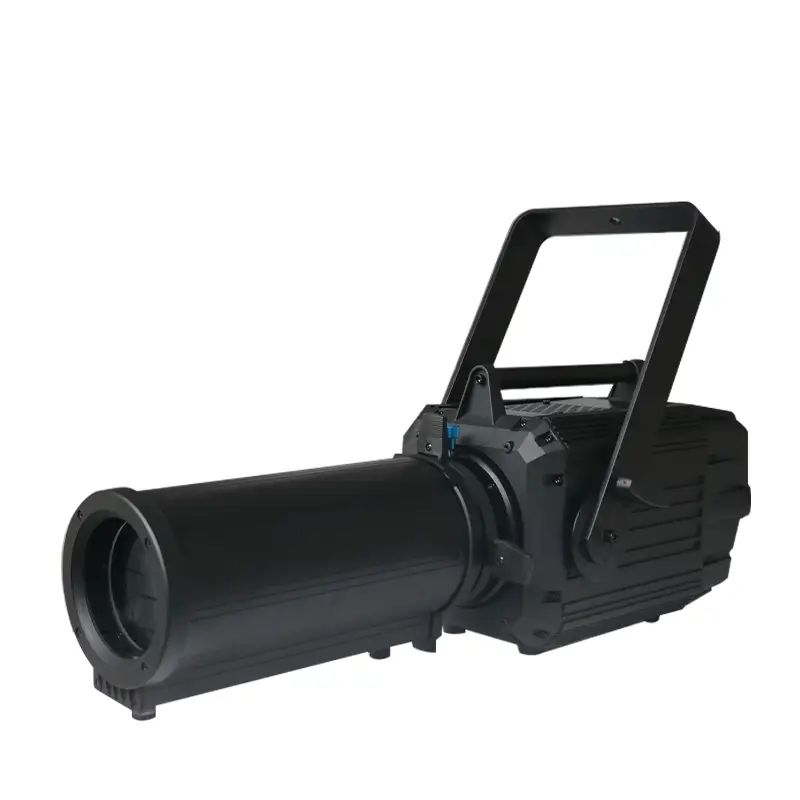

400W Fixed Focus Led Profile Spot
