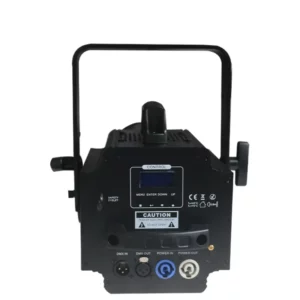

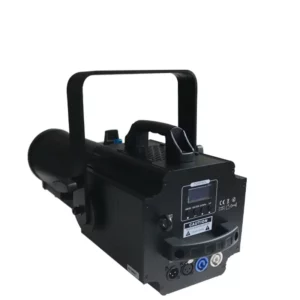

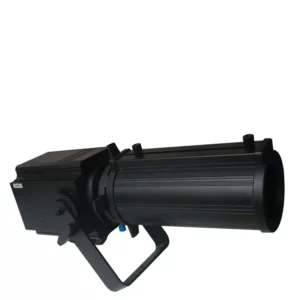

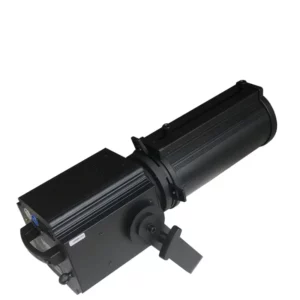

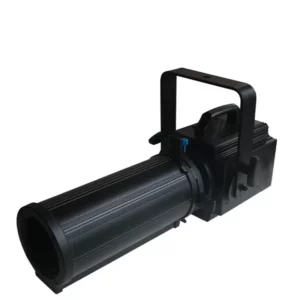

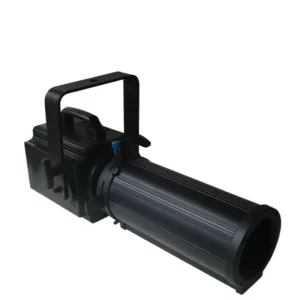

200W Electric Zoom Led Profile Spot(GL-200B)

The 200W Electric Zoom LED Profile Spot: high CRI over 96, and HSIC control. With a beam angle adjustable from 19° to 42°, it is ideal for professional settings such as theaters and stages. The high CRI ensures accurate color rendering, enhancing visual performance. HSIC control allows for precise hue, saturation, intensity, and color temperature adjustments. The device supports both stand-alone and DMX modes, and includes an LCD control panel for easy configuration. Its robust design, efficient cooling, and multiple mounting options ensure reliable and flexible operation.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • Advanced PWM Technology: Features pulse-width modulation (PWM) with selectable frequencies up to 9600 Hz, ensuring smooth and flicker-free dimming suitable for professional applications, including video production.
  • High CRI (Color Rendering Index): Boasts a CRI of over 96, delivering exceptional color accuracy and vibrant, natural-looking light, perfect for enhancing the visual quality in theaters and stage performances.
  • HSIC Control: Offers precise Hue, Saturation, Intensity, and Color temperature (HSIC) control, allowing users to achieve exact color settings and transitions, providing unparalleled creative flexibility.
  • Versatile Linear Dimming: Equipped with linear dimming capabilities, enabling smooth and consistent light output from 0 to 100%, making it ideal for creating subtle lighting effects and seamless transitions.
  • Robust and Efficient Design: Built with a durable housing and efficient cooling system, the 200W Electric Zoom LED Profile Spot ensures reliable operation and longevity, making it a dependable choice for demanding professional environments.

Specification

  • Power Range：AC100V~240V, 50/60Hz
  • LED Type:COB 200W LED 5in1-RGBWA
  • Beam Angle:19°-42°
  • Dimming Range:0-100% linear
  • PWM Dimming Frequency:Adjustable from 1200Hz to 20000Hz
  • Protection class:Class I
  • Power output:P-Con (gray) mounting version
  • LED:1 x COB (chip-on-board) 200 W
  • DMX input:3-pin XLR (M) mounting version
  • LED:1 x COB (chip-on-board) 200 W
  • Control:RDM; DMX; stand-alone; Light Captain
  • Color rendering index (CRI) more than:96 Ra
  • Display type:LCD
  • Color rendering index (CRI) more than:96 Ra
  • Power Consumption for LEDs:200W
  • Color Rendering Index (CRI):> 96
  • Control Mode:RDM, DMX512, HSIC, Master/Slave, Stand-alone
  • Dimming Curves:4 selectable
  • Color Calibration System:CCS
  • Power connection:Mains input P-Con (blue) mounting version
  • Lamp type:LED lamp
  • Cooling:Cooling fan
  • DMX output:3-pin XLR (F) mounting version
  • Cooling:Cooling fan
  • Beam angle (1/2 peak):19°-42°
  • Housing color:Black
  • Dimensions:Length: 59cm (≈ 23.23 inches) * Width: 27.2cm (≈ 10.71 inches) * Height: 22.2 cm (≈ 8.74 inches)
  • Weight:7.6kg (≈ 16.76 lbs)

DOWNLOADS

200W Electric Zoom Led Profile Spot（GL-200B) reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the advantage of PWM technology in this LED profile spot?

A: PWM (Pulse Width Modulation) technology ensures smooth and flicker-free dimming, which is essential for professional video and stage applications, providing consistent lighting quality even at lower brightness levels.

Q: How does the high CRI benefit my lighting setup?

A: The high CRI (Color Rendering Index) of over 95 ensures that colors appear true and vibrant, enhancing the visual appeal and accuracy of your lighting setup, which is crucial for theatrical productions and other color-critical applications.

Q: What does HSIC control mean and how does it work?

A: HSIC stands for Hue, Saturation, Intensity, and Color temperature. This control allows for precise adjustments of these parameters, enabling you to achieve the exact color settings and transitions you need for creative and dynamic lighting effects.

Q: Can the 200W Electric Zoom LED Profile Spot be used in different operating modes?

A: Yes, it supports both stand-alone and DMX modes, with options for master/slave functionality. This flexibility allows for easy integration into various lighting setups and synchronized operation with multiple units.

Q: How does the linear dimming feature improve my lighting effects?

A: The linear dimming feature provides smooth and consistent light output from 0 to 100%, allowing for subtle lighting effects and seamless transitions, which are essential for creating professional-grade lighting designs.
