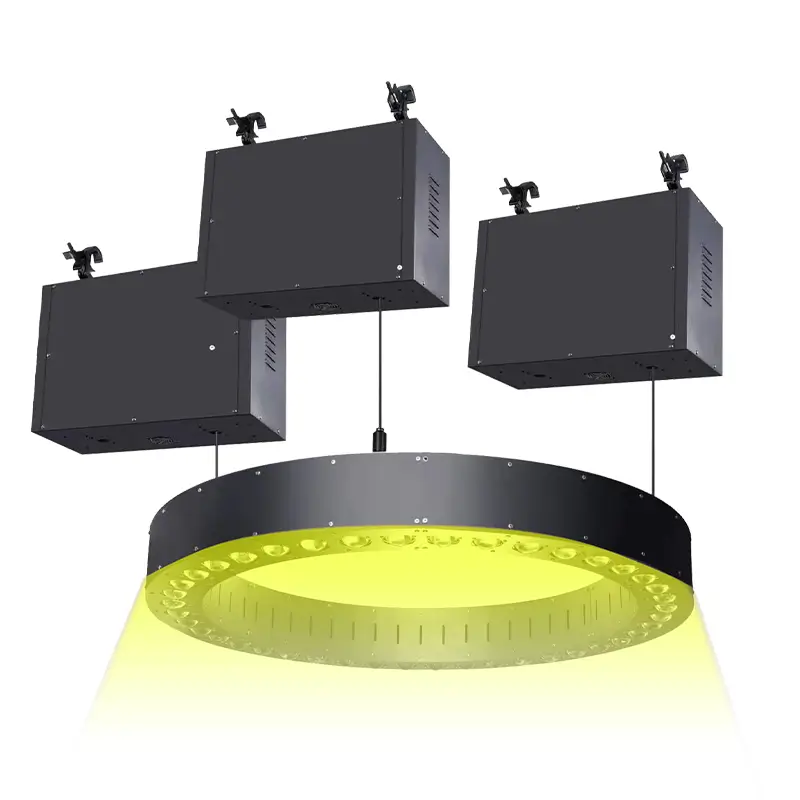

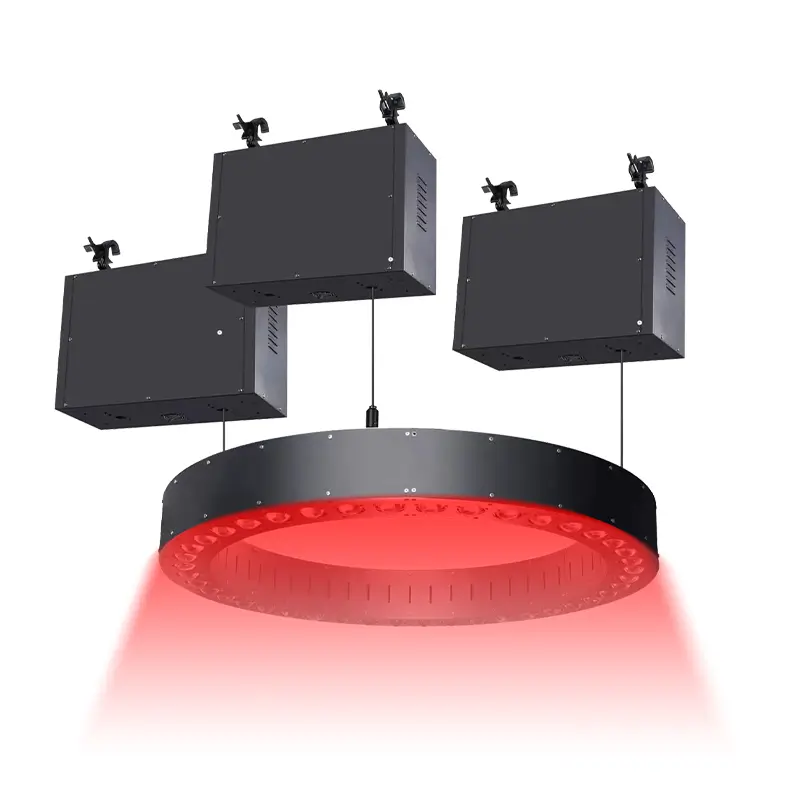

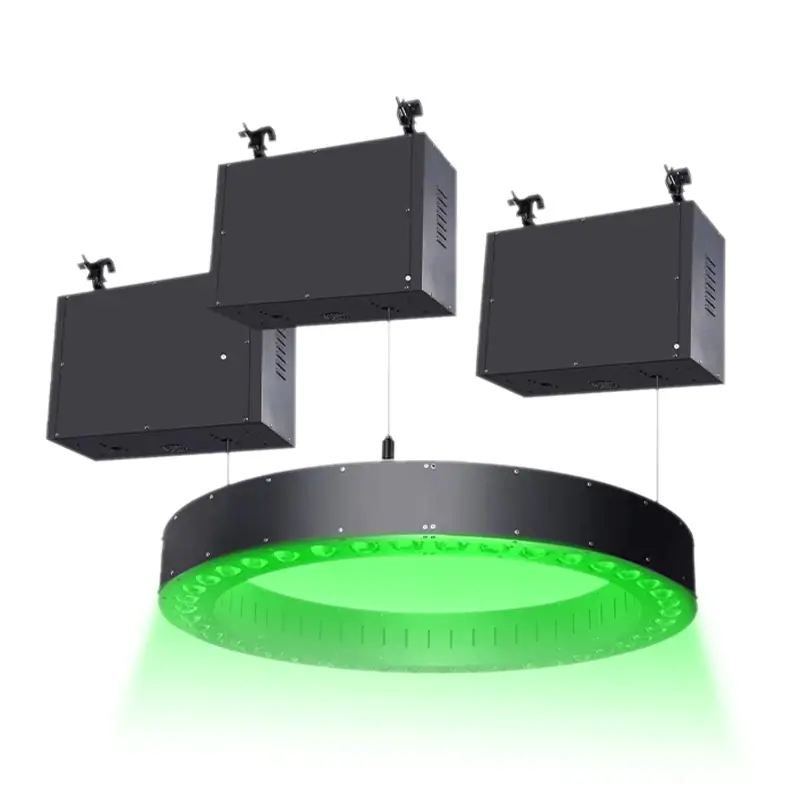

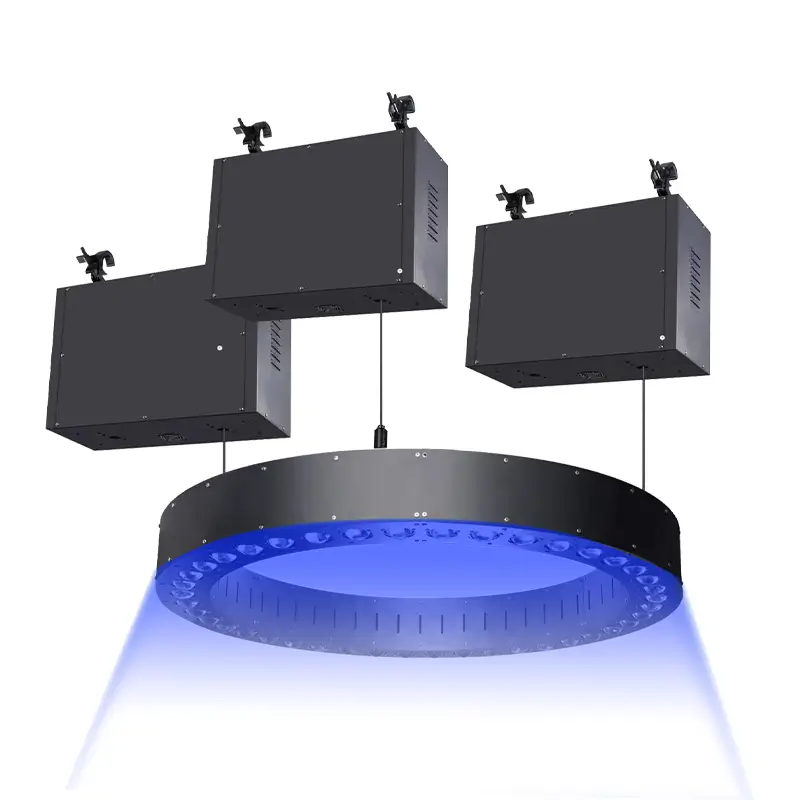

Kinetic DMX Winch LED Circle Ring Light

（GL- R100/GL- R120）

Igracelite LED Circle Ring Light comes in two sizes to meet different needs.
1) The 1m version:
Light source of 42 * 15W RGBW 4-IN-1 LED; power 630W; beam angle 5°.
Product dimension of 100cm * 100cm * 13cm and weighs 14.2KG.
The hoist has a lifting height of 5m - 8m, a maximum suspended weight of ≤10KG, and a speed of ≤0.5m/s.

2) The 1.2m version:
Light source of 15W * 54 RGBW 4-in-1 LED Beads; power 810W; beam angle 5°.
Product dimension is 120cm * 120cm * 17cm and weighs 13.9KG.

Both models offer DMX512/ArtNet control mode, with anti-falling protection; installed by vertical lifting.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • Powerful Lighting: Equipped with high-wattage LED light sources, such as 42 * 15W RGBW 4IN1 LED in the 1m version and 15W * 54 RGBW 4-in-1 LED Beads in the 1.2m version, ensuring bright and intense illumination.
  • Narrow Beam Angle: Both models have a beam angle of 5°, allowing for focused and precise light projection, suitable for creating dramatic lighting effects.
  • Safety Features: Incorporate anti-falling protection with physical braking and electronic protection, enhancing the safety during use.
  • Versatile Control: Support DMX512/ArtNet control mode with optional channels, enabling flexible and convenient operation to meet different lighting requirements.

Specification

  • 1m Beam Ring Light
  • Light Source：42 * 15W RGBW 4IN1 LED
  • Power (of the light)：630W
  • Beam Angle：5°
  • Product Dimension：100cm * 100cm * 13cm / 39.37in * 39.37in * 5.12in
  • Product Weight：14.2KG / 31.31lb
  • Hoist Lifting Height：5m - 8m / 196.85in - 314.96in
  • Maximum Suspended Weight (of the hoist)：≤10KG / ≤22.05lb
  • Hoist Speed：≤0.5m/s
  • Control Mode：DMX512/ArtNet Mode
  • Channels：12CH/61CH Optional
  • Voltage：AC100V - 240V/50 - 60HZ
  • Power (of the hoist)：800W
  • Anti-falling Protection：Physical Braking, Electronic Protection
  • Installation Method：Vertical Lifting
  • Hoist Dimension：42cm * 30cm * 55cm / 16.54in * 11.81in * 21.65in
  • Hoist Weight：22KG * 3 / 66.14lb * 3
  • Hoist Carton Packaging Dimension：(59cm × 54cm × 40cm) * 3 / (23.23in × 21.26in × 15.75in) * 3
  • Hoist Carton Packaging Weight：29kg * 3 / 63.93lb * 3
  • Beam Ring Carton Packaging Dimension：110cm × 110cm × 20cm / 43.31in × 43.31in × 7.87in
  • Beam Ring Carton Packaging Weight：17.5kg / 38.58lb
  • Flight Case Packaging Dimension：108cm × 65cm × 119cm / 42.52in × 25.59in × 46.85in
  • Flight Case Packaging Weight：120kg / 264.55lb
  • 1.2m Beam Ring Light
  • Light Source：15W * 54 RGBW 4-in-1 LED Beads
  • Power (of the light)：810W
  • Beam Angle：5°
  • Product Dimension：120cm * 120cm * 17cm / 47.24in * 47.24in * 6.69in
  • Product Weight：13.9KG / 30.64lb
  • Hoist Lifting Height：5m - 8m / 196.85in - 314.96in
  • Maximum Suspended Weight (of the hoist)：≤10KG / ≤22.05lb
  • Hoist Speed：≤0.5m/s
  • Control Mode：DMX512/Artnet Mode
  • Channels：12/77 Channels Optional
  • Voltage：AC100V - 240V/50 - 60HZ
  • Power (of the hoist)：900W
  • Anti-falling Protection：Physical Braking, Electronic Protection
  • Installation Method：Vertical Hoisting
  • Hoist Dimension：42cm * 30cm * 55cm / 16.54in * 11.81in * 21.65in
  • Hoist Weight：22KG * 3 / 66.14lb * 3
  • Hoist Carton Packaging Dimension：(59cm × 54cm × 40cm) * 3 / (23.23in × 21.26in × 15.75in) * 3
  • Hoist Carton Packaging Weight：29kg * 3 / 63.93lb * 3
  • Beam Ring Carton Packaging Dimension：130cm × 130cm × 20cm / 51.18in × 51.18in × 7.87in
  • Beam Ring Carton Packaging Weight：20.5kg / 45.20lb
  • Flight Case Packaging Dimension：127cm × 65cm × 139cm / 50.00in × 25.59in × 54.72in
  • Flight Case Packaging Weight：139kg / 306.44lb

DOWNLOADS

Kinetic DMX Winch LED Circle Ring Light（GL- R100/GL- R120）Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: What kind of light source does the LED Circle Ring Light use?

A: The 1m version uses 42 * 15W RGBW 4IN1 LED, and the 1.2m version uses 15W * 54 RGBW 4-in-1 LED Beads.

Q: What is the beam angle of the light?

A: Both the 1m and 1.2m versions have a beam angle of 5°.

Q: How is the product installed?

A: It is installed by vertical lifting.

Q: What is the hoist speed?

A: The hoist speed is ≤0.5m/s for both versions.
