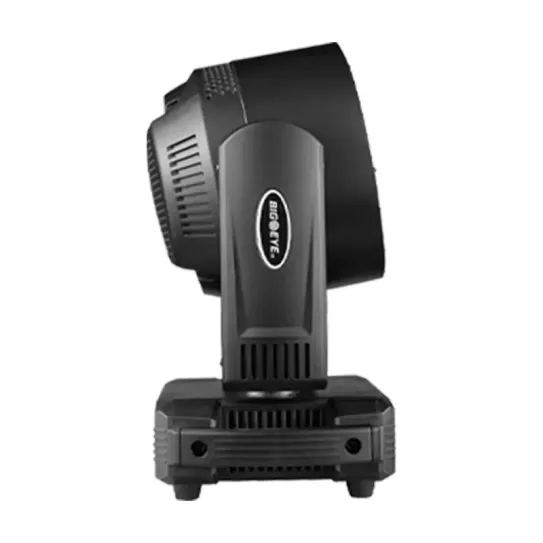

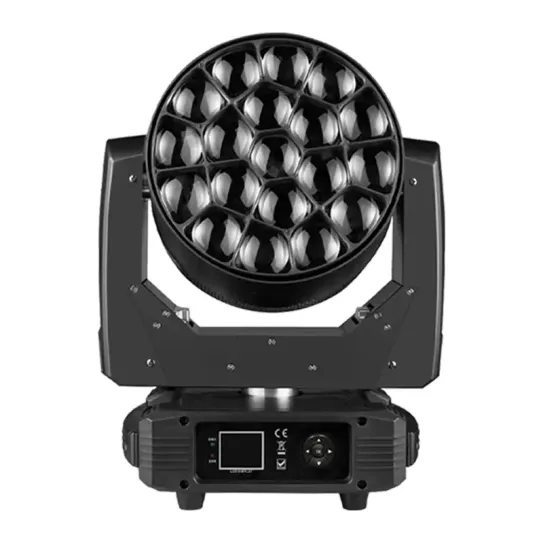

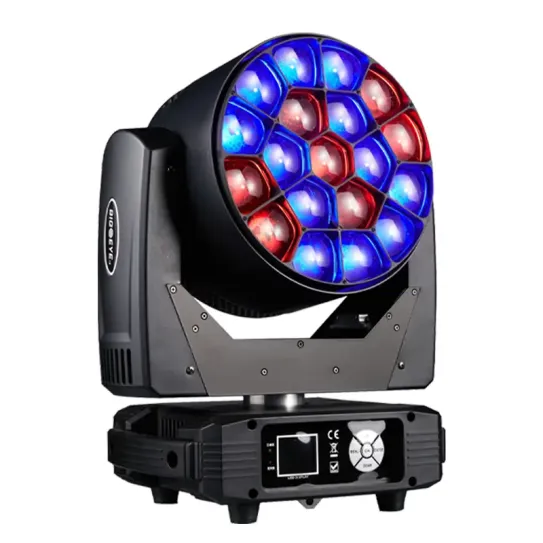

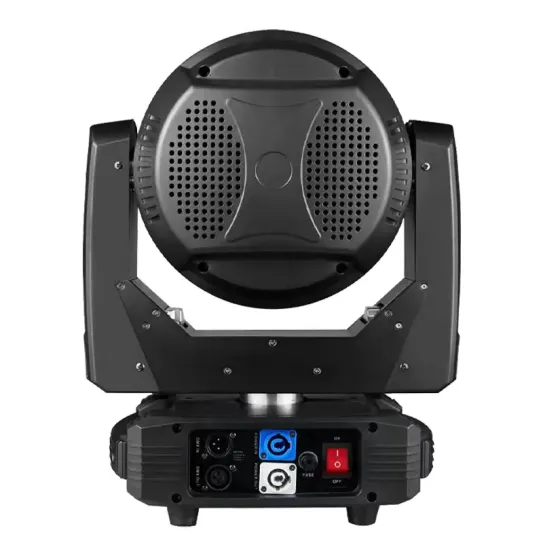

19*15W LED Bee Eye Moving Head（GL-NB19B）

A new model of bee eye after the iteration of the old model. It is smaller in size, easier to install and transport, the rotating disk is smoother and quieter, no jamming, higher stability, and lower budget.
1:1 claypaky channel, single lamp bead controllable, rotating disk infinite rotation Honeycomb effect, beam distance 6-12 meters, focusing angle 4-60 degrees Suitable for bars, parties, restaurants, bars, concerts, live broadcast rooms and other occasions

AT A GLANCE

Versatile Movement: The Bee Eye Moving Head offers 540° horizontal and 270° vertical rotation, allowing for wide-reaching dynamic light effects.
Advanced LED Technology: Equipped with 19 x 15W 4-in-1 LEDs, it delivers vibrant, high-quality lighting and color mixing for stunning visual displays.
Multiple Control Modes: It supports DMX control, self-propelled, voice-activated, and master/slave sync modes, providing flexibility for different performance environments.
Electronic Zoom & Dimming: The fixture features a 4-60° electronic zoom range and linear dimming, allowing for precise light focus and intensity control.

Specification

Operating voltage/frequency:100-240V 50/60HZ
Total power:600W
Light source:19 x 15W 4-in-1 LEDs
Horizontal range：540°
Vertical range：270°
Number of DMX channels：21CH/23CH/35CH/78CH/92CH/97CH/99CH
Features：Single LED with point control
Display：LCD display
Bi-directional infinitely rotatable front mirror plate：Yes
Electronic zoom range：4-60°

Strobe：mechanical strobe, adjustable speed strobe, strobe macro support
Protection class：IP20
Net weight：26.46 lbs/12kg
Gross weight：35.27 lbs/16kg
Operating modes：DMX console control, self-propelled, voice-activated, master/slave sync mode
0 - linear electronic dimming：Yes

DOWNLOADS

19*15W LED Bee Eye Moving Head（GL-NB19B）Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: What is the operating voltage range of the Bee Eye Moving Head?

A: The Bee Eye Moving Head operates within a voltage range of 100-240V, supporting both 50Hz and 60Hz frequencies, making it suitable for use in various global locations.

Q: How many DMX channels does the Bee Eye Moving Head support?

A: The fixture offers multiple DMX channel options, including 21CH, 23CH, 35CH, 78CH, 92CH, 97CH, and 99CH, providing flexibility for different control configurations.

Q: Is the Bee Eye Moving Head suitable for outdoor use?

A: With a 0-100% linear dimmer and four selectable dimming curves, the fixture allows for precise control over light intensity, enabling users to create various lighting moods and effects for different applications.No, the Bee Eye Moving Head has an IP20 protection class, meaning it is designed for indoor use only and should be kept away from exposure to water and dust.
