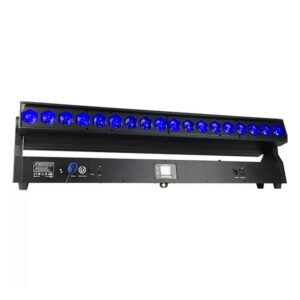

1840W RGBW 4in1 Powerful Zoom Moving Head Bar Light 6

1840W RGBW 4in1 Powerful Zoom Moving Head Bar Light 5

1840W RGBW 4in1 Powerful Zoom Moving Head Bar Light 4

1840W RGBW 4in1 Powerful Zoom Moving Head Bar Light 3

1840W RGBW 4in1 Powerful Zoom Moving Head Bar Light 2

1840W RGBW 4in1 Powerful Zoom Moving Head Bar Light

18X40w led bar beam moving head(GL-Z1840)

720W | 18 x 40W RGBW 4-in-1 | 4°–45° Motorized Zoom | Pixel Control | Dual Zoom Zones | 205° Tilt

Zoom range: 4° – 45° motorized (two independent zoom zones: 9+9)
Pixel control: Each of the 18 LEDs individually addressable
Tilt range: 205° (16‑bit resolution)
CTO adjustment: 2,700K – 8,000K variable
What Makes It Work
- Dual independent zoom zones – 9+9 LED split lets you create asymmetrical beam patterns and complex chases across the bar, not just full-bar washes
- Single-pixel control – each of the 18 LEDs can be programmed individually for pixel‑mapped sequences, chases, and zone effects
- Variable CTO (2,700K–8,000K) – color temperature matches tungsten to daylight without external gels
- 16‑bit tilt resolution – smooth, precise 205° movement

RELATED PRODUCTS

AT A GLANCE

Powerful Lighting Performance: Equipped with 18x 40W RGBW LED multichip, this moving head bar light produces bright and vibrant colors, allowing for dynamic and captivating lighting displays.
Versatile Zoom Functionality: The zoom range of 4°- 45° provides flexibility in beam angles, allowing for precise control over the spread of light. The presence of two independent zoom zones further enhances creative possibilities.
Extensive Channel Options: With multiple channel modes (16CH, 27CH, 76CH, 88CH), users can choose the level of control that best suits their requirements, ensuring seamless integration into any lighting setup.
Long-lasting LED Technology: The LED source offers a lifespan of at least 20,000 hours, providing reliable and efficient lighting for extended periods without the need for frequent bulb replacements.
Flexible Color Mixing: The RGBW color mixing mode allows individual control of each RGBW pixel, enabling endless possibilities for creating captivating color combinations and effects.
Motorized Zoom Capability: The presence of two independent zoom zones with motorized zoom functionality allows users to dynamically adjust the beam angle, providing versatile lighting options for different applications.
Wide Application Range: This moving head bar light is suitable for various venues, including stages, shows, nightclubs, DJs, and weddings, making it a versatile choice for professional lighting setups.

Specification

Input voltage range: 100-240 V, 50-60 Hz
LED Source: 18x 40W RGBW LED multichip
Channel modes: 16CH, 27CH, 76CH, 88CH
Color mixing mode: RGBW with individual control of each pixel
Motorized zoom: Two independent zoom zones
Tilt movement: 205°
DMX input connector: 3-pin XLR
Electronic strobe effect with variable speed up to 20 Hz

Power consumption: 600W
Zoom range: 4°- 45°
LED life expectancy: Minimum 20,000 hours
Variable CTO: 2,700K - 8,000K
Dimming range: 0-100%
Power input connector: PowerCON in/out
Pre-programmed random strobe & pulse effects
High-resolution electronic movement resolution for smooth operation

DOWNLOADS

18X40w led bar beam moving head reference guide downloads
