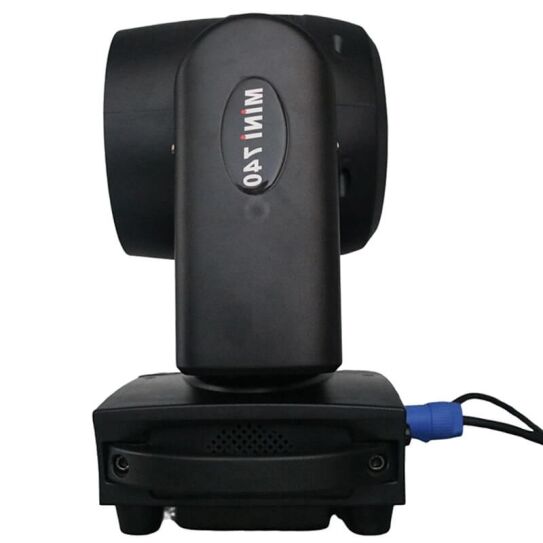

7x40W led Zoom Moving Head Light GM-MZ740_ (7)

7x40W led Zoom Moving Head Light GM-MZ740_ (8)

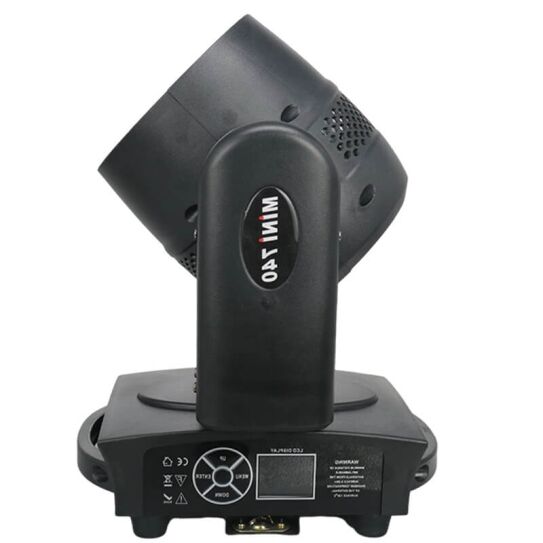

7x40W led Zoom Moving Head Light GM-MZ740_ (3)

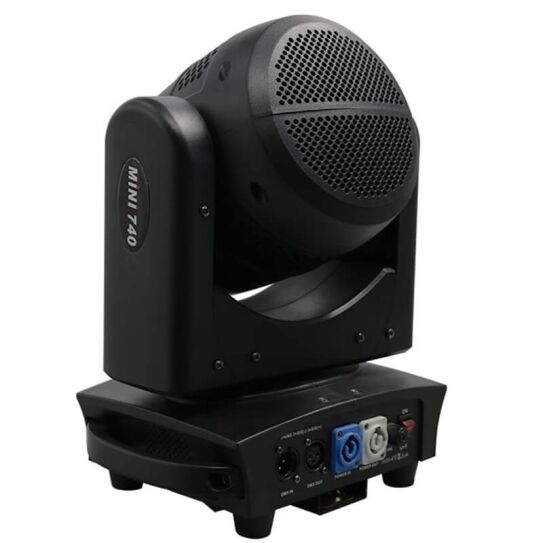

7x40W led Zoom Moving Head Light GM-MZ740_ (2)

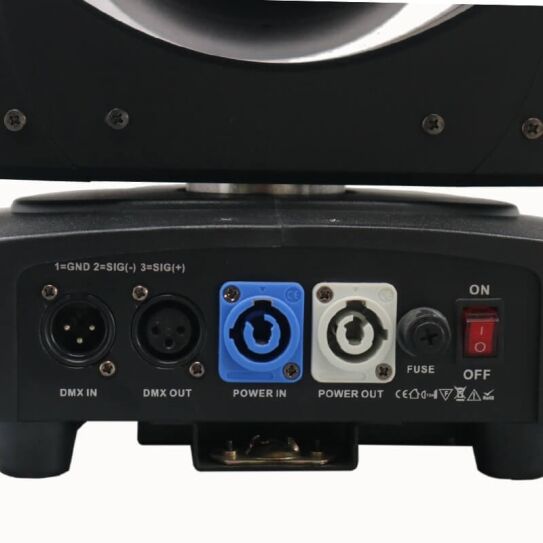

7x40W led Zoom Moving Head Light GM-MZ740_ (1)

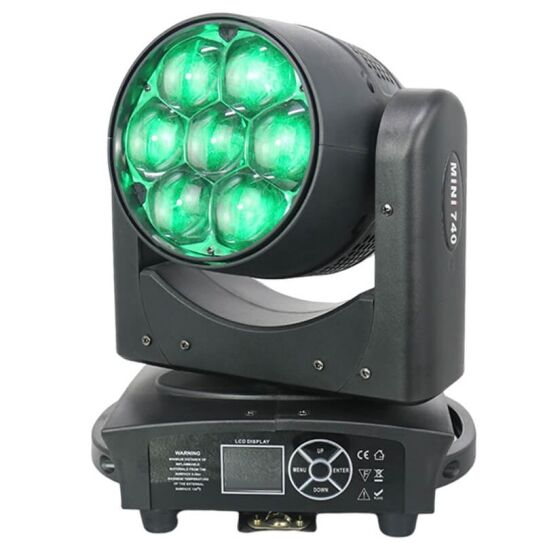

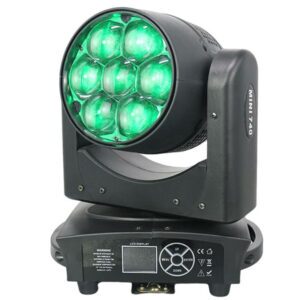

7x40W led Zoom Moving Head Light GM-MZ740_ (6)

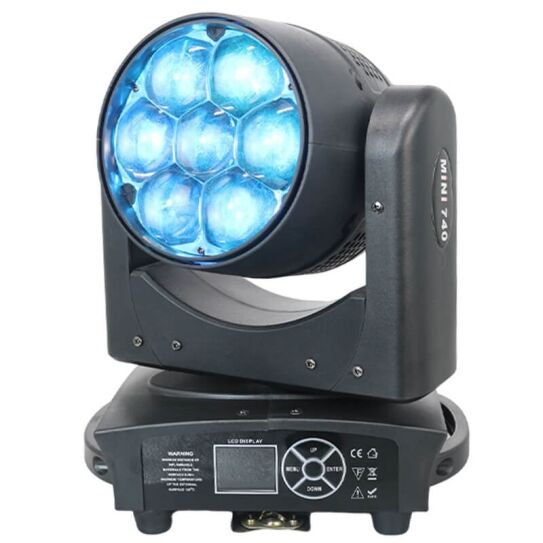

7x40W led Zoom Moving Head Light GM-MZ740_ (5)

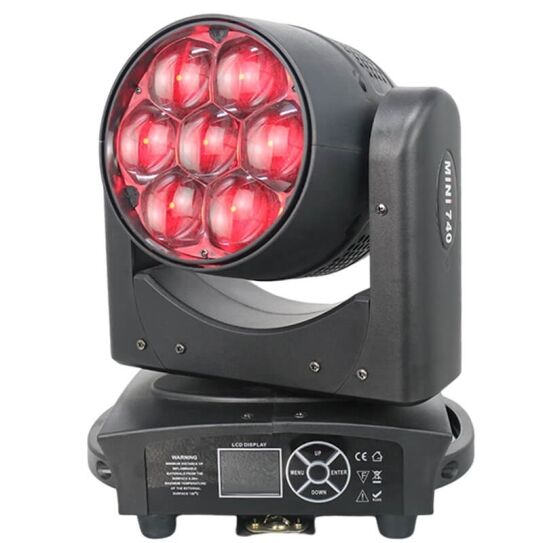

7x40W led Zoom Moving Head Light GM-MZ740_ (4)

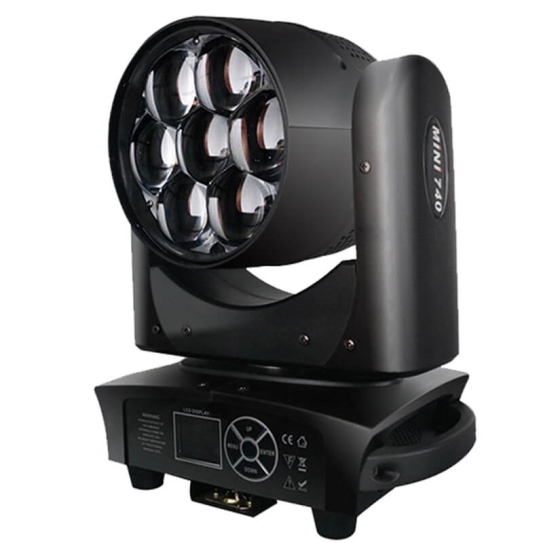

7x40W LED Zoom Moving Head Light(GL-MZ740)

350W | 7 x 40W RGBW 4-in-1 | 4.5°–50° Motorized Zoom | 17/45 DMX Channels | Pixel Control | RDM | CRI≥95

Color temperature: 2800K–8500K adjustable (variable CTO)
Pixel control: Each LED can be controlled independently
Housing: Aluminum alloy / flame-retardant plastic
What Makes It Work
- Single-pixel control – each of the seven LEDs can be programmed individually for pixel chases, zone effects, and dynamic "bee eye" looks
- Front lens wheel – rotates in both directions for mid-air multibeam effects and unique eye candy
- Wide 4.5°–50° zoom – tight beam for long‑throw aerial effects, wide wash for full stage coverage
- Variable CTO 2800K–8500K – color temperature adjustability without external gels
- CRI ≥95 – accurate color rendering for broadcast and video capture

RELATED PRODUCTS

AT A GLANCE

Featuring 7 high-power RGBW LED lights, each with a capacity of 40W, this moving head light delivers vibrant and dynamic colors that can transform any stage or event. With an input power range of AC100-240V and a power consumption of 320W, it offers reliable and efficient performance.
The 7x40W LED Zoom Moving Head Light provides flexible control options, including DMX512, Master-Slave, and Auto run modes. With 11CH and 17CH DMX channel options, you can precisely adjust the lighting effects according to your preferences.
The pan/tilt movement offers a wide range of motion, with 540 degrees on the X axis and 190 degrees on the Y axis, allowing you to create dynamic and captivating lighting displays.
Equipped with an electronic zoom function, this moving head light enables you to adjust the beam angle for wider or more focused lighting coverage. The LCD display provides easy access to the settings and parameters, ensuring convenient operation.
With an IP20 rating, this moving head light is suitable for indoor use and offers reliable protection against dust and solid objects. The compact and lightweight design, with a net weight of 6kg, makes it easy to install and transport.

Specification

Input Power: AC100-240V 50/60 Hz
LED: 7 PCS 40W high power RGBW LED
Movement: Pan/Tilt - X axis 540 degrees, Y axis 190 degrees
Strobe Macro Control Available
Display: LCD display
Net Weight: 6KG (13.23 pounds)
Packing Size: 40cm24cm32cm (15.75 inches x 9.45 inches x 12.6 inches)

Power Consumption: 320W
DMX Channel: 11CH, 17CH
Control Mode: DMX512/Master-Slave/Auto run
Zoom: Electronic zoom
IP Level: IP20
Gross Weight: 7KG (15.43 pounds)

DOWNLOADS

7x40W LED Zoom Moving Head Light(GL-MZ740) reference guide downloads

VIDEO

RELATED PRODUCTS

600W LED moving head profile

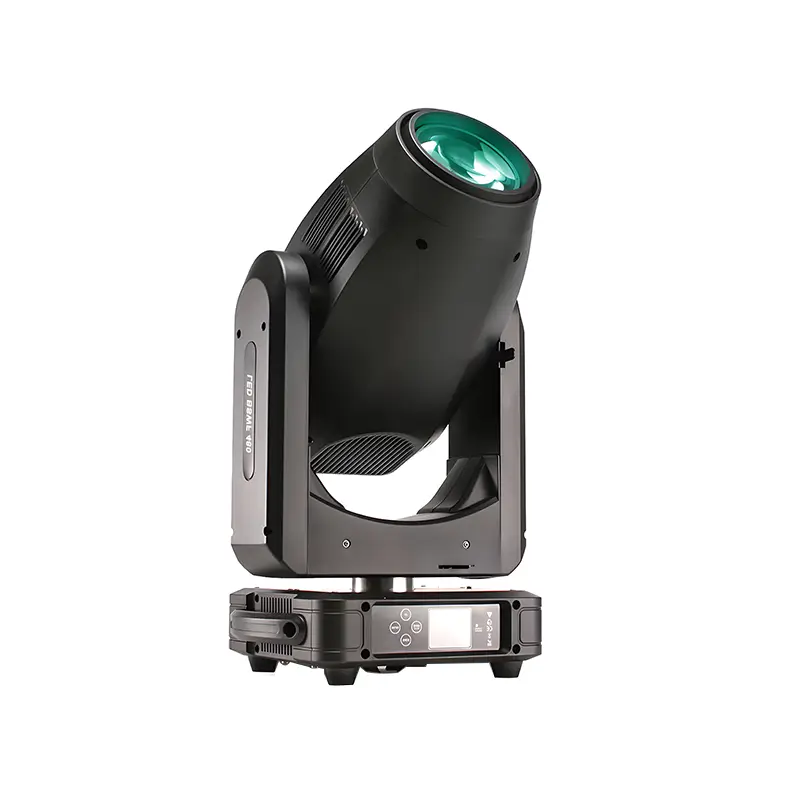

460W LED moving head
