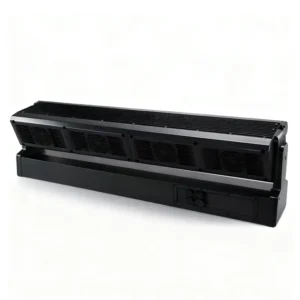

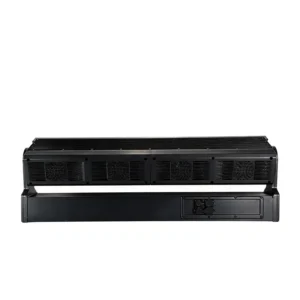

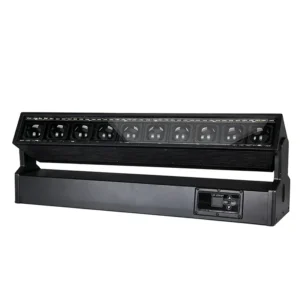

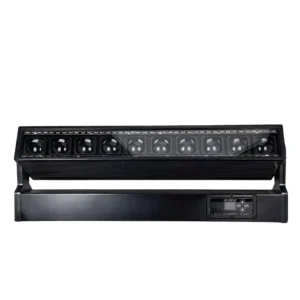

IP65 Waterproof 650W LED moving head Bar Light, 10x60W RGBW & 140x0.3W RGB Pixel Beam Wash Strobe（GL-W1060）
Designed for advanced stage architecture, this high-performance LED Moving Head offers unparalleled control flexibility for large-scale productions. Integrating full RDM compliance and comprehensive DMX512 protocols across multiple versatile channel modes (26CH up to 166CH), it ensures seamless system integration and precise pixel mapping.
Technical Execution:
Optical Power: Driven by a 650W engine featuring premium Tianxin 10x60W RGBW 4-in-1 LEDs.
Aura Integration: 140 x 0.3W RGB auxiliary LEDs for smooth background wash.
Precision Control: 32-bit 0-100% linear dimming paired with a 1-30Hz high-speed electronic strobe.
Built with an IP65 waterproof rating and engineered to operate efficiently between 30°C and 50°C, this heavy-duty fixture guarantees stable technical execution under demanding touring conditions.
AT A GLANCE
Specification
VIDEO
Frequently Asked Questions
Q1: Is this LED Moving Head fully weatherproof for long-term outdoor festivals?
A: Yes, absolutely. This LED Moving Head is engineered with a rugged, heavy-duty die-cast metal housing carrying a certified IP65 outdoor waterproof rating. To ensure complete environmental sealing, it features matching IP65-rated DMX In/Out and Power In/Out connections, allowing safe and continuous operation in demanding touring environments within a temperature range of 30°C to 50°C.
Q2: What DMX channel modes and control protocols are available for pixel mapping?
A: To satisfy both quick setups and complex visual programming, the fixture supports DMX512, RDM (Remote Device Management), Auto-run, Master-Slave, and Sound Active modes. For advanced pixel mapping and multi-layered effects, lighting designers can select from five highly flexible DMX channel configurations: 26CH, 36CH, 56CH, 66CH, and 166CH.
Q3: Does the dimming system cause camera flicker during live HD broadcasts or video recording?
A: No. This fixture utilizes a professional-grade 32-bit 0-100% linear dimming architecture. This advanced control pulse-width modulation ensures ultra-smooth color transitions, flawless low-end dimming curves, and completely flicker-free performance, making it fully compatible with high-definition TV broadcasts, live streaming, and professional camera environments.
Q4: How do the main and auxiliary light sources interact to create integrated effects?

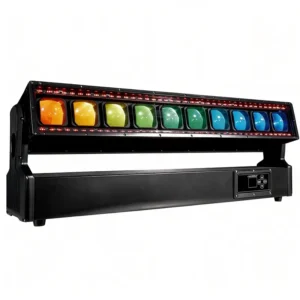

A: The fixture features a dual-layer optical engine. The main source consists of 10 x 60W premium Tianxin RGBW 4-in-1 LEDs delivering razor-sharp, punchy beams. This is surrounded by an aura of 140 x 0.3W 5050 RGB auxiliary LEDs for vibrant background washes. Combined with automated Y-axis tilt and a high-speed 1-30Hz electronic strobe, it creates stunning, multi-dimensional visual layers.
Q5: Can this lighting fixture be safely operated on international power grids during global tours?
A: Yes, it is fully optimized for international touring logistics. It features a wide-range switching power supply that automatically adapts to input voltages from AC100V to 240V at 50/60Hz. With a highly efficient rated power consumption of 650W, it seamlessly complies with power infrastructure standards across North America, Europe, and global festival mainstages.
Got more questions? DM us!
