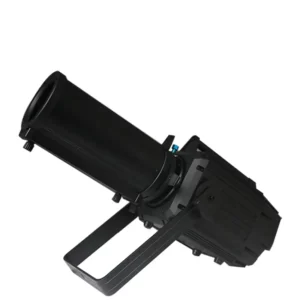

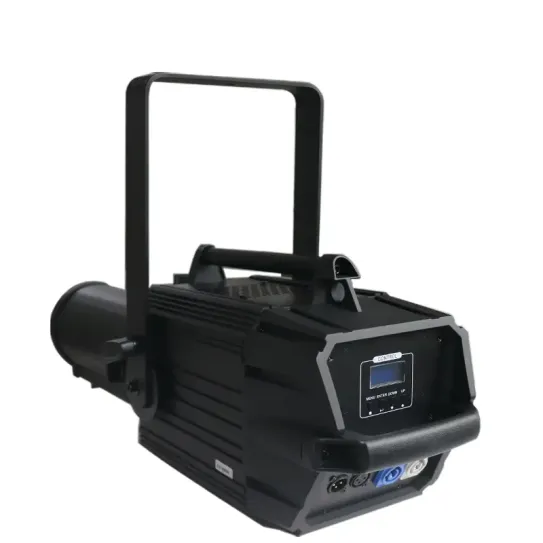

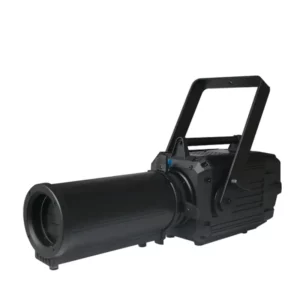

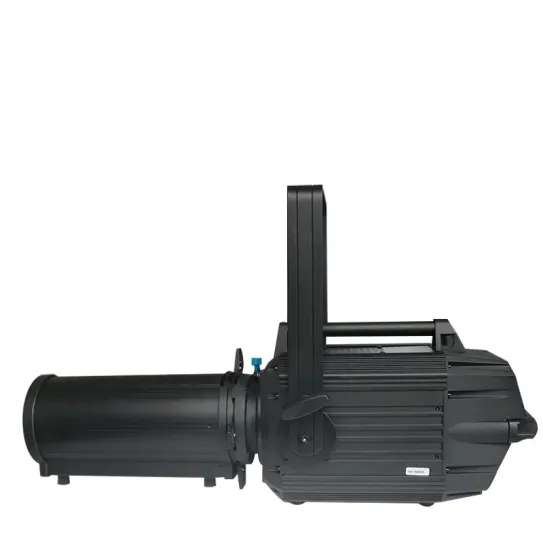

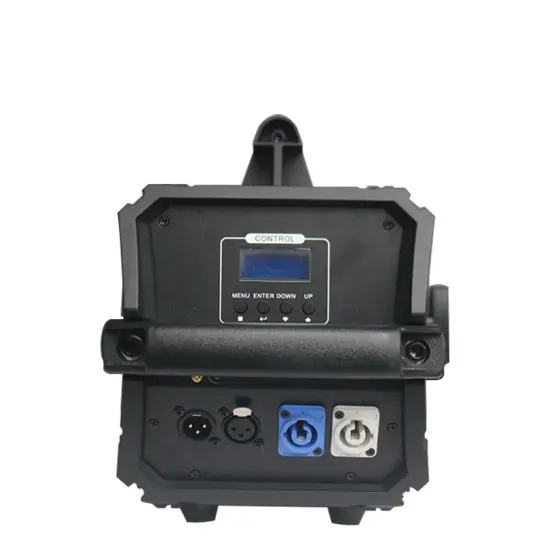

400W Electric Zoom Ellipsoidal Spot(GL-400B)

The 400W Electric Zoom Ellipsoidal Spot is a professional-grade lighting fixture featuring PWM technology for smooth, flicker-free dimming, and a high CRI of over 95 for superior color accuracy. Its HSIC color mixing capabilities allow precise control of Hue, Saturation, Intensity, and Color, making it perfect for theater and stage applications. The fixture's robust design and advanced DMX control ensure reliable and versatile performance in any professional setting

AT A GLANCE

  • High PWM Frequency: The light offers adjustable PWM (Pulse Width Modulation) frequencies at 1200 Hz, 2400 Hz, 4800 Hz, and 9600 Hz, ensuring flicker-free performance for video and broadcast applications.
  • Superior CRI: With a Color Rendering Index (CRI) above 96, the light delivers exceptional color accuracy, making it ideal for applications requiring precise color representation.
  • Advanced HSI Control: The 400W Electric Zoom Ellipsoidal Spot supports HSI (Hue, Saturation, Intensity) control, allowing for versatile color mixing and precise color adjustments.
  • Smooth Linear Dimming: The fixture features smooth linear dimming capabilities from 0 to 100%, enabling seamless transitions and fine control over light intensity
  • Efficient Cooling System: The product is equipped with an intelligent temperature control system, ensuring efficient cooling and stable performance during prolonged use

Specification

  • Power:AC100V~240V, 50/60Hz--400W
  • Beam Angle:19°-42°
  • Dimming:0-100% linear dimmer; 4 selectable dimming curves
  • Color Calibration System (CCS):Yes
  • Power Output:P-Con (gray) mounting version
  • LED:1 x COB (chip-on-board) 400 W
  • DMX Output:3-pin XLR (F) mounting version
  • Cooling:Cooling fan
  • Color Rendering Index (CRI):More than 96 Ra
  • Color rendering index (CRI) more than:95 Ra
  • Dimensions:Length: 72.5cm (28.54") * Width: 28.6cm (11.25") * Height: 25.5 cm (10.04")
  • LEDs:COB 400W LED 6in1-RGBALC, CRI: > 96
  • Control Mode:RDM; DMX512; HSIC; Master/Slave; Stand-alone
  • PWM Dimming Frequency Adjust:1200Hz ~ 20000Hz
  • Power Connection:Mains input P-Con (blue) mounting version
  • Lamp Type:LED lamp
  • DMX Input:3-pin XLR (M) mounting version
  • DMX output:3-pin XLR (F) mounting version
  • Beam Angle (1/2 Peak):19°-42°
  • Housing Color:Black
  • Display type:LCD
  • Weight:11kg (24.25 lbs)

DOWNLOADS

VIDEO

Frequently Asked Questions

Q: What is the PWM frequency range of the 400W Electric Zoom Ellipsoidal Spot?

A: The PWM (Pulse Width Modulation) frequency range of the 400W Electric Zoom Ellipsoidal Spot can be adjusted to 1200 Hz, 2400 Hz, 4800 Hz, and 20000 Hz

Q: What is the Color Rendering Index (CRI) of the light?

A: The CRI of the 400W Electric Zoom Ellipsoidal Spot is above 96, ensuring excellent color accuracy for various applications

Q: Does the light support HSI control?

A: Yes, the 400W Electric Zoom Ellipsoidal Spot supports HSI (Hue, Saturation, Intensity) control, allowing for precise color adjustments and versatile color mixing

Q: Can the light be dimmed smoothly?

A: Yes, the fixture features smooth linear dimming capabilities from 0 to 100%, enabling seamless transitions and fine control over light intensity
