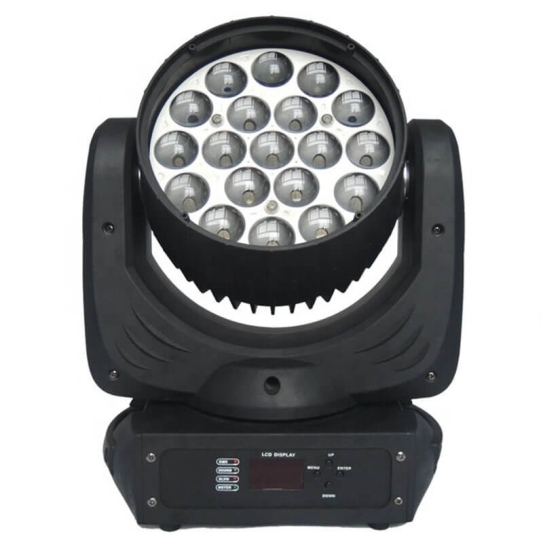

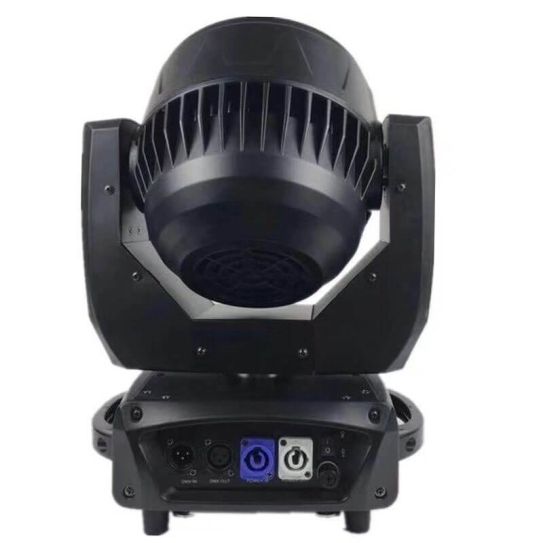

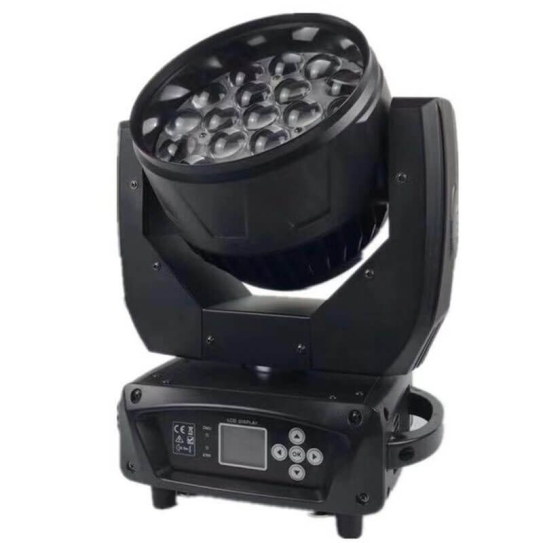

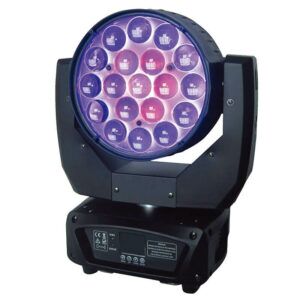

19x15w led moving head(GL-Z19)

This product features 19 high-brightness 15W focus dyed full-color RGBW4-in-1 lamp beads, offering a versatile lighting experience with a unique circle control effect and a user-friendly color screen display panel. With 3 channel selections, it delivers a wide range of vibrant dyed beam effects. The beam distance spans 5-10 meters, and the focus angle provides smooth linear dimming from 10 to 45 degrees, making it ideal for various dynamic lighting applications.

RELATED PRODUCTS

AT A GLANCE

Powerful Lighting: The fixture features 19 high brightness LED lights with a power rating of 15W each, providing vibrant and saturated colors for captivating lighting displays.
Infinite Color Mixing: The RGBW 4in1 LEDs allow for infinite color mixing possibilities, enabling you to create stunning and dynamic lighting scenes.
Precise Projection: Equipped with a smooth-surfaced optical lens, it offers a focused beam angle of 11°, ensuring precise light projection and clear visuals.
Extensive Movement: The moving head offers a wide rotation angle with a horizontal movement of 540 degrees and a vertical movement of 270 degrees, allowing for versatile positioning and coverage.
Flexible Control: It supports multiple control modes including DMX512, master-slave, self-propelled, and voice control, providing easy and flexible operation.
Customizable Lighting Sequences: With 16/24 DMX512 channels, you can program intricate lighting sequences to suit your specific requirements.
Convenient Features: Adjustable focusing angle (8°-15°), linear strobe adjustment (0-100%), and smooth dimming capability (0-100%) offer enhanced versatility and creative control.
User-Friendly Interface: The fixture is equipped with an LCD display and button interface, allowing for easy menu navigation and adjustments.

Specification

Rated Voltage: AC100V240V ±10%, 50Hz60Hz
LED Light Source: 19x15W high brightness LED
LED Life: 6-10 million hours
Rotation Angle: Horizontal 540°, Vertical 270°
Channel Modes: 16/24 DMX512 channels
Strobe: 0-100% linear adjustment
Display: LCD display + button interface
Weight: 17.2 lbs

Power Consumption: 280W
LED Color: RGBW 4in1
Optical Lens: Smooth surface, 11° beam angle
Control Modes: DMX512, Master-slave, Self-propelled, Voice Control
Focusing Angle: 8°-15°
Dimming: 0-100% linear dimming
Waterproof Rating: IP20
Fixture Dimension: 16.3 inches x 9.2 inches x 17.3 inches

DOWNLOADS

19x15w Led Moving Head(GL-Z19) reference guide downloads

VIDEO

RELATED PRODUCTS

600W LED moving head profile

460W LED moving head

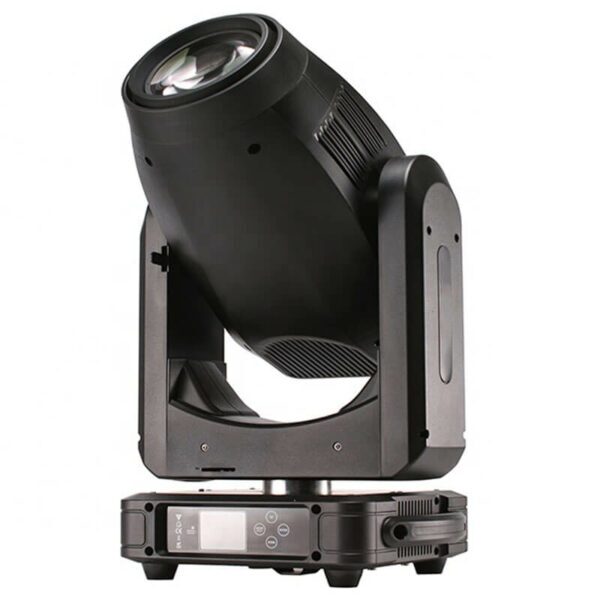

480W CMY CTO Led Moving Head Light GL-P480 (1)
