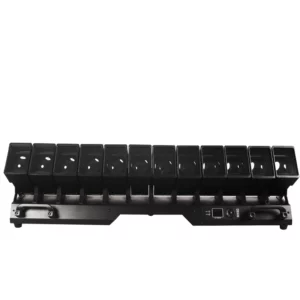

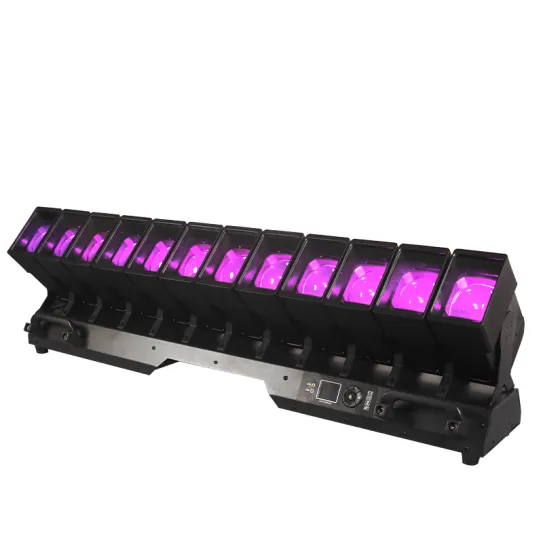

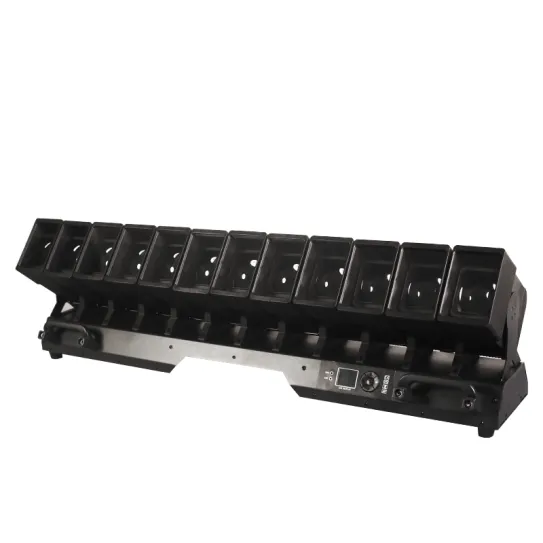

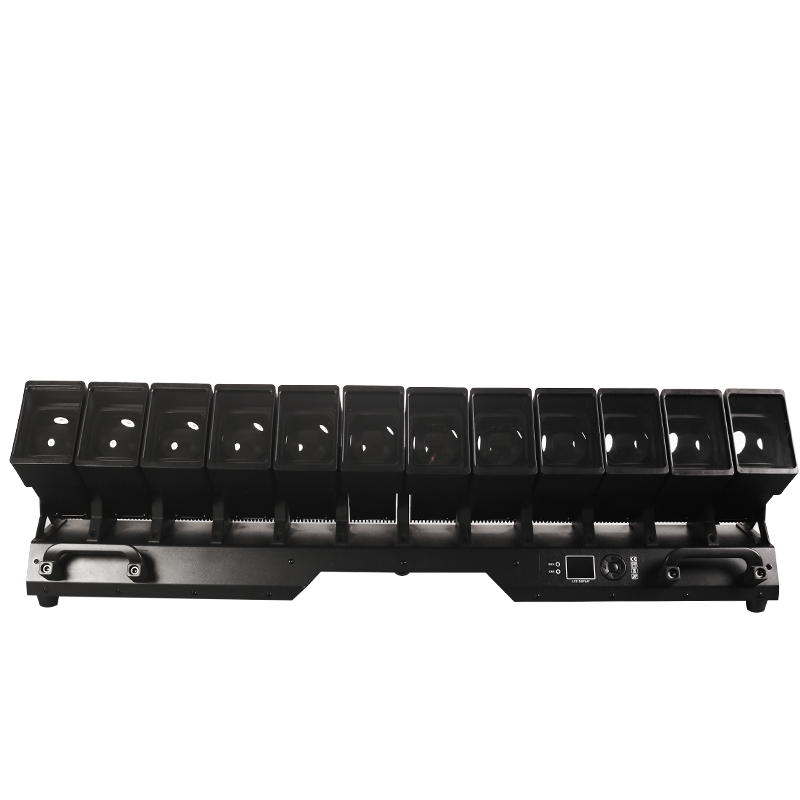

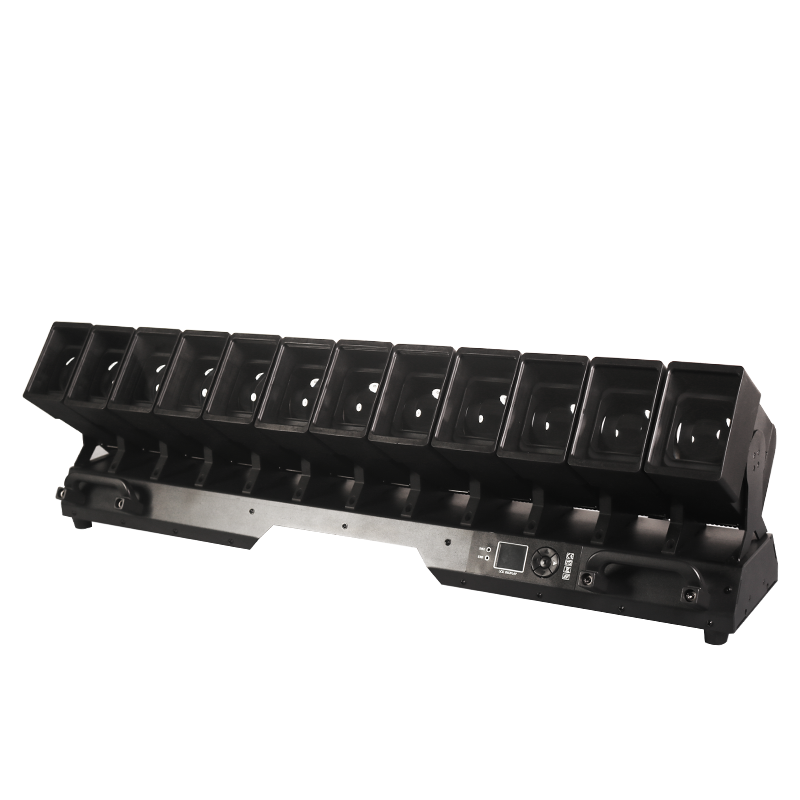

12*60W Moving Head Light Beam（GL-M1260）

Pixel control: Each of the 12 LEDs individually addressable
DMX channels: 20 / 53 / 101 / 155 / 169 / 179, selectable
Optional: ArtNet, sACN, KlingNet (custom)
What Makes It Work
- Single-pixel control – each LED can be programmed individually for chases, zone effects, and pixel-mapped sequences. This turns the bar into a dynamic video-like display, not just a wash light
- Wide zoom range (4°–30°) – tight 4° beam for long-throw aerial effects, 30° wash for stage coverage. One fixture covers beam and wash duty
- RDM support – remote DMX addressing and configuration without climbing ladders or touching the fixture

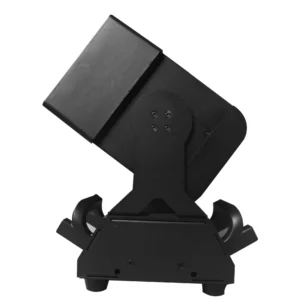

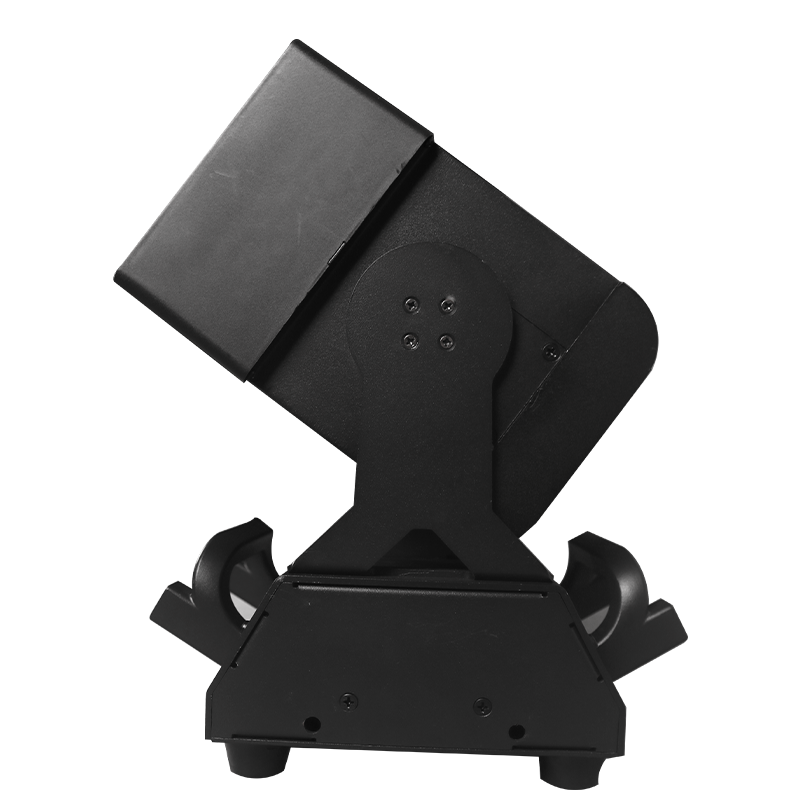

- Wide tilt range (202°–220°) – covers more stage area than standard moving bars. Independent head swing available on some configurations

AT A GLANCE

Versatile control options including DMX512, auto-run, master-slave, sound control and RDM function.

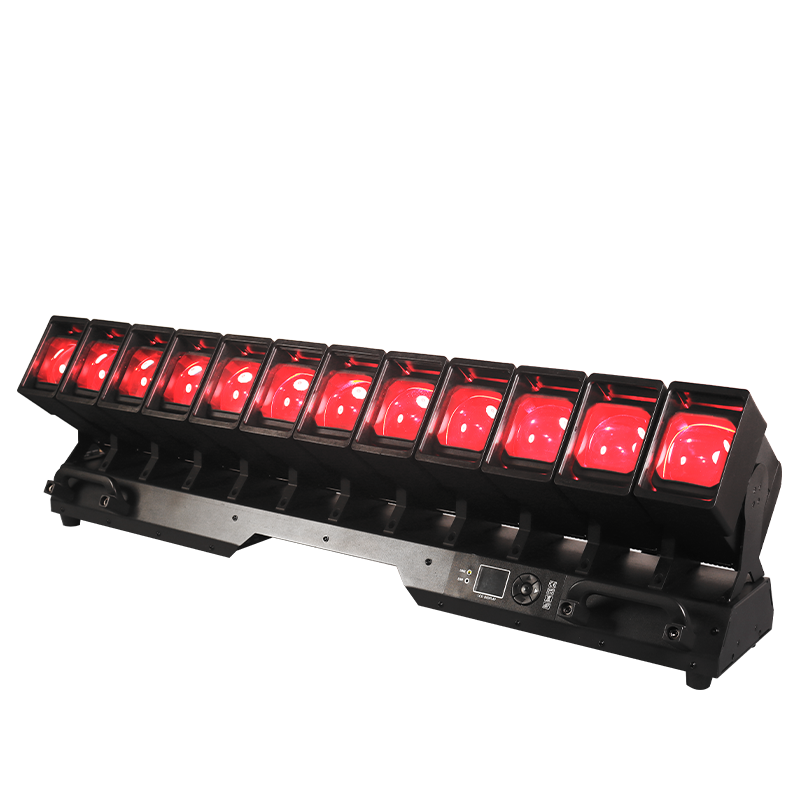

Powerful lighting performance with 12 four-in-one 60W LED lamp beads, single bead capable of swinging, coloring and beam projecting.
Wide operating temperature range from - 30℃ to 50℃, suitable for various environments.

Power:AC100V~240V, 50/60Hz--200W
Power: 12 × 60W (800W)
Lamp beads: 12 four-in-one 60-watt LED lamp beads
Control modes: DMX512, auto-run, master-slave, sound control, with RDM function.
Channels: CH20, CH169A, CH169B, CH53, CH101, CH155, CH179
Dimming: 32-bit 0 - 100% linear dimming
