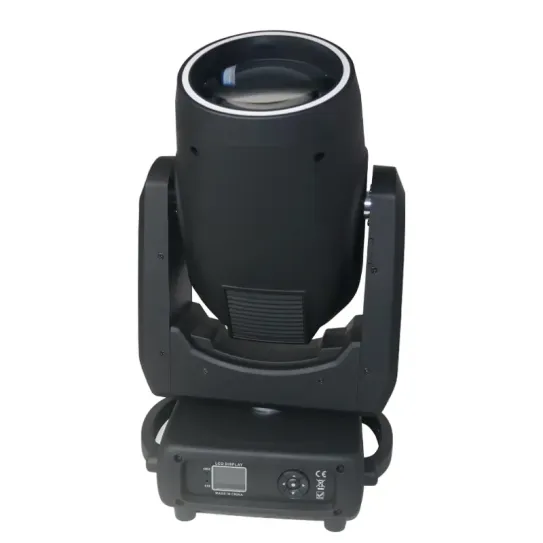

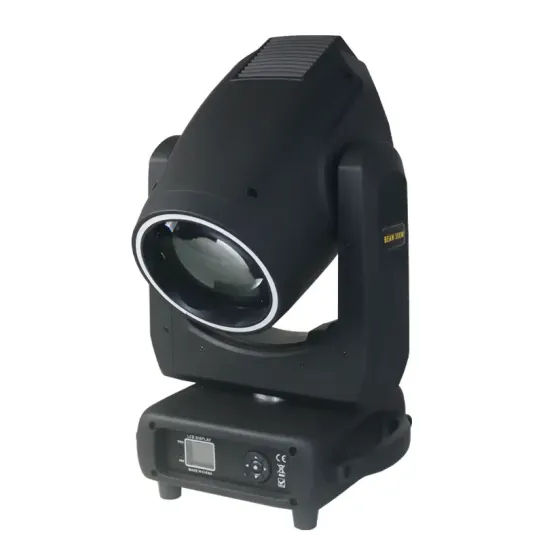

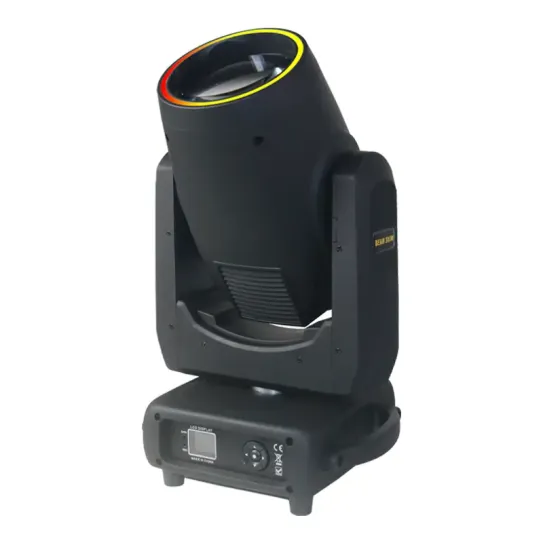

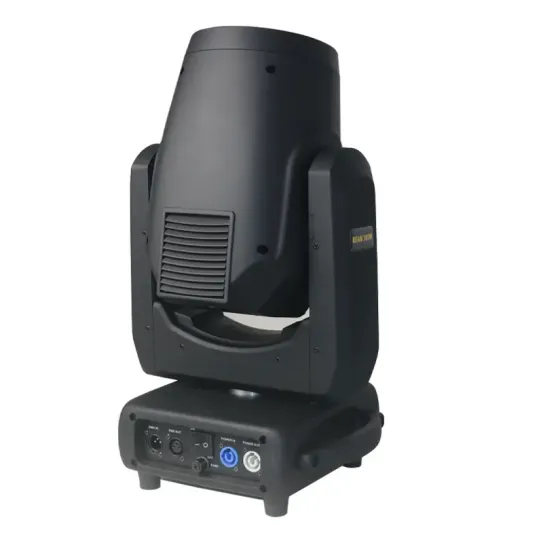

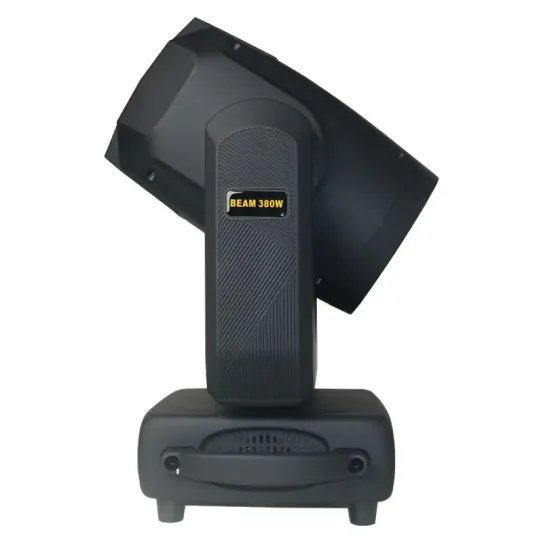

380W 20R Moving Head Beam With Ring

（GM-B380R）

Overview

A high-intensity beam moving head featuring a 380W Phoenix Bubble lamp delivering 7950lm at 8500K. 48 honeycomb prisms with bidirectional rotation create layered 3D effects. 14 color tiles plus white, 6 vibrant rainbow macros, and 0-100% mechanical dimming. 180° rotatable LCD touchscreen for easy setup

Color wheel: 14 colors + white (rainbow effect)
Prism: 48 honeycomb prisms (bidirectional rotation)
Beam angle: 0–4° linear focus
Strobe: 1–12 FPS mechanical

AT A GLANCE

High-Intensity Output: Equipped with a 380W Phoenix Bubble lamp producing 7950lm luminous flux at 8500K color temperature for sharp, vibrant beams.
Advanced Prism System: 48 honeycomb prisms with bidirectional rotation, enabling layered 3D effects and dynamic light diffusion.
Precision Movement: 540° pan and 270° tilt range with 8Bit/16Bit fine-tuning, supported by automatic error correction for accurate positioning.
Versatile Control: DMX512/WMDMX/self-operated modes with 16 channels for flexible programming and seamless integration into professional setups.
Dynamic Effects: Includes 14 color tiles, 6 rainbow macros, mechanical dimming (0-100%), and adjustable strobe effects (1-12 FPS).

Specification

Power Supply：AC100-240V, 50/60Hz
Total Power：600W
Bulb Model：Phoenix Bubble 380W
Display：Beautiful dot matrix display with four light touch switches, capable of reversing 180° display
Color Palette:A color palette, each consisting of 14 color tiles+white, 6 colorful tiles, rainbow effect
Rotation Speed:Adjustable, bidirectional flowing effect, and rainbow effectPattern Disk:Fixed pattern disk, 10 fixed patterns+4 glass images (14 pattern effects+white light)
Prism:48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotate independently in both directions, with adjustable rotationspeed
Focusing:Linear focusing, from near to far. Equipped with atomization function and adjustable atomization speed
Dimming:0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function,mechanical strobe is 1-12 F.P.S.

Luminous Flux：7950lm
Color Temperature：8500K
Ballast：Electronic Inductive Ballast
Control Mode：DMX512/WMDMX/self-propelled
Channels：16 channels
Photoelectric Reset System：Automatically retrieves the reset in case of accidental misoperation
Pan：Horizontal 540°, 8Bit/16Bit fine-tuned
Tilt：Vertical 270°, 8Bit/16Bit fine-tuned
Error Correction：Equipped with horizontal and vertical fine automatic error correction functions
Overheat Protection：Yes
IP Protection Level：IP20
Power Supply Type：AC/DC switch power supply
Display Screen：LCD display screen
Size：300 x 240 x 530mm (11.81 x 9.45 x 20.87 inches)
Net Weight：12Kg (26.46 lbs)
Packaging Size：56×38 ×44cm (22.05 x 14.96 x 17.32 inches)
Gross Weight：15Kg (33.07 lbs)

DOWNLOADS

380W 20R Moving Head Beam With Ring(GM-B380R)Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: Can this Moving Head Beam be used outdoors?

A: No, it has an IP20 rating, which means it’s designed for indoor use only. For outdoor applications, ensure it’s protected from moisture and dust with proper covering.

Q: Is the 380W bulb replaceable, and how long does it last?

A: Yes, the Phoenix Bubble 380W lamp is user-replaceable. Its lifespan depends on usage but typically offers hundreds of hours at full intensity.

Q: Does it work with standard DMX controllers?

A: Absolutely! It supports DMX512, the industry-standard protocol, ensuring seamless integration with most lighting consoles and software.

Q: How does the “auto error correction” handle accidental misalignment during shows?

A: The photoelectric reset system automatically recalibrates pan/tilt positions if misaligned, minimizing downtime during live performances.
