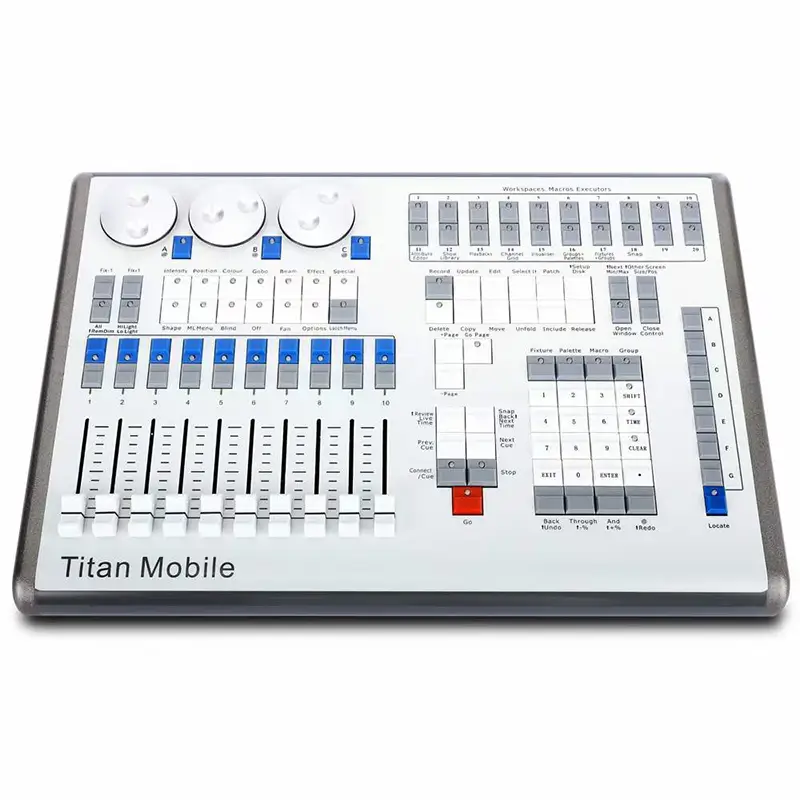

Titan Mobile Light DMX Controller Command Wing

Titan mobile DMX controller command wing is a USB - connected wing for PCs or laptops (Windows 7 or above with Titan software).

It has various features. Playback faders for cue/chase storage and playback, with page select buttons. Attribute Control wheels set fixture control values, chase speeds and fades. Attribute select buttons control fixture attributes. There are also Chase and Cuelist control buttons, numeric keypad, function buttons, and programmable Workspaces, Macros and Executers buttons. The system can be used with a touch screen or mouse. Four Workspace Windows can be shown. The control panel's connections are on the right, usually powered via USB, and there's a DC power input option. A PE socket helps with DMX problems related to earthing.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • Compatibility: It is a USB wing designed to be plugged into a PC or laptop running Windows 7 or above with the Titan software.
  • Attribute Adjustment: The Attribute Control wheels can set control values for fixtures, chase speeds and fades. The Attribute select buttons, with indicator lights, are used to choose which attributes of a fixture to control and can also handle functions like Fan and Shapes.
  • Multiple Operation Modes: The system can be used with a touch screen or a mouse by clicking where the manual indicates. It also has programmable buttons such as Workspaces, Macros and Executers buttons and Workspace Window select buttons.
  • Power and Connection: It usually gets power from the USB connection. If the laptop USB port's power is insufficient, there's a DC power input for an external 9V DC power supply. It also has a PE socket for grounding to resolve DMX problems when the laptop isn't earthed. And the current version has one USB socket.
  • Functional Controls: It has playback faders for storing and playing back cues or chases, and page select buttons for changing playback pages. The screen shows relevant information for each function.

Specification

  • Product name: Titan Mobile.
  • Product name: Titan Mobile.
  • Connection type: USB wing for PC or laptop (Windows 7 or above with Titan software).
  • Playback faders function: Store and play back cues or chases.
  • Page Select buttons function: Change to a different page of playbacks.
  • Information on screen bottom: Details of each playback.
  • Attribute Control wheels function: Set control values for fixtures, and set chase speeds and fades.
  • Information in bottom right corner of screen: Details of the attributes being controlled.Attribute select buttons function: Select attributes of a fixture for the Control wheels, with lights showing active attributes, and control Fan and Shapes functions.

  • Chase and Cuelist control buttons function: Start and stop chases and cuelists, and move in the list.
  • Numeric keypad and other control buttons function: Enter values and change controls on the system.
  • Function buttons function: Carry out functions such as storing cues, copying, saving to disk.Workspaces, Macros and Executers buttons function: Programmable for storing workspaces, button macros or cues.
  • Context buttons appearance: Appear when relevant to the operation.
  • Workspace Buttons function: Quickly select and save different workspace screen layouts.
  • Wheels display content: Current attributes available on the 3 wheels.
  • Attribute status display content: Attributes currently active or modified.
  • Playback information content: Legend and other information about the playbacks on the 10 faders.

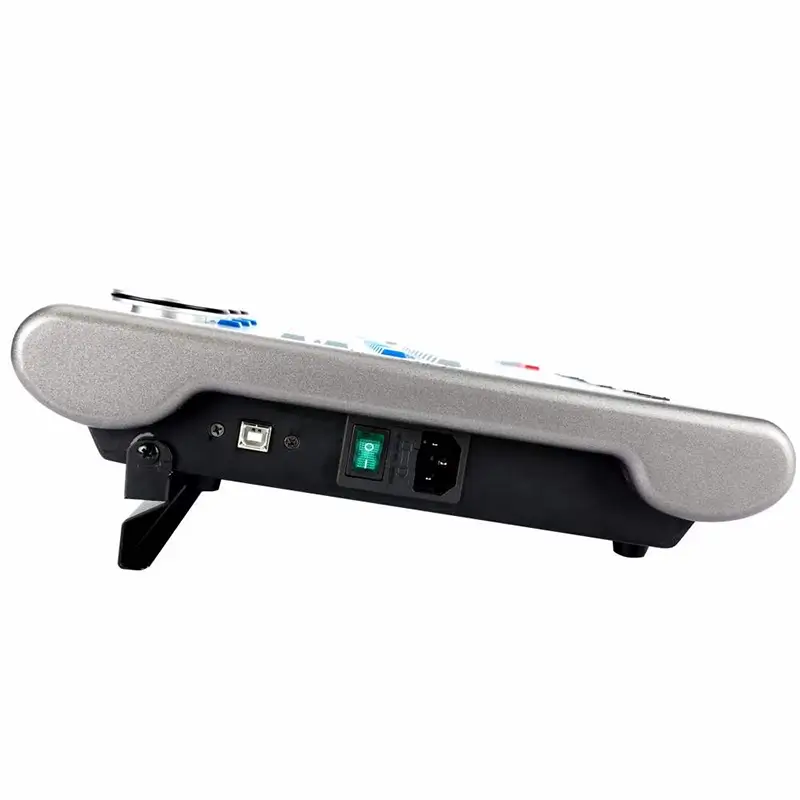

  • Control panel connections location: Right hand side.
  • USB socket number (current version): 1 (originally 2).
  • Power source usually: USB connection.
  • Alternative power source: DC power input for 9V DC power supply from Avolites if laptop USB ports don't provide enough power.
  • PE socket function: Ground/earth the panel to help resolve DMX problems if laptop is not earthed.
  • using menu buttons on the right hand edge of the control panel.System prompts location: Just to the left of the menu keys.
  • Visualiser display: Can be shown in a window
  • Workspace Window select buttons function: Set which windows are shown on the screen.Screen usage: Can be used with touch screen or mouse (click where manual says 'touch').Workspace Windows content: Contain touch buttons for fixture selection, palette selection, groups, shapes, attributes, etc.

DOWNLOADS

Titan Mobile Light DMX Controller Command Wing reference guide downloads

VIDEO

Frequently Asked Questions

1. Question: What operating systems are compatible with the Titan Mobile?

Answer: It is compatible with PCs or laptops running Windows 7 or above with the Titan software.

2. Question: What if my laptop's USB port doesn't provide enough power for the Titan Mobile?

Answer: You can use the DC power input to connect an external 9V DC power supply available from Avolites.

3. Question: Can I use the Titan Mobile with a mouse instead of a touch screen?

Answer: Yes, you can use a mouse. Just click where the manual says 'touch'.
