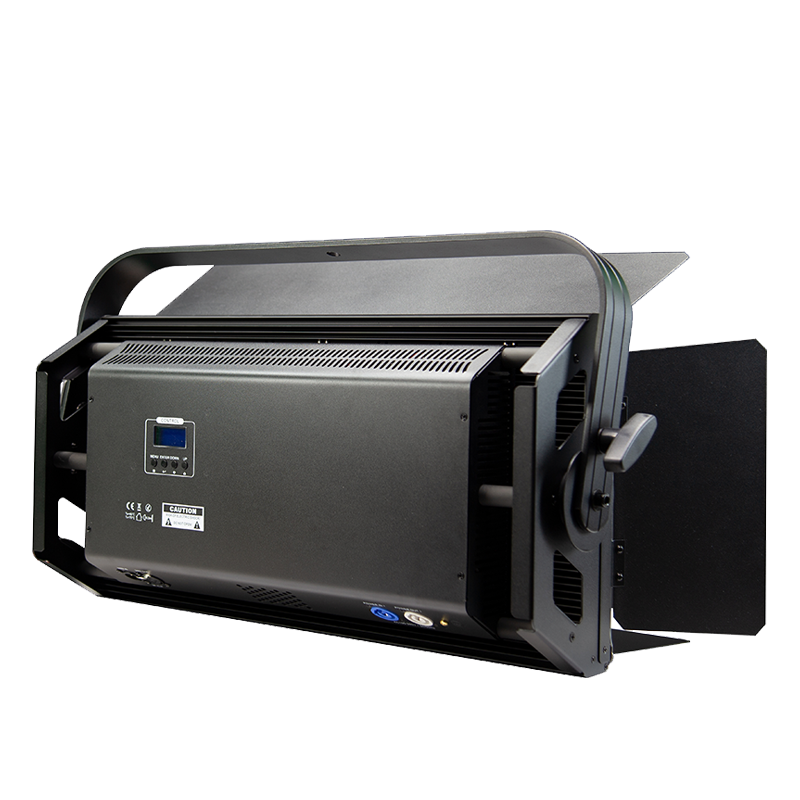

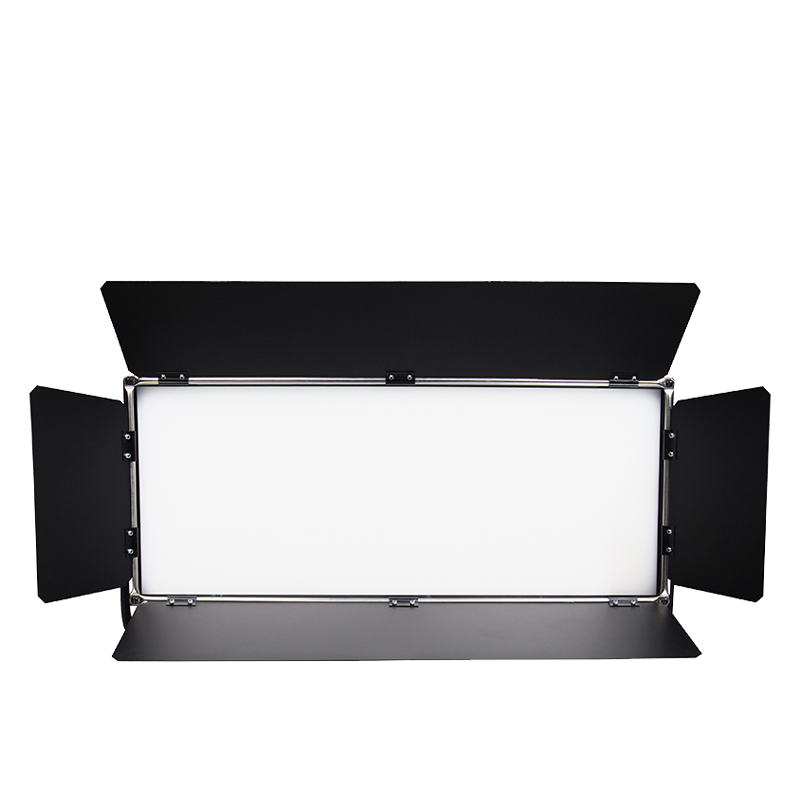

400W LED Panel（GL-400C）

After four years of refinement, the Igracelite 400W LED Panel delivers exceptional color accuracy for photography and video. It reproduces the most realistic environments and skin tones, saving you time by eliminating the need for post-production correction.

Key Features:

Perfect Color Accuracy: Achieves true-to-life color rendering for both environments and skin tones, removing the need for post-shoot correction.
High-Output Performance: Offers 400W of powerful, consistent light—doubling the power of our 200W model while maintaining all other superior specifications.
Ergonomic Design: Features smooth, sloping curves for an enhanced visual appeal and a premium metallic finish.
Professional Collaboration: Engineered through a collaboration between our optical engineers and industrial designers for optimal performance and aesthetics.

AT A GLANCE

High-Quality Color Rendering: Equipped with 2688 LEDs in Red, Green, Blue, Amber, Lime, and Cyan, with a CRI greater than 96 for accurate, high-quality color output.
Wide Illumination Coverage: A broad 170° beam angle ensures expansive and even light distribution.
Versatile Control Options: Offers multiple control modes, including RDM, DMX512, HSIC, Master/Slave, and Stand-alone, allowing flexible operation to suit different setups.
Advanced Dimming Capabilities: Provides 0-100% linear dimming with four selectable dimming curves, along with adjustable PWM dimming frequency from 1200Hz to 20000Hz for smooth, flicker-free lighting.

Specification

Power：AC100V~240V, 50/60Hz, 400W
LEDs：R, G, B, A, L, C, each 0.2W x 2688pcs LED, CRI: > 96
Beam Angle：170°
Control Mode：RDM, DMX512, HSIC, Master/Slave, Stand-alone
Dimming：0-100% linear dimmer, 4 selectable dimming curves
PWM Dimming Frequency：1200Hz ~ 20000Hz
Protection class:Class I
Power connection:Mains input P-Con (blue) mounting version
Power output:P-Con (gray) mounting version
Lamp type:LED lamp

LED:LED Model: 2835, See the above models for details
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Beam angle (1/2 peak):170°
Color rendering index (CRI) more than:96 Ra
Housing color:Black
Display type:LCD
Dimensions:Length: 63.9cm (≈ 25.18 inches) * Width: 13.3cm (≈ 5.24 inches) * Height: 28cm (≈ 11.02 inches)
Weight:10.2kg (≈ 22.49 lbs)

DOWNLOADS

400W LED Panel Light reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the significance of the high Color Rendering Index (CRI) over 96?

A: A CRI over 96 ensures that the light fixture delivers exceptionally accurate color rendering, which is crucial for applications that require true color representation, such as photography, film, and stage lighting.

Q: How does the fixture's cooling system contribute to its performance and longevity?

A: The built-in cooling fan helps to dissipate heat effectively, which is essential for maintaining the LED's performance and extending its lifespan, ensuring the fixture remains efficient and reliable over time.

Q: How does the fixture's dimming capability enhance the lighting experience?

A: With a 0-100% linear dimmer and four selectable dimming curves, the fixture allows for precise control over light intensity, enabling users to create various lighting moods and effects for different applications.

Q: What is the role of the LCD display in the fixture's operation?

A: The LCD display provides a user-friendly interface for monitoring and controlling the fixture's settings, making it easier to adjust parameters such as dimming, color calibration, and other functions without the need for external control equipment.
