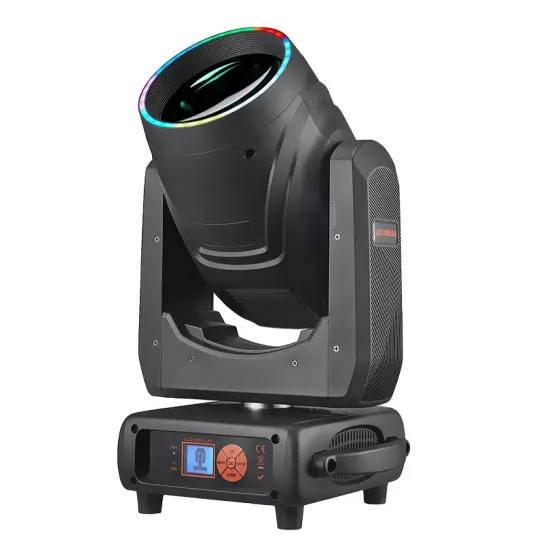

300w LED beam moving head light with ring effect（GL-B300LED）

🌟 400W High-Performance LED Beam Moving Head Light | Dynamic Stage Lighting Redefined! 🌟
Unleash next-level stage dynamics with our LED Beam Moving Head Light — engineered for precision, versatility, and jaw-dropping visuals!

⚡ Core Features:
Power & Efficiency: AC 100-240V, 50/60Hz universal voltage + 400W total power (300W LED module + 31 SMD beads) for 7950lm ultra-bright output.
Crisp, Cold Beam: 8500K color temperature ensures piercing clarity, perfect for cutting through stage fog or creating sharp aerial effects.
Smart Control: DMX512/WDMX/Auto-Run modes + 18 channels for seamless integration into any setup. Rotatable dot-matrix LCD display simplifies on-the-fly adjustments.
🎨 Creative Flexibility:

Color & Gobo Wizardry: 14-color gel wheel + 14 fixed gobos + white, with bidirectional speed control for rainbow waves or flowing patterns.
Prism Magic: Stack 48-cell honeycomb and 12-facet prism effects for multi-layered depth. Bidirectional rotation adds hypnotic motion.
Dynamic Movement: 540° pan / 270° tilt (8/16-bit fine-tuning) + auto error correction. Smooth linear focus from near to far.
🔧 Reliability First:

Built to Perform: Mechanical dimming (0-100%), strobe (1-12 FPS), and fog-speed adjustability. Overheat protection ensures longevity.
Compact & Robust: 14.7kg lightweight design with IP20 rating — ideal for indoor stages, concerts, or events demanding professional flair.
Perfect for concerts, theaters, clubs, and immersive events, this LED beam moving head light transforms spaces into visual spectacles. Elevate your show with cutting-edge tech that balances power, creativity, and durability!

Keywords: LED beam moving head light, stage lighting, DMX512 control, prism effects, high-lumen output.

(Need customization? Contact us for OEM/ODM solutions!) 🔌✨

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • High-Output LED System: 300W LED module + 31 SMD LEDs, delivering 7950lm brightness with a crisp 8500K color temperature
  • Advanced Control: 18 DMX512 channels + auto-run modes, supported by a rotatable dot-matrix LCD display for real-time adjustments
  • Dynamic Optics:
    48-cell honeycomb prism + 12-facet prism for multi-layered beam effects.
    14-color gel wheel + 14 fixed gobos + white, with bidirectional speed control
  • Precision Movement:
    540° pan (8/16-bit fine-tuning) + 270° tilt (8/16-bit), featuring automatic error correction.
    Linear focus adjustment (near to far)
  • Durability & Safety:
    IP20 rating (indoor use) + overheat protection.
    0-100% mechanical dimming + adjustable strobe (1-12 FPS)

Specification

  • Power Supply：AC 100-240V, 50/60Hz
  • Total Power：400W
  • Lamp Type：LED300W Module + 31 SMD LED Beads
  • Beam Diameter：152mm/0.5ft
  • Luminous Flux：7950lm
  • Color Temperature；8500K
  • Ballast：Electronic Inductor Ballast
  • Control Mode：DMX512/WDMX/Auto-Run
  • Channels：18

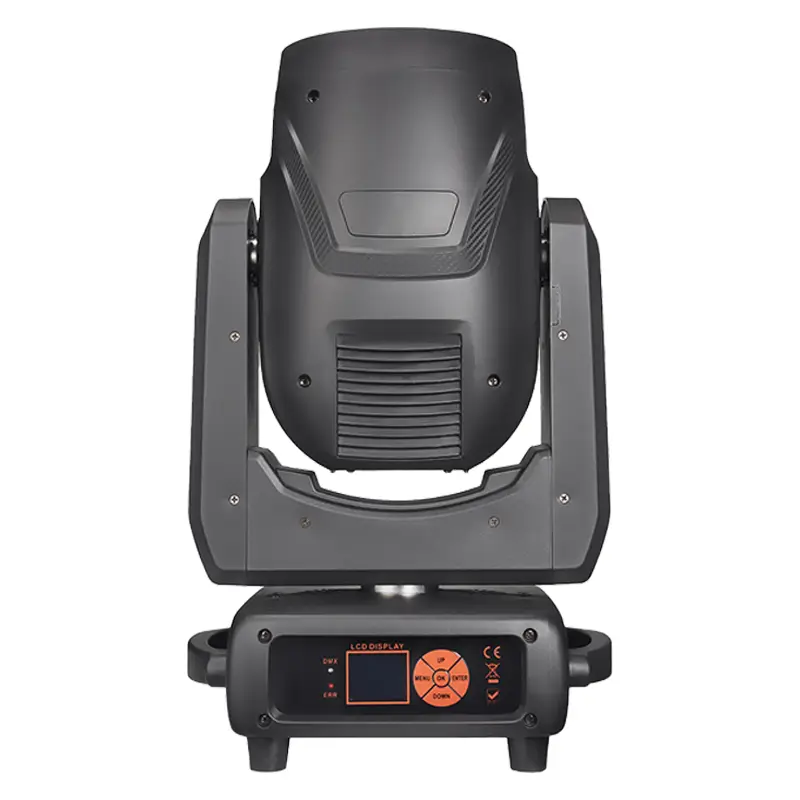

  • Display：Dot Matrix Display with 4 Tact Switches (180° Rotatable)
  • Power Type：AC/DC Switching Power Supply
  • Display：LCD Display
  • Package Size：56cm/1.8ft × 38cm/1.2ft × 44cm/1.4ft
  • Gross Weight：14.7kg/32.4lb
  • Color Wheel：14 Color Gels + White, Adjustable Speed, Bidirectional Flow & Rainbow Effects
  • Gobo Wheel：14 Fixed Gobos + White
  • Prism System：48-Cell Honeycomb Prism + 12-Facet Prism (Stackable, Bidirectional Independent Rotation)
  • Rotation：Bidirectional, Adjustable Speed
  • Focus：Linear Focus (Near to Far)
  • Fog Function：Adjustable Speed
  • Dimming：0-100% Mechanical Dimming, Strobe (1-12 F.P.S., Adjustable Speed + Macro Function)
  • Optoelectronic Reset：Automatic Retrieval Reset
  • Pan/Tilt Range：540° Horizontal (8/16Bit Fine-Tune) / 270° Vertical (8/16Bit Fine-Tune)
  • Error Correction：Horizontal/Vertical Automatic Fine Correction
  • Overheat Protection：Yes
  • IP Rating：IP20

DOWNLOADS

300w LED beam moving head light with ring effect（GL-B300LED）reference guide downloads

VIDEO

Frequently Asked Questions

Q: What control modes are supported for this LED beam moving head light?
A: It supports DMX512, WDMX, and Auto-Run modes with 18 control channels for flexible integration into lighting setups

Q: Is this fixture compatible with global voltage standards?

A: Yes, it operates on AC 100-240V, 50/60Hz, making it suitable for worldwide use without additional converters

Q: What is the pan/tilt range for positioning the light beam?

A: The fixture offers 540° horizontal pan and 270° vertical tilt, both with 8/16-bit fine-tuning for precise directional control

Q: How bright is the light output, and what is its color temperature?

A: It delivers 7950 lumens at an ultra-cool 8500K color temperature, ideal for creating sharp, high-contrast beam effects

Got more questions? DM us!💬

 Contact us

RELATED PRODUCTS

320W DJ Lights Moving Head
480W CMY CTO LED Moving Head Light
350W BSW 3in1 LED Light Moving Head

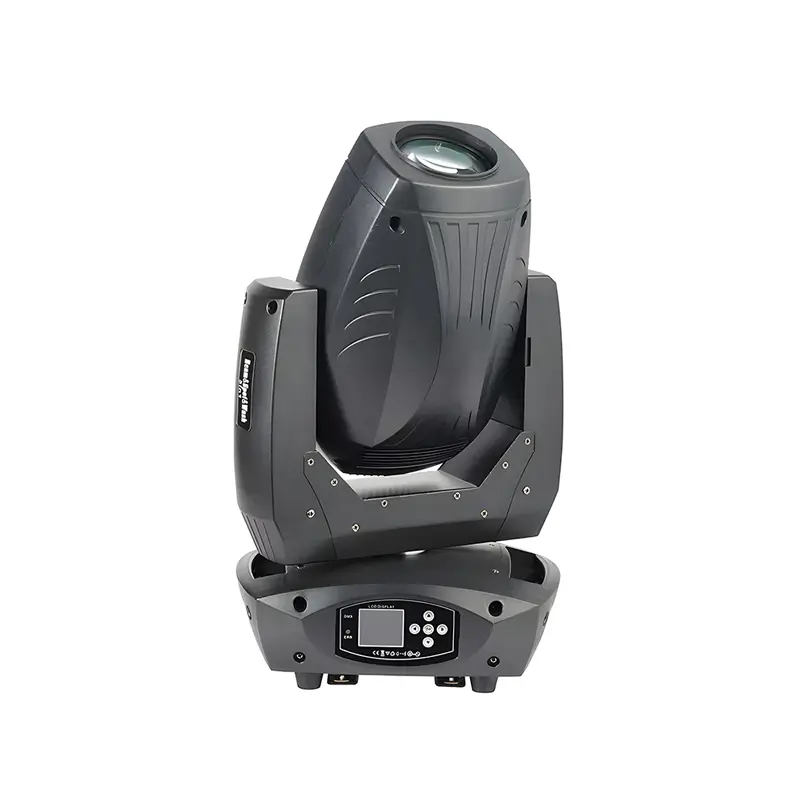

200W LED Moving Head
>
