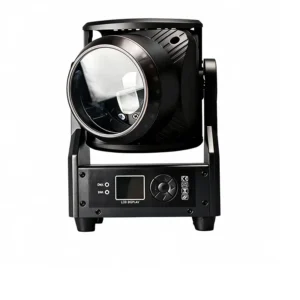

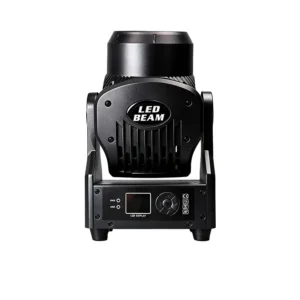

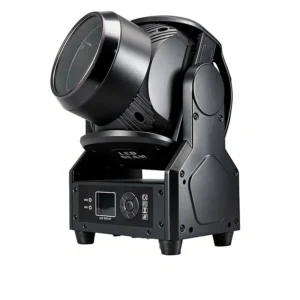

120W RGBL 4-in-1 LED Moving Head Light with RGB Halo Ring（GL-L1）

Unleash Next-Level Stage Magic!
Upgrade your lighting rig with a premium LED Moving Head designed to dominate pro stages, clubs, and live events. Featuring a game-changing 120W RGBL 4-in-1 LED engine, this powerhouse delivers pure, deeply saturated colors—including vibrant lime hues that leave standard RGBW fixtures in the dark.

Engineered to Captivate:

3-in-1 Visual Fusion: Seamlessly morphs from a razor-sharp beam to a rich wash, enhanced by a dynamic single-lens swing effect.

Mesmerizing Halo Ring: 24pcs of 5050 RGB SMD LEDs create stunning, independent chase layers right around the lens.

Precision 32-bit Dimming: Achieve ultra-smooth, flicker-free linear fades via DMX512 or RDM control.

Ready to transform your venue's production value? Elevate your show today!

AT A GLANCE

Innovative 120W RGBL 4-in-1 Color Engine: Powered by a cutting-edge 120W main LED source that introduces a specialized Lime (L) chip alongside Red, Green, and Blue. This advanced color-mixing technology delivers unprecedented color fidelity, richer pastels, and far superior color rendering than traditional RGBW fixtures.
Dynamic 3-in-1 Beam, Wash, and Swing FX: Engineering absolute versatility into a single LED Moving Head, the high-efficiency single-lens architecture seamlessly transitions between a razor-sharp beam, a wide smooth wash, and captivating lens swing effects to maximize your stage production value.
Independent Multi-Layered Halo Ring Effects: Encircling the main lens are 24pcs of high-brightness 5050 RGB SMD LEDs. This auxiliary eye-candy ring operates independently, unlocking mesmerizing visual layers, pixel-mapping capabilities, and stunning chase effects for modern club and stage designs.
Professional 32-Bit Dimming & High-Density DMX Channels: Experience flawless, flicker-free fades with 32-bit 0-100% high-precision linear dimming. Fully adaptable to complex lighting networks, it supports 22CH, 24CH, and a massive 94CH mode, complete with RDM protocol for effortless bi-directional communication.
Heavy-Duty Metal Housing & Seamless PowerCon Linking: Built for the grueling demands of professional touring and venues, the rugged black metal enclosure operates flawlessly from -30°C to 50°C. Pro-grade PowerCon and 3-pin XLR In/Out connections ensure reliable, fast daisy-chaining on busy grids.

Specification

Voltage Range：AC100V - 240V, 50 - 60Hz
Total Rated Power：142W
Main Light Source：120W RGBL 4-in-1 LED (Red, Green, Blue, Lime)
Auxiliary LEDs：24pcs x 5050 RGB SMD LEDs (Halo Ring Effect)
Control Mode：DMX512, Auto-Run, Master-Slave, Sound, RDM
DMX Channels：Professional 22CH / 24CH / 94CH
Dimming System：32-bit 0-100% High-Precision Linear Dimming

Movement Features：Single Lens Swing + Wash + Beam 3-in-1 Effect
Strobe Speed：High-Speed Strobe (1-30Hz)
Working Temperature：-30°C to 50°C
Housing Material：Durable Metal, Professional Black Finish
IP Rating:IP20 (Indoor Professional Stage Use)

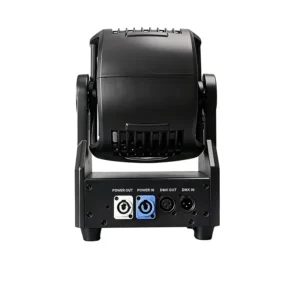

Connections:3-pin XLR DMX In/Out, PowerCon In/Out
Dimensions:205mm / 0.7ft x 215mm / 0.7ft x 295mm / 1.0ft
Weight:5.1kg / 11.2lb

VIDEO

Frequently Asked Questions

Q1: What are the advantages of the RGBL 4-in-1 LED source compared to standard RGBW fixtures?

A: The inclusion of a dedicated Lime (L) chip significantly expands the fixture's color spectrum. Unlike traditional RGBW setups, the 120W RGBL engine fills in crucial spectral gaps, offering dramatically improved color fidelity, richer pastel tones, and a more natural, vivid white balance that professional stage lighting designers demand.

Q2: How does the 3-in-1 single lens swing, wash, and beam effect operate?

A: This LED Moving Head features an advanced single-lens optical system capable of seamlessly morphing from a tight, high-intensity beam to a wide, uniform wash. The integrated mechanical swing feature adds a third layer of dynamic motion, allowing a single fixture to replace multiple single-effect units on your truss, saving power and channel space.

Q3: Can the 24-piece LED halo ring be controlled independently from the main light source?

A: Yes, the auxiliary halo ring—powered by 24pcs of 5050 RGB SMD LEDs—can be controlled entirely separate from the main 120W RGBL beam. By utilizing the professional 94-channel DMX mode, lighting operators can unlock full pixel-mapping capabilities, intricate color chases, and multi-layered visual eye-candy effects.

Q4: Is this stage fixture suitable for high-definition camera filming and video broadcasting?

A: Absolutely. The fixture is engineered with a high-precision 32-bit linear dimming system (0-100%). This ultra-high-frequency processing ensures completely flicker-free performance under HD cameras and TV broadcasting monitors, making it an excellent choice for modern live-streaming studios, music videos, and club events.

Q5: What DMX channel modes are available, and does the fixture support RDM protocol?

A: To adapt to different console memory limits and programming depths, the fixture offers three DMX channel layouts: 22CH, 24CH, and a comprehensive 94CH mode. It fully supports the RDM (Remote Device Management) protocol, enabling bi-directional communication with your console for convenient address mapping and status
