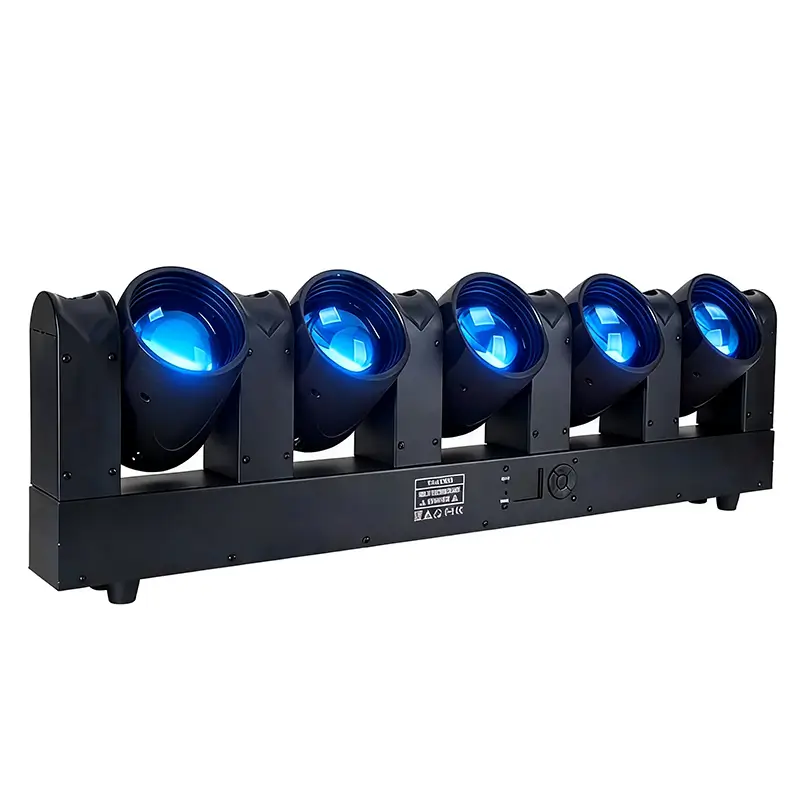

IP65 Waterproof 5-Head LED Moving Head Light,5x120W RGB Beam Wash Stage Fixture with Aux RGB Matrix（GL-W5120B)

Ready to dominate the outdoor stage? Meet the ultimate beast in professional lighting! This IP65-rated heavy hitter packs a massive 800W punch, combining 5 independent heads with a hypnotic RGB auxiliary matrix. Whether it’s a rainy music festival or a high-end rental event, this fixture delivers razor-sharp beams and flawless washes simultaneously.

Why this LED Moving Head is a total game-changer:
5-in-1 Power: 5x120W RGB main LEDs + 120x0.5W matrix.
Weatherproof Armor: Rugged IP65 housing built for the elements.
Total Control: Flawless DMX512 & RDM for elite programming.

Stop blending in. Elevate your lighting rig, captivate your crowd, and bulletproof your outdoor productions today!

AT A GLANCE

High-Power 5-Head Beam & Wash Fusion
Combines 5×120W RGB main LEDs with a 120×0.5W RGB auxiliary matrix. This dynamic integration delivers razor-sharp beams, wide-angle washes, and mesmerizing pixel-mapping matrix effects simultaneously from a single 800W powerhouse fixture.
IP65-Rated All-Weather Engineering
Built with a premium, heavy-duty metal housing and fully sealed connections, this IP65 waterproof LED Moving Head guarantees flawless performance under harsh outdoor environments, making it the ultimate choice for festival rentals and open-air concert tours.
Advanced DMX512 & RDM Protocol Integration
Engineered for elite programming flexibility with versatile channel configurations (CH41, CH71, CH75, CH85, CH170). Full RDM functionality enables seamless bidirectional communication, allowing technicians to monitor status and modify addresses remotely from the console.
32-Bit Linear Dimming & Independent Pan/Tilt
Experience ultra-smooth, flicker-free 0–100% linear dimming powered by a professional 32-bit grading system. Paired with independent continuous movement for each of the 5 heads, it opens up unlimited architectural choreography possibilities.
Master/Slave Sync & Multi-Mode Automation
Supports Master/Slave synchronization, Auto-run programs, and Sound-activated modes. This multi-protocol adaptability ensures quick deployment on professional stages while reducing setup times for high-turnover rental operations.

Specification

Input Voltage：AC100~240V, 50/60Hz
Power Consumption：800W
Main Light: 5 × 120W RGB (Lemon Yellow) LEDs (Type 1212)
Auxiliary Light: 120 × 0.5W RGB LEDs (Type 5050)
Control Modes：DMX512, Auto-run, Master/Slave, Sound-activated (RDM functionality included)
DMX Channels：CH41, CH71, CH75, CH85, CH170
Dimming：32-bit 0~100% Linear Dimming
Special Features：Independent movement for each head + Wash + Beam effects

Operating Temperature：-30°C to 50°C (-22°F to 122°F)
Strobe Frequency：1~30Hz
Housing：Metal, Black finish
Connections：DMX512 Input/Output; Power Input/Output
IP Rating：IP65 (Waterproof)
Product Weight：38 kg (83.8 lbs)
Product Dimensions：1000 × 200 × 330 mm (39.4 × 7.9 × 13.0 in / 3.28 × 0.66 × 1.08 ft)

DOWNLOADS

IP65 Waterproof 5-Head LED Moving Head Light,5x120W RGB Beam Wash Stage Fixture with Aux RGB Matrix（GL-W5120B) Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q1: Is this LED moving head light fully waterproof for outdoor festivals?

A: Yes, absolutely. This fixture features a rugged, heavy-duty metal housing with an IP65 waterproof rating and fully sealed Power/DMX inputs and outputs. Engineered to operate flawlessly in temperatures ranging from -30°C to 50°C (-22°F to 122°F), it is completely protected against heavy rain, dust, and moisture, making it the ultimate reliable choice for outdoor concert tours and multi-day festival rentals.

Q2: What DMX channel modes and control protocols does this fixture support?

A: To satisfy both quick deployments and complex pixel-mapping designs, this fixture offers exceptional programming flexibility with 5 DMX channel profiles: CH41, CH71, CH75, CH85, and CH170. It fully supports standard DMX512, Auto-run, Master/Slave sync, and Sound-activated modes, giving lighting designers absolute control over every performance scenario.

Q3: Can the 5 heads be controlled independently for custom matrix effects?

A: Yes. Each of the 5 individual heads features completely independent movement, allowing you to generate multi-directional architectural choreography. By combining the 5 × 120W RGB main LEDs with the built-in 120 × 0.5W RGB auxiliary matrix (Type 5050), you can seamlessly output razor-sharp beams, wide-angle washes, and hypnotic pixel-mapped matrix effects simultaneously from a single 800W unit.

Q4: Does this lighting fixture support RDM for remote address management?

A: Yes, full RDM (Remote Device Management) functionality is integrated. This allows technicians and stage crew to change DMX addresses, alter control modes, and monitor real-time fixture feedback remotely from the lighting console. It eliminates the need to manually adjust settings via the physical menu on-site, drastically cutting down setup and teardown times for high-turnover rental operations.

Q5: Is the dimming system smooth enough for high-speed camera recording and TV studios?

A: Yes, it is completely flicker-free. Powered by a professional 32-bit 0~100% linear dimming system, this LED Moving Head provides ultra-smooth fading curves without any stepping or color shifting. Paired with a high-speed strobe frequency of 1~30Hz, it meets the strict broadcasting standards of television studios, live streams, and high-definition festival filming.
