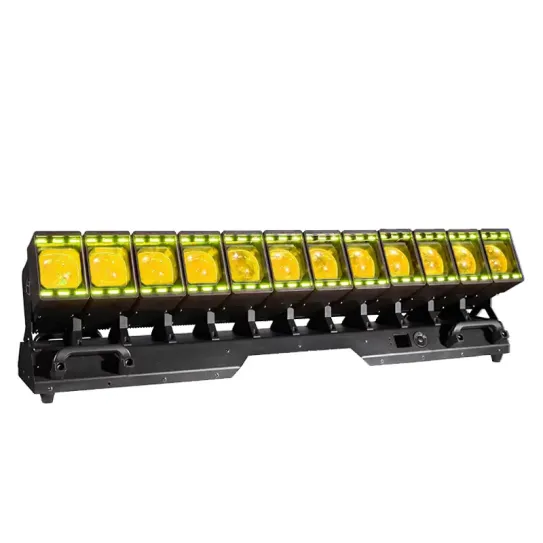

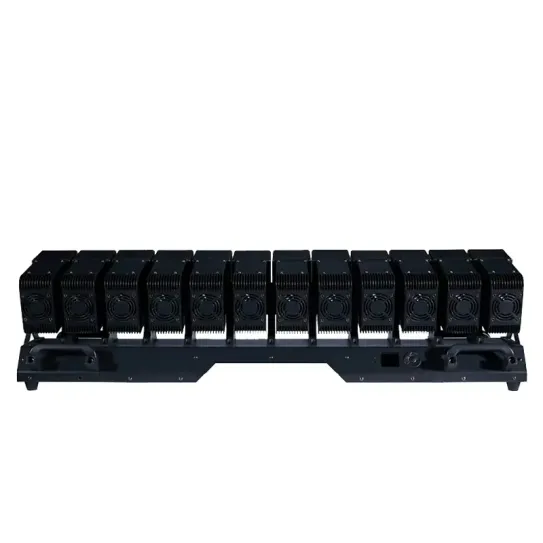

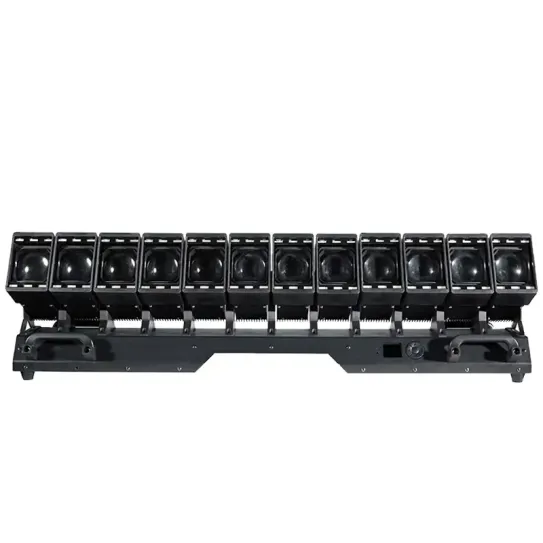

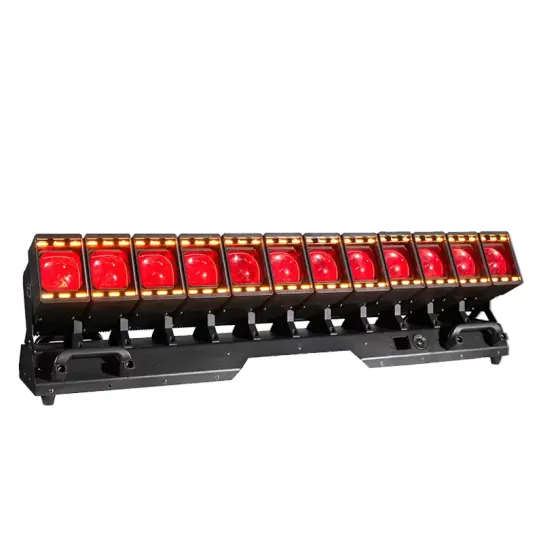

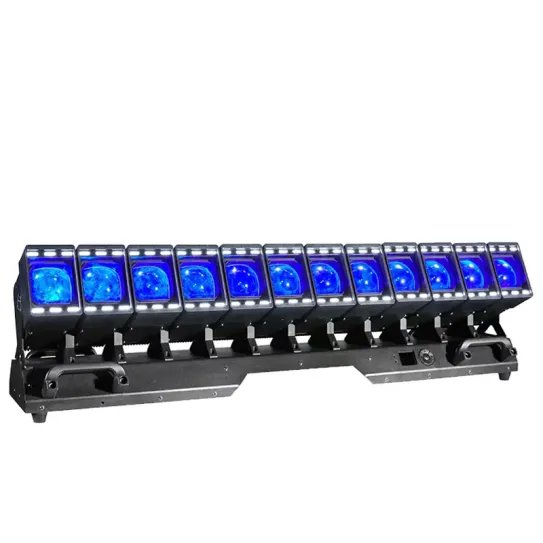

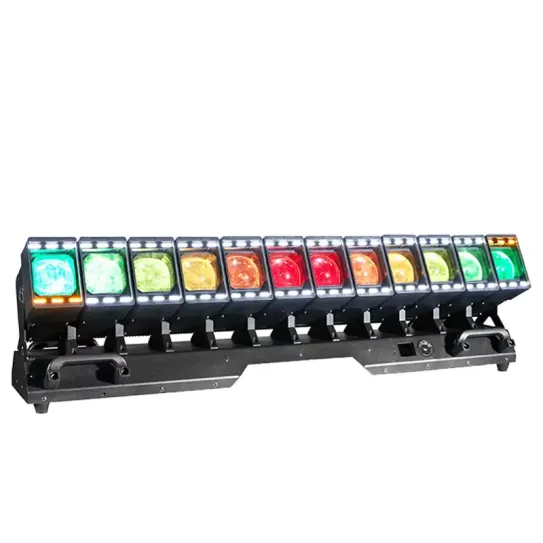

12x60W RGBW 4in1 Bar Pixel Zoom Wash With Halo Ring Beam Moving Head LED

（GL-M1260R）

🌟Beam Moving Head LED ：
➤ Power: 800W Output (12×60W) 🔥
➤ LEDs: 864 Dual-Color Beads 🌈 (Golden Yellow + Cool White)
➤ Effects: Dynamic Single-Bead Swinging 🌪️ | Hybrid Beam+Coloring FX 💥 | 32bit Linear Dimming 🎚️
➤ Control: DMX512/RDM 🎛️ | Sound Activation 🎤 | Auto Modes ⚡
➤ Durability: IP20 Metal Housing 🔧 | Extreme Temp Range (-30°C~50°C) ❄️🔥 | Wide Voltage (100-240V) ⚡
➤ Design: Compact & Versatile 💎 | Ideal for Stages, Events, Clubs, and Dynamic Light Shows 🎭✨

✨Why Choose It?
✅ Professional-Grade Lighting Flexibility
✅ Plug-and-Play Multi-Control Integration
✅ Built to Endure Harsh Environments

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • High-Power Dual-Color LED System

    • 800W total output (12×60W 4-in-1 LED beads)

    • 864 dual-color LEDs (432 golden yellow + 432 cool white) for dynamic color mixing and beam enhancement.

  • Intelligent Control & Dimming

    • Multi-control modes: DMX512/RDM, sound activation, master-slave, auto-run.

    • 32-bit linear dimming (0-100% smooth transition) with 6 preset channels (CH29, 62, 170, 254, 308, 332).

  • Professional Dynamic Effects

    • Single-bead swinging technology for precise beam tracking.

    • Hybrid beam + coloring synchronization.

    • Adjustable strobe (1-30Hz) for high-energy stage scenes.

  • Industrial-Grade Durability：

    • Metal housing (IP20-rated, matte black finish).

    • Extreme temperature resilience (-30°C to 50°C).

    • Wide voltage compatibility (AC100-240V, 50/60Hz).

  • Compact & Scalable Design:

    • Integrated DMX512 input/output + power pass-through.

    • Compact size (101cm×24cm×30cm / 3.31ft×0.79ft×0.98ft, 28kg/61.7lb) for easy transport and rigging.

  • Compact & Scalable Design：

    • Integrated DMX512 input/output + power pass-through.

    • Compact size (101cm×24cm×30cm / 3.31ft×0.79ft×0.98ft, 28kg/61.7lb) for easy transport and rigging.

Specification

  • Voltage：AC100 - 240V 50/60HZ
  • LED Beads：12 four-in-one 60W LED beads, 432 2015 golden yellow LED beads, 432 2015 cool white LED beads
  • Channels：CH29.CH62.CH170.CH254.CH308.CH332
  • Feature：Single bead swinging + coloring + beam
  • Strobe Frequency：1 - 30HZ
  • Connection Method：DMX512 input and output / Power input and output
  • Size：101cm/3.31ft × 24cm/0.79ft × 30cm/0.98ft
  • Power：12*60W (800W)
  • Control Mode：DMX512, auto-run, master-slave, sound control, with RDM function
  • Dimming：32bit 0 - 100% linear dimming
  • Working Temperature：-30°C - 50°C
  • Appearance：Metal, black
  • IP Rating：IP20
  • Weight：28KG/61.7lb

DOWNLOADS

12x60W RGBW 4in1 Bar Pixel Zoom Wash With Halo Ring Beam Moving Head LED（GL-M1260R）Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: What control protocols does this light support?

A: It supports DMX512, RDM, sound activation, master-slave synchronization, and auto-run modes. Perfect for integration with professional lighting consoles and standalone setups.

Q: Can the LED beads be replaced individually?

A: Yes! The 12×60W 4-in-1 LED beads are modular and user-replaceable. Contact support for genuine replacement parts to ensure optimal performance.

Q:  Is this fixture suitable for outdoor winter events?

A: bsolutely. Its industrial-grade metal housing and -30°C to 50°C operating range make it durable for harsh outdoor environments, though IP20 rating requires protection from direct rain/dust.

Q: How many units can be daisy-chained via DMX?

A: Using standard DMX512 protocols, you can chain up to 32 units (subject to signal boosters). The built-in DMX input/output and power pass-through simplify large-scale setups.

RELATED PRODUCTS

150W LED moving head light
350W BSW 3in1 LED light moving head

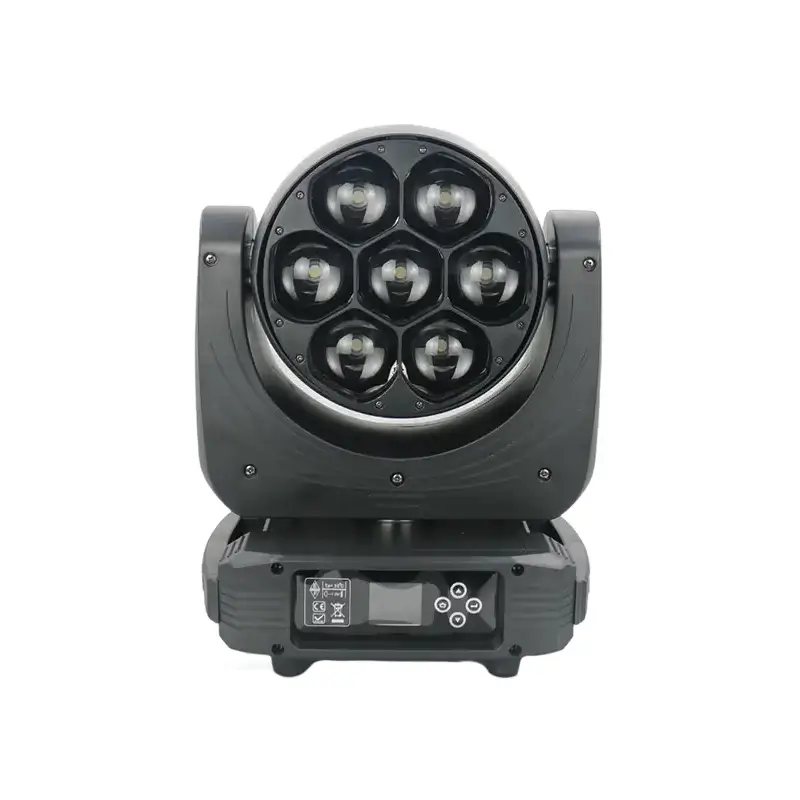

7x40W Bee eye mini led moving head

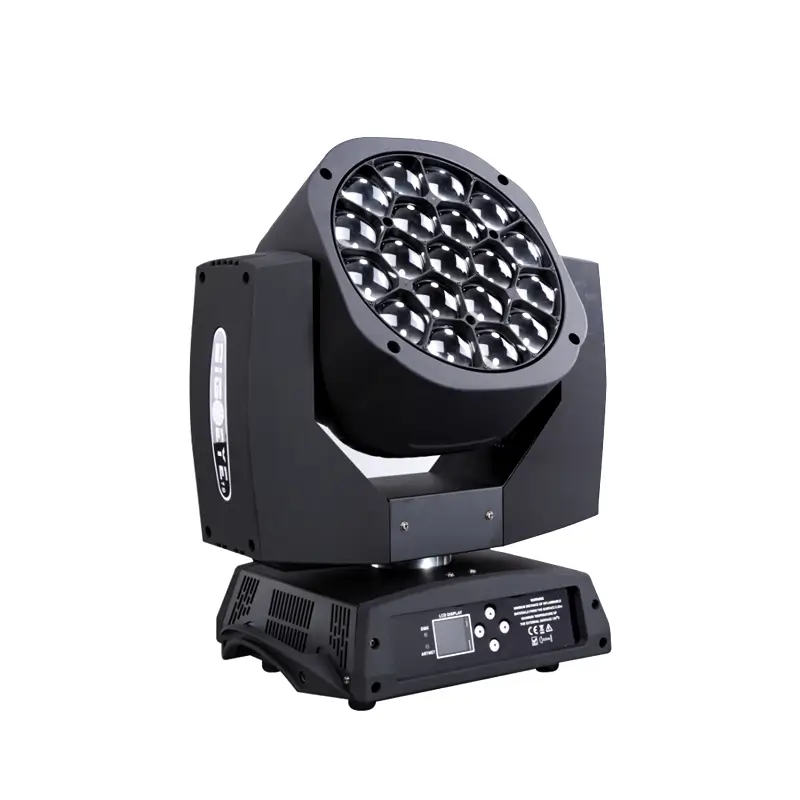

19x15W bee eye led moving head
>
