Arena DMX Controllers

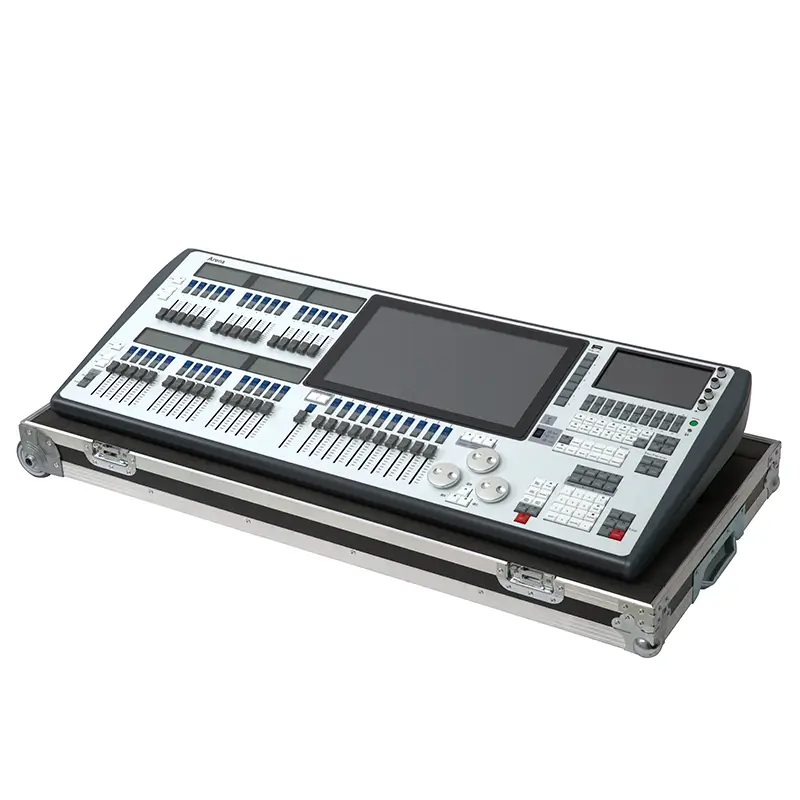

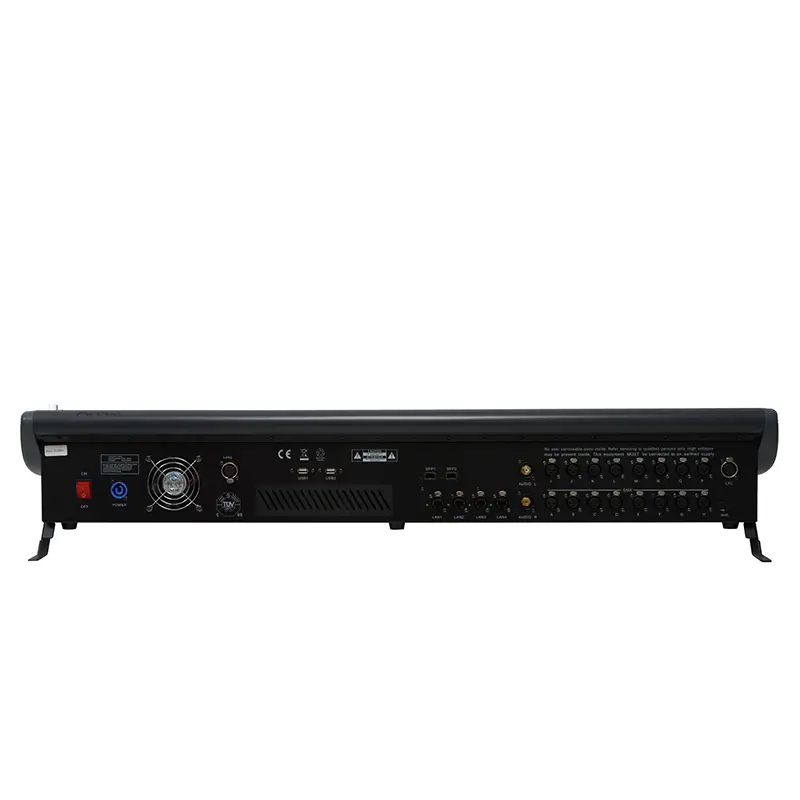

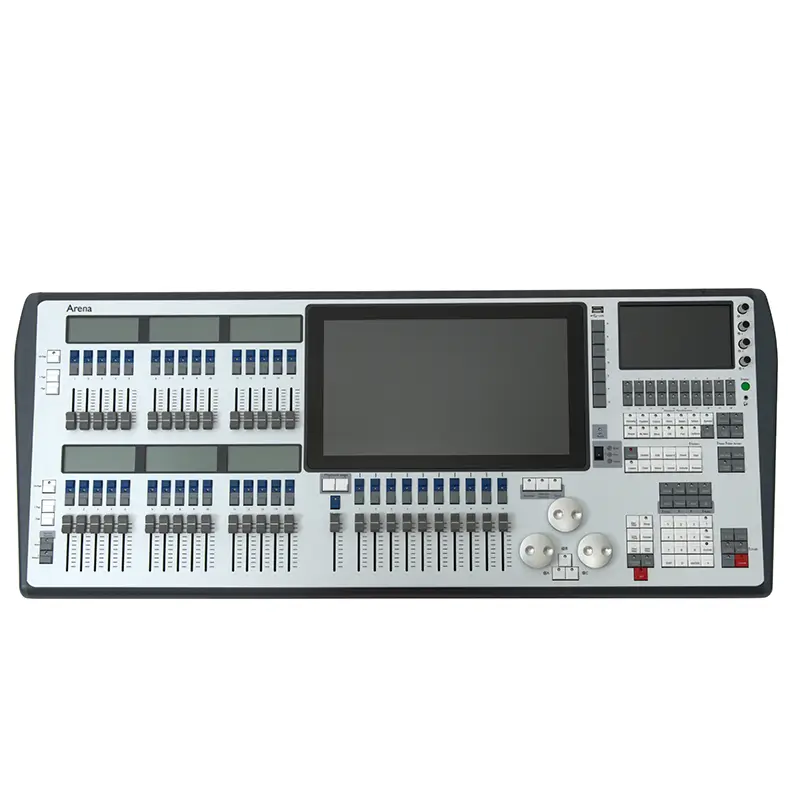

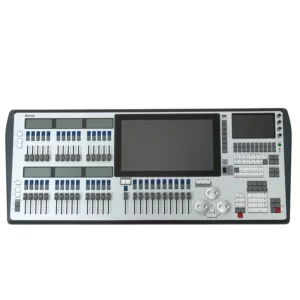

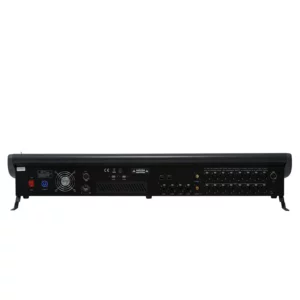

The Arena DMX Controllers is an advanced device. It features the Titan Windows operating system. Equipped with an Intel Core i5 6500 CPU, 120G SSD, and 8G memory. It has a 15.6 - inch and a 7 - inch capacitive touch screen, along with 6 LCD screens with highlight adjustment. There are 40 faders and 20 macro buttons. It has 3 independent page - turning systems with 60 - page - turning capacity each. With 16 DMX output ports (up to 8192 channels), 1 LTC time code trigger port, and support for various time codes. It also supports Titan - net protocol for expanded DMX outputs. There are imported optical encoders for property and playback adjustment. It has 4 Gigabit network ports, 2 Gigabit fiber ports, and a high - power UPS. It has 3 USB ports, supports iOS/Android remote control and video server control. Net weight is 40 KG, and the flight bag size is 30×54×114 CM.
Frequently Asked Questions
Q: What operating system does the Arena DMX Controllers use?
A: It uses the Titan Windows operating system.
Q: How many types of touch screens does it have?
A: It has a 15.6 - inch capacitive touch screen, a 7 - inch capacitive touch screen and 6 LCD screens.
Q: How many faders and macro buttons are there?
A: There are 40 faders and 20 macro buttons.
Q: How many DMX output ports are there and what's the maximum number of channels?
A: here are 16 DMX output ports and the maximum number of channels is 8192.
Q: Does it support remote control?
A: Yes, it supports remote control on iOS and Android (need to be connected to a router).
