Introduction to DMX Controllers

DMX controllers are at the heart of lighting control systems for events, concerts, and architectural lighting projects. DMX (Digital Multiplex) is a digital protocol that facilitates communication between lighting fixtures and control devices, enabling you to create stunning light shows and dynamic visual effects. This guide will provide you with an in-depth understanding of DMX controllers, their types, and how to select the perfect one for your needs.

How DMX Controllers Work

DMX controllers serve as the central hub for your lighting system, sending commands to multiple lighting fixtures via DMX cables. Each lighting fixture is assigned a unique DMX address, allowing the controller to communicate with each fixture independently.

The controller sends out a continuous stream of data packets called DMX frames, which consist of a start code, followed by 512 individual 8-bit data values known as channels. These channels control various aspects of the lighting fixtures, such as intensity, color, or position.

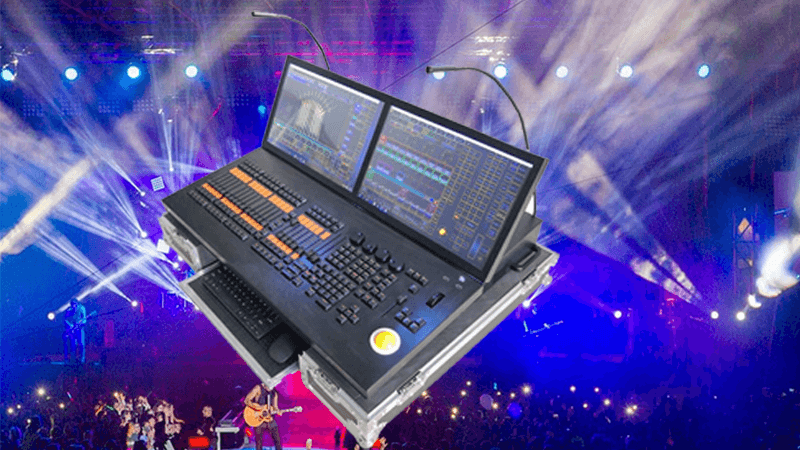

DMX Controller

Types of DMX Controllers

DMX controllers come in various shapes and sizes, each designed to cater to specific needs and applications. Some of the most common types include:

Hardware Controllers

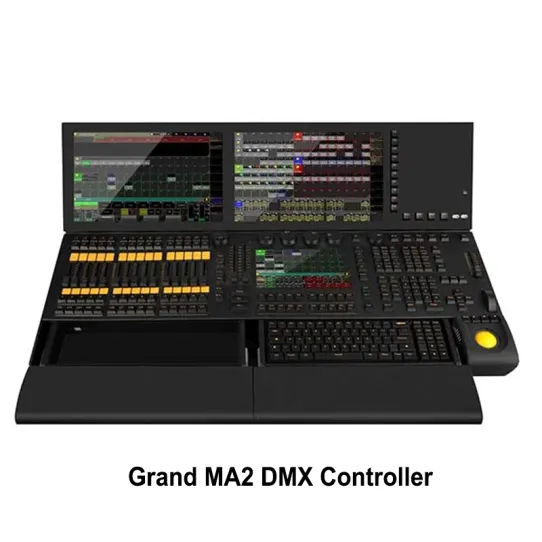

Hardware controllers are physical devices with buttons, faders, and knobs that provide hands-on control over your lighting system. They are available in a range of configurations, from simple to advanced, and are suited for live performances, events, and installations. The most representative products are: Igracelite Grand ma2, grand ma command wing, and so on.

Software Controllers

Software controllers leverage the power of your computer to provide a versatile and customizable control interface. They typically use a USB-to-DMX interface to connect your computer to the DMX network. Software controllers are ideal for complex lighting designs and offer precise control over fixtures with a graphical user interface. Such as: Sunlite fc DMX, Daslight DMX controller and so on.

Mobile and Tablet Controllers

Mobile and tablet controllers provide a portable solution for controlling your DMX system. With dedicated apps, you can transform your smartphone or tablet into a powerful DMX controller, offering a touch-based interface and wireless connectivity. Igracelite led dance floor can be controlled by PAD, and Igracelite wireless battery par light is controlled by mobile phone WIFI.

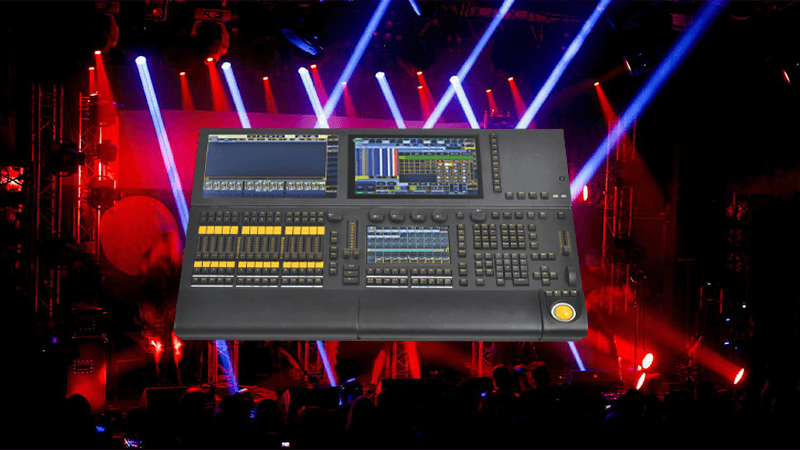

DMX Controller

Choosing the Right DMX Controller

Selecting the perfect DMX controller depends on various factors, such as the size of your lighting setup, your technical expertise, and the intended application. Here are some essential aspects to consider when making your decision:

  1. Number of Channels: Ensure the controller has enough channels to support all your fixtures and their individual functions.
  2. Type of Fixtures: Verify that the controller is compatible with the specific types of fixtures you intend to use.
  3. Interface and Usability: Choose a controller with an interface that is easy to understand and use, whether it's hardware, software, or mobile-based.
  1. Expandability: Opt for a DMX controller that allows for future expansion, ensuring that you can add more fixtures or upgrade your system as needed.
  2. Built-in Features and Effects: Look for controllers with built-in effects, such as chases, color mixing, or scene transitions, to enhance your lighting design capabilities.
  3. Budget: Determine your budget and select a DMX controller that offers the best balance of features and affordability.

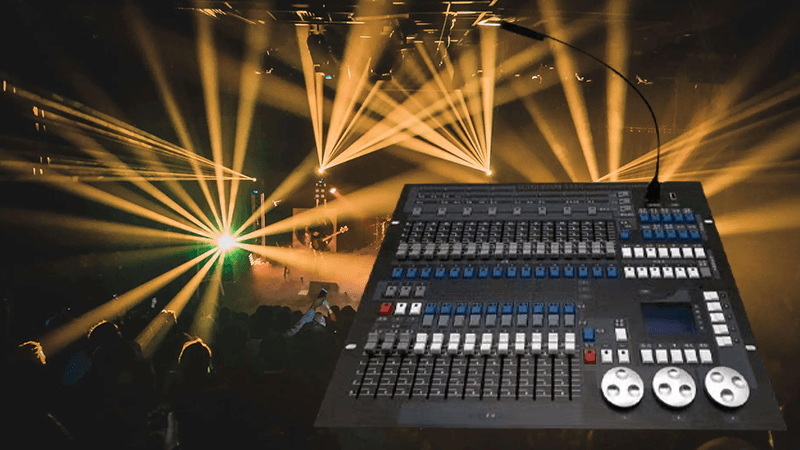

DMX Controller MA

DMX Controller Applications

DMX controllers are versatile and find applications in various industries and environments. Some common use cases include:

  1. Live Performances and Concerts: Create stunning light shows to complement live music performances, with precise control over moving heads, strobes, and color washes.
  2. Theater Productions: Enhance storytelling and set the mood for theatrical performances with dynamic lighting cues and seamless scene transitions.
  3. Architectural Lighting: Utilize DMX controllers to create captivating and energy-efficient lighting designs for building facades, landscapes, and public spaces.
  4. Corporate Events and Trade Shows: Attract attention and showcase products or services with eye-catching lighting displays and synchronized effects.
  5. Clubs and Nightlife: Transform venues into immersive environments with synchronized lighting and visual effects that respond to music and crowd energy.

Setting Up Your DMX Controller

Proper setup is crucial for the seamless operation of your DMX lighting system. Follow these steps to ensure a successful installation:

  1. Daisy Chain Your Fixtures: Connect your fixtures in a daisy chain configuration using DMX cables, starting from the controller's DMX output and moving from one fixture to the next.
  2. Assign DMX Addresses: Set a unique DMX address for each fixture, ensuring no overlaps in the channel assignments.
  3. Configure Your Controller: Input the fixture profiles and channel assignments into your DMX controller, either manually or using preloaded libraries.
  4. Test Your System: Run through all your fixtures and their functions to ensure proper communication and control
DMX Controller DMX 512

DMX Controller Maintenance and Troubleshooting

To ensure the longevity and reliability of your DMX controller, follow these maintenance and troubleshooting tips:

  1. Keep Your Firmware Updated: Regularly check for firmware updates from the manufacturer to ensure optimal performance and compatibility.
  2. Inspect Cables and Connections: Regularly inspect your DMX cables for signs of wear or damage and replace them as needed. Ensure all connections are secure and free of debris.
  3. Clean Your Controller: Keep your controller clean and free from dust or dirt, which can cause issues with buttons, faders, and other components.
  4. Troubleshoot DMX Issues: If you encounter issues with your DMX system, isolate the problem by testing individual components and connections. Common problems include improperly assigned DMX addresses, damaged cables, or faulty fixtures.


DMX controllers are the foundation of any professional lighting system, providing precise control over fixtures and enabling the creation of breathtaking visual experiences. By understanding the different types of DMX controllers, their applications, and setup considerations, you can confidently select and implement the perfect controller for your needs. With proper maintenance and troubleshooting, your DMX lighting system will serve as a reliable and powerful tool for years to come.

Frequently Asked Questions (FAQs) about DMX Controllers

1. What is the difference between DMX512 and DMX controllers?

DMX512 is a communication protocol used for controlling stage lighting and effects. It specifies how data is transmitted between devices in a lighting system. A DMX controller, on the other hand, is a physical device or software application that sends DMX signals to control lighting fixtures using the DMX512 protocol.

2. Can I use a DMX controller with non-DMX lighting fixtures?

To use a DMX controller with non-DMX fixtures, you'll need a DMX decoder or a DMX-to-analog converter. These devices convert the DMX signal into an analog signal that can be understood by non-DMX lighting fixtures.

3. Can I control multiple fixtures with a single DMX address?

Yes, you can control multiple fixtures with a single DMX address by setting them all to the same address. However, this will result in the fixtures behaving identically, as they will all receive the same control signals.

4. How far can I run DMX cables?

The maximum recommended length for DMX cables is 1,000 feet (approximately 305 meters). However, it's crucial to use high-quality, DMX-specific cables to minimize signal degradation and interference over long distances.

5. Is it possible to control DMX lighting wirelessly?

Yes, wireless DMX systems are available that utilize transmitters and receivers to send DMX signals over the air, eliminating the need for physical cables. These systems can be particularly useful for temporary installations, where running cables may be impractical or unsightly.

6. How do I add more fixtures to my DMX system if my controller has a limited number of channels?

You can use DMX splitters or opto-isolators to distribute the DMX signal from your controller to multiple DMX chains, effectively expanding the number of fixtures you can control. Alternatively, you can upgrade to a controller with more channels or use multiple controllers in tandem.
