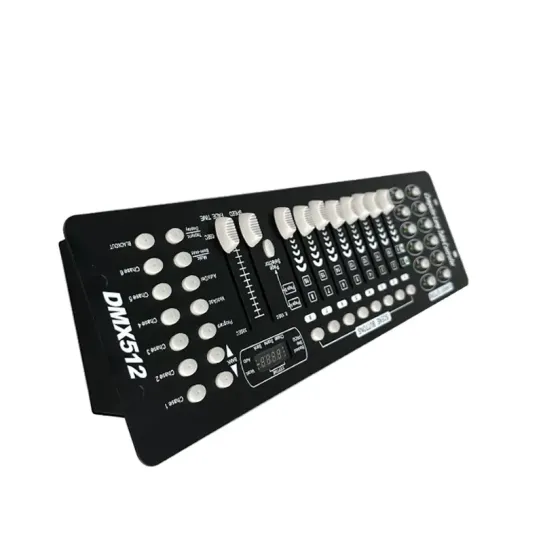

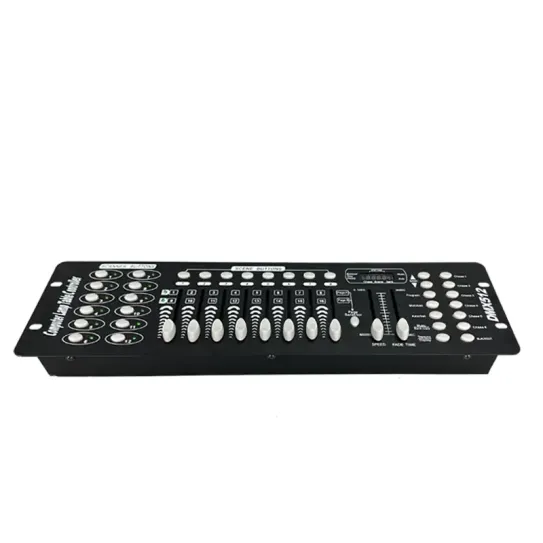

192 Channel DMX Controller 512（192 Controller）

192-channel DMX512 signal console. It is designed to meet various control requirements with its multiple features and functions.
✦Technical Features
It features precise CPU processing technology. Equipped with a DMX polarity selection switch and a MIDI interface, it provides real-time control and MIDI trigger capabilities.
✦Channel and Function Details
There are 12 SCANNERs, each having 16 channels. It also has BANK/CHASES and BANK OUT functions. The console supports micro-step adjustment of channel positions and the superimposition of A and B pages. Additionally, it has 30 programmable BANKS and 6 programmable CHASES.
✦Operating Modes
It offers multiple operating modes such as automatic, manual, and voice control.
✦Display and Interface
It comes with an 8*2 LCD display with backlight and LED indicator lights. The DC interface enables the conversion from AC to DC.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • 192-channel DMX512 signal console with precise CPU processing for accurate control.
  • Multiple functions including BANK/CHASES, BANK OUT, and page superimposition.
  • Programmable with 30 BANKS and 6 CHASES, offering flexible scene settings.
  • Supports various operating modes such as automatic, Manual, and Voice control.
  • Has MIDI interface and built-in microphone for extended control and music mode.

Specification

  • 192-channel DMX512 signal console with precise CPU processing technology
  • DMX polarity selection switch
  • MIDI interface for real-time control with MIDI trigger capabilities
  • BANK/CHASES and BANK OUT functions

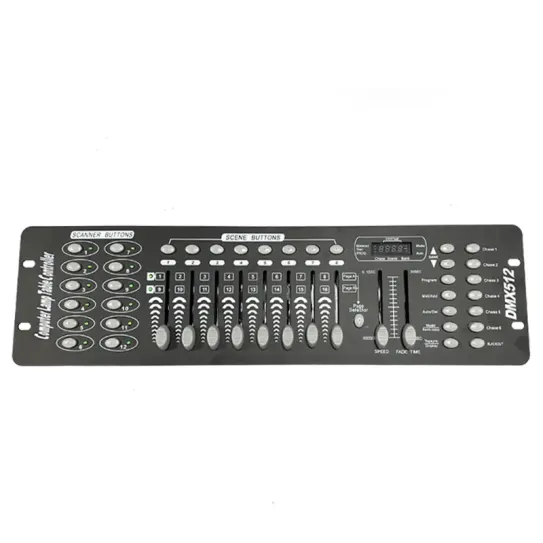

  • 12 SCANNERs, each with 16 channels (A page 1-8, B page 9-16)
  • Channel position micro-step adjustment and operation pause feature
  • A and B page superimposition capability
  • 30 programmable BANKs, each with 8 programmable SCENES
  • Joystick value setting during programming with the FINE key
  • 6 programmable CHASES for superimposed operation
  • DMX512/1990 Standard * Controls 12 intelligent lights of up to 16 channels, totally 192 channels
  • 23 banks, each with 8 scenes; 6 chase, each with up to 184 scenes
  • Record up to 6 chases with fade time and speeds * MIDI control over banks, chases and blackout
  • 240 steps per CHASES, equivalent to 30 BANK SCENES
  • Automatic, manual, and voice control operating modes
  • FADE selection with ALL or X/Y options and SPEED adjustment
  • Assign (joystick) or Review (negation) settings per SCANNER
  • Internal data transmission between consoles with Black out output function
  • 8*2 LCD display with backlight, English and Chinese operation steps
  • LED indicator lights for each button

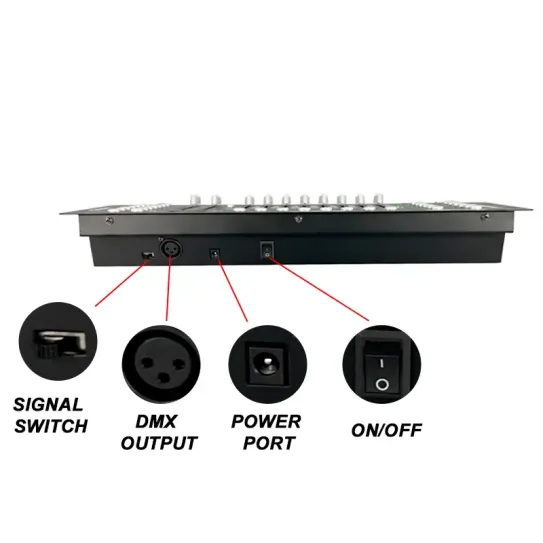

  • DC interface with DC power supply (input AC120V~230V, output DC9~12V 300~500MA)
  • Dimensions (610x195x150 mm), 1PCS per packaging
  • Weight: 2.5kg, Gross weight: 3.6kg
  • Built-in microphone for music mode * Auto mode program controlled by fade time sliders * DMX in/out: 3 pin XRL
  • Plastic end housing * Auto-save last running program when switch off or power off and continue play last running program while switch ON or power ON again.

DOWNLOADS

192 Channel DMX Controller 512（192 Controller）reference guide downloads

VIDEO

Frequently Asked Questions

Q: How many channels does this console have?

A: It has 192 channels and can control 12 intelligent lights of up to 16 channels.

Q: What kind of control interfaces does it have?

A: It has a DMX polarity selection switch and a MIDI interface for real-time control and MIDI trigger capabilities.

Q: Can it save the program?

A: Yes, it can auto-save the last running program when switched off or powered off and continue playing it when switched on or powered on again.

Q: What are the operating modes?

A: It has Automatic, Manual, and Voice control operating modes.
