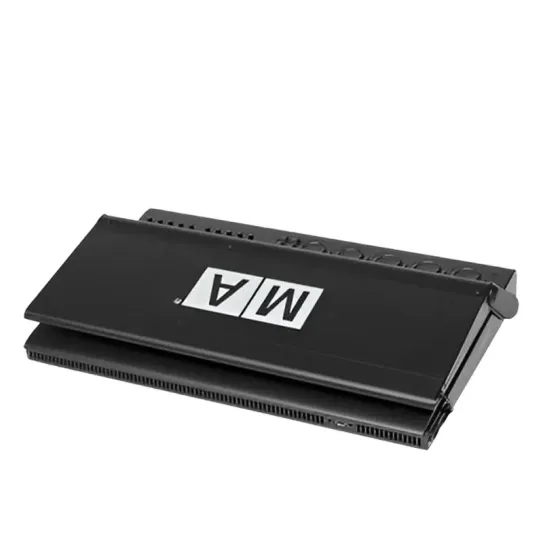

MA3 onPC Command Wing XT Single Screen DMX Control Console

The onPC wing offers real-time control of 4096 parameters with grandMA3 onPC software pre-installed on a built-in MA motherboard. It has the same command section as grandMA3 onPC command wing. Features include 29 rotary RGB backlit encoders, 5 dual encoders, 40 playbacks, 2 motorized 100mm A/B faders, 1 Level-Wheel, and silent keys with individual backlighting and dimming. Product size is 67×43×17CM, 18KG. Carton size is 74×52×30CM, 29.5KG.

AT A GLANCE

  • Real-time control of 4096 parameters with grandMA3 onPC software.
  • Same command section as grandMA3 onPC command wing.
  • Has 29 rotary RGB backlit encoders and 5 dual encoders.
  • Equipped with 40 separate playbacks and 2 motorized A/B faders.
  • Silent keys with individually backlit and dimmable function.

Specification

  • onPC wing for real-time control of 4 096 parameters in combination with grandMA3 onPC software – pre-installed on a built-in MA motherboard
  • Command section same as grandMA3 onPC command wing
  • 29 rotary RGB backlit encoder
  • 5 dual encoders
  • 40 separate playbacks
  • 2 motorized A/B faders 100mm
  • 1 Level-Wheel
  • Product size:67×43×17CM,18KG
  • Carton Size:74×52×30CM,29.5KG

DOWNLOADS

MA3 onPC Command Wing XT Single Screen DMX Control Console reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the main function of this product?

A: It provides real-time control of 4096 parameters in combination with grandMA3 onPC software.

Q: What are some notable features of the encoders?

A: It has 29 rotary RGB backlit encoders and 5 dual encoders.

Q: How many playbacks does it have?

A: It has 40 separate playbacks.
