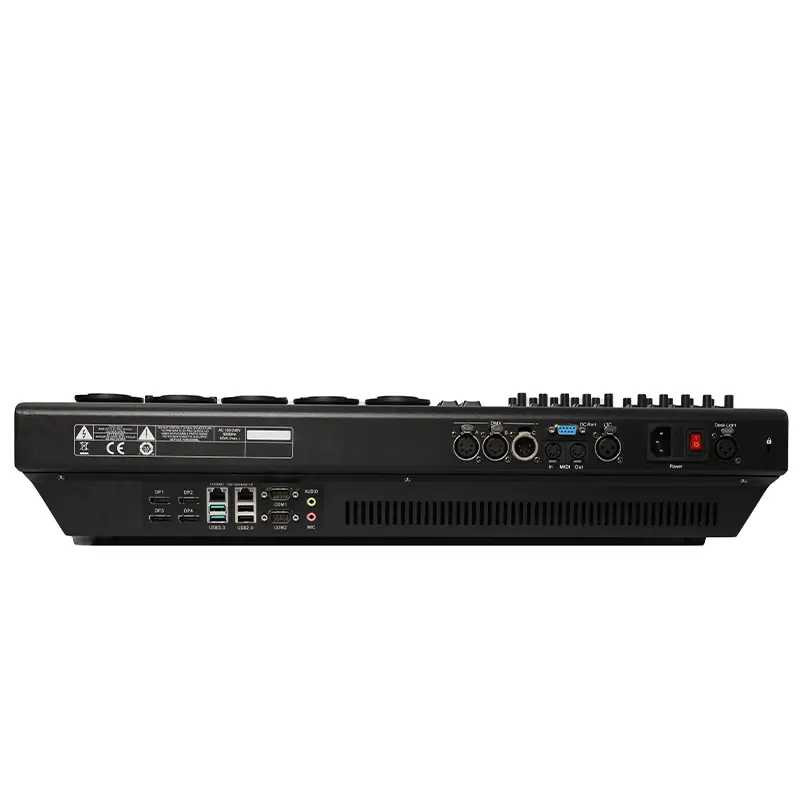

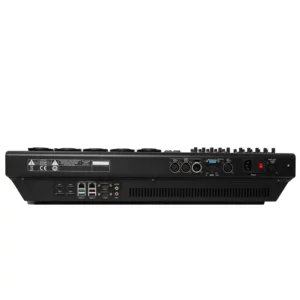

MA3 onPC Command Wing DMX Control
Igracelite MA3 onPC command wing DMX control offers real - time control for 2,048 parameters in combination with grandMA3 onPC and can be expanded to 4,096 parameters with onPC products. It has a command section like grandMA3 compact layout.

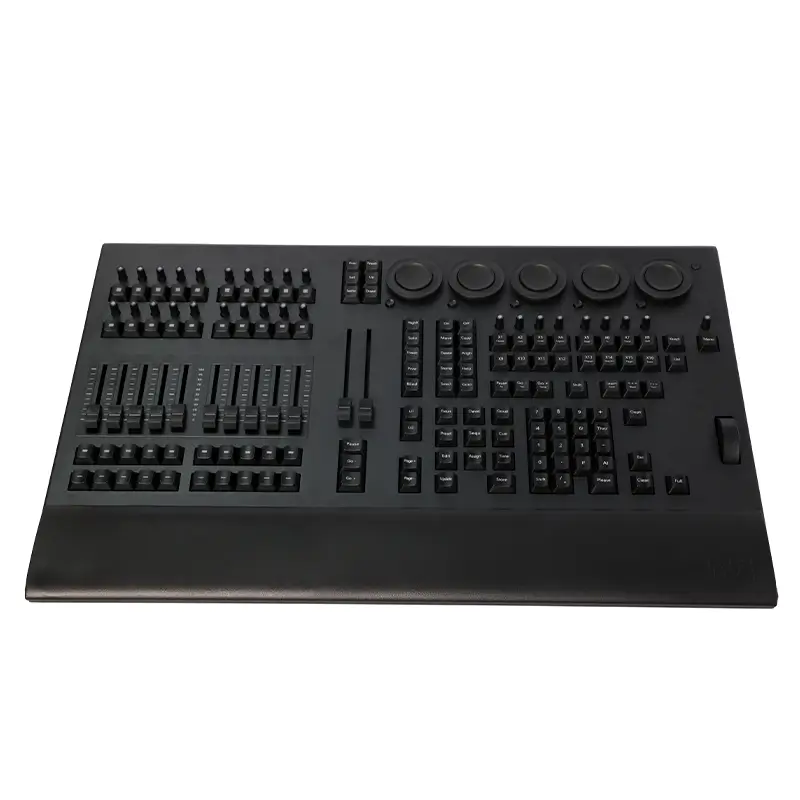

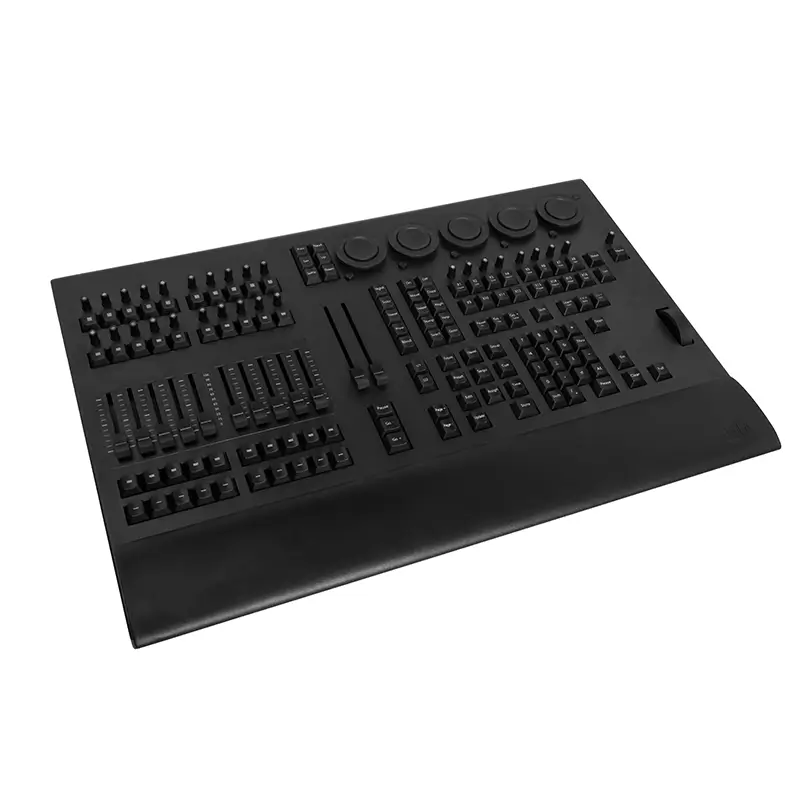

It features 29 rotary RGB backlit encoders, 5 dual encoders, 10 motorized 60 mm faders, 40 separate playbacks, 16 assignable x - keys, 2 motorized 100 mm A/B faders and 1 Level - Wheel. The keys are individually backlit, dimmable and silent.
Connects via USB to a PC running grandMA3 onPC. The parameters are 2,048 (HTP/LTP). Operating voltage is AC 100 - 240 V (50/60 Hz), power max. 50 VA. Operating temperature ranges from 0°C to 40°C.
AT A GLANCE
Specification
DOWNLOADS
MA3 onPC Command Wing DMX Control reference guide downloads
VIDEO
Frequently Asked Questions
Q: How many parameters can this product control in total with grandMA3 onPC?
A: It can control 2,048 parameters in real - time with grandMA3 onPC and can be expanded up to 4,096 parameters with onPC products.
Q: What are the main components of this product?
A: It has 29 rotary RGB backlit encoders, 5 dual encoders, 10 motorized 60 mm faders, 40 separate playbacks, 16 assignable x - keys, 2 motorized 100 mm A/B faders and 1 Level - Wheel. It also has individually backlit, dimmable and silent keys.
Q: How do I connect this product?
A: Just connect it via USB to any PC running grandMA3 onPC.
