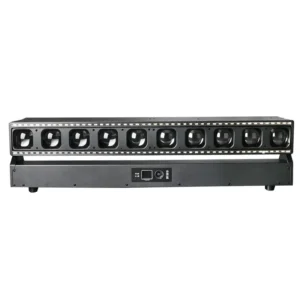

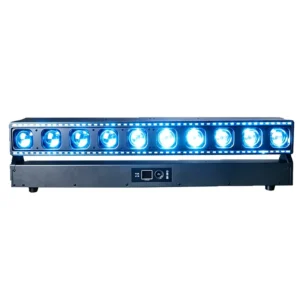

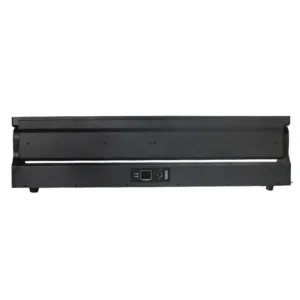

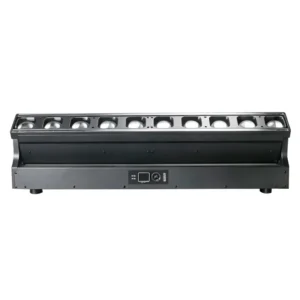

700W RGBW LED Moving Head with Beam & Auxiliary Light (GL-SW1060)

Bring a new visual dimension to stage productions with this 700W LED moving head, combining a powerful RGBW beam with a multi-color auxiliary light system. Its Y-axis design adds distinctive movement, while 32-bit linear dimming helps create smooth transitions and precise control.

Layered Color Effects: RGBW works with RGB, white, and amber auxiliary LEDs for richer looks and dynamic color accents.

Flexible Control: DMX512, auto-run, and sound-activated modes adapt to show workflows.

Built for Productions: Metal housing, -30°C to 50°C operation, and 1–30Hz strobe control make this LED moving head a versatile choice for stages, clubs, concerts, and live events.

AT A GLANCE

Y-Axis Movement for Distinctive Stage Motion
The Y-axis moving head design adds a distinctive movement style to stage productions, helping lighting designers create more dynamic visual compositions and differentiate their shows from conventional moving head setups.
RGBW Beam with Multi-Color Auxiliary Lighting
The main RGBW beam works alongside RGB, white, and amber auxiliary LEDs to create richer visual layers. This combination gives lighting designers more flexibility when building colorful accents, atmospheric effects, and coordinated stage looks.
High-Resolution 32-Bit Dimming
32-bit 0–100% linear dimming allows smoother brightness transitions and more precise intensity control. This is especially useful for productions that rely on gradual fades, clean scene changes, and refined lighting transitions.
Flexible DMX512 Control for Different Show Setups
DMX512 control supports multiple selectable channel configurations, from 17CH through 170CH, giving operators flexibility when balancing fixture functionality with the requirements of their lighting console and programming workflow. Auto-run and sound-activated modes are also available for simpler setups.
Built for Demanding Professional Environments
The metal housing and operating temperature range of -30°C to 50°C make this LED moving head suitable for demanding stage and entertainment environments. DMX512 and power input/output connections also help simplify integration within compatible professional lighting systems.

Specification

Input Voltage:AC 100–240V, 50/60Hz
Power Consumption:700W
LED Configuration:Main light: 5 pcs A770A (1060) RGBW-60W + 5 pcs A770B (1060) RGBW-60W
Auxiliary light: 96 pcs (3535) RGB-15V + 96 pcs (3030) W-15V + 96 pcs (3030) Amber (golden yellow)-15V
Control Mode:DMX512, Auto-run, Sound-activated
DMX Channels:17CH / 27CH / 99CH / 108CH / 168CH / 170CH (selectable)
Dimming:32-bit 0–100% linear dimming

Key Features:Y-axis moving head + Beam + Auxiliary light
Operating Temperature:-30°C to 50°C
Strobe Frequency:1–30Hz
Housing:Metal, Black
Connection:DMX512 input/output; Power input/output
IP Rating:IP20
Product Size:100cm / 3.3ft × 13.5cm / 0.4ft × 26.5cm / 0.9ft
Net Weight:17.2kg / 37.9lb
Package Weight:19.17kg / 42.3lb
Package Size:108cm / 3.5ft × 18cm / 0.6ft × 36cm / 1.2ft

VIDEO

Frequently Asked Questions

Q1: Does this high-power LED Moving Head support RDM and network control?

A: Yes. This professional LED Moving Head fully supports both DMX512 and RDM protocols, enabling stable bidirectional communication for real-time remote device management and fixture addressing. For versatile signal routing in complex rigs, it is equipped with integrated RJ45 network nodes alongside standard 3-pin and 5-pin XLR inputs and outputs.

Q2: What is the zoom capability and beam angle range of this fixture?

A: The fixture features a high-precision motorized optical system delivering a linear zoom range from 2.8° to 31° (measured at the beam end). This wide flexibility allows lighting operators to seamlessly morph the output from a piercing, high-density aerial beam to a broad, immersive color wash during live staging.

Q3: How many DMX channel modes are available for pixel programming?

A: To accommodate various lighting console profiles and programming complexities, the fixture offers a massive selection of channel configurations. Operators can select from 17, 27, 99, 108, 168, and 170 CH modes, as well as specialized 8+100 CH and 8+160 CH modes tailored for advanced pixel-mapping and intricate matrix designs.

Q4: Can this 800W lighting fixture be used for outdoor staging?

A: This fixture carries an IP33 rating, meaning it is protected against solid objects over 2.5mm and direct sprays of water up to 60 degrees from vertical. It is highly optimized for indoor professional stages, theaters, and concert venues. For temporary outdoor events, it must be paired with appropriate rain covers or overhead truss protection.

Q5: What are the power requirements, and how is the software updated?

A: The unit operates on a universal input voltage of AC100-240V (50-60Hz) with a maximum power consumption of 800W. It utilizes heavy-duty power connector inputs/outputs for secure daisy-chaining. For long-term maintenance, firmware and software upgrades can be deployed efficiently directly via the DMX connection.
