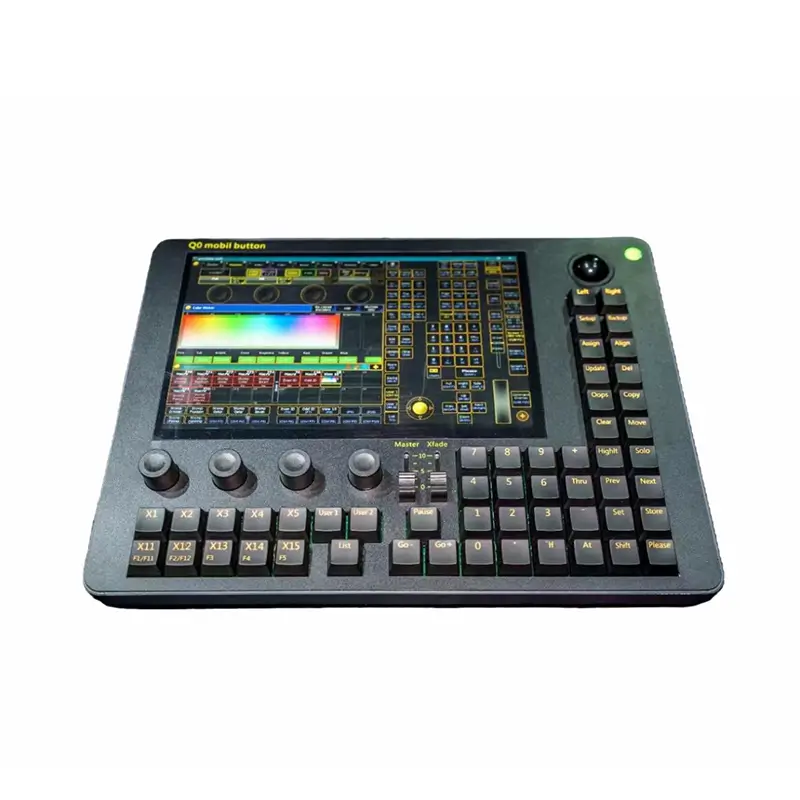

Mobil Command Q0 Consola DMX 512

The Mobil Command Q0 Consola DMX 512 is a highly capable lighting console. It offers 2 DMX outputs and 1 DMX input (can be set as output) to connect to an expander for all 256 domain outputs. It features a 10.1-inch full-view industrial capacitive touch screen. There are 10 program macro function keys, 2 AB field manual push rods, and 4 function encoders with PUSH function. It has a gigabit Ethernet port supporting MA NET, ARTNET signals and WIFI, along with 2 USB ports and a DP output port. Independent German CHERRY yellow backlit buttons provide a great feel. It includes MIDI input interface, LTC/SMPTE time code, audio output and a built-in uninterruptible power supply. Pre-installed with WIN10 64-bit customized system and supports stage 3D effect simulation.

AT A GLANCE

  • Versatile DMX Connectivity: With 2 DMX outputs and a configurable DMX input that can be set as output, and the ability to connect to an expander for all 256 domain outputs.
  • Intuitive Control Interface: Comes with a 10.1-inch full-view industrial capacitive touch screen, 10 program macro function keys, 2 AB field manual push rods, and 4 function encoders with PUSH function.
  • Multiple Connectivity Options: Equipped with a gigabit Ethernet port supporting MA NET and ARTNET signals, WIFI, 2 USB ports, and a DP output port for external touch screen connection.
  • Premium Buttons and Inputs: Features independent German CHERRY yellow backlit buttons, along with MIDI input interface, LTC/SMPTE time code, audio output, and a built-in uninterruptible power supply.
  • Advanced Software Features: Pre-installed with WIN10 64-bit customized system and supports stage 3D effect simulation.

Specification

  • 2 DMX outputs, 1 DMX input (can be set as output), connect to expander, open all 256 domain outputs
  • 4 function encoders (with PUSH function)
  • Independent German CHERRY yellow backlit buttons. Better feel
  • 2 USB ports, a DP output port (can be connected to an external touch display)
  • Built-in 120G solid state drive, 8G memory
  • Support stage 3D effect simulation, real-time on-site simulation
  • Console size: 34cm*25cm*9cm
  • Net weight: 3kg, gross weight: 2.2KG
  • Built-in 1 full-view industrial 10.1-inch capacitive touch screen display
  • 2 AB field manual push rods
  • 1 Gigabit Ethernet port, supports MA NET, ARTNET signals, a wireless WIFI
  • MIDI input interface, LTC/SMPTE time code, audio output, built-in uninterruptible power supply
  • Pre-installed WIN10 64-bit customized system
  • AC wide voltage power supply: 100-250V, 50/60Hz

DOWNLOADS

VIDEO

Frequently Asked Questions

Q: What signals does the Ethernet port support?

The gigabit Ethernet port supports MA NET and ARTNET signals. It also has wireless WIFI.

Q: What are some of the unique control features?

A: It has a 10.1-inch capacitive touch screen display, 10 program macro function keys, 2 AB field manual push rods, and 4 function encoders with PUSH function.

Q: Does it have any built-in power backup?

A: Yes, it has a built-in uninterruptible power supply.
