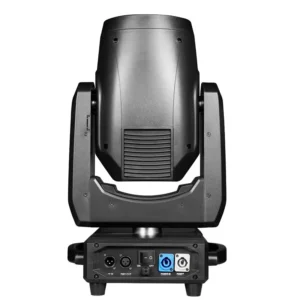

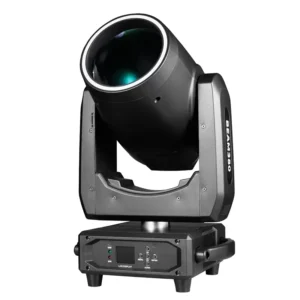

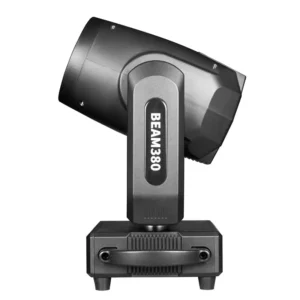

380w beam moving head light 20R moving heads stage lights（GM-B380NY）

Overview

A 380W 20R beam moving head built around a Phoenix bulb with 7500K daylight output. Linear 0–4° zoom and electric focus keep the beam razor-sharp. Dual rotatable prisms (8-facet + 48-facet) stack for layered effects. LCD touchscreen shows bulb usage time and handles on/off control.

Key Specs

Bulb lifespan: 1,500 hours
Beam angle: 0–4° linear zoom
Prisms: 8-facet + 48-facet, stackable, rotatable
Strobe: Mechanical, up to 15 times/second
Pan/Tilt: 540° / 270°

AT A GLANCE

380W Phoenix Bulb: High-brightness light source.
7500K Color Temperature: Crisp daylight-like white beam.
540° Horizontal / 270° Vertical Scanning: Extensive movement range.
Dual Rotatable Prisms (8 & 48 Facets): With rainbow and atomization effects.
14-Pattern Wheel & 13-Color Wheel + White: Versatile effects and color options.
Linear Electric Zoom (0-4°) & Focusing: Precise beam control.
Mechanical Strobe: Adjustable speed (up to 15 times/second).
LCD Touch-Screen Control: For lamp/bulb status and on/off.
DMX512 (16-Channel), Master-Slave, Auto-Run: Flexible control modes.
Auto Positioning & Diagnostics: Horizontal/vertical correction and system monitoring.
Fast & Quiet Operation: Engineered performance.

Specification

Voltage：100V - 240V / 50 - 60Hz
Total Power (Bulb + Others)：500W
Light Source：380W Phoenix bulb
Color Temperature：7500K
Average Lifespan：1500 hours
Control Channels：DMX512 16 - channel, Master - Slave mode, Auto - run mode
Control Interface：LCD touch - screen control interface. Can control bulb on/off function, display lamp and bulb usage time
Scanning：Horizontal: 540°, Vertical: 270°
Color Disk：One color wheel with 13 colors plus white light
Pattern Wheel：14 patterns
Prisms：One rotatable 8 - prism and one 48 - prism. The two prisms can be superimposed, with additional rainbow and atomization effects
Strobe：Supports mechanical strobe and adjustable - speed strobe effects, supports strobe macro function. Strobe frequency is 15times/second

Lens：High - precision optical lens, lens group optical system, electric focusing
Beam Angle：0 - 4° linearly adjustable
Focusing：Linear electronic focusing
Dimming：0 - 100% linear adjustment
Lens Diameter：14.5cm / 0.5ft
Product Size：31cm/1.0ft * 25cm/0.8ft * 52cm/1.7ft
Package Size：55cm/1.8ft * 36cm/1.2ft * 29cm/1.0ft
Package Weight:14.9kg / 32.8lb
Additional Systems:Automatic horizontal and vertical positioning system. Can preset macro - command controller reset function, with automatic on -off electronic monitoring and position error correction. Built - in cooling monitoring system, DMX channel level monitoring, andautomatic data transmission fault diagnosis system
Characteristics：High - brightness, fast, quiet

DOWNLOADS

380w beam moving head light 20R moving heads stage lights（GM-B380NY）Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: What is the light source and lifespan of the 20R Moving Heads?

A: It uses a high-brightness 380W Phoenix bulb with an average lifespan of 1500 hours.

Q: How much movement range does the 20R Moving Heads offer?

A: It provides extensive scanning with 540° horizontal and 270° vertical movement.

Q: What control options are available for the 20R Moving Heads?

A: It supports DMX512 (16-channel), Master-Slave mode, Auto-run mode, and features an LCD touch-screen control interface.

Q: What optical effects does the 20R Moving Heads include?

A: It features a rotatable 8-prism and 48-prism (with rainbow/atomization), a 13-color wheel + white, a 14-pattern wheel, and adjustable mechanical strobe.
