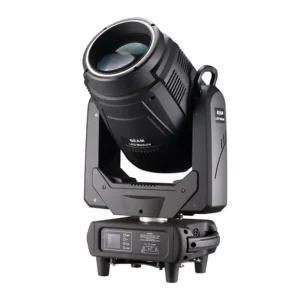

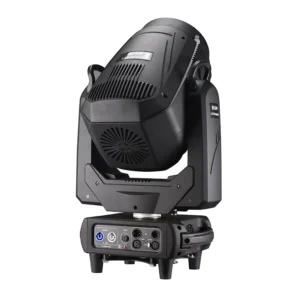

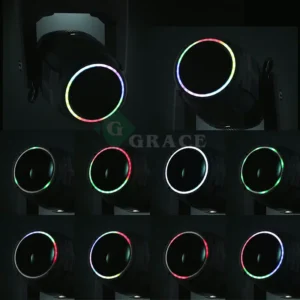

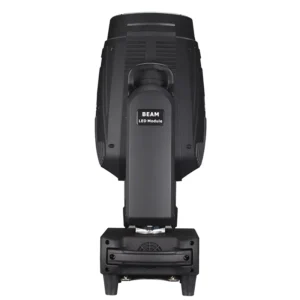

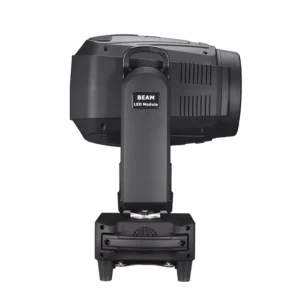

450w beam LED moving head with dual prism wheel with ring /halo（GL-B450）

Beam LED Moving Head: Ultimate Lighting Powerhouse for Stunning Visuals!

Meet the Beam LED Moving Head—a high-intensity lighting marvel engineered to transform stages, concerts, and events with razor-sharp precision and vibrant dynamism! Powered by a 400W ultra-bright LED module (7500K-8000K), it delivers a 3° laser-like beam that cuts through any venue, paired with 50,000+ hours of relentless performance

Key Features to Captivate:
Rich Color & Gobo Effects: Dual gobo wheels (8 rotating + 14 fixed patterns) and a 9-color + white wheel create endless combinations. Swap designs effortlessly with the detachable gobo system—perfect for themed shows!
Hypnotic Prism Magic: Dual prism wheels (3 facets each) rotate bidirectionally and overlay for multidimensional effects
. Add frost for silky-smooth diffusion!
Lightning-Fast Movement: 540° pan + 270° tilt with 3-phase stepping motors ensure rapid, silent repositioning. Auto-return function keeps shows seamless
.
Smart Control & Safety: DMX512 (23CH) compatibility, adjustable strobe (0.3-25Hz), and real-time temperature monitoring protect your investment. Modular design simplifies maintenance
.
Built Tough: High-grade engineering plastic withstands heat/UV, while IP20 rating ensures indoor durability
.
Perfect For: Concerts | Theater Productions | Nightclubs | Corporate Events

AT A GLANCE

400W Ultra-Bright LED Module：Delivers intense 3° narrow beam angles with 75,000K-8,000K color temperature for crisp, laser-like projections. Built for longevity with 50,000+ hours of runtime, reducing maintenance costs
Dual Gobo & Prism Effects：Features 1 rotating gobo wheel (8 patterns) and 1 fixed gobo wheel (14 patterns) with detachable design for quick customization. Dual prism wheels (3 facets each) rotate bidirectionally and overlay for multidimensional lighting textures
Precision DMX512 Control & Silent Motion：Supports 23CH DMX512 and 3/5-pin connectivity for seamless integration. Equipped with 3-phase stepping motors for rapid, quiet pan/tilt (540° horizontal / 270° vertical) and auto-return functionality
Smart Thermal Management：Integrated LCD temperature display and silent cooling fans ensure optimal heat dissipation. Modular design enables easy maintenance, while overheating triggers power reduction to protect the LED lifespan

Specification

Voltage:100V - 240V AC, 50/60Hz
Power:500W @ 220V
Power Factor:PF > 0.9
Light Source:400W high brightness Module LED
Color Temperature:7500K - 8000K
Life Time:50000 hours
Colour:1 color wheel: 9 colors + white

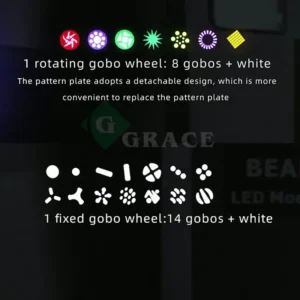

Gobo Wheel:1. 1 rotating gobo wheel: 8 gobos + white. The pattern plate adopts a detachable design, which is more convenient to replace thepattern plate2. 1 fixed gobo wheel: 14 gobos + whitePrism:Two prism wheels, 3 prisms on each prism plate, can be rotated in two directions and can be superimposed, making the prism effectricher
Focus:DMX linear focus adjustment, super smooth focus adjustmentStrobe/Dimming:Electronic strobe, 0.3 - 25 times/second, linear dimming
Frost:Independent frost lens, softer lightRotation Angle:24. Use three - phase stepping motor, fast, quiet, with automatic return function. Horizontal: 540°; vertical: 270°
Beam Angle:3°

Control Mode:DMX512 signal, 3 - pin + 5 - pin; 23CH channel mode
Other Functions:Horizontal and vertical speed adjustable. Use powerful silent fan, LED temperature display, reduce power due to overheating, andensure LED lifetime. Modular structure for easy maintenance
Housing Material/Protection Level：High temperature/UV light resistant engineering plastic.
Protection grade: IP20
Weight：Net weight: 21kg/46.3lbGross weight: 25kg/55.1lb
Packing Size：460mm/1.5ft(L) * 355mm/1.2ft(W) * 835mm/2.7ft(H)
Working Temperature：Maximum ambient temperature 50°C

DOWNLOADS

450w beam LED moving head with dual prism wheel with ring /halo（GL-B450）Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: What is the power consumption and voltage compatibility of this beam LED moving head?

A: The fixture operates on 100-240V AC, 50/60Hz and consumes 500W at 220V with a high-efficiency power factor (PF > 0.9)，Its wide voltage range ensures compatibility with global power standards, making it ideal for international events.

Q: How does the DMX512 control system work?

A: This beam LED moving head supports 23-channel DMX512 control via 3-pin or 5-pin connectors
. It offers precise adjustments for focus, color, gobo, prism effects, and pan/tilt movements. For multi-device setups, ensure proper DMX addressing and use termination plugs to avoid signal interference

Q: What thermal management features protect the LED module?

A: Equipped with silent cooling fans and an LED temperature display, the fixture automatically reduces power if overheating occurs, ensuring the 400W LED module achieves its 50,000-hour lifespan
. The modular design also simplifies maintenance for long-term reliability

Q: What is the warranty and shipping policy?

A: The product includes a 1-year warranty covering manufacturing defects. Shipping options include express air (5-7 days) or sea freight (longer transit), with sample orders available in 3-7 days
. Custom packaging (carton or flight case) and OEM/ODM services are supported
