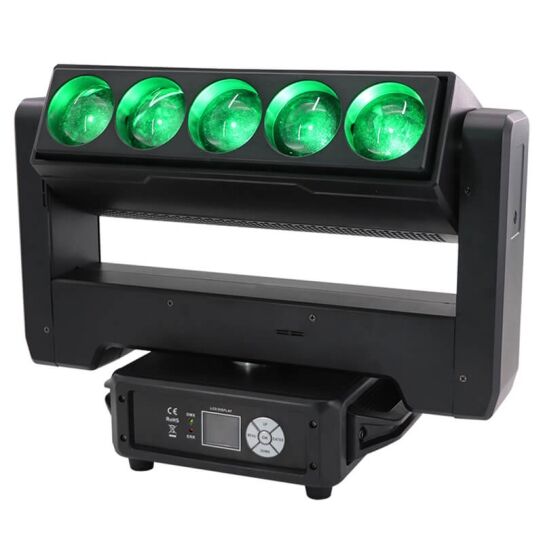

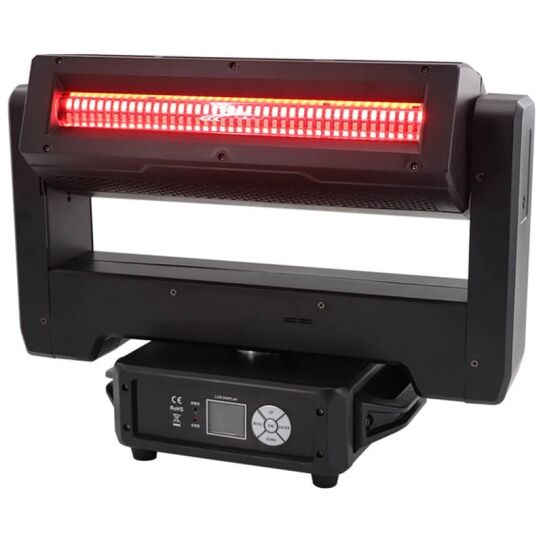

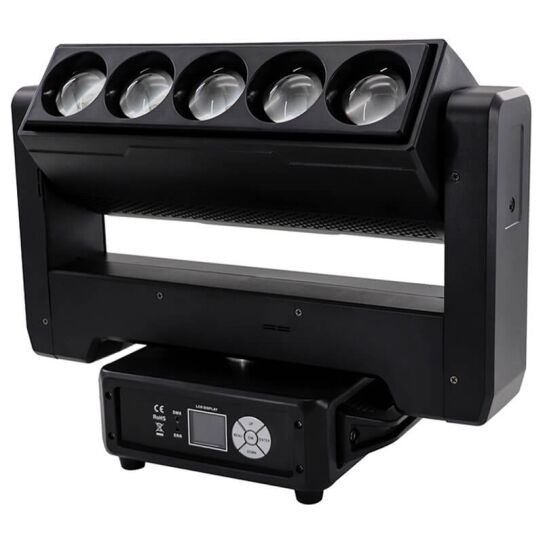

5X60w Pixel LED Moving Head bar

Introducing the 5X60w Pixel LED Moving Head bar: a powerful lighting fixture designed for captivating live performances. With its vibrant RGBW 4in1 LED front and dynamic combination of White and RGB 3in1 LED on the back, it delivers stunning color effects. The 360-degree infinite rotating pan/tilt movement and 3.8°-50° zoom provide precise control. Choose from beam, wash, strobe, and more with 24CH/29CH/105CH DMX512 channel modes. Durable construction, powercon in/out connectors, and IP33 rating ensure reliability. Elevate your performances with the 5X60w Pixel LED Moving Head bar's mesmerizing visuals and creative versatility.


  • Exceptional Lighting Performance: Equipped with 5x 60W RGBW 4in1 LED on the front and 42x 3W White LED + 84x 0.3W RGB 3in1 LED on the back, this moving head bar delivers vibrant colors, intense beams, and brilliant effects to elevate your stage presence.
  • Versatile Control Options: The 5X60w Pixel LED Moving Head bar offers multiple control options, including 24CH/29CH/105CH DMX512 channels, allowing for precise and customized lighting control.
  • Pixel Control Feature: With individual pixel control on the front side (5pcs RGBW LED per pixel) and 14 sections pixel control on the back side (each section with 9pcs LED), you have the flexibility to create intricate lighting patterns and dynamic visual effects.
  • Wide Zoom Range: The zoom function provides a beam angle range of 3.8°-50°, allowing you to adjust the focus and coverage area according to your specific lighting requirements.
  • Robust Build Quality: Designed for professional use, this moving head bar features a sturdy construction and reliable components, ensuring durability and long-lasting performance.
  • Easy Connectivity: The Powercon in/out power connectors and 3-pin XLR in/out DMX connectors offer convenient and secure connections, ensuring smooth integration into your lighting setup.


  • Power Input: AC90-240V, 50-60Hz
  • Back LEDs: 42x 3W White LED + 84x 0.3W RGB 3in1 LED
  • LED Control Feature:
  • Front side: 5pcs RGBW LED per pixel control
  • Back side: 14 sections pixel control with 9pcs LED per section
  • Power Consumption: 500W
  • Pan/Tilt Movement: 360-degree infinite rotating
  • Electronic Strobe Effect: Variable speed up to 20Hz
  • Front LEDs: 5x 60W RGBW 4in1 LED
  • Channel Mode: 24CH/29CH/105CH, DMX512
  • Zoom Range: 3.8°-50°
  • Power Connector: Powercon in/out
  • DMX Connector: 3-pin XLR in/out
  • IP Level: IP33
  • Preset Program: Beam, Wash, Strobe Multiple Effect, Pan Tilt infinite rotating

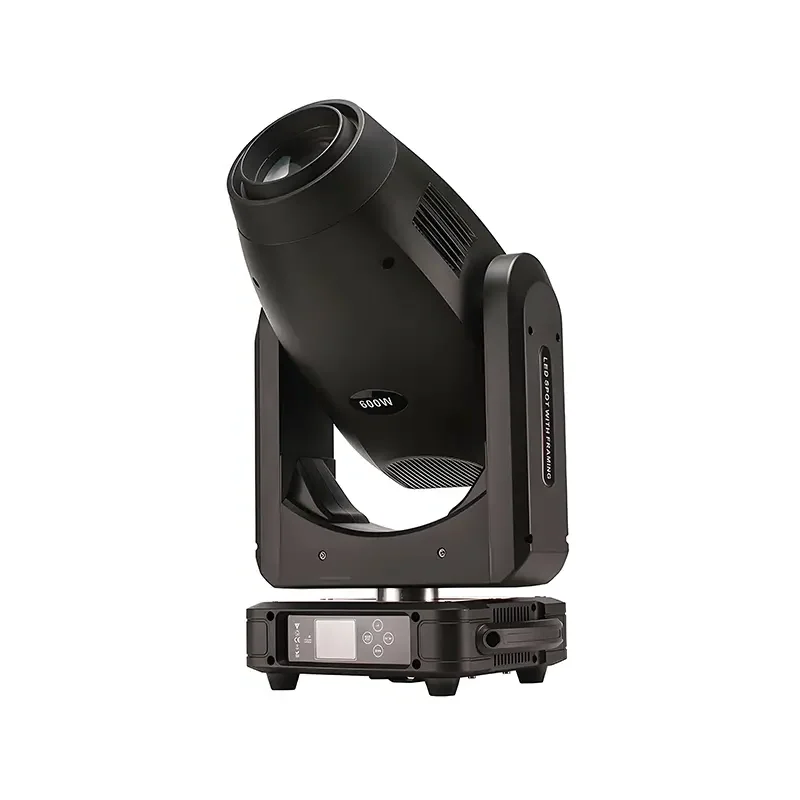

600W LED moving head profile

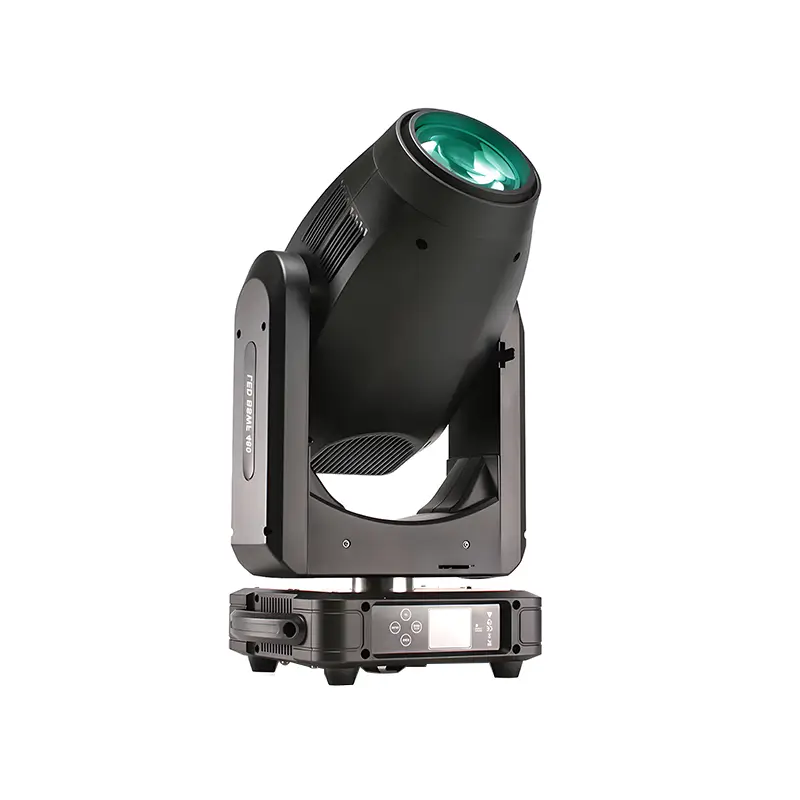

460W LED moving head

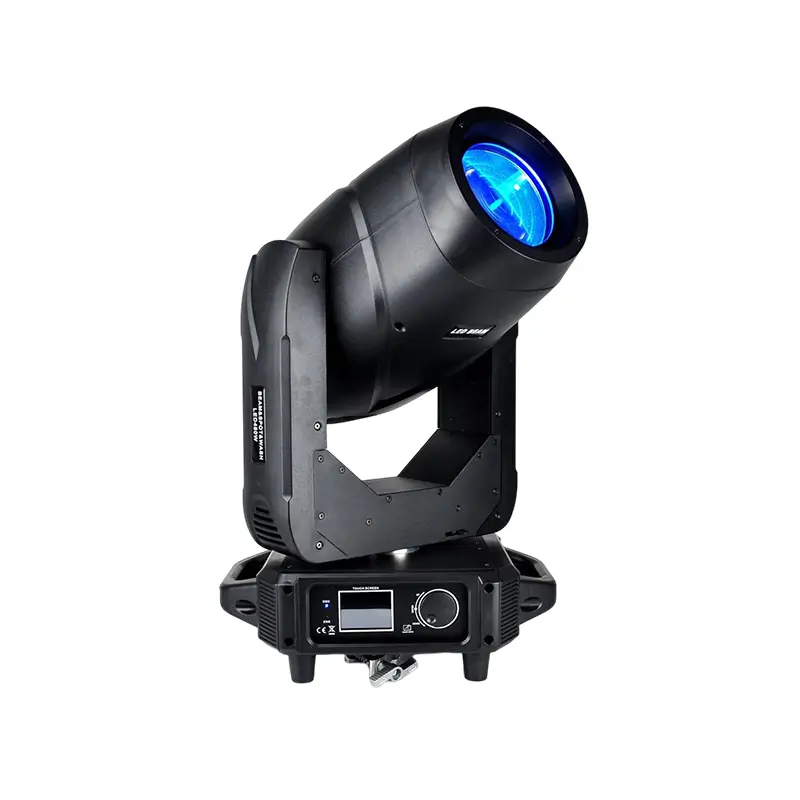

480W LED moving head

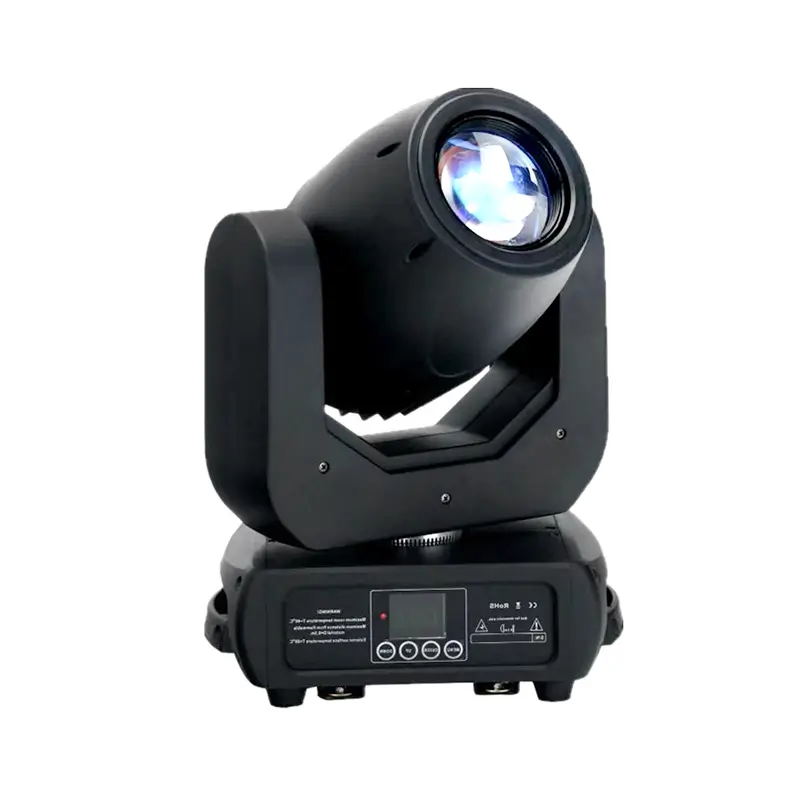

150W LED moving head
