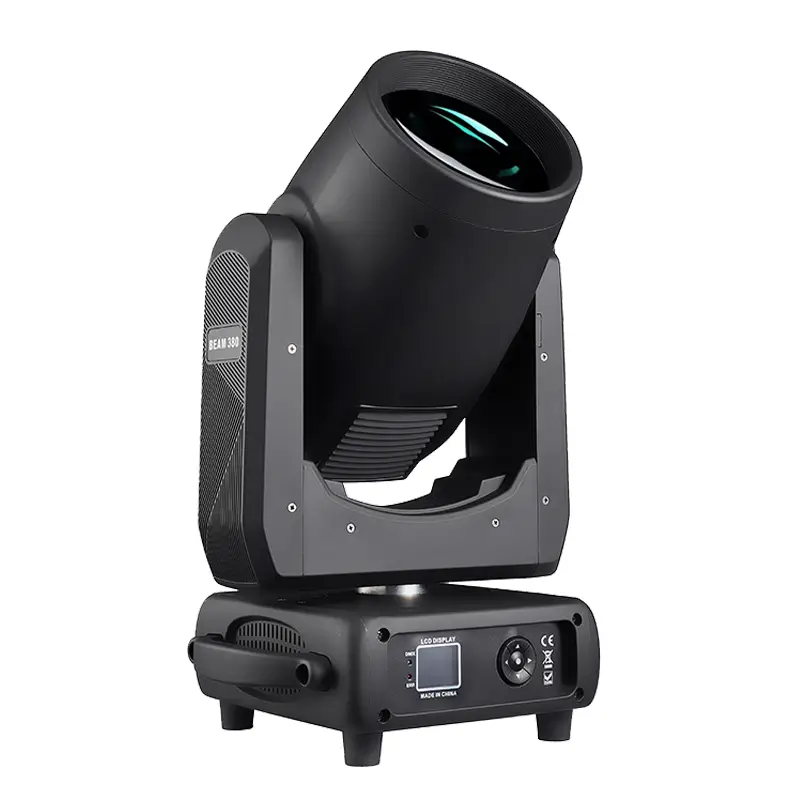

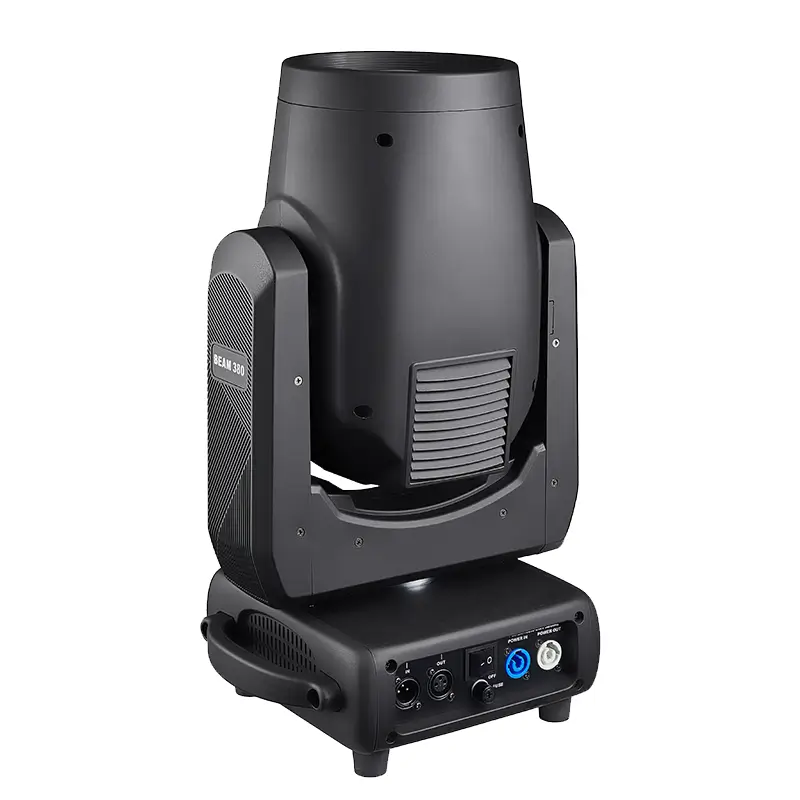

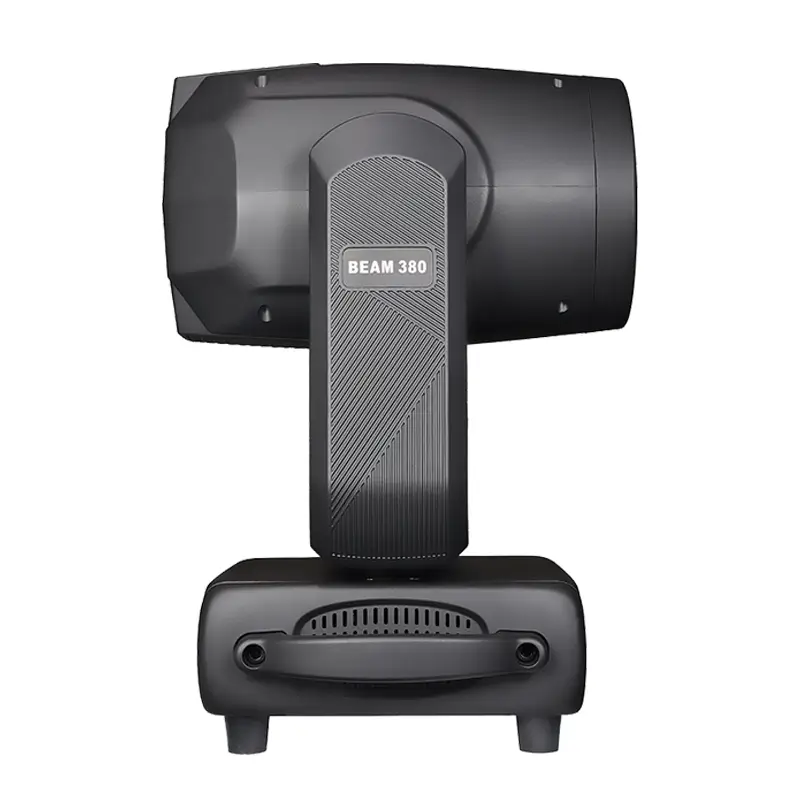

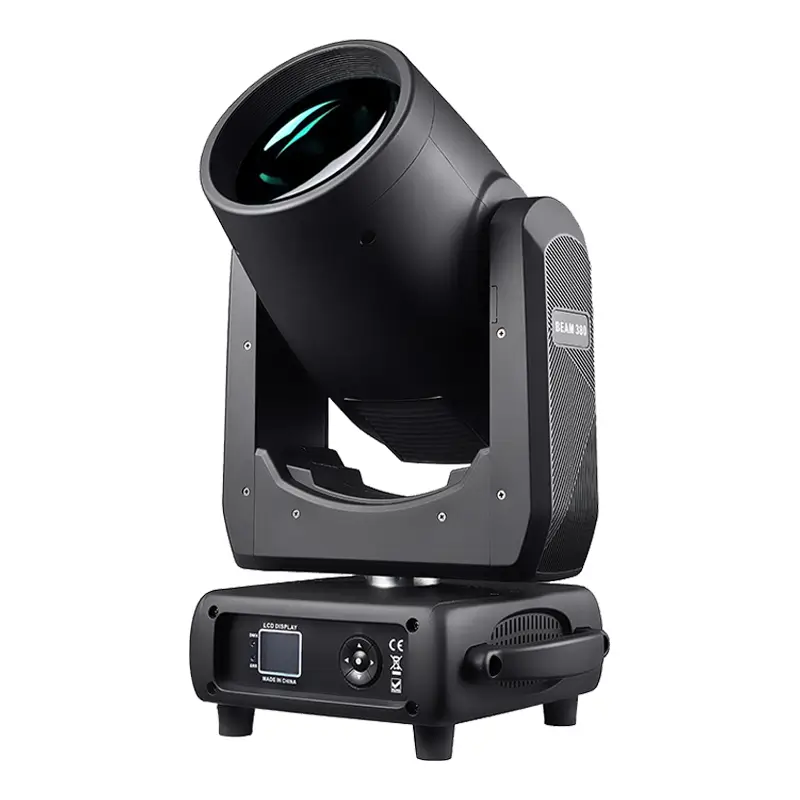

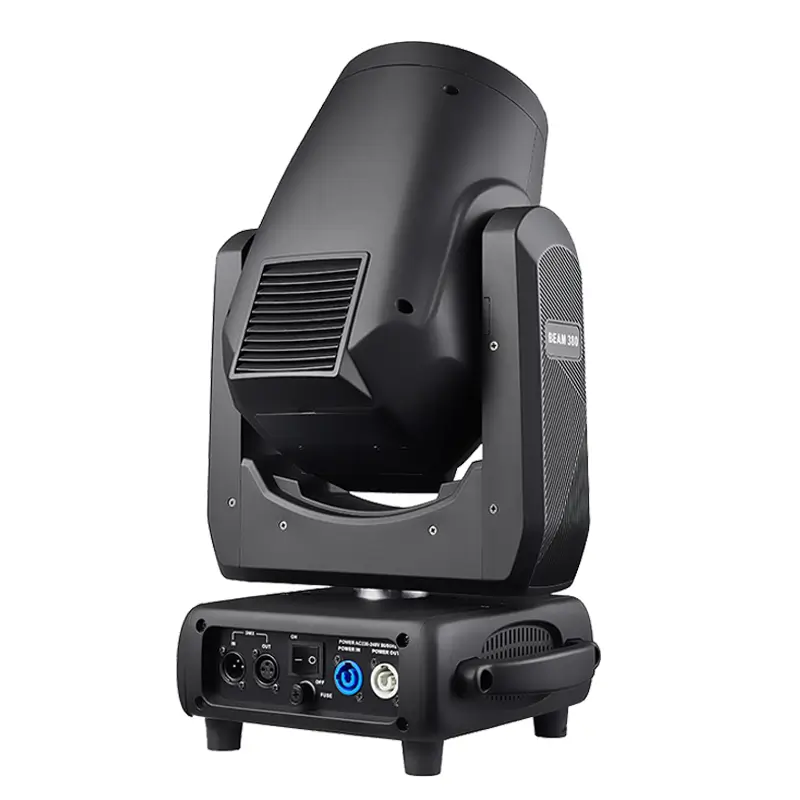

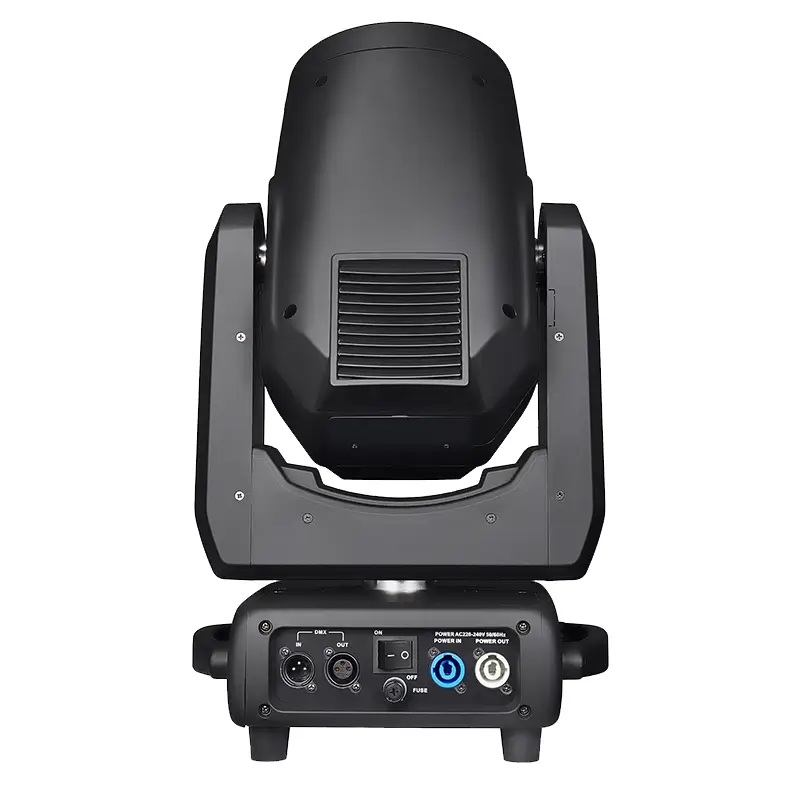

380W Beam Moving Head Light

（GM-B380）

✨ 380W Beam Moving Head Light ✨
🔥 Phoenix Bubble 380W Bulb | ⚡7950lm Ultra-Bright Output | 🌈8500K Cool White Glow
🎛️ Smart Control: DMX512 & 16CH precision | 🖥️ Reversible 180° Dot-Matrix Display
💫 Dynamic Effects:

  • 14 Colors + 6 RGBW Tiles 🌟 Rainbow Flow
  • 48 Honeycomb Prisms 🔄 Bidirectional Spin
  • 10+4 Pattern Magic 🌀 Stackable FX
    🔧 Pro Features:
  • Auto Error Correction ✅ | Overheat Protection ⚠️ | IP20 Durability
    📏 Compact & Light: 12kg Net | 540° Pan / 270° Tilt 🌍

Perfect for stages, weddings, clubs—unleash next-level visuals! 🎪

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • Power Supply & Efficiency:Equipped with a Phoenix Bubble 380W bulb, delivering 7950lm luminous flux and 8500K color temperature for high-intensity, crisp lighting
  • Advanced Control & Display：DMX512/WMDMX/self-propelled control modes with 16 channels for flexible operation,LCD display screen and 180° reversible dot matrix display with four light touch switches
  • Dynamic Effects:Adjustable bidirectional rotation speed and rainbow effect,Fixed pattern disk with 14 pattern effects + white light and 48 honeycomb prisms for layered visual output,Double prisms capable of independent bidirectional rotation with adjustable speed.
  • Precision :Adjustments:Linear focusing (near to far) and atomization function with adjustable speed,0-100% mechanical dimming, mechanical strobe (1-12 F.P.S.), and strobe macro function.
  • Safety & Stability:Horizontal (540°) and vertical (270°) 8Bit/16Bit fine-tuned movement with automatic error correction,Overheat protection and IP20 protection level,Photoelectric reset system for automatic recovery after misoperation.

Specification

  • Power Supply：AC100-240V, 50/60Hz
  • Bulb Model：Phoenix Bubble 380W
  • Color Temperature：8500K
  • Control Mode：DMX512/WMDMX/self-propelled
  • Display：Beautiful dot matrix display with four light touch switches, capable of reversing 180° display
  • Rotation Speed：Adjustable, bidirectional flowing effect, and rainbow effect
  • Prism：48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotate independently in both directions, with adjustable rotationspeed
  • Photoelectric Reset System：Automatically retrieves the reset in case of accidental misoperation
  • Pan：Horizontal 540°, 8Bit/16Bit fine-tuned
  • Error Correction：Equipped with horizontal and vertical fine automatic error correction functions
  • IP Protection Level：IP20
  • Net Weight：12Kg (26.46 lbs)
  • Packaging Size：56×38 ×44cm (22.05 x 14.96 x 17.32 inches)Gross Weight：15Kg (33.07 lbs)
  • Total Power：600W
  • Luminous Flux：7950lm
  • Ballast：Electronic Inductive Ballast
  • Channels：16 channels
  • Color Palette：A color palette, each consisting of 14 color tiles+white, 6 colorful tiles, rainbow effect
  • Pattern Disk：Fixed pattern disk, 10 fixed patterns+4 glass images (14 pattern effects+white light)
  • Focusing：Linear focusing, from near to far. Equipped with atomization function and adjustable atomization speed
  • Dimming：0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function,mechanical strobe is 1-12 F.P.S.
  • Tilt：Vertical 270°, 8Bit/16Bit fine-tuned
  • Overheat Protection：Yes
  • Power Supply Type：AC/DC switch power supply
  • Display Screen：LCD display screen
  • Size：300 x 240 x 530mm (11.81 x 9.45 x 20.87 inches)

DOWNLOADS

380W Beam Moving Head Light （GL-M3DC60）Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: What voltage range does this moving head light support?

A: The device operates on AC100-240V, 50/60Hz, making it compatible with global voltage standards Its wide voltage input ensures stable performance in regions with fluctuating power supplies.

Q: How does the DMX512 control mode work for this beam light?

A: It supports DMX512/WMDMX protocols and a self-propelled mode for standalone operation. With 16 control channels, users can adjust parameters like color, prism rotation, and strobe effects. The 180° reversible dot matrix display simplifies configuration in diverse installation scenarios

Q: Is this fixture suitable for outdoor use?

A: No, its IP20 protection rating indicates it is designed for indoor environments only. While it includes overheat protection and a photoelectric reset system，it lacks waterproofing for outdoor conditions.

Q: What are the key optical specifications for brightness and color?

A: The Phoenix Bubble 380W bulb delivers 7950lm luminous flux at 8500K color temperature, ensuring intense, crisp beams. The color palette combines 14 fixed colors + white + 6 rainbow tiles, while the prism system features 48 honeycomb + 12 rotating prisms for dynamic effects.
