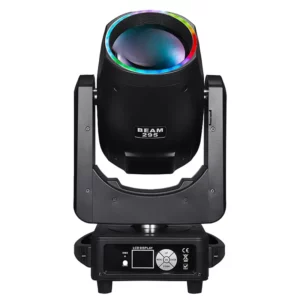

14R 295W moving heads light(GM-295W)_1 (4)

14R 295W moving heads light(GM-295W)_1 (2)

14R 295W moving heads light(GM-295W)_1 (1)

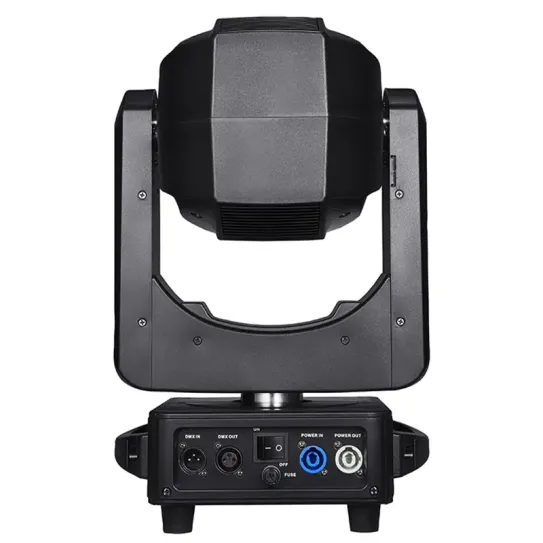

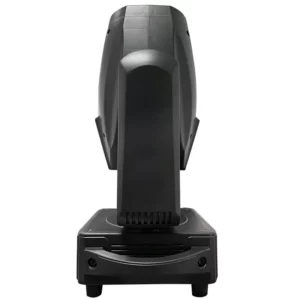

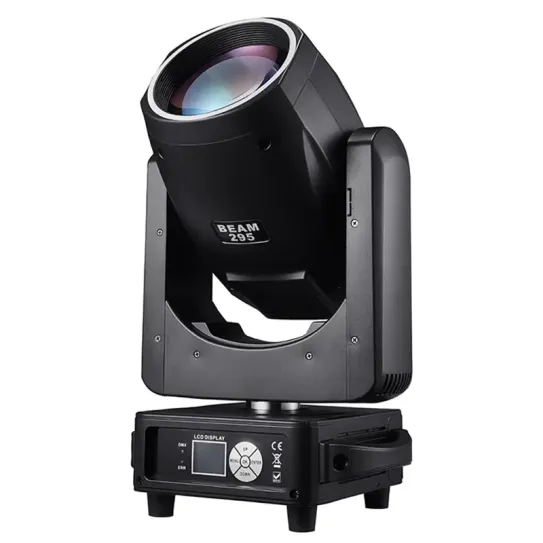

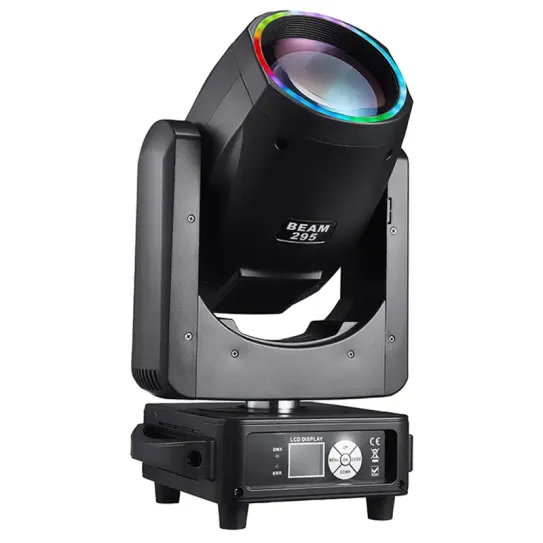

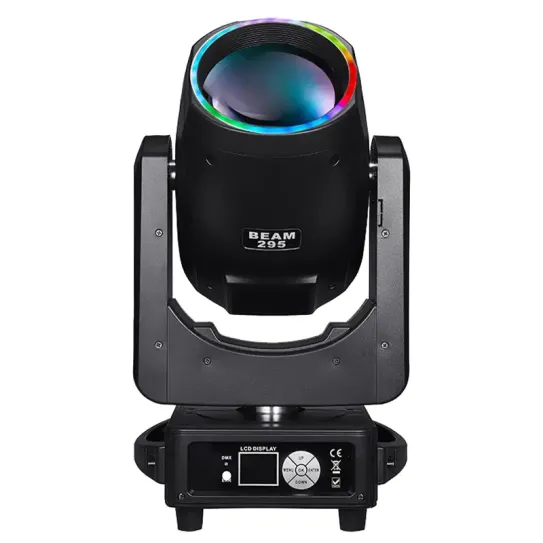

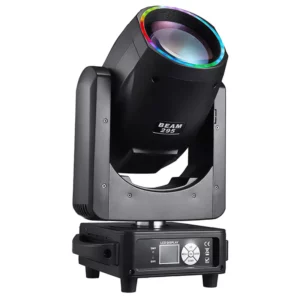

14R 295W moving heads light(GM-295W)

With 7,950 lumens and 8,500K color temperature, the GM-295W cuts through stage wash with a crisp, intense beam. Its 14-color wheel, smooth movement, and multiple control options make it a versatile choice for live events and installations.

Built for Creative Control:

High-Intensity Output: 295W bright beam with 7,950 lm and 8,500K color temperature
14-Color Wheel + White: Quick color changes and vibrant rainbow effects
Multi-Protocol Control: DMX512, wireless DMX, and standalone operation
Reversible Display & 16 Channels: Flexible setup and detailed programming

Ideal for lighting designers and venues that need a bright, reliable moving head with strong color options and smooth effects — whether for concerts, corporate events, or nightclub use.

AT A GLANCE

the advanced prism technology, boasting a 48 honeycomb prism and an 8 prism. These prisms can be stacked and rotated independently in both directions, offering unique lighting effects that are sure to captivate any audience.
With linear focusing, atomization function, and adjustable atomization speed, the 14R 295W Moving Heads Light can create an array of atmospheric effects, from a sharp beam to a soft wash.
The durability and safety of this moving heads light are also noteworthy. With an IP20 protection level and overheat protection, it's built to last and operate safely in various environments.

Specification

Power Supply: AC100-240V 50/60Hz
Bulb Model: Original Philips/Osram/Phoenix Foam
Channel: 16 Channels, Four Light Touch Switches, 180° Reversible Display
Pattern Disc: Fixed Pattern Disc, 17 Pattern Effects + White
Focusing: Linear Focusing, Atomization Function, Adjustable Speed
Luminous Flux: 7950lm
Color Temperature: Up to 8500K
Ballast: Electronic Inductance Ballas
Strobe Macro Function: 1 to 12 F.P.S.
Reset System: Photoelectric, Pan540°, Tilt270°

Total Power: 450W
Control Mode: DMX512/WMDMX/Self-Propelled
Color Plate: 14 Color Chips + White, Adjustable Rotation Speed, Bidirectional Flowing Water, Rainbow Effect
Prism: 48 Honeycomb Prism, 8 Prism, Independent Rotation
IP Protection Level: IP20
Size: 21x23x51cm (8.26×9.05×20.07in)
Net Weight: 14KG (30.86lb)
Dimming: 0-100% Mechanical Dimming, Adjustable Strobe Effects
Lens Group: Optical System, Electric Focusing, Beam Angle 0-4°
Additional Features: Horizontal and Vertical Fine Automatic Error Correction, Overheat Protection, LCD Display Screen.

DOWNLOADS

14R 295W moving heads light(GM-295W) reference guide downloads

VIDEO

Frequently Asked Questions

How Many Channels Does a Moving Light Use?

When it comes to the versatility and control of moving heads lights, one of the key aspects to consider is the number of channels they use. The number of channels in a moving head light like the 14R 295W Moving Heads Light plays a pivotal role in determining its functionality and the complexity of the effects it can produce.

Specifically, the 14R 295W model boasts an impressive 16-channel configuration. This extensive channel range offers granular control over various functions of the light, allowing for intricate and dynamic lighting designs. Each channel controls a different aspect of the light's performance – from basic functions like dimming and color change to more advanced features such as gobo patterns, prism effects, and movement speeds.

The ability to manipulate these channels individually provides lighting designers with the creative flexibility to craft complex lighting scenes and sequences. This is particularly advantageous in professional settings like concerts, theater productions, and corporate events, where lighting plays a crucial role in setting the mood and directing audience attention.

In summary, the number of channels in a moving heads light like the 14R 295W is fundamental to its capability. With 16 channels, this model stands out as an excellent choice for those seeking comprehensive control over their lighting environment, making it a popular choice among lighting professionals.

What are the Features of Moving Lights?

Moving heads lights, particularly the 14R 295W Moving Heads Light, are renowned for their rich array of features that cater to diverse lighting needs. The features of these lights make them an indispensable tool in various settings, from stage performances to architectural lighting.

Key features of the 14R 295W model include:

High Luminous Flux and Color Temperature: With a luminous flux of 7950lm and a color temperature reaching up to 8500K, it provides bright and vivid lighting, essential for professional environments.
Versatile Control Options: The light supports DMX512, WMDMX, and self-propelled control modes, along with a 16-channel configuration. This ensures precise and flexible control over lighting effects.
Advanced Color and Pattern Capabilities: It boasts a color plate with 14 color chips plus white, alongside a pattern disc with 17 effects. These features allow for a wide range of visual effects, from subtle mood lighting to dramatic visual displays.
Innovative Prism Technology: The inclusion of a 48 honeycomb prism and an 8 prism, both independently rotatable, provides unique and captivating lighting effects.
Focusing and Atomization Functions: Its linear focusing and atomization features enable users to adjust the beam quality, from sharp focused light to a softer wash effect.
Robust Build and Safety Features: With an IP20 protection level and overheat protection, the light is designed for durability and safety in various environments.
