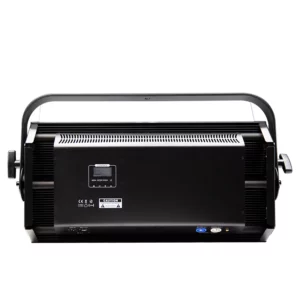

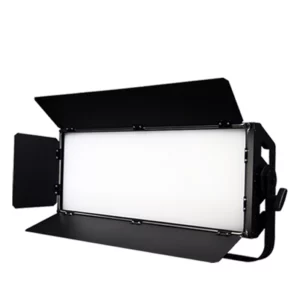

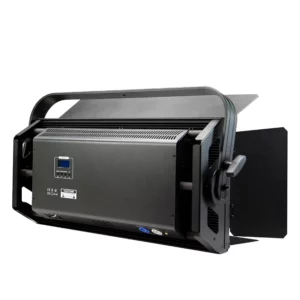

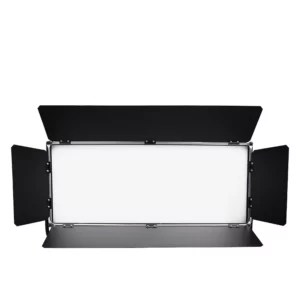

200W Video Light LED Panel（GL-200C）

After 4 years of evolution, Igracelite 200W Video Light LED Panel can give your audience the most realistic environment and skin color, without the need for post-editing correction.
Engineers and industrial designers worked together to bring an ergonomic design. The smooth, sloping curves enhance the visual sense and also enhance the metallic texture.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • High-Quality LED Output: Equipped with 2688 LEDs in six colors (Red, Green, Blue, Amber, Lime, Cyan) with a CRI > 96, delivering vibrant and accurate colors.
  • Wide Beam Angle: Offers a 170° beam angle, providing extensive light coverage.
  • Flexible Control Modes: Supports multiple control options, including RDM, DMX512, HSIC, Master/Slave, and Stand-alone, for versatile operation.
  • Adjustable Dimming: Features a 0-100% linear dimmer with four selectable dimming curves and PWM frequency adjustment from 1200Hz to 20000Hz for flicker-free lighting.

Specification

  • Power：AC100V~240V, 50/60Hz, 200W
  • LEDs：R, G, B, A, L, C, each 0.2W x 2688pcs LED, CRI: > 96
  • Beam Angle：170°
  • Control Mode：RDM, DMX512, HSIC, Master/Slave, Stand-alone
  • Dimming：0-100% linear dimmer, 4 selectable dimming curves
  • PWM Dimming Frequency：1200Hz ~ 20000Hz
  • Protection class:Class I
  • Power connection:Mains input P-Con (blue) mounting version
  • Power output:P-Con (gray) mounting version
  • Lamp type:LED lamp
  • LED:LED Model: 2835, See the above models for details
  • DMX input:3-pin XLR (M) mounting version
  • DMX output:3-pin XLR (F) mounting version
  • Cooling:Cooling fan
  • Beam angle (1/2 peak):170°
  • Color rendering index (CRI) more than:96 Ra
  • Housing color:Black
  • Display type:LCD
  • Dimensions:Length: 63.9cm (≈ 25.18 inches) * Width: 13.3cm (≈ 5.24 inches) * Height: 28cm (≈ 11.02 inches)
  • Weight:10.2kg (≈ 22.49 lbs)

Color Volume of Igracelite panel light

DOWNLOADS

200W Video Light LED Panel reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the significance of the high Color Rendering Index (CRI) over 96?

A: A CRI over 96 ensures that the light fixture delivers exceptionally accurate color rendering, which is crucial for applications that require true color representation, such as photography, film, and stage lighting.

Q: How does the fixture's cooling system contribute to its performance and longevity?

A: The built-in cooling fan helps to dissipate heat effectively, which is essential for maintaining the LED's performance and extending its lifespan, ensuring the fixture remains efficient and reliable over time.

Q: How does the fixture's dimming capability enhance the lighting experience?

A: With a 0-100% linear dimmer and four selectable dimming curves, the fixture allows for precise control over light intensity, enabling users to create various lighting moods and effects for different applications.

Q: What is the role of the LCD display in the fixture's operation?

A: The LCD display provides a user-friendly interface for monitoring and controlling the fixture's settings, making it easier to adjust parameters such as dimming, color calibration, and other functions without the need for external control equipment.
