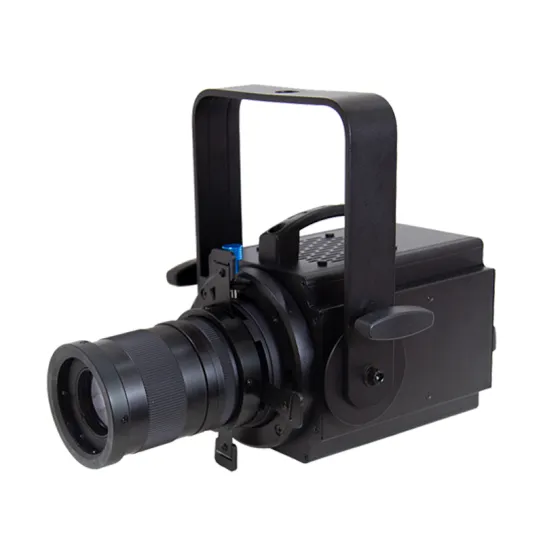

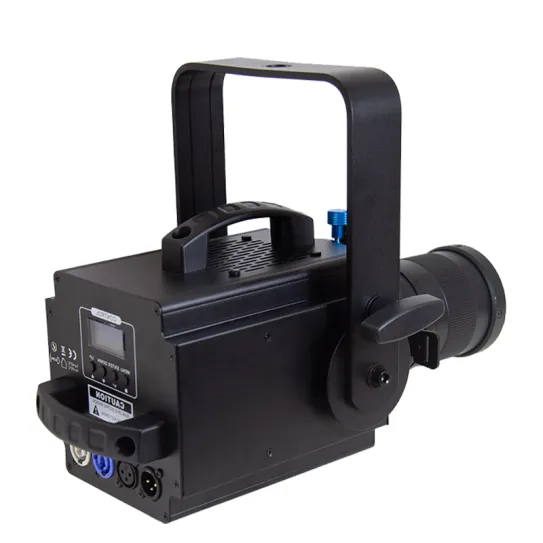

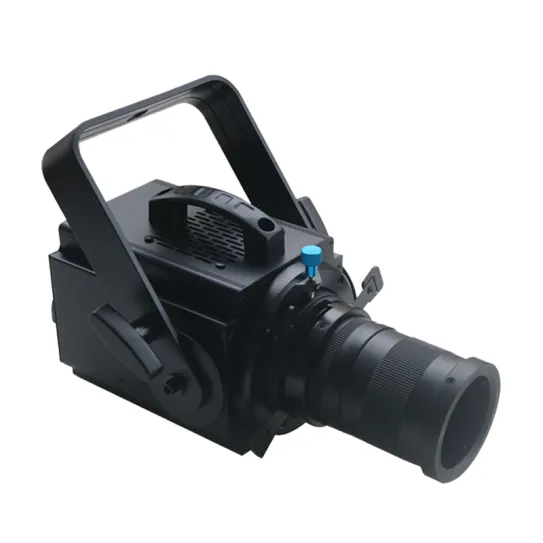

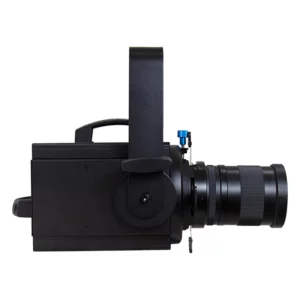

100W 20°-40° Zoom Ellipsoidal Theatrelight（GL-100BW）

Zoom range: The zoom range of 20°-40° is relatively wide, which is more flexible than some products with narrower zoom range. You can switch freely between narrower spotlight and wider floodlight according to actual needs, meeting the requirements of beam size and coverage in different scenes, and reducing the need to equip different lamps due to insufficient zoom range.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • High-Quality COB LED: Equipped with a 100W 6-in-1 RGBALC COB LED with a high CRI rating (>96) for superior color rendering.
  • Versatile Beam Angle: Adjustable beam angle from 20° to 40°, allowing for flexible lighting options.
  • Advanced Control Modes: Supports multiple control modes, including RDM, DMX512, HSIC, Master/Slave, and Stand-alone operation.
  • Precision Dimming and Color Calibration: Features a 0-100% linear dimmer with four selectable dimming curves and a PWM dimming frequency adjustable from 1200Hz to 20000Hz, along with a Color Calibration System (CCS) for accurate color adjustments.

Specification

  • Power：AC100V~240V, 50/60Hz, 100W
  • LEDs：COB 100W LED 6in1-RGBALC, CRI: > 96
  • Beam Angle：9°-25°
  • Control Mode：RDM, DMX512, HSIC, Master/Slave, Stand-alone
  • Dimming：0-100% linear dimmer, 4 selectable dimming curves
  • PWM Dimming Frequency：Adjustable from 1200Hz to 20000Hz
  • Color Calibration System：CCS
  • Protection class:Class I
  • Power connection:Mains input P-Con (blue) mounting version
  • Power output:P-Con (gray) mounting version
  • Lamp type:LED lamp
  • LED:1 x COB (chip-on-board) 100 W

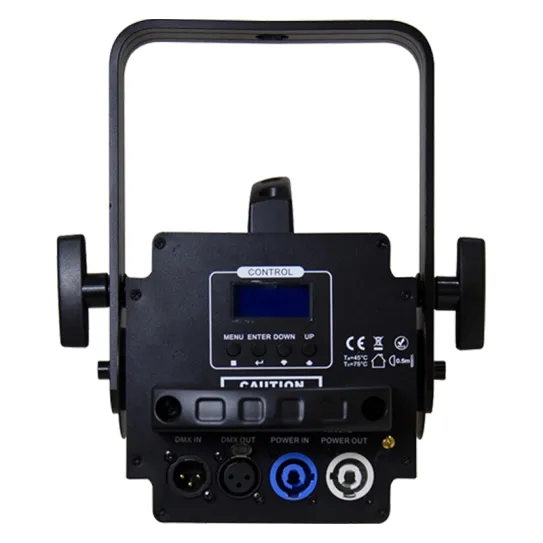

  • DMX input:3-pin XLR (M) mounting version
  • DMX output:3-pin XLR (F) mounting version
  • Cooling:Cooling fan
  • Control:RDM; DMX; stand-alone; Light Captain
  • Beam angle (1/2 peak):9°-25°
  • Color rendering index (CRI) more than:96 Ra
  • Housing color:Black
  • Display type:LCD
  • Dimensions:Length: 46.2cm (≈ 18.2 inches) * Width: 17.8cm (≈ 7 inches) * Height: 24 cm (≈ 9.45 inches)
  • Weight:4.2kg (≈ 9.24 lbs)

DOWNLOADS

100W 20°-40° Zoom Ellipsoidal Theatrelight reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the significance of the high Color Rendering Index (CRI) over 96?

A: A CRI over 96 ensures that the light fixture delivers exceptionally accurate color rendering, which is crucial for applications that require true color representation, such as photography, film, and stage lighting.

Q: How does the fixture's cooling system contribute to its performance and longevity?

A: The built-in cooling fan helps to dissipate heat effectively, which is essential for maintaining the LED's performance and extending its lifespan, ensuring the fixture remains efficient and reliable over time.

Q: How does the fixture's dimming capability enhance the lighting experience?

A: With a 0-100% linear dimmer and four selectable dimming curves, the fixture allows for precise control over light intensity, enabling users to create various lighting moods and effects for different applications.

Q: What is the role of the LCD display in the fixture's operation?

A: The LCD display provides a user-friendly interface for monitoring and controlling the fixture's settings, making it easier to adjust parameters such as dimming, color calibration, and other functions without the need for external control equipment.

RELATED PRODUCTS

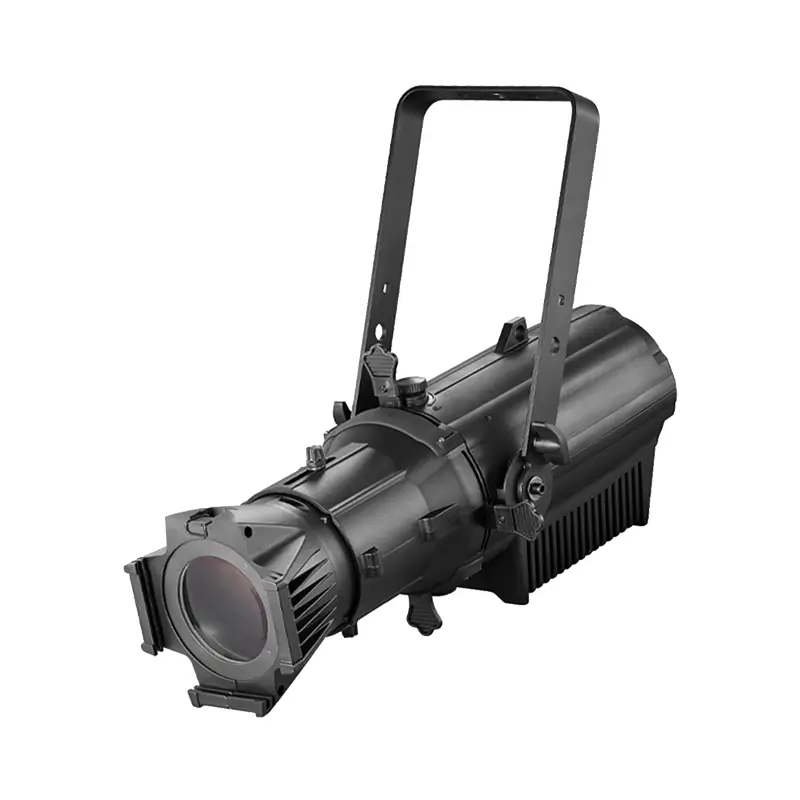

400W Fixed Focus Led Profile Spot

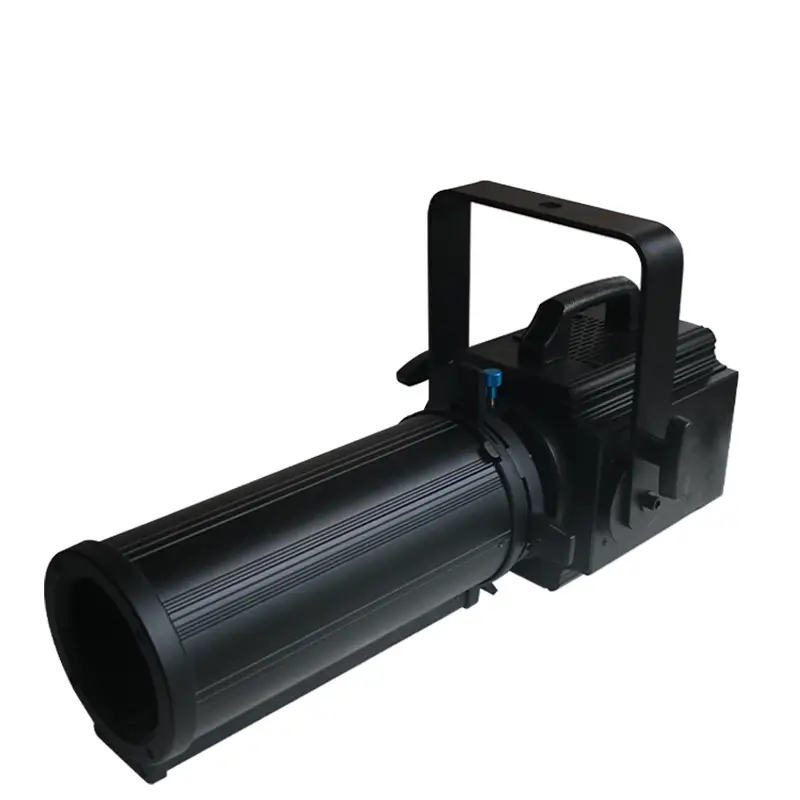

200w Electric Zoom Led Leko Light

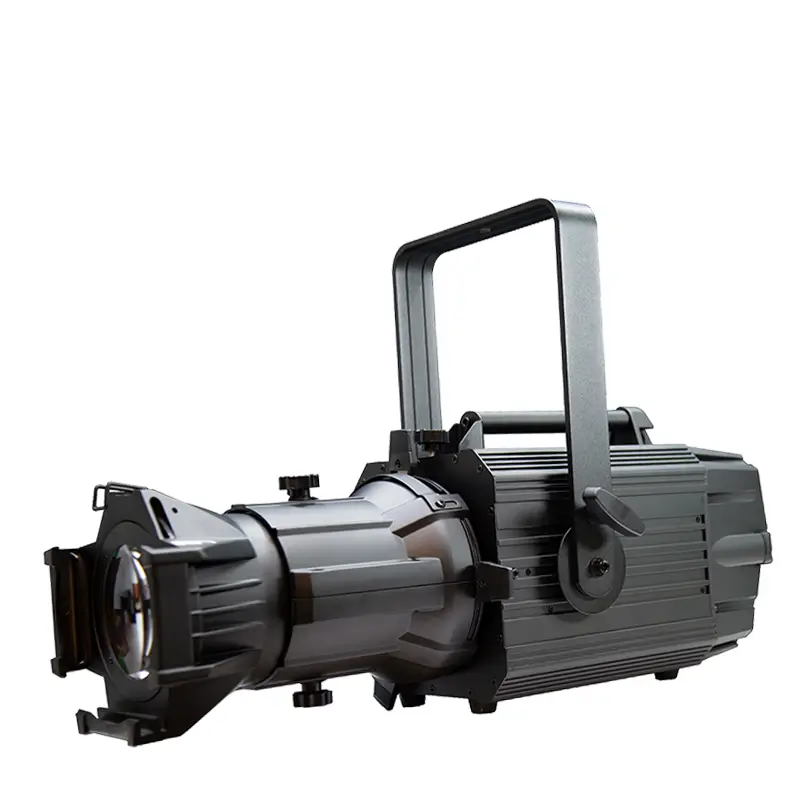

400w Electric Zoom Led Leko Light
