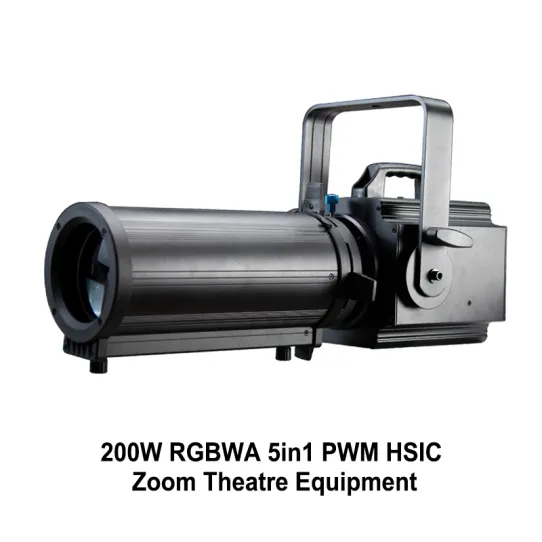

200W RGBWA 5in1 PWM HSIC Zoom Theatre Equipment (GL-200B-RGBWA)

Product Introduction：

Enter your text here...

 Contact us
Buy it now

Technical specifications

  • Power Range：AC100V~240V, 50/60Hz
  • Power Consumption for LEDs：200W
  • LED Type:COB 200W LED 5in1-RGBWA
  • Color Rendering Index (CRI):> 96
  • Beam Angle:19°-42°
  • Control Mode:RDM, DMX512, HSIC, Master/Slave, Stand-alone
  • Dimming Range:0-100% linear
  • Dimming Curves:4 selectable
  • PWM Dimming Frequency:Adjustable from 1200Hz to 20000Hz
  • Color Calibration System:CCS
  • Protection class:Class I
  • Power connection:Mains input P-Con (blue) mounting version
  • Power output:P-Con (gray) mounting version
  • Lamp type:LED lamp
  • LED:1 x COB (chip-on-board) 200 W
  • DMX input:3-pin XLR (M) mounting version
  • DMX output:3-pin XLR (F) mounting version
  • Cooling:Cooling fan
  • Control:RDM; DMX; stand-alone; Light Captain
  • Beam angle (1/2 peak):19°-42°
  • Color rendering index (CRI) more than:95 Ra
  • Housing color:Black
  • Display type:LCD
  • Dimensions:Length: 59cm (≈ 23.23 inches) * Width: 27.2cm (≈ 10.71 inches) * Height: 22.2 cm (≈ 8.74 inches)
  • Weight:7.6kg (≈ 16.76 lbs)

DOWNLOADS

200W RGBWA 5in1 PWM HSIC Zoom Theatre Equipment Reference Guide Downloads
