Pixel Light Pro | 200W Dynamic RGBW System

Ignite stages, events, or spaces with vivid pixel light magic! Featuring 441+49 RGBW beads, this 200W powerhouse delivers stunning gradients, crisp whites, and animations like flowing water, marquee, and custom characters.

Key Features:

Smart Control: DMX512, sound-activated, self-run, master-slave + RDM.
16bit Dimming: Ultra-smooth 0-100% transitions.
Multi-Channel: 1372 channels for complex pixel light mapping.
Built Tough: Metal body (-30°C~50°C), IP20 rating, daisy-chain connectivity.

Effects Galore: Strobe (1-30Hz), coloring, pixel animations, sound-reactive shows—ideal for DJs, theaters, or immersive setups!

Global Voltage (100-240V) | Portable (52x51x16cm, 9kg)
“Pixel-perfect sync for viral-worthy visuals!” – Event Pros

Upgrade Your Lighting—Shop Now!

AT A GLANCE

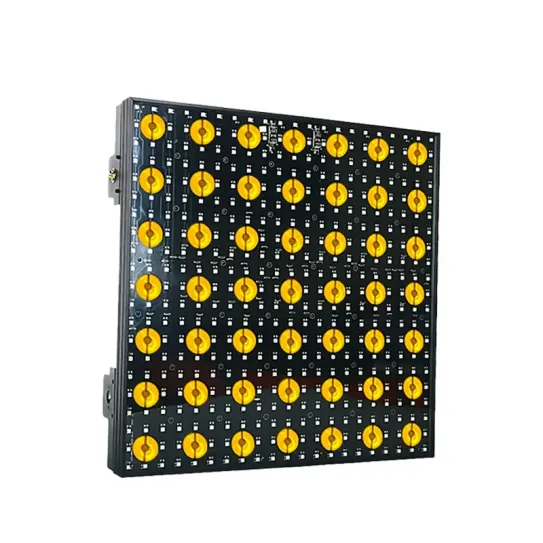

Light Source: 441 three-in-one lamp beads + 49×3W RGBW (gold/warm white) lamp beads.
Power: 200W high-efficiency output.
Control Modes: DMX512, self-running, master-slave, sound-activated, with RDM function.
Channels: Supports up to 1372 channels for advanced pixel light mapping.
Dimming: 16bit linear dimming (0–100% smooth transitions).
Durability: Metal housing with IP20 rating; operates in -30°C to 50°C.

Specification

Parameter：Details
Voltage：AC100~240V 50/60HZ
Power：200W
Light Source：441 Three-in-one Lamp Beads + 49*3wGold/Warm White Lamp Beads
Control Modes：DMX512, Self-running, Master-slave, Sound-activated, with RDM Function
Channels：CH04, CH19, CH68, 196C, 460C, 1372
Dimming：16bit 0~100% Linear Dimming

Features：Marquee + Strobe + Characters + Flowing Water + Coloring + Pixels
Operating Temperature：-30°C~50°C
Strobe Frequency：1~30HZ
Appearance：Metal, Black
Connection Modes：DMX512 Input/Output / Power Input/Output
IP Rating：IP20
Packaging Dimensions：52cm/1.7ft x 51cm/1.7ft x 16cm/0.5ft
Weight：9kg/19.8lb.

DOWNLOADS

7×7 Stage Light Background Matrix Panel Pixel Light(GL-M49) Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: What control options are available for the pixel light system?

A: It supports DMX512, self-running programs, master-slave synchronization, sound-activated modes, and RDM function for advanced customization.

Q: Is this light suitable for outdoor use?

A: No, the IP20 rating means it’s designed for indoor use only. Avoid exposure to moisture or extreme outdoor conditions.

Q: How many pixel light fixtures can I daisy-chain together?

A: With DMX512 input/output and power passthrough, you can connect multiple units seamlessly. The exact number depends on your DMX controller’s capacity and power supply.

Q: Can I create custom animations like flowing water or text effects?

A: Yes! The 1372-channel support and pixel light mapping allow detailed customization of flowing water, marquee patterns, characters, and more via DMX software.
