Q0 MOBIL BUTTON

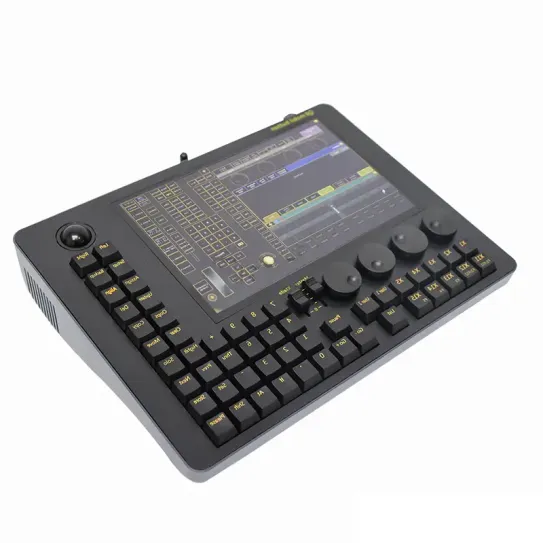

This device features 2 DMX outputs, 1 DMX input/output, a 10.1" wide-mode touchscreen, and supports an external UXGA touch screen. It has an etherCON interface with MA NET and ARTNET support, built-in Wi-Fi, MIDI output, LTC/SMPTE timecode, sound in/out, 2 USB ports, and a DP/output for an additional touch screen. It includes 10 macro buttons, 4 push encoders, 1 dimmer wheel, 2 A/B faders, individually backlit mute keys, 120G SSD, 8G memory, and runs on WIN10 64-bit. Supports stage 3D effect simulation and real-time scene simulation, with an uninterruptible power supply.
AT A GLANCE
Specification
DOWNLOADS
Mobil button grandm reference guide downloads
Frequently Asked Questions
Q: 1. What kind of screens can be connected to the device?
A: The device features a built-in 10.1" TFT wide-mode touchscreen (WXGA) and supports connecting an external UXGA touchscreen.
Q: How do I connect the device to a network or other devices?

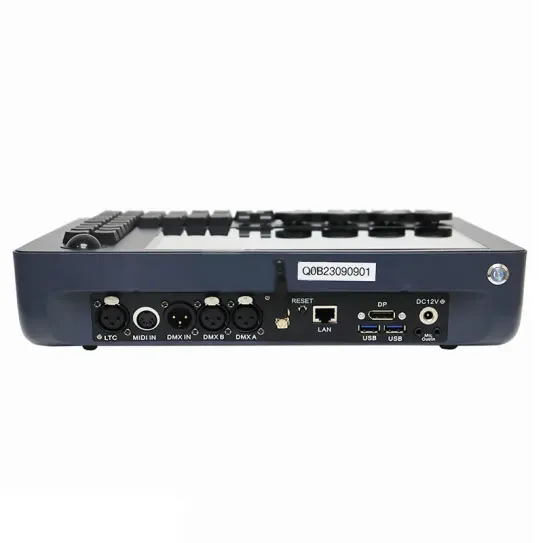

A: The device includes an etherCON interface supporting MA NET and ARTNET signals, built-in Wi-Fi, 2 USB ports, a DP/output for an extra touchscreen, and external wireless keyboard and mouse connectivity. Additionally, it supports MIDI output and LTC/SMPTE timecode.
Q: What are the power requirements and dimensions of the device?
A: The device operates on 100-250VAC, 50/60Hz, and 200VA power. The controller size is 34cm × 25cm × 9cm (13.39" × 9.84" × 3.54"), with a net weight of 2.2kg (4.85lbs) and a gross weight of 3kg (6.61lbs).
