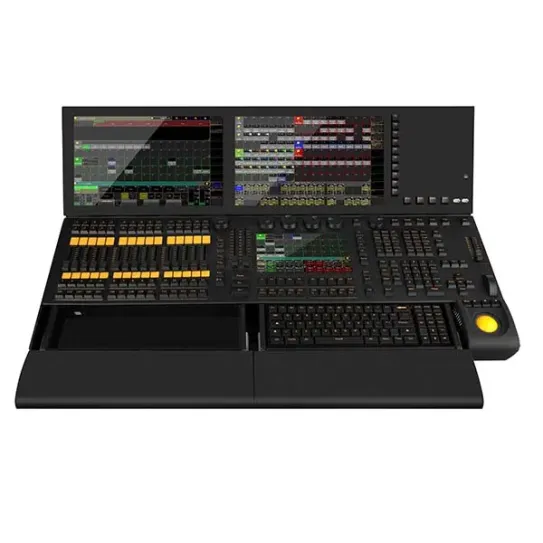

MA2 Lighting DMX Control Console

The MA2 Lighting DMX Control Console offers a powerful solution. With AC90-250V power supply and Linux OS. Features I5 CPU, 4G memory, 120G SSD. 6 DMX output ports, connect with NPU for up to 65536 channels. Has 2 touch screens, 15 faders, 50 program keys. Also includes trackball, putters, encoders. 2 Gigabit Ethernet ports, 5 USB ports. With work light ports, DVI ports, MIDI interface. Built-in drawer, keyboard, UPS. Supports RDM function. Ideal for professional lighting control.

AT A GLANCE

  • Multiple Output Ports: The console has 6 DMX output ports and 1 composite DMX input port (can be set as output), enabling extensive lighting control.
  • Powerful Hardware: Equipped with I5 CPU, 4G memory and 120G built-in solid state drive for efficient operation.
  • Touch Screens and Controls: Comes with 2 electric lift 15.4-inch and 1 9-inch touch screens, along with 15 faders, 50 program keys and more for intuitive control.
  • Connectivity Options: Features 2 Gigabit Ethernet ports, 5 USB ports and MIDI input/output interface for seamless integration.
  • Built-in Features: Includes built-in drawer, yellow backlit mechanical keyboard, high-power UPS and work light ports for added convenience.

Specification

  • AC90-250V,50-60HZ
  • Linux operating system
  • I5 CPU, 4G memory, built-in solid state drive 120G
  • 6 DMX output ports, 1 composite DMX input port (can be set as output)
  • Connect with NPU to support up to 65536 channels
  • Built-in 2 electric lift 15.4-inch industrial full-view touch screen, 1 9-inch touch screen
  • Built-in 1 USB port dedicated for 18w fast charging mobile phone charging
  • 15 electric playback faders with induction function (60mm), 50 program keys
  • 1 master control push rod, 1 dimming wheel
  • 1 controllable XY axis high-precision imported trackball
  • 2 A/B field electric putters (100mm)
  • 6 imported industrial grade wear-resistant encoders (with Push function)
  • 2 Gigabit Ethernet ports, support MA NET, ARTNET and other signals
  • 5 USB ports, 1 backup USB access port
  • 2 work light ports
  • 2 DVI ports, can expand two displays
  • MIDI input and output interface
  • Built-in 1 drawer, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)
  • Built-in high-power UPS uninterruptible power supply
  • Support RDM function

DOWNLOADS

VIDEO

Frequently Asked Questions

Q: What is the power supply range of the console?

A: The console has an AC90-250V power supply and operates at 50-60HZ.

Q: How many DMX ports does the console have?

A: It has 6 DMX output ports and 1 composite DMX input port (can be set as output).

Q: Does the console have any built-in displays?

A: Yes, it has 2 electric lift 15.4-inch industrial full-view touch screens and 1 9-inch touch screen.
