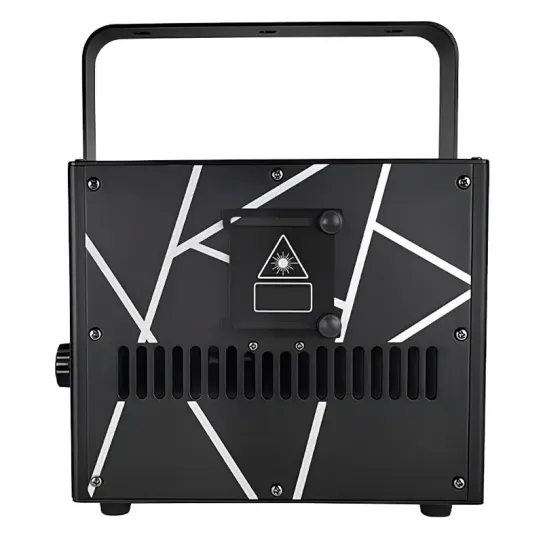

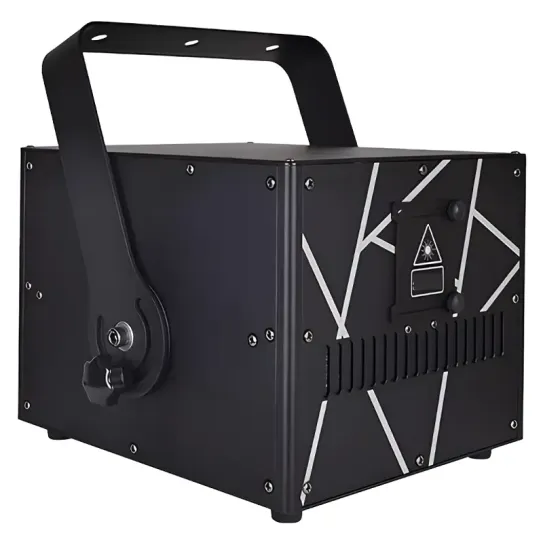

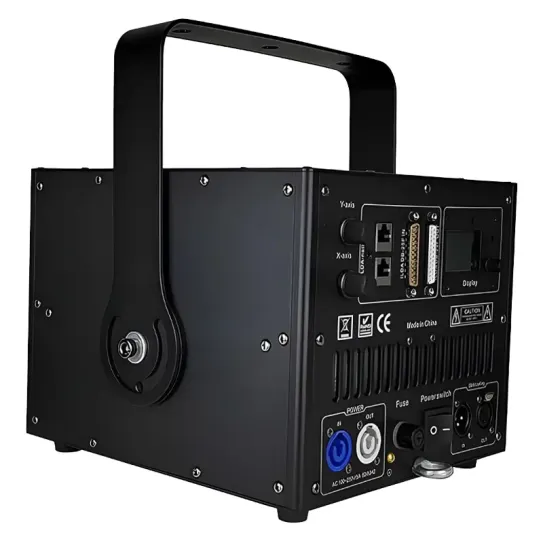

5W Laser Stage Lighting(GB-RGB5w)

Step up your lighting game with our innovative 5W Laser Stage Lighting system, designed to bring the highest level of visual spectacle to any performance or event. This powerhouse device boasts a blend of Red, Green, and Blue outputs for a full spectrum of vibrant color combinations. Utilizing Diode Pumped Solid State Laser (DPSS) technology with a 40K Galvanometer, this laser lighting system is a professional-grade solution built for dependability and mesmerizing visual effects.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • High Output Tri-Color Laser: Equipped with high-powered laser outputs—Red (500mW/638nm), Green (1000mW/520nm), and Blue (1800mW/445nm)—for vibrant and dynamic lighting.
  • Built for Safety: Complies with EN 60825 safety standards and features a key switch, interlock interface, and overload protection on X and Y Galvo, offering best-in-class safeguarding against failures.
  • Multiple Operating Modes: Supports DMX512, ILDA, Sound-activated, AUTO-beam/animation, and Master-Slave functions for ultimate control and flexibility.
  • High-Speed Scanner: Equipped with a 40K Galvanometer for quick and precise laser movements, creating intricate patterns and animations.
  • Dual Voltage Compatibility: Operates on both 110V and 220V power supplies, providing versatility and international usability.
  • Portable and Durable: Weighing just 11 pounds (with road case), and measuring 8.18 x 6.18 x 7.08 inches, it’s both compact and built to last.
  • Comprehensive Packing List: Comes with all necessary accessories, neatly packed and ready for use.
  • High Efficiency: Uses Diode Pumped Solid State Laser (DPSS) technology for optimal efficiency and output quality.

Specification

  • Output Power (Red): 500mW with a wavelength of 638nm
  • Output Power (Blue): 1800mW with a wavelength of 445nm
  • Scanner: 40K Galvanometer for rapid and precise laser movements
  • Operating Modes: Supports DMX512, ILDA, Sound-activated, AUTO-beam/animation, and Master-Slave control modes
  • Laser Source: Utilizes Diode Pumped Solid State Laser (DPSS) technology with a 40K Galvanometer
  • Output Power (Green): 1000mW with a wavelength of 520nm
  • Voltage: AC210~240V, compatible with 50/60Hz
  • Laser Safety Features: Compliant with EN 60825 standards, includes a key switch, interlock interface, and overload protection on both X and Y Galvo for maximum safety
  • Size: Measures 8.18 x 6.18 x 7.08 inches
  • Net Weight: Approximately 11.02 pounds (when packed in road case)

DOWNLOADS

5W Laser Stage Lighting(GB-RGB5w) reference guide downloads

VIDEO

Frequently Asked Questions

How Does Laser Stage Lighting Work?

Laser stage lighting employs coherent and concentrated light beams generated through a process called stimulated emission of radiation. These beams are then directed by mirrors or Galvanometers, in the case of our 5W Laser Stage Lighting, which utilizes a high-speed 40K Galvanometer. The light can be modulated and controlled through various modes such as DMX512, ILDA, and Sound-activated settings.

This technology allows for incredible precision and the creation of intricate patterns and animations, making laser stage lighting particularly effective for dynamic and immersive visual experiences.

What Are the Advantages of Laser Over LED?

While LED lights are known for their energy efficiency and long lifespan, laser stage lighting offers its own set of unique advantages:

Precision: Lasers can create highly focused beams, allowing for more intricate patterns and animations.

Color Saturation: Lasers offer more vivid and saturated colors, thanks to their narrower bandwidth.

Efficiency: Lasers are highly efficient in converting energy to light, often more so than LEDs.

Projection Distance: Lasers can project images or lights over greater distances without losing intensity.

Operational Modes: High-end laser lighting systems like our 5W Laser Stage Lighting offer a range of customizable modes such as DMX512, ILDA, and Sound-activated settings, providing more control and flexibility compared to traditional LED systems.

RELATED PRODUCTS

10w laser lights
10w laser lights
2w RGB Animation Laser Lights
2w RGB Animation Laser Lights
15w laser light
15w laser light

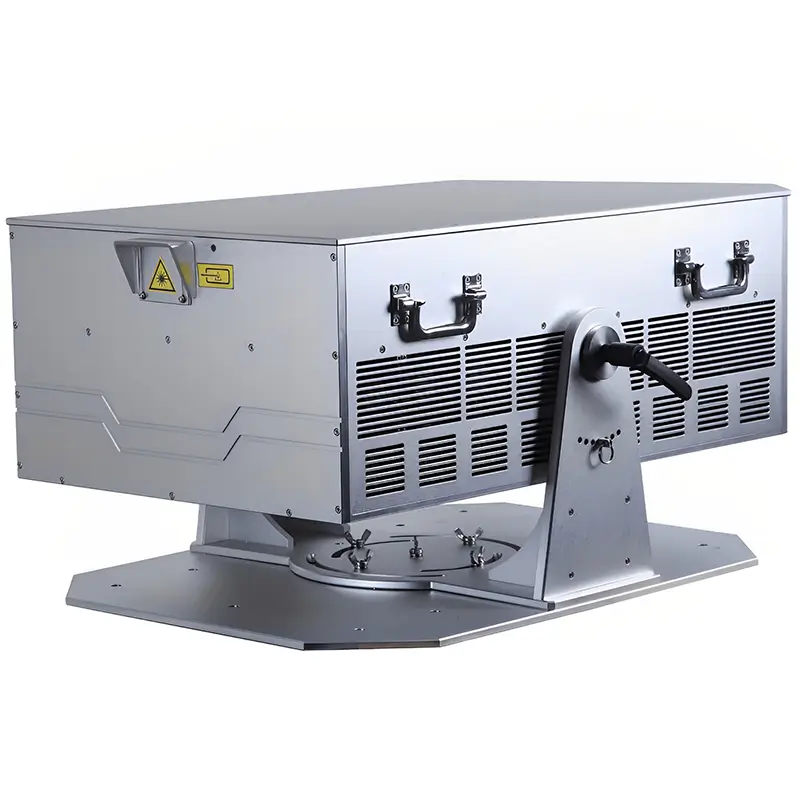

100w laser light
