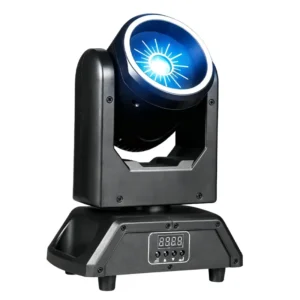

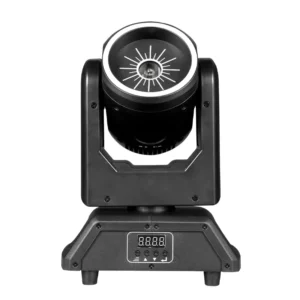

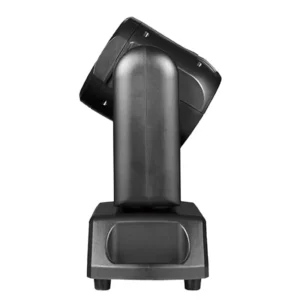

3W RGB Laser Moving Head with Auxiliary Light & X Rotation (GB-SLM3W-RGB）

Create more dynamic visual effects with this Laser Moving Head, combining a 3W full-color RGB laser source with 18 RGB auxiliary LEDs for a richer, layered lighting experience. The laser creates the main visual impact, while the auxiliary light adds complementary color and atmosphere around the effect.

Dynamic X-Axis Movement: Infinite X rotation brings continuous motion to laser effects, helping lighting designers create more energetic and fluid visual sequences.

Flexible Color & Intensity: RGB laser output, auxiliary RGB lighting, and 32-bit 0–100% linear dimming provide greater freedom for color transitions and smooth brightness changes.

Professional Show Control: DMX512, master-slave, auto-run, and sound-active modes make the fixture easy to integrate into different lighting workflows.

Designed for stages, clubs, DJs, concerts, and live events, this Laser Moving Head adds motion, color, and visual depth to professional entertainment lighting setups.

AT A GLANCE

Full-Color RGB Laser Visuals
The 3W full-color RGB laser source combines red, green, and blue output to create vivid laser effects for dynamic entertainment environments. The balanced RGB system gives lighting designers greater freedom to build colorful visual scenes and transitions.
Infinite X-Axis Rotation
Continuous X-axis rotation adds a distinctive sense of motion to the laser effect. Instead of relying on static positioning, operators can create constantly moving visual sequences that add energy and movement to stages, clubs, DJ shows, and live productions.
Auxiliary RGB Lighting for Layered Effects
The 18-piece 5050 RGB auxiliary light source adds a second layer of color around the main laser effect. This combination helps create a fuller visual presentation and gives designers more creative options when building dynamic lighting scenes.
Smooth 32-Bit Dimming & Strobe Control
32-bit 0–100% linear dimming provides smoother intensity transitions, while adjustable 1–30Hz strobe control supports both subtle accents and fast-paced visual effects. This flexibility helps operators fine-tune the fixture for different moments within a show.
Flexible Control for Professional Lighting Systems
DMX512, master-slave, auto-run, and sound-active modes provide multiple operating options. With 21CH and 30CH selectable DMX modes, the Laser Moving Head can adapt to different programming requirements and professional entertainment lighting setups.

Specification

Power Supply:AC 100–220V, 50/60Hz
Light Source:3W Full-Color RGB Laser (R 500mW / G 500mW / B 2000mW) + 18pcs 5050 RGB DC12V
Control Mode:DMX512, Auto Run, Master-Slave, Sound Active
DMX Channels:21CH / 30CH
Cooling System:Intelligent Air Cooling
Dimming:32-bit 0–100% Linear Dimming
Key Feature:Laser + Auxiliary Light + X Infinite Rotation

Working Temperature:-30°C to 50°C / -22°F to 122°F
Strobe Frequency:1–30Hz
Housing:Metal, Black

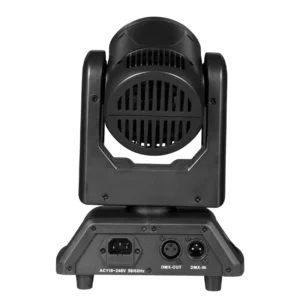

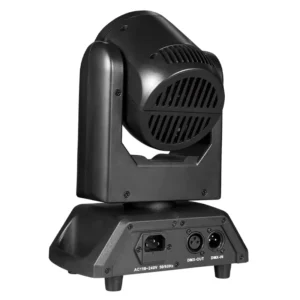

Connection:DMX512 In and Out / Power In and Out
IP Rating:IP20
Package Size:35cm / 1.1ft × 24cm / 0.8ft × 19cm / 0.6ft
Package Weight:3.5kg / 7.7lb

VIDEO

Frequently Asked Questions

Q: What makes this Laser Moving Head different from a standard laser light?

A: This Laser Moving Head combines a 3W full-color RGB laser with 18 RGB auxiliary LEDs in one fixture. The laser provides the main visual effect, while the auxiliary lighting adds additional color and atmosphere. Its infinite X-axis rotation also creates continuous movement that is not available from a fixed-position laser fixture.

Q: Does the Laser Moving Head support continuous rotation?

A: Yes. The fixture features X-axis infinite rotation, allowing continuous movement without a fixed rotational endpoint. This helps create more fluid and energetic laser sequences for stages, clubs, DJ performances, concerts, and other live entertainment applications.

Q: Can I control this Laser Moving Head with DMX512?

A:Yes. The fixture supports DMX512 control with selectable 21CH or 30CH modes. It also offers master-slave, auto-run, and sound-active operation, giving lighting operators flexibility for both programmed professional shows and simpler standalone setups.

Q: Can the laser and auxiliary RGB light create different visual effects?

A: Yes. The 3W full-color RGB laser serves as the main visual source, while the 18-piece 5050 RGB auxiliary light provides additional color effects. Using both lighting sections together can create a more layered and visually dynamic presentation than using the laser source alone.

Q: Is this Laser Moving Head suitable for clubs, DJs and stage shows?

A: Yes. The combination of RGB laser effects, auxiliary RGB lighting, X-axis infinite rotation, adjustable 1–30Hz strobe, and 32-bit linear dimming makes it suitable for clubs, DJ shows, concerts, stages, parties, and other indoor entertainment productions. The fixture is rated IP20, so it should be used in a protected indoor environment and kept away from direct exposure to water.
