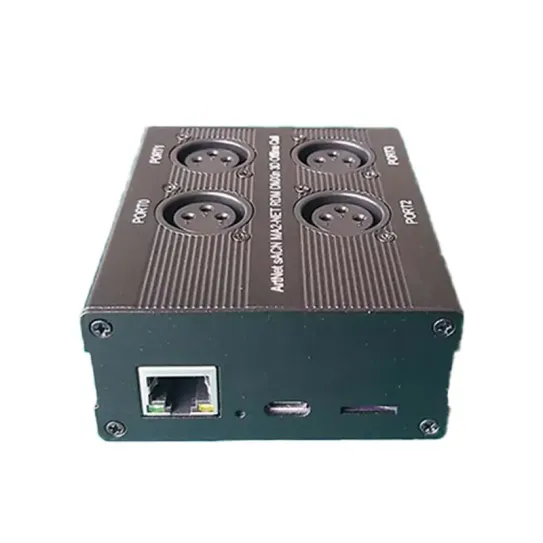

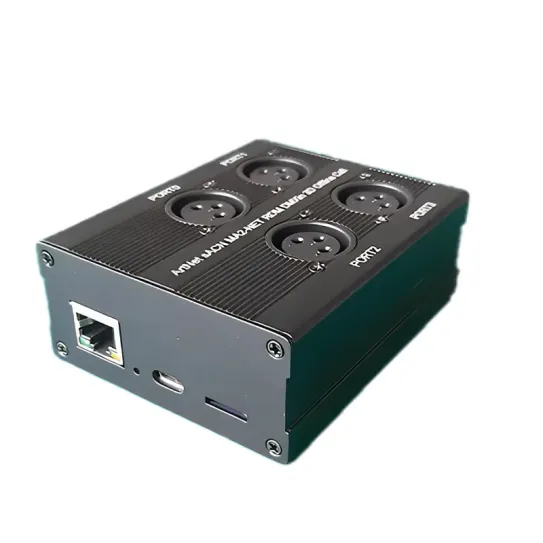

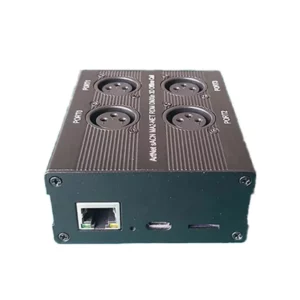

Support DMX512 System Type-C USB Functions Artnet DMX Control Box（SL04）

🔥 DMX Control Box: The Swiss Army Knife of Lighting Control! 🔥

✨ Lightning-Flex Power:
→ Native MA2 onPC support—no hacks, just plug & play like pro gear!
→ 4 Isolated DMX Outputs (+ surge protection!) for rock-solid shows.
→ Artnet, sACN, MA2-NET, RDM—speak every lighting language!

🎮 Web Wizardry:
🌐 Control via browser—zero software installs!
💡 54 Built-in RGB/RGBW FX—unleash instant eye candy.
📀 Offline Capture/Playback—save & replay scenes anytime, anywhere.

🔧 Port Party:
⚡ USB-to-Network Magic—Win/Linux plug-and-go (sorry, Mac—use LAN!).
🔌 RS232/485 + DMX In (adapter needed for RS232—don’t fry it!).
💾 TF Card Slot—store shows, web apps, or your secret lighting recipes.

🛡️ Built Tough:
⚡ Photoelectric isolation, TVS/PTC protection—foolproof against chaos.
🌍 Cross-Platform Ready—control from phones, tablets, or your grandma’s PC.

🚀 Why settle for ordinary? This box laughs at limits. 🚀

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • Multi-Protocol Master: Artnet, sACN, MA2-NET, RDM, DMX512—universal compatibility.
  • Native MA2 onPC Support: Official integration, no cracks—plug & play like pro hardware.
  • 4 Isolated DMX Outputs: 2048 channels, surge-protected, foolproof design.
  • Dual Connectivity: USB-to-network (Win/Linux) + LAN port (all OS).
  • Multi-Port Flexibility: DMX In/Out, RS232/485 (adapter required), Phoenix terminal.
  • 54 Built-In Effects: Instant RGB/RGBW lighting sequences.
  • Live Shows: Real-time control via MA2 or web.
  • Installations: Offline playback for permanent setups.
  • Plug-and-Play: No drivers, no setup fuss.
  • Robust Protection: Photoelectric isolation, TVS/PTC chips.

Specification

  • Core Protocols：Artnet, sACN, HAHAN, MA2-NET; RDM (Remote Device Management) support
  • DMX Universe Management：Cloning, routing, interception; DMX512 system detection (usable as a detector)

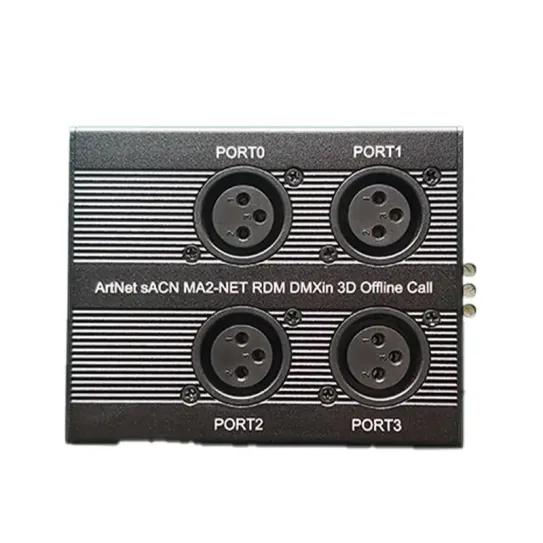

  • Ports：DMX Out: 4 ports (2048 channels, isolated, PTC/TVS protection);DMX In: Port 3 (RDM/RS485 isolated input)
  • Software Integration：Native: MA2 onPC (2018+);Plugins: Madrix, Lightjockey, VJ;Free Tools: MagicQ, QLC+, DMXControl
  • Built-in Effects Library：54 RGB/RGBW programmable effects; externally triggerableStorage & Expansion：TF Card: FAT/FAT32/exFAT support; DMX file
  • Development Support：Open APIs, detailed SDK/docs; TF card supports custom web page deployment
  • storage/playback;WebUI: Playlist editor, secondary development tools

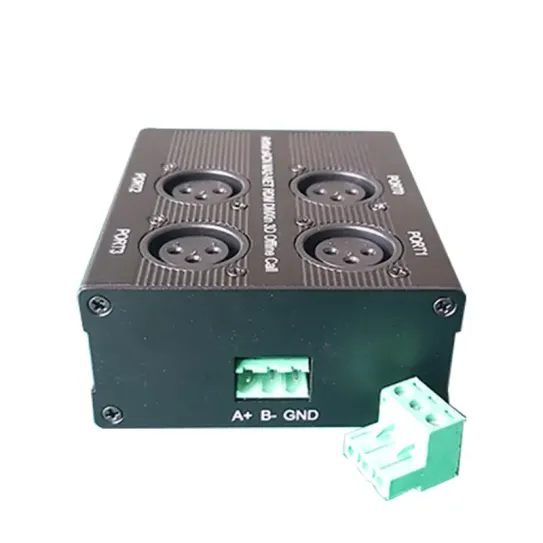

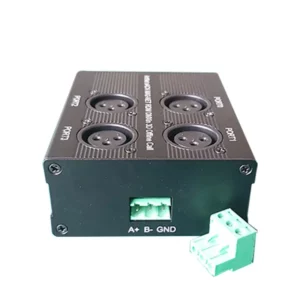

  • Hardware Interfaces：Phoenix Port: RS485/RS232 (requires level converter);Type-C: Dual-mode (USB - to - Ethernet or 5V power)
  • Network & Connectivity：LAN Port: 10M adaptive PHY;UDP/HTTP: Browser - based control (HTTP only; no SSL)
  • Power Options：5V power via Type-C (mobile charger compatible); isolated power designCompatibility & Cross-Platform：Linux/Win7/10/11 support; browser - controlled (no OS - specific software required)
  • Security & Protection：Photoelectric isolation, PTC/TVS chips on DMX ports; anti - surge protection
  • Time Synchronization：Built-in RTC with web UI auto - sync; timestamped playbackSpecial Notes：RS232 requires external level converter;Avoid HTTPS (use HTTP only)

DOWNLOADS

Support DMX512 System Type-C USB Functions Artnet DMX Control Box(SL04) Reference Guide Downloads

VIDEO

Frequently Asked Questions

Q: Does this DMX Control Box support MA Lighting’s MA2 software officially?

A: Yes, it natively integrates with MA2 onPC without requiring cracks or modifications. Simply plug in via USB/LAN and use it like original hardware.

Q: Can I use this box with macOS devices?

A: While the USB-to-network feature is unsupported on macOS, you can connect via the LAN port for full compatibility with Apple systems.

Q: How does the offline playback function work?

A: Insert a TF card to save DMX scenes captured in real-time. The box replays stored scenes without a network or external software.

Q: Is an adapter needed for RS232 communication?

A: Yes, the RS232 port requires an external level-conversion module (sold separately) due to voltage differences. Direct connection may damage the device.

RELATED PRODUCTS

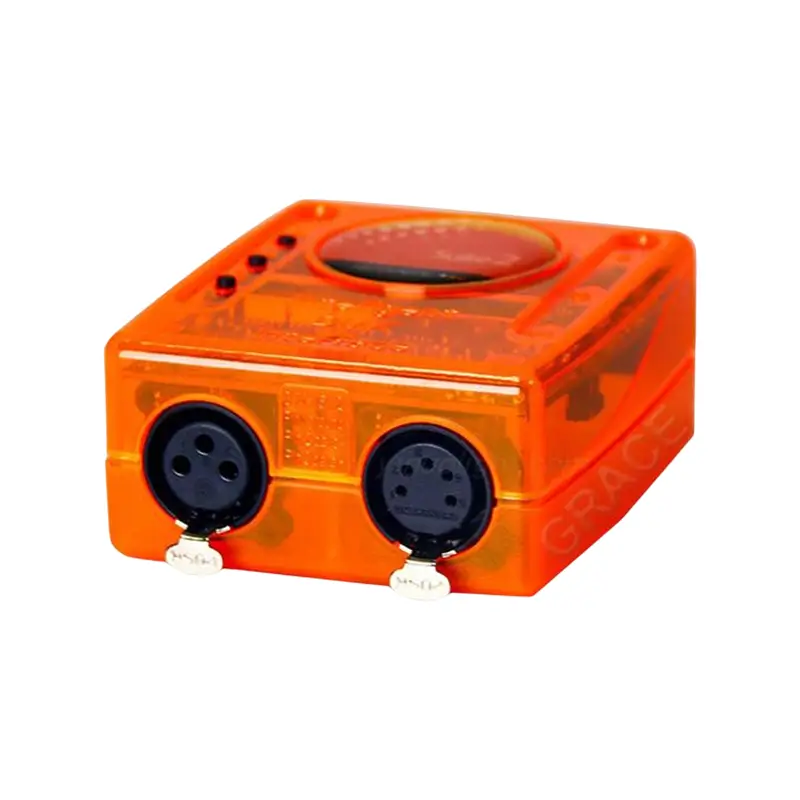

Sunlite FC DMX Controller

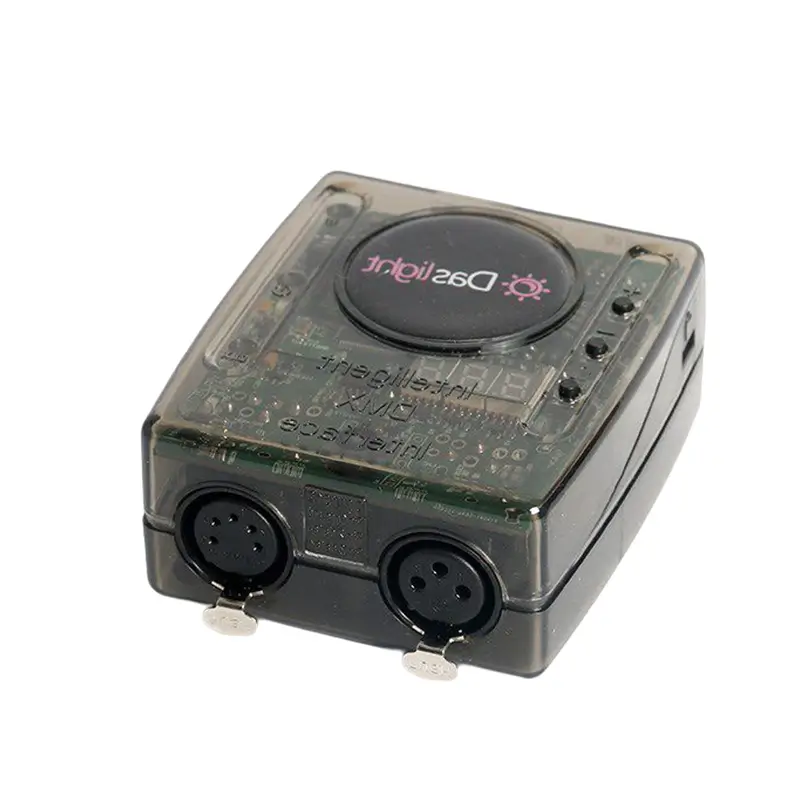

Virtual Controller Disco DJ DMX USB Lighting
Daslight DMX Controller

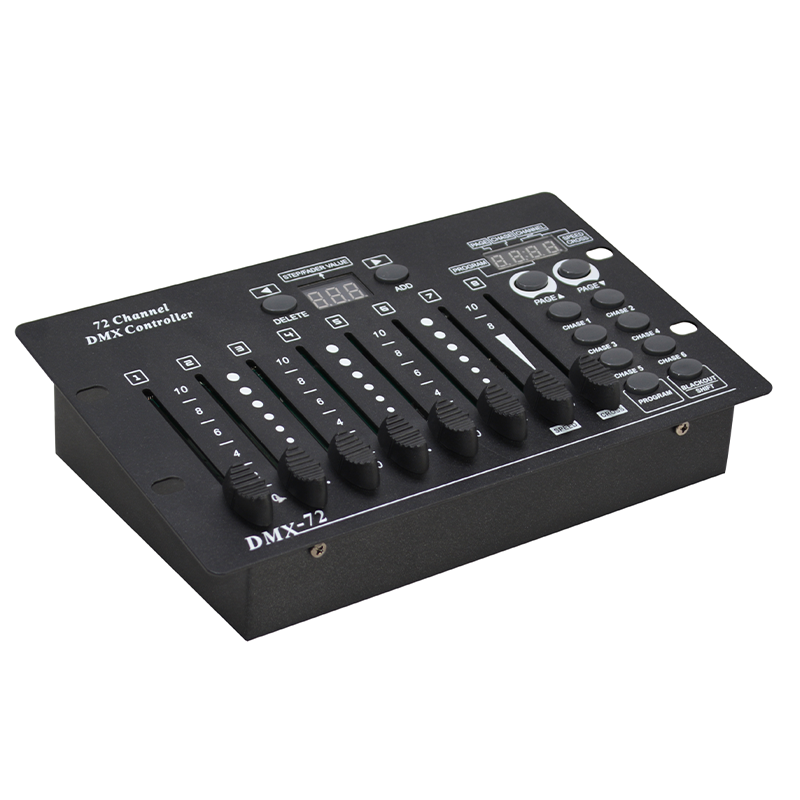

Mini 72 Channel Consola DMX 512

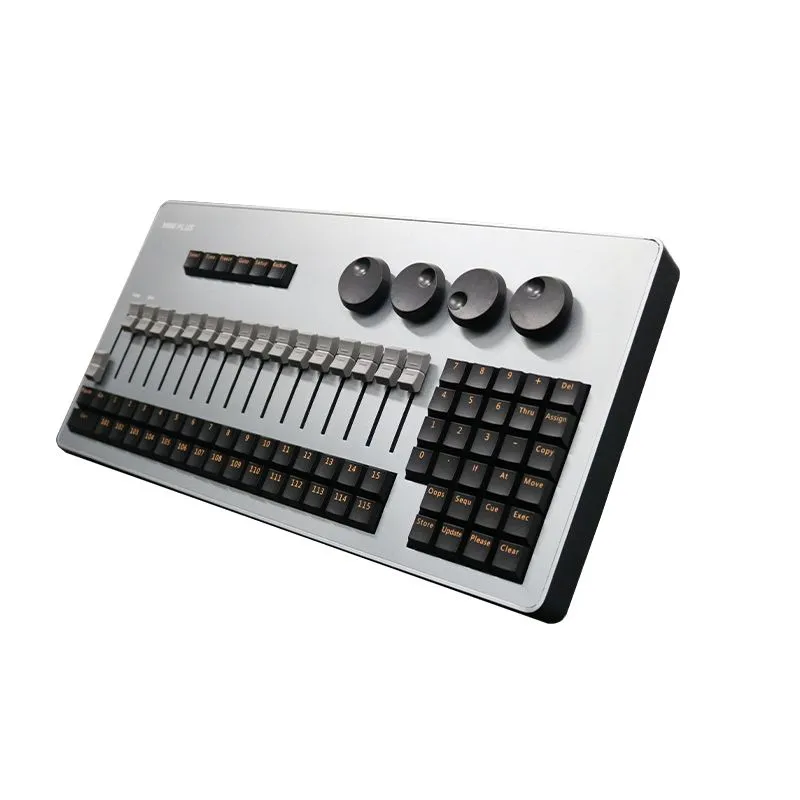

MA2 Mini Plus Pro Lighting Console
