IP66 580W LED Moving Head BSW 3-in-1 CMY Color Mixing Stage Light
(GL-HS580 BSW+CMY)

Ready to dominate outdoor stages? This IP66 LED Moving Head is engineered for unpredictable weather, delivering a high-output 580W BSW performance. Featuring a 400W LED module and advanced CMY+CTO linear mixing, it brings elite color precision to any arena or festival tour.

🔹 Key Highlights:
• 🌧️ IP66 Rated: Complete waterproof and dustproof reliability.
• 🎯 2°-35° Zoom: Seamlessly shifts from razor-sharp beams to wide washes.
• 🎭 Pro Optics: Dual gobo wheels & 4-facet prism for stunning visual impact.

 Contact us
Buy it now

AT A GLANCE

SPECIFICATIONS

DOWNLOADS

VIDEO

RELATED PRODUCTS

AT A GLANCE

  • IP66 All-Weather Waterproofing for Extreme Outdoor Stage Productions
    Engineered with a rugged, fully sealed enclosure, this outdoor LED moving head provides uncompromising dust and water protection. It ensures 100% reliable performance under unpredictable festival weather, heavy rain, and harsh environments, drastically reducing maintenance costs for event rental companies.
  • Masterful 3-in-1 BSW Versatility with 2°-35° Motorized Linear Zoom
    Consolidate your inventory with a true Beam, Spot, and Wash hybrid fixture. Driven by premium optics, the 2° to 35° motorized linear zoom allows lighting designers to transition seamlessly from a piercing, razor-sharp aerial beam to a flawless, wide-coverage stage wash.
  • Pro-Grade CMY Linear Color Mixing & Independent Variable CTO
    Unlock infinite color creativity with the advanced CMY linear color mixing system. Seamlessly blend hues or utilize the independent CTO color correction (2700K - 3200K) and a 13-color wheel (including CTB/UV) to achieve pristine, camera-ready color temperatures required for high-end broadcasts and live tours.
  • High-Efficiency 400W LED Module with Massive 580W Light Output
    Experience the perfect balance of raw power and energy efficiency. Powered by a high-brightness 400W white LED module, this fixture delivers intense lumen output that rivals traditional discharge lamps, while offering the eco-friendly benefits, lower heat dissipation, and extended lifespan that modern venues demand.
  • Infinite 360° Pan Rotation & Dual Gobo Wheels for Ultimate Visual Impact
    Break creative boundaries with continuous, unlimited 360° pan movement and ultra-smooth 270° tilt resolution. Equipped with 7 static gobos, 9 rotating gobos, and a bi-directional 4-facet prism, it projects intricate textures and mind-bending mid-air effects that captivate any audience.

Specification

  • Model：IP66 LED 580W BSW CMY Moving Head
  • Light Source：400W High-Brightness White LED Module
  • Power Consumption：650W Total Rated Power
  • Input Voltage：AC 100V - 240V, 50/60Hz
  • Protection Rating：IP66 (Outdoor Waterproof & Dustproof)
  • Color System：CMY Linear Color Mixing + CTO (2700K - 3200K)
  • Color Wheel：13 Colors + Open (Includes CTB/UV)
  • Gobo System：7 Static Gobos + 9 Rotating Gobos (15mm Disc)
  • Optics & Zoom：2°-35° Motorized Linear Zoom & Focus
  • Prism & Frost：4-Facet Prism (Bi-directional) + Independent Frost
  • Pan Movement:540° & 360° Continuous Unlimited Rotation
  • Tilt Movement:270° with 8-bit/16-bit Resolution
  • Control Mode:DMX512 (39CH), RDM, Master-Slave, Auto
  • Display:1.8-inch Color LCD (180° Reversible)
  • Cooling & Safety:Overheat Protection & Photoelectric Reset System
  • Net Weight:25.5kg / 56.2lb
  • Dimensions(LWH):520mm x 350mm x 860mm

DOWNLOADS

IP66 580W LED Moving Head BSW 3-in-1 CMY Color Mixing Stage Light (GL-HS580 BSW+CMY)

VIDEO

Frequently Asked Questions

Q1: Is this LED moving head fully waterproof for heavy rain and outdoor music festivals?

A1: Yes, it is. This fixture features a certified IP66 protection rating, meaning it is completely dustproof and fully sealed against powerful water jets from any direction. Engineered specifically for professional touring and outdoor stage productions, it delivers 100% reliable performance in harsh weather conditions without requiring additional, bulky rain covers.

Q2: Does this fixture function as a true Beam, Spot, and Wash (BSW) hybrid?

A2: Absolutely. Designed as an all-in-one BSW hybrid fixture, it features a wide 2° to 35° motorized linear zoom and focus system. It can transition seamlessly from a tight, razor-sharp aerial beam to a high-contrast textured spot, and expand into a smooth, wide-coverage stage wash. This versatility allows event rental companies to maximize their inventory efficiency.

Q3: What are the color-mixing and color-correction capabilities of this fixture?

A3: This moving head is equipped with a premium CMY linear color mixing system paired with an independent variable CTO (2700K - 3200K) for precise color temperature adjustment. Additionally, it features a dedicated color wheel with 13 vibrant colors plus open (including CTB and UV filters), allowing lighting designers to achieve flawless, camera-ready hues for live broadcasts and corporate events.

Q4: What is the difference between the 400W LED module and the 580W model classification?

A: Reliability is built-in with our Automatic Clear Powder function. To ensure longevity and prevent residue buildup, you can trigger the cleaning cycle directly via DMX or the remote control after each event. This feature, combined with the durable metal housing and advanced 7-motor configuration, minimizes maintenance and prevents the common clogging issues found in lower-end models.

Got more questions? DM us!💬

 Contact us

RELATED PRODUCTS

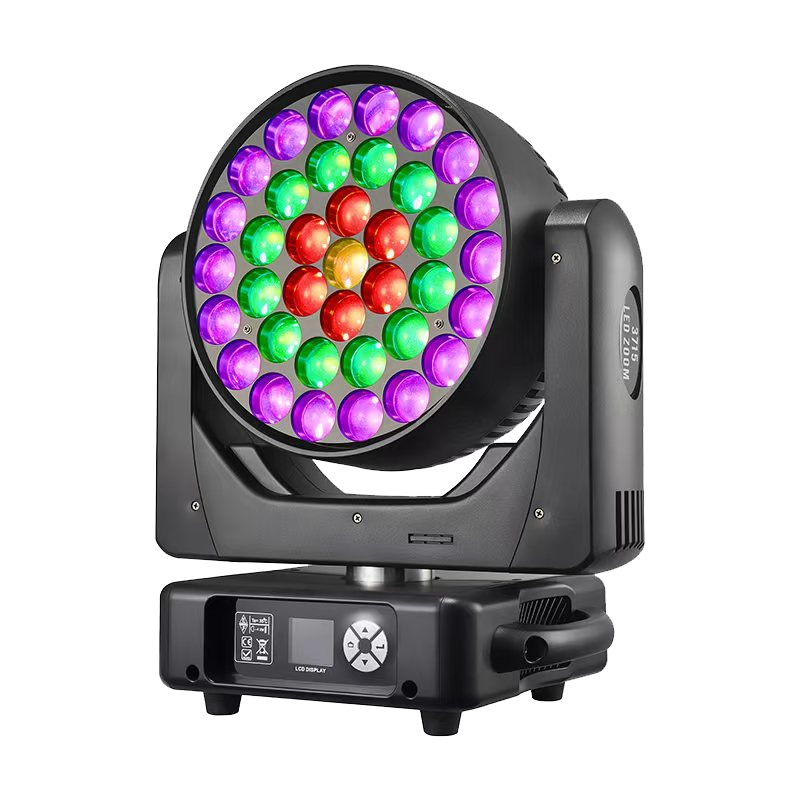

37*15W 4in1 zoom LED moving head(GL-3715B)
19*15W LED Bee Eye Moving Head（GL-NB19B）
19x15w led moving head GL-Z19 (3)
19x15W LED Moving Head
(GL-Z19)

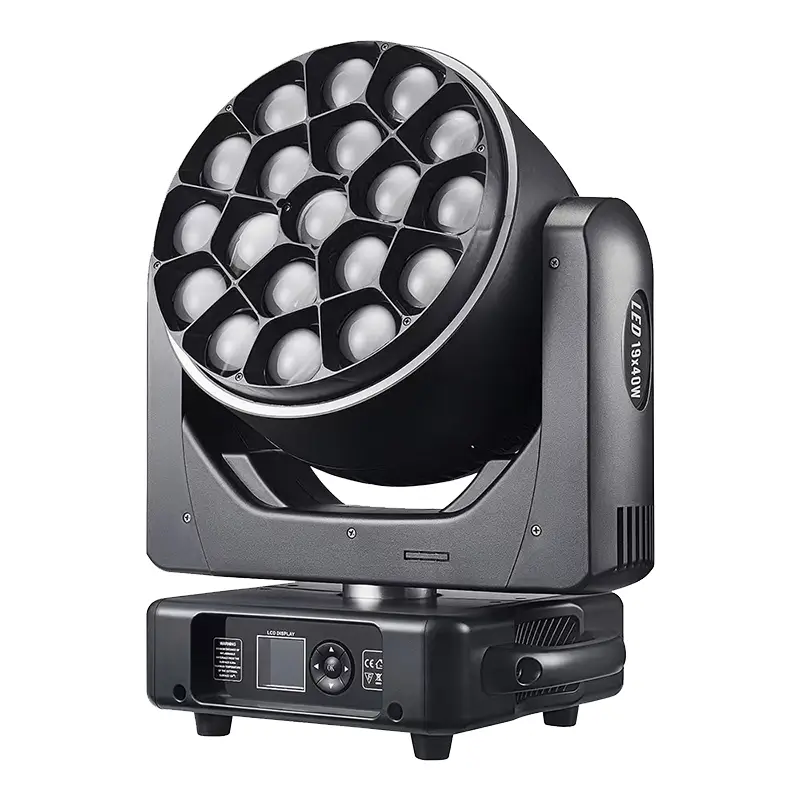

K15 Bee Eye 19x40W Zoom LED Moving Head
