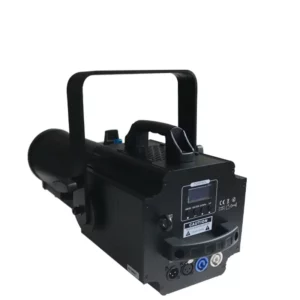

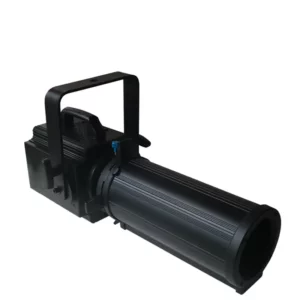

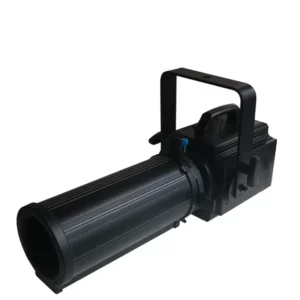

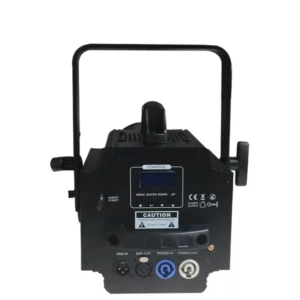

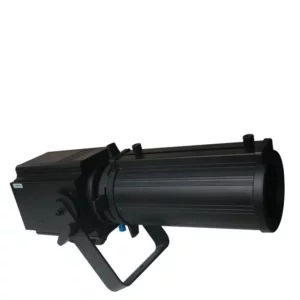

200W Electric Zoom Led Profile Spot(GL-200B)

Engineered for professional stages and theaters, the GL-200B delivers exceptional color accuracy and precise beam control in a robust, user-friendly package.

Key Features:

Exceptional Color Accuracy: High CRI >96 ensures true-to-life color reproduction for enhanced visual performances.
Full HSIC Control: Independently adjust Hue, Saturation, Intensity, and Color Temperature for complete creative flexibility.
Versatile Zoom Range: Adjustable beam angle from 19° to 42° to suit various staging requirements.
Multiple Control Options: Operate via DMX or standalone mode, with intuitive setup through the built-in LCD panel.
Professional Build: Features efficient cooling, multiple mounting options, and a durable design for reliable operation in demanding environments.

Ideal for theatrical productions, concerts, and events where precise lighting control and consistent quality are essential.

AT A GLANCE

Advanced PWM Technology: Features pulse-width modulation (PWM) with selectable frequencies up to 9600 Hz, ensuring smooth and flicker-free dimming suitable for professional applications, including video production.
High CRI (Color Rendering Index): Boasts a CRI of over 96, delivering exceptional color accuracy and vibrant, natural-looking light, perfect for enhancing the visual quality in theaters and stage performances.
HSIC Control: Offers precise Hue, Saturation, Intensity, and Color temperature (HSIC) control, allowing users to achieve exact color settings and transitions, providing unparalleled creative flexibility.
Versatile Linear Dimming: Equipped with linear dimming capabilities, enabling smooth and consistent light output from 0 to 100%, making it ideal for creating subtle lighting effects and seamless transitions.
Robust and Efficient Design: Built with a durable housing and efficient cooling system, the 200W Electric Zoom LED Profile Spot ensures reliable operation and longevity, making it a dependable choice for demanding professional environments.

Specification

Power Range：AC100V~240V, 50/60Hz
LED Type:COB 200W LED 5in1-RGBWA
Beam Angle:19°-42°
Dimming Range:0-100% linear
PWM Dimming Frequency:Adjustable from 1200Hz to 20000Hz
Protection class:Class I
Power output:P-Con (gray) mounting version
LED:1 x COB (chip-on-board) 200 W
DMX input:3-pin XLR (M) mounting version
LED:1 x COB (chip-on-board) 200 W
Control:RDM; DMX; stand-alone; Light Captain
Color rendering index (CRI) more than:96 Ra
Display type:LCD
Color rendering index (CRI) more than:96 Ra

Power Consumption for LEDs:200W
Color Rendering Index (CRI):> 96
Control Mode:RDM, DMX512, HSIC, Master/Slave, Stand-alone
Dimming Curves:4 selectable
Color Calibration System:CCS
Power connection:Mains input P-Con (blue) mounting version
Lamp type:LED lamp
Cooling:Cooling fan
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Beam angle (1/2 peak):19°-42°
Housing color:Black
Dimensions:Length: 59cm (≈ 23.23 inches) * Width: 27.2cm (≈ 10.71 inches) * Height: 22.2 cm (≈ 8.74 inches)
Weight:7.6kg (≈ 16.76 lbs)

DOWNLOADS

200W Electric Zoom Led Profile Spot（GL-200B) reference guide downloads

VIDEO

Frequently Asked Questions

Q: What is the advantage of PWM technology in this LED profile spot?

A: PWM (Pulse Width Modulation) technology ensures smooth and flicker-free dimming, which is essential for professional video and stage applications, providing consistent lighting quality even at lower brightness levels.

Q: How does the high CRI benefit my lighting setup?

A: The high CRI (Color Rendering Index) of over 95 ensures that colors appear true and vibrant, enhancing the visual appeal and accuracy of your lighting setup, which is crucial for theatrical productions and other color-critical applications.

Q: What does HSIC control mean and how does it work?

A: HSIC stands for Hue, Saturation, Intensity, and Color temperature. This control allows for precise adjustments of these parameters, enabling you to achieve the exact color settings and transitions you need for creative and dynamic lighting effects.

Q: Can the 200W Electric Zoom LED Profile Spot be used in different operating modes?

A: Yes, it supports both stand-alone and DMX modes, with options for master/slave functionality. This flexibility allows for easy integration into various lighting setups and synchronized operation with multiple units.

Q: How does the linear dimming feature improve my lighting effects?

A: The linear dimming feature provides smooth and consistent light output from 0 to 100%, allowing for subtle lighting effects and seamless transitions, which are essential for creating professional-grade lighting designs.
