How does a moving head light work?

A moving head light, like the mini led beam moving head, is a versatile and dynamic lighting fixture commonly used in stage settings, concerts, and clubs. It combines LED technology, mechanical elements, and control systems. The fixture uses a high-power LED for intense, energy-efficient lighting, and its color can be altered with a color wheel. It can rotate and tilt, controlled by motors and gears, for covering a vast area with dynamic lighting effects. Additional features include gobos, prisms, and variable dimming, making it versatile in creating various visual effects.

What is the difference between moving head spot and beam?

The difference between a moving head spot and a beam lies in the beam's angle and focus. A 'spot' offers a wider beam angle with focus features for clear projection of patterns and textures. A 'beam', like the mini led beam moving head, produces a tighter, more concentrated light beam, ideal for intense and sharp effects. The mini led beam moving head, with a narrow beam angle and a 6 facet rotating prism, is excellent for creating high-intensity, focused beams, adding complexity and dynamism to the lighting.

100w mini led beam moving head(GL-BS100W) _ (4)

100w mini led beam moving head(GL-BS100W) _ (3)

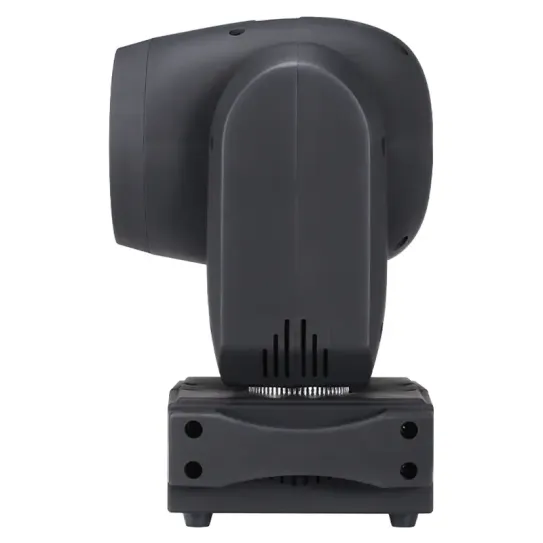

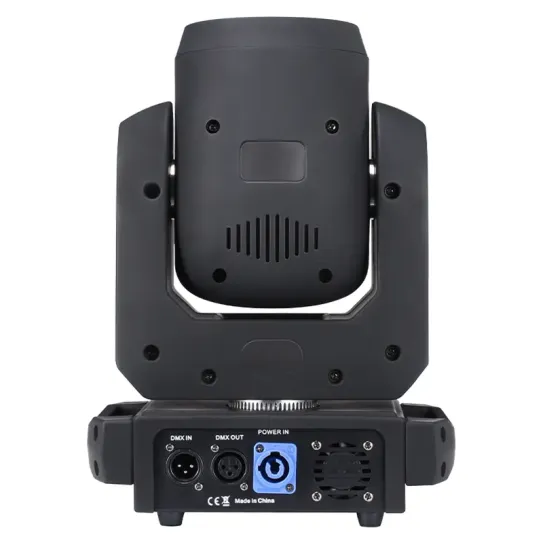

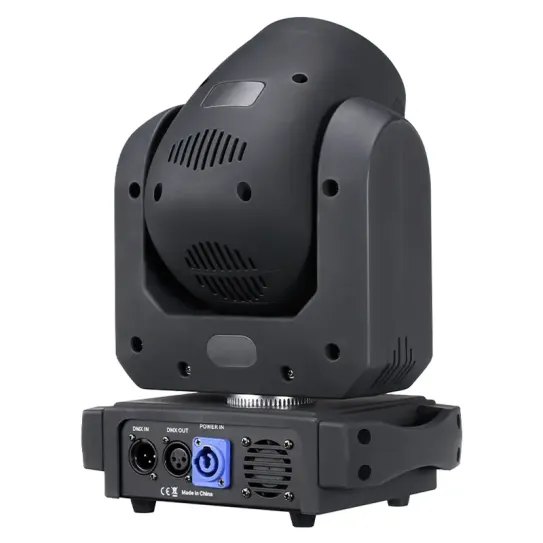

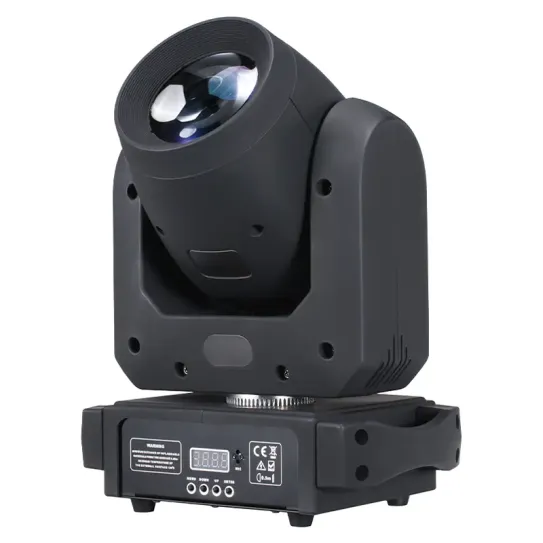

100w mini led beam moving head(GL-BS100W)

Beam angle: 3°
Power: 130W total
DMX channels: 12CH
Gobos: 7 fixed gobos + blank, gobo shake
Pan/Tilt: 540° / 190° with 16-bit precision
Display: LED control panel

What Makes It Work

Tight 3° beam – sharp aerial effects that cut through other stage lights
6-facet rotating prism – multiplies the beam for wider coverage
Compact and lightweight – under 9 lbs, fits in tight spaces and low ceilings
Motorized focus – keeps gobos crisp at any throw distance
Multiple control options – DMX for pros, sound-active for plug-and-play

AT A GLANCE

Versatile Lighting Effects: With its 7-color wheel plus white, and rainbow effect, the mini led beam moving head offers a spectrum of color options to create the perfect mood for any event.
Precision Movement: Experience fluid, precise control with 540° pan and 190° tilt movements. This mini led beam moving head ensures your lighting is always on point.
Long-Lasting Durability: Built to last, this mini led beam moving head boasts over 50,000 hours of working life, making it a reliable choice for consistent performance.
Dynamic Visuals: Equipped with a 6 facet rotating prism and 7 fixed gobos, this mini led beam moving head creates captivating patterns and effects that elevate any performance.

Specification

Voltage: AC100-240V, 50/60Hz
LED Source: 1pc High power 100W White LED
Prism Angle: 14 degrees
Control Modes: DMX 512, Master/Slave, Auto, Sound active
Color Wheel: 7 colors + white, rainbow effect
Dimmer: 0-100% linear adjustment
Prism: 6 facet rotate prism
Display: LED display

Power: 130W
Beam Angle: 3 degrees
DMX Channel: 12CH
Movement: Pan: 540° / Tilt: 190°, 16bit Fine Pan/Tilt control
Gobo: 7 fixed gobo + blank, Gobo shake
Strobe: 20 times/second
IP Rate: IP20
Weight: 8.95 lbs (N.W: 4.06 kgs)
Size: 9.25 x 5.91 x 12.6 inches (235 x 150 x 320 mm)

DOWNLOADS

100w mini led beam moving head(GL-BS100W)reference guide downloads

VIDEO

Frequently Asked Questions

What are the different types of moving heads?

Moving head lights come in various types, each suited to different applications. The three primary types are Beam, Spot, and Wash.

Beam: As exemplified by the mini led beam moving head, beam fixtures produce a tight, concentrated beam of light. They are powerful and intense, designed to work well in combination with atmospheric effects like fog or haze.
Spot: Spot moving heads provide more features like zoom, focus, and iris. They are versatile in projecting gobos and patterns, making them ideal for detailed visual displays and theatrical environments.
Wash: Wash fixtures offer a broader, softer light output, used primarily for bathing a stage or a space in color. Their beam is less defined compared to beam and spot types, making them excellent for creating ambient lighting.

Each type serves a unique role in stage lighting, and understanding their differences helps in selecting the right fixture for the desired effect. The mini led beam moving head stands out in the beam category for its compact size, energy efficiency, and powerful output, making it an excellent choice for creating high-impact visual effects in various settings.
