Sunny 512 DMX 512 CONTROLLER users manual

Summary

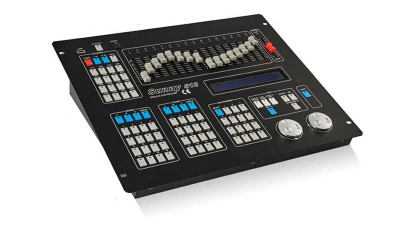

AVALITES Sunny 512 scanner console is specially designed to control the various scanners. To adopt double CPU

work in coordination, high-speed MCU proceeds the precise control to achieve 16Bit X/Y movement. Up to 32

scanners may be connected with a maximum of 16 channels each. Multi-scenes and multi-chase programs can

be operated simultaneously, and 32 scanners can be selected simultaneously. It is equipped with two groups of

DMX 512 signals and is adapted for a wide range of power voltage. The edit mode and running mode of the

console are convenient and flexible. So it is easy to edit and handle. Sunny 512 console is most suitable for small

and medium parties, DJs, or events.

Sunny 512 stage light controlle1

Igracelite Sunny 512 User’s Manual

Features

DMX512/1990 standard, 512 DMX control channels.

•2 output with optical isolated,withstand 2000Vrms. Independent slot structure, which is easy to change.

•Up to 32 scanners may be connected with a maximum of 16 channels each.

•A large backlight LCD to display operation parameters.

•16 sliders for channel, 1 slider for speed control.

•1600 chase steps, 48 chases, up to 100 steps each. Each step contains its speed and cross time, can be set respectively. Trigger mode selectable: Music synchronously and manual speed.

•Cooperating with the chase speed slider, the time of the program step can be changed from 0.03s to 180s.

•48 scanner scenes can be used directly.

•4 chases, 48 scenes operated at the same time. At most 32 scanners can be selected simultaneously.

•The X/Y channels of different scanners can be controlled by modulation wheel.

•16Bit control for absolutely precise movement.

•15 environment programs to output the combination, which are composed of different scenes, chases and manual output quickly.

•The music trigger source can be selected between audio line input or inside microphone.

•Easy to edit and handle.

•The Data auto-saves.

•High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country.

Sunny 512 stage light controlle1

Explanation for Reading

For reading convenience, some signs and usual displays are specially defined as following:

xxx  expresses a key,like  HOLD  .

When the parameter is inside [   ] on display,like [012],the parameter is the current choice.

Press   xx  +    yy    ,expresses press xx   key first and hold,then press  yy  key.

X/Y control is named Pan/Tilt also. In the Manual, it is X/y, the control of X axis/Y axis.

When the key indicating light is on, it indicates that the key has been pressed, chosen or the function is effective.

When the indicating light is blink:

BLACKOUT, EDIT function key--emphasizes the function.

Scanner number key-- expresses that the computer is in a hold state.

Scene section key and chase section key—indicate that when multi scenes and multi chases are

running, there are scene or chase running on the section.

Sunny 512 stage light controlle1

Cautions

Danger: there is high voltage inside the equipment, avoid getting an electric shock.

Caution: please don’t open the equipment. There is no part that can be repaired by the user.

Using the equipment, the power supply must be connected to the earth line to ensure the safety.

When console and scanner are working, don’t plug or pull out DMX512 data cable with the power on.

This will destroy the port electric components of the console.

Don’t splash any liquid to the scanner console. This will shatter the inside components of the console and make functions failure.

Scanner console is precision electric equipment. Please pay attention to moistureproof protection and dustproof protection. And please clean the control panel in schedule with non-chemical cleanser.

Sunny 512 stage light controlle1

Contents

Contents in the package:

Sunny 512 scanner console   1

User’s Manual  1

QC card  1

Power supply line 1

Connect to scanner

Sunny 512 console has 2 optical isolated DMX512 signal independent drive device. So there are 2 DMX512 XLR-D3F. The connection of the output socket and the data cable as following:

In the end of DMX512 data cable, a 120Ω matching resister must be connected to the +, - end of the cable to improve the signal transmission quality.

Sunny 512 stage light controlle1

The set of the scanner address

Sunny512 console distributes the DMX512 address of various scanners with the fixed space of 16 channels. The reference is as following:

Since the first address set is different for various scanner manufacturer. There are two ways to express 512 channels: the first is 000~511, the second is 001~512. The above table is suitable for the product of the second way. For the product of the first way, we should subtract one from the above address, and the first bit of the binary Avalites switch should be changed from 1 to 0.

Introduction of the panel

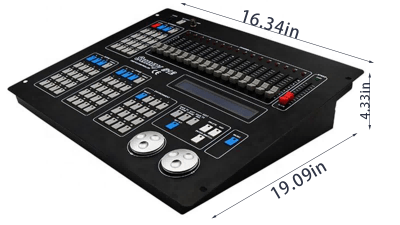

The panel is as following:

SCANNER

CLEAR  Clear key

Clear all states chosen by scanner keys and quit manual operation.

1-16  Section key

When the indicating light is on, 1-16 scanner can be chosen from number keyboard.

17-32  Section key

When the indicating light is on, 17-32 scanner can be chosen from number keyboard.

HOLD  Scanner hold key

When the indicating light is on, it is a scanner hold state. Multi scanner can be manual operated.

 1  ~  16  Scanner number key:

Press these keys, the corresponding indicating lights are on and indicate the scanners are in manual operating states. Press again, there are two states: HOLD light is off:the scanner can’t be operated manually. HOLD  light is on:the scanner is in a hold state.

CHANNELS

In manual state, 16 channel slides can set the channel value of the chosen scanner. CHANNELS must cooperate with SCANNER.

SCENE

Sunny512 console can save 48 scenes in 3 saving section with 16 scenes each.

 A  /  B  /  C  Scene section key

When the key is pressed, the corresponding indicating light is on and

indicates that the section is current section. If current section is A, press

scene number key and A01-A16 scene can be operated. If the indicating

light of not current section is on, it indicates that there are scenes are

running in that section.

SINGLE  Single scene key

Set for each section respectively. The key is used to switch the following states:

●   When SINGLE light is on, the current section only can run a scenes.

●   When SINGLE light is off, the current section can run multi scenes at the same time.

 1  ~  16  Scene number key

Cooperating with scene section key, 16 scene keys can operate A01-A16, B01-B16, C01-C16, 48 scenes.

Using  SINGLEkey, single scene or multi scenes can be operated.

CHASE

Sunny512 console can save 48 chases in 3 saving section with 16 chases each.

A   /  B   /  C    Key

When the key is pressed, the corresponding indicating light is on and indicates that the section is the current section. If current section is A, press scene number key and A01-A16 chase can be operated. If the indicating light of not current section is on, it indicates that there are chases are running in that section.

SINGLE  Single chase key

The key is used to switch the following states:

● When SINGLE light is on, the current section only can run a chase.

● When SINGLE light is off, the current section can run up to 4 chases at the same time.

The key is effective for 3 chase sections.

 1  ~  16  Chase number key

Cooperating with chase section key, 16 chase keys can operate A01-A16, B01-B16, C01-C16, 48 chases.

Using  SINGLEkey, single chase or multi chases can be operated.

ENVIRONMENT

SELECTEnvironment choice key

Press the key first, then press the environment number key, the environment can  be run or stopped.

1~15Environment number key

At anytime, only one environment can be chosen.

Edit

SAVE TO SCENEScene save key

Save the current channel values of the scanners to a scene with some number. Set the channel values of various scanners with manual operation, or add some scenes, then press the key first, and press the scene section key and scene number key. The current channel values of the scanners are saved to the number of that section.

  EDIT CHASE   Chase edit key

Press the key, the indicating light blink. It is in the chase edit state.

Press the key again, the indicating light is off. The edit result is saved and the edit state is quitted.

SAVE TO ENV.    Environment save key

Press the key, then press environment number key, the environment is saved to the number environment.

SET X/Y    X/Y set key

Write the X/Y control channel number of various scanners to the console, then use modulation wheel to control the position of the various scanners.

 DELETE  Delete key

When the chase is edited, press the key to delete the current chase step.

 ADD  Add key

When the chase is edited, press the key to add a new chase step after the current one. If the current chase step is the last one of the chase, the parameters of the current chase step are copied automatically to the new added chase step.

ENTER / SWITCH   Enter/Switch key

In scene edit and environment edit, it is ENTER key. In chase edit, it is SWITCH key.

A、▲▼Modulation wheel

In edit chase, is used to change edit item, ▲▼is used to set the value of the item.

In manual operation mode,  is used to set the X position of a scanner,▲▼ is used to set the Y position.

Other

 MUSIC  Music trigger key

When the indicating light is on, chase follows the music rhythm.

When the indicating light is off, chase follows the set time multiplying the speed percentage set by SPEED slider.

BLACKOUT  Blackout key

When the indicating light is blink, console run an inside black scene automatically.

When the indicating light is off, console is in the normal state.

SPEED chase speed slider

Push the slider to FAST, chase runs faster. Push the slider to SLOW, chase runs slower.

chase step Time x SPEED percentage = the actual running time of the current chase step

The changeable range is 300%-30%. When SPEED is 100%, chase step runs on the set time and the set cross time. When the higher speed is needed, SPEED should be adjusted to smaller than 100%. The fast is 1/3 of the standard speed when SPEED is 30%. When the slower speed is needed, SPEED should be adjusted to larger than 100%. The slowest is one third of the standard speed when the SPEED is 300%.

AMP:

12V work lamp socket. The power of the lamp is smaller than 6W.

POWER: Power switch of the whole equipment.

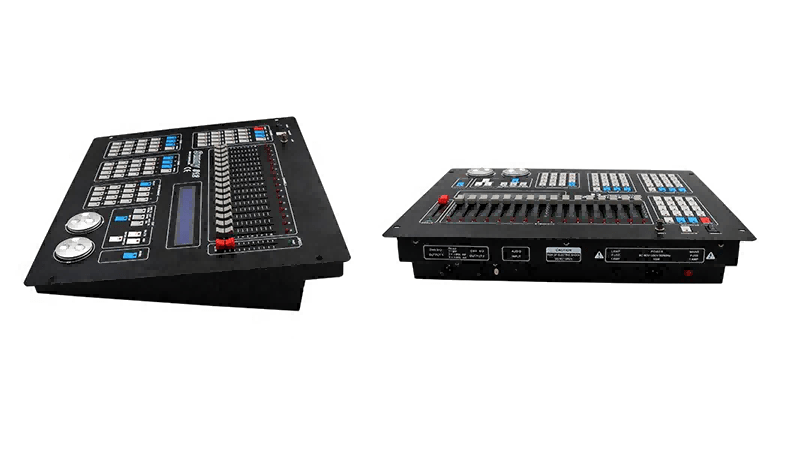

Introduction to the rear

Explanation:

There are 2 optical isolated DMX512 output sockets, which have the same signals.

Audio signal input socket is a 1/4” mono socket with –10 ~ +10dB input level. When the plug is connected, music trigger signal comes from audio input signal. When the plug is pull out, music trigger signal comes from the environment sound picked by the inside microphone. Please use the standard fuse. The standard is printed on the backboard. The power supply must be connected to the earth line to ensure the safety.

Set X/Y channels for scanners

Sunny 512 scanner console can control the scanners with 8Bit or 16Bit X/Y resolution. Before Sunny scanner console uses modulation wheel to control the X/Y position of any DMX512 standard scanner, the address of every scanner must be set and the set control channel number of each scanner must be written to the console one by one.

X axis of 16Bit resolution scanner is controlled by two data channels. Y axis is controlled by two data channels, too. So X/Y is controlled by 4 data channels: X axis coarse channel (high 8Bit), X axis fine channel (low 8Bit), y axis coarse channel (high 8Bit), and Y axis fine channel (low 8Bit). For 8Bit resolution scanner, X/Y is controlled by 2 data channels: X axis coarse channel and y axis coarse channel, The explanations of the display can be seen in append table 1.

Setting operation of X/Y:

From the User’s Manual of the scanner, whether the scanner is 8Bit X/Y or 16Bit X/Y and the attribute of the corresponding channel can be known.

1.  Press   SET X/Y    key, the indicating light is on. It is in setting scanner’s X/Y state.

2.  Use scanner keyboard to choose scanner.

3.  Use modulation wheel  to choose edit item.

4.  Use modulation wheel ▲▼ to choose the value of the corresponding channel, range: 1-16, no.

5.  Repeat step 2-4 to set X/Y of the other scanners.

6.  Press   SET X/Y    key to quit the edit state.

For example:

The setting of 16Bit scanner:

The setting of 8Bit scanner:

For 16Bit scanner, if the values of X-H,Y-H are set and the values of X-L,Y-L are set to [no], the 16Bit scanner will be running in 8Bit X/Y resolution. This will lost some characteristics of 16Bit scanner, such as high precision of X/Y orientation and the smoothness of the moving trace.

Check the X/Y setting of the scanners:

Use following ways to check:

1.  Press   SET X/Y    key, the indicating light is on. It is in setting scanner’s X/Y state.

2.  Use scanner keyboard to choose scanner. Check the X/Y setting.

3.  Repeat step 2 to check X/Y setting of all scanners.

4.  Press   SET X/Y    key to quit the edit state.

The manual mode

The scanner’s channel values, such as intensity, gobo, X/Y, pattern, and color, can be set manually.

Usually, the control contents of each channel of various scanners are different. With the particular comprehension

to the control contents of each channel of various scanners, the scanner connected to the control net can be

controlled with facility. The control contents of each channel of ordinary scanners can be seen in the append tables.

In the edit state or running state, it can be operated manually.

Manual operation is the highest priority operation. The chosen scanner will be divorced from the running scene,

chase and environment automatically. Manual operation is the basic operation. Manual operation, especially multi

scanner manual operation, can be saved as scene, which is the basic operation of edit chase step.

Cooperated with  1-16  and  17-32  keys,   1  ~   16   keys can make choice to 32 scanners.

When the number indicating light is on, that scanner is in the chosen state. It can be set by CHANNELS slider and modulation wheel.

CHANNELS 1-16 channel slider and modulation wheel

The values of each channel of scanners can be set by 1-16 channel sliders. X channel of a scanner is set by

modulation wheel . Y channel is set by modulation wheel ▲▼. The set range of a slider is 0-255.

Whether 8bit or 16Bit X/Y scanner, the set range of a modulation wheel is 0-999. It represents the moving

range of X axis or Y axis. For 16Bit scanner, modulation wheel  controls X-H and X-L at the same time.

Modulation wheel▲▼ controls Y-H and Y-L at the same time. For 8Bit scanner, modulation wheel AB

controls X-H only. Modulation wheel ▲▼ controls Y-H only.

When the X/Y channel is controlled by modulation wheel, the corresponding X/Y slider is locked. The X/Y

position of a scanner must be set by modulation wheel.

In the manual mode of a scanner, slider and modulation wheel can change the value of the corresponding

channel. The screen displays the value of these channels.

When the scanner key is pressed, the X/Y current appears at the right part of the screen. Turn the modulation

wheel, the values of X/Y can be changed.

Move 1-8 channel slider, the screen displays:

Move 9-16 channel slider, the screen displays:

Note: the values of channel and X/Y depend on the slider position and the X/Y modulation wheel value. In a

moment of slider moving, the value display will disappear until the next moving.

Manual operation of single scanner

1.  Press HOLD   key to make the indicating light off.

2.  Choose scanner: press scanner number key (cooperate with 1-16  and  17-32  keys ), the indicating light is on.

3. Use CHANNELS sliders to set the channel values, use modulation wheel  and ▲▼ to adjust X/Y position.

Manual operation of the same kind multi scanners

1.  Press HOLD   key to make the indicating light off.

2. Choose scanner: according to the 2 step of Manual operation of single scanner, multi scanners can be

chosen. (Note: only the scanners with the same X/Y channel can be chosen at the same time.)

3. Use CHANNELS sliders to set the channel values. Use modulation wheel AB to adjust X position. Use modulation wheel=> to adjust Y position. And the adjusted channel values are set to all chosen scanners at the same time.

Manual operation of the different kind of multi scanners

For the manual operation of the different kind of scanners, set one kind of the scanners and make these scanners in the hold state first. Then choose another kind of the scanners to set. This is also the usual operation method to set 1 scene. The hold state of the scanner can be change to the choosing state by pressing its key to make the indicating light on.

1.  Press HOLD   key to make the indicating light on.

2. Choose scanner: use the way of choosing single scanner or multi scanners to choose scanners. (Note: only the scanners with the same X/Y channel can be chosen at the same time.)

3. Use CHANNELS sliders to set the channel values. Use modulation wheel  and ▲▼ to adjust X/Y position.

4. Press the corresponding number key of the chosen scanner to make the indicating light blink. The set values of these scanners are in the hold state. And the adjusted channel values are set to all chosen scanners at the same time.

5.  Repeat 2-4 steps to set other scanners manually.

Cancel the manual operation of scanner

Press  CLEAR   key, the manual operation is canceled and the set values of the scanners can not be saved.

Scene Edit

The appropriate values of channels (such as color, intensity, pattern, X/Y, and so on) of various scanners can make a needed light art pattern in the space-scene. Each scene is an aggregate of the set channels of the various scanners. Sunny512 console can save 48 scanner scenes. The saved scenes can be run at any moment.

Important tips

For the simultaneous running of the multi scenes and multi chases, the different values of the same channel which are produced at the same time are treated by HTP Technique. So following setting is proposed:

1. For all scenes which just include pattern effect controls, such as color, pattern, and so on, the values of X/Y, intensity, and so on are set to 0.

2.  If chase just include the controls like X/Y, intensity, and so on, the values of the other channels are set to 0.

Process of scene edit:

1. According to the ways of manual operation, choose scanner and set the various channel values and X/Y position.

2. Press  SAVE TO SCENE  key, then press scene district key and scene number key. In the end, press   ENTER / SWITCH     key to confirm the save.

Example:

If you want to save the current scanner running states to A13 scene, press     SAVE TO SCENE  key, then press  A   key in SCENE, and press 13   key, in the end, press  ENTER / SWITCH   key.

Tips:

Scene edit can be done at any time. After the various setting to multi scanners, if the art pattern is what you want, just perform the above step 2. The running states of all scanners can be saved to a scene number. For instance, using simultaneously running scene B02 and C07 as basic, choose 3 scanners manually and set the light beam to some position, then save the combination to scene C01. So, run C01 can recur this light art pattern combination.

Copy of Scene

Example: Copy scene A01 to scene C10.

1.  Press A    key in SCENE, then press  1   key. Then the console run A01 scene.

2.  Press SAVE TO SCENE   key, press C   key in SCENE, then press  10   key and

 ENTER / SWITCH   key.

Chase Edit

Sunny512 console can save 48 chases.

A chase is a buildup of some chase steps. The concept of chase step is very similar to the scene.

A chase step is made up of the aggregation of each channel value of various scanners, the step time and the graduate change parameter Cross.

The total capability of the chase step is 1600. Each chase can have up to 100 step. In each step of a chase, the step time and the gradual change parameter Cross can be set independently. The standard operating speed of a chase is decided by the step time and the gradual change parameter Cross of a step. The speed can be adjusted from 1/3 to 3 times as the standard speed by SPEED slider.

Step time value

The value defines the interval time between the current to the next step. The unit is 0.1s. The changeable range of Time is 1-600. It means that the minimum time of a step is 0.1s and the maximum is 60s.

Cross value

The value defines the time ratio of the gradual change treatment between two chase steps. The range of the value is 0-100%. For instance, in the current step, Time=10, Cross=60% express that the current step will use 1 second and use 40% of this 1 second as stay time, 60% as gradual change treatment time for moving to the next step.

Process of chase edit


1.Press  EDIT CHASE  key.

2.  Choose the chase number which will be

edited. For instance, if want to edit chase

C15, press   C  key in CHASE, then

          PROGRAM CHASE...

Please select a chase:

       PROGRAM CHASE...

CHASE:C15      Step is empty


press   15   key. if the chase is empty, the screen will display:

3. Press ADD   key to add a step.

4. Use modulation wheel  to change the items, such as STEP, TIME and CROSS. Use modulation

wheel ▲▼ to set the value of the current item.

5. Set the channel values of various scanners in the current step manually. Use  ENTER / SWITCH   key to change the setting state of chase step, the various channel values of manual operating scanners, and the setting state of X/Y.

6. Repeat step 3-5 to edit next chase step.

7. Press  EDIT CHASE   key to end edit.

Tips:

When    ADD  key is pressed to add a chase step, the values, such as the channel values of all scanners, the values of TIME and CROSS are copied to the new added chase step automatically. So just change some items to make a new chase step. If the current chase is empty, all channel values are set to 0. In the edit state, use   ENTER / SWITCH   key to switch between the chase setting state and manual setting state, which set the various channel values and X/Y values of scanner. In different state, the control object of the modulation wheel is different. In chase setting state, use modulation wheel ▲▼ to change the current step. This can check the space pattern effect of every chase step and can change the channel values of some scanners in the current chase step immediately. Press  DELETE    key to cancel the current chase step.

Environment Edit

The current manual operating state, scene operating state and chase operating state are the operating environment. If the current environment is saved, it is very convenient to reuse this environment.

A complex environment, like an environment + some chases + some scenes + some manual operation, can be saved as an environment. It can be saved to cover the original environment number or saved as another environment number.

Sunny512 console can save 15 environment. The environment can be chosen by keyboard directly. To avoid mistake made by touching keyboard by accident, it is needed to press    SELECT    key first and then press the environment number key to choose the environment.

Edit process:

1. Base on the need to choose the following operating mode:

a)Scanner manual operation.

b)Scene operation (multi scenes running simultaneously)

c)Chase operation (up to 4 chase running simultaneously)

2.  After pressing SAVE TO ENV.    key:

a)If no environment program in current environment, the screen displays as left figure.

Save the Current Environment to: Ok->

b)If the current includes the environment program, the number of the environment is displayed.

If  ENTER / SWITCH  key is pressed, the current environment will cover the contents of the

original environment. If it is needed to save to another number, then…

3. Press  SELECT  key.

4. Press  1  ~  15  key.

5.  Press ENTER / SWITCH    key to conform.

Tips:

 To save the environment, it is not needed to press SELECT    key first.

To run environment, it is needed to press  SELECT    key first and then press number key.

Running

Running scene

Example 1:

Single running scene A01.

1.  Close running scene B and C one by one.

2.  Press   A    key to choose A as the current district.

3.  Press   SINGLE   key to make SINGLE indicating light on. A district is in the single scene running mode.

4.  Press   1   key to run scene A01.

Example 2:

Run A02, A10, B15, C07 scenes at the same time.

1.  Press   A    key to choose A as the current district.

2.  Press   SINGLE   key to make SINGLE indicating light off. It is in the multi scene running mode.

3.  Press   2   key to run scene A02.

4.  Press   10   key to run scene A10.

5.  Press  B  key,  15  key to run scene B15.

6.  Press  C  key,  7  key to run scene C07.

Now, the above scenes are running simultaneously.

Tips

In the step 3 of example 2, if press   SINGLE    key to make SINGLE indicating light on, perform step 4

to run scene A10 and scene A02 will close automatically.

Running chase

Running chase, the screen will display:

CHASE  TRIGGER STEP  SPEED%

A08     AUTO    1    100


Example 3:

Running chase A08.

Chase number

Trigger mode

Current

chase step

Speed ratio


1.Press  SINGLE  key of CHASE to make SINGLE indicating light on. it is in the single chase

running mode.

2.  Press   A    key to choose A as the current district.

3.  Press   8   key to run chase A08.

Example 4:

Run A04, A13, B07, C10 chases at the same time.

1.Press    SINGLE  key of CHASE to make SINGLE indicating light off. It is in the multi chase

running mode.

2.  Press   A    key to choose A as the current district.

3.  Press   4   key to run chase A04.

4.  Press   13   key to run chase A13.

5.  Press   B   key to choose B as the current district.

6.  Press   7   key to run chase B07.

7.  Press   C   key to choose C as the current district.

8.  Press   10   key to run chase C10.

Now, the above 4 chases are running simultaneously.

Tips

If the chosen chase is empty (without chase step), the screen will display:

Check the various operating parameters of multi chases running simultaneously

When multi chases are running, the last parameters are displayed in the screen. In example4, the parameters of last chase C10 are displayed in the screen.

If the parameters of some chases are want to be change, the chase must be set as current chase and the chase is display in the screen. For instance, in example 4,here the parameters of last chase c10 are displayed in the screen. If the parameters of B07 are wanted to be seen, just press   B   +  7   .

(press  B  key and hold, then press   7  key)

This method does not affect the current chase running.

Adjust chase speed

The operating speed of the current chase can be change by moving SPEED slider.

chase step time value x speed ratio = real running time of the current chase step

Using the method of checking operating parameters of multi chases running simultaneously, make a chase to be current chase one by one. Then set its chase speed.

The music trigger of a chase

Press  MUSIC   key to make MUSIC indicating light on. It indicates that the current chase is in the music in-phase trigger state. In this state, the chase step time and the gradual change ratio Cross don’t work.

Run Environment

Press  SELECT   key, then press  1  -  15  number key to make the corresponding indicating light on.

The chase, scene, and manual operating included in this environment will reappear. Every corresponding

indicating lights are on.

Example 5

Run Environment 1.

1.Press  SELECT  key.

2.  Press  1  number key.

Press  SELECT  key again, and press the number key which light is on. The corresponding

environment is closed. Then the original state will run continually.

Addenda

Table 1:

Explanations to display contents

Display contents

X-H

X-L

Y-H

Y-L

No

CH

*

->

[    ]

PROGRAN CHASE…

CHASE: xxx           Step is empty!

MEMORY IS OVERFLOW!!

Explanations

X axis coarse channel (high 8Bit channel)

X axis fine channel (low 8Bit channel)

Y axis coarse channel (high 8Bit channel)

Y axis fine channel (low 8Bit channel)

For 8Bit scanner, only X/Y coarse channel can be

used. So the X/Y fine channel must be set to [no].

Abbreviation of CHANNEL

The chase step with * is the last step of the current chase.

Use   ENTER / SWITCH   key can switch the display contents.

The parameter in the [    ] is the current adjustable item.

Its value can be change by modulation wheel.

Chase edit state

The chase with  this number  is empty!  (the chase number is replaced by xxx )

There is no space in memory.

GET A FREE QUOTE

We are not only to sell but also to advise you. do not hesitate to contact us.Phone/whatsapp/wechat:+86-13710086169

>
