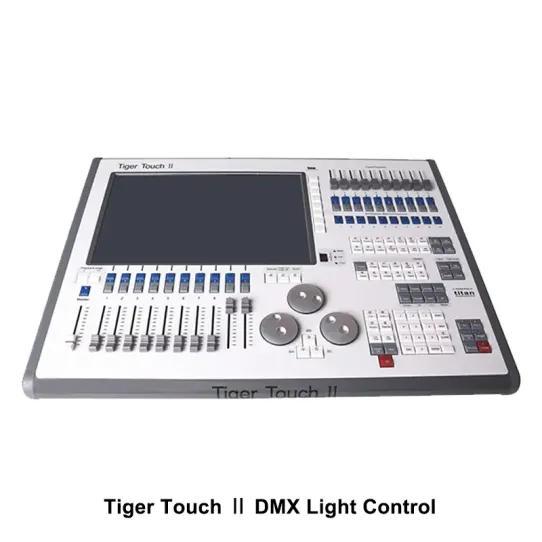

Tiger Touch Ⅱ DMX Light Control

Product Introduction:

Intuitive User Interface 🎛️
Designed with user-friendliness in mind, the Tiger Touch Ⅱ features an intuitive touchscreen interface. Navigating through menus and adjusting settings is a breeze, even for those new to lighting control. The large, high-resolution display provides clear visibility of your lighting cues and parameters, ensuring accurate and efficient programming. 🖥️
Powerful Feature Set 🌟
This DMX light control console is packed with a wide range of features to enhance your creative possibilities. From advanced cueing and programming options to customizable effects and palettes, the Tiger Touch Ⅱ gives you the tools to create stunning lighting designs. With support for multiple fixture types and protocols, it can integrate seamlessly with your existing lighting setup. 💥
Reliability and Durability ⚙️
Built to last, the Tiger Touch Ⅱ is constructed with high-quality materials and components. It can withstand the rigors of professional use, ensuring reliable performance even in demanding environments.

Technical specifications

  • Titan 11.0 version 11.1 operating system
  • i5 (i7) CPU processor, 64GB solid-state drive, 4GB memory;
  • Support Chinese menu display, built-in multi-language, and built-in UPS power failure protection; Built-in 15.6-inch
  • high-resolution widescreen touchscreen;
  • Ten macro function buttons, allowing you to operate the console faster;
  • 20 playback faders support more than 1000 program playback;
  • Powerful property control window, CMY\RGB color picker system;
  • The console itself has 12 ports, 6144 channels of output, Support graffiti screen identification function;
  • A fast and easy-to-use graph generator and the categorized built-in graphs are easier to use;
  • Support CIPT protocol; you can directly see the image thumbnails of the media clips in the media server on the console;
  • Support Wi-Fi access, wireless control lights, mobile devices (iPhone, iPad Touch), remote control lights;
  • With thousands of built-in light libraries and built-in light library editing software, you can edit lightweight libraries on the console at any time;
  • Built-in Visualiser line lighting visualization software, want to pre-program? No problem!Support MIDI time code sound and light synchronization function; you can also play music in the console to send time code to control the playback of lighting programs. Console interface:AC90-270 power input interface, with power switch;
  • Standard DMX-512 interface four total 2048 channels;
  • 2 USB2.0 interfaces;
  • MIDI input and output interface;
  • One 25-pin serial port, which can be connected to a printer, etc.;
  • 1 Ethernet network interface;
  • One gooseneck light interface;
  • One PS2 keyboard and one mouse interface;
  • One standard color VGA interface;
  • One reset button;
  • One each for audio input, output, and microphone interface;
  • 1 FireWire interface;
  • One optical fiber interface;
  • One spare USB port.
  • More than 3000 lighthouse files over a hundred built-in graphics removable expansion memory stick.
  • More than 3000 built-in lighthouse improvedlighting selection and configuration methods.
  • 4096 DMX512 channels,120 built-in graphics.300 performances or scenes.
  • Configured 120 computer lights different address code, 120 sets of conventional lamps with different address code.
  • Core Duo processor, 60GB solid state hard drive, 4GB memory.
